Wika Capsule Pressure Gauge Model 612.20.100, 0...60 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272199
Mfg. Part No. : 84272199
SKU : PW40-MBAR-060
Brand :
![WIKA]()
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
WIKA 84272199 — Wika Capsule Pressure Gauge Model 612.20.100, 0...60 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272199. Stocked by Indspare for Kuwait and GCC delivery.

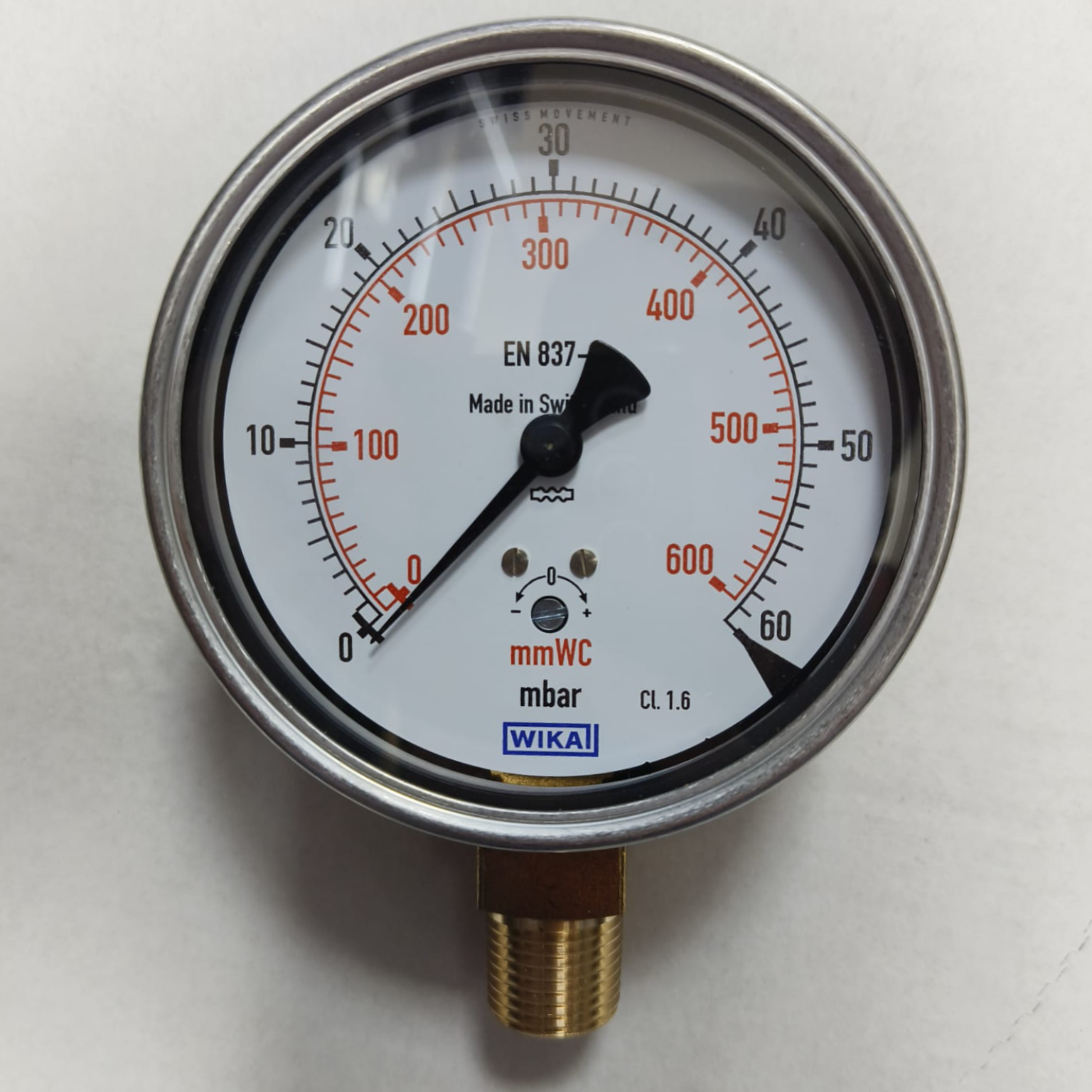

WIKA 612.20.100 capsule pressure gauge specially for very low-pressure measurement from 0…60 mbar. The copper alloy capsule element is particularly sensitive in this range and is suitable for dry, non-aggressive gases. The 100 mm dial shows a 0…60 mbar primary scale with red mmWC secondary scale, giving excellent resolution for fine draft and low-pressure readings. A stainless steel case with bayonet (cam-ring) bezel and flat instrument glass protects the movement and capsule, while the 1/2" NPT lower Mount process connection enables straightforward installation on manifolds, ducts or impulse lines. In line with EN 837-3, the gauge achieves class 1.6 accuracy and typical ambient and medium temperature ranges of -20…+60 °C and up to +100 °C respectively. This configuration is ideal for sensitive draft measurement, filter and blower supervision and level indication at very low pressures.
Key Features
- Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
- Dual scale 0…60 mbar primary & secondary scale mmWC (red).
- 1/2" NPT lower Mount process connection
- Copper alloy capsule measuring system for dry, non-aggressive gases
- Stainless steel case with cam-ring (bayonet) bezel and flat glass window
- Accuracy class 1.6 to EN 837-3
- Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
- High resolution at low pressures for accurate draft and level indication
- Made in Switzerland.
Typical Applications
- Draft and chimney pressure monitoring in boilers, heaters and flues
- Filter and blower differential pressure indication at very low pressures
- Sensitive low-pressure pneumatic control and monitoring
- Level measurement in open tanks using mmWC indication at low ranges
- Laboratory and environmental monitoring of ultra-low gas pressures
Specifications
