Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198

Name: Wika Capsule Pressure Gauge Model 612.20.100 0...100 mbar Dual Scale 4 Dial 1/2 NPT Lower Mount 84272198
Brand: WIKA
SKU: 84272198
Price: 50.000 KWD
Availability: InStock

Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198 - image 2

Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198 - image 3

Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198 - image 4

Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198 - image 5

Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198 - image 6

Mfg. Part No. : 84272198

SKU : PW40-MBAR-100

Brand :

Industrial capsule pressure gauge designed for very low pressure measurement in dry, gaseous, and non-aggressive media. It uses a proven capsule measuring system and is widely suited for vacuum, medical, laboratory, environmental, and filter monitoring applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

Quantity

In Stock · 8 available

Shipping calculated at checkout. Log in for an estimate.

Description

Specifications

Downloads

Description

WIKA 84272198 — Wika Capsule Pressure Gauge Model 612.20.100, 0...100 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272198. Stocked by Indspare for Kuwait and GCC delivery.

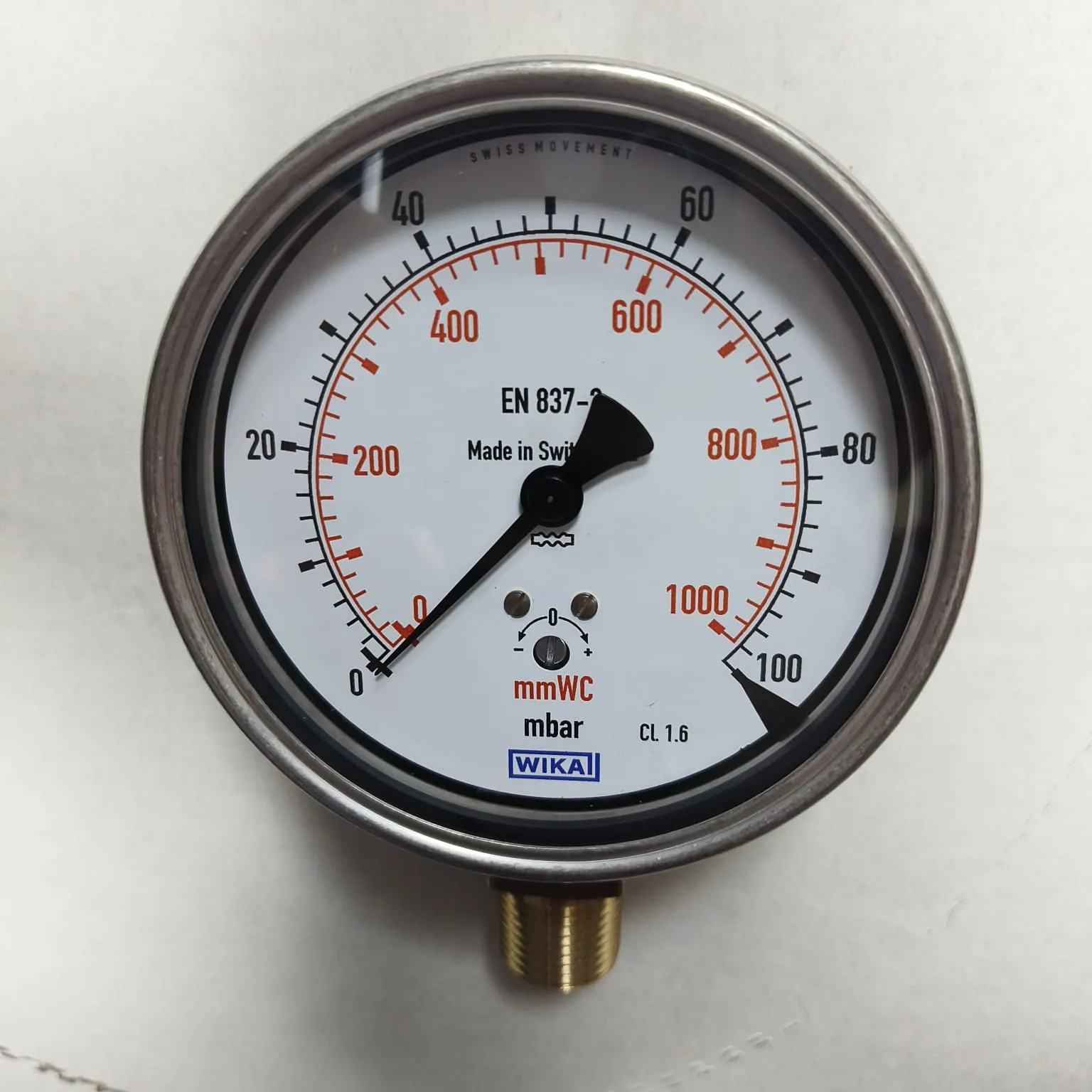

This version of the WIKA 612.20.100 capsule pressure gauge is for very low pressure measurement from 0…100 mbar with mmWC secondary scale on a large 100 mm dial. The copper alloy capsule measuring system is ideally suited for small over-pressures of dry, non-aggressive gases, converting the applied pressure into a proportional movement transmitted to the pointer. A stainless steel case with bayonet (cam-ring) bezel and flat instrument glass provides a durable housing for industrial and HVAC environments. The instrument follows EN 837-3 design requirements for capsule gauges and offers class 1.6 accuracy, with typical ambient temperatures from -20…+60 °C and medium temperatures up to +100 °C. With a 1/2" NPT lower Mount connection, this gauge is ideal for draft measurement, filter and blower monitoring and level indication applications where fine low-pressure resolution in mbar/mmWC is needed.

Key Features

Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
Dual scale 0…100 mbar primary & secondary scale mmWC (red).
1/2" NPT lower Mount process connection
Copper alloy capsule measuring system for dry, non-aggressive gases
Stainless steel case with cam-ring (bayonet) bezel and flat glass window
Accuracy class 1.6 to EN 837-3
Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
High resolution at low pressures for accurate draft and level indication
Made in Switzerland.

Typical Applications

Draft and chimney pressure monitoring in boilers, heaters and flues
Filter and blower differential pressure indication at very low pressures
Sensitive low-pressure pneumatic control and monitoring
Level measurement in open tanks using mmWC indication at low ranges
Laboratory and environmental monitoring of ultra-low gas pressures

Downloads

Wika Datasheet 84272198.pdf

pdf

Download

Wika 612.20 Model Datasheet.pdf

pdf

Download

Wika 612.20 Model Technical Data.pdf

pdf

Download

Wika Pressure Gauge Operating Instructions.pdf

pdf

Download

Specifications

Measuring Range

0...100 mbar

Dial Size

100 mm / 4"

Process Connection

1/2" Male NPT

Accuracy Class

Class 1.6 to EN 837-3

Case Material

Stainless steel case with cam-ring (bayonet) bezel

Wetted Parts

Copper alloy

Window

Flat instrument glass

Ambient Temperature Range

-20...+60 °C

Ingress Protection

IP54

Media Compatibility

Dry, non-aggressive gases that do not corrode copper alloy

Mounting Position

Lower mount
