Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196

Name: Wika Capsule Pressure Gauge Model 612.20.100 0...300 mbar Dual Scale 4 Dial 1/2 NPT Lower Mount 84272196
Brand: WIKA
SKU: 84272196
Price: 50.000 KWD
Availability: InStock

Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196 - image 2

Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196 - image 3

Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196 - image 4

Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196 - image 5

Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196 - image 6

Mfg. Part No. : 84272196

SKU : PW40-MBAR-300

Brand :

Industrial capsule pressure gauge designed for very low pressure measurement in dry, gaseous, and non-aggressive media. It uses a proven capsule measuring system and is widely suited for vacuum, medical, laboratory, environmental, and filter monitoring applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

Quantity

In Stock · 13 available

Shipping calculated at checkout. Log in for an estimate.

Description

Specifications

Downloads

Description

WIKA 84272196 — Wika Capsule Pressure Gauge Model 612.20.100, 0...300 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272196. Stocked by Indspare for Kuwait and GCC delivery.

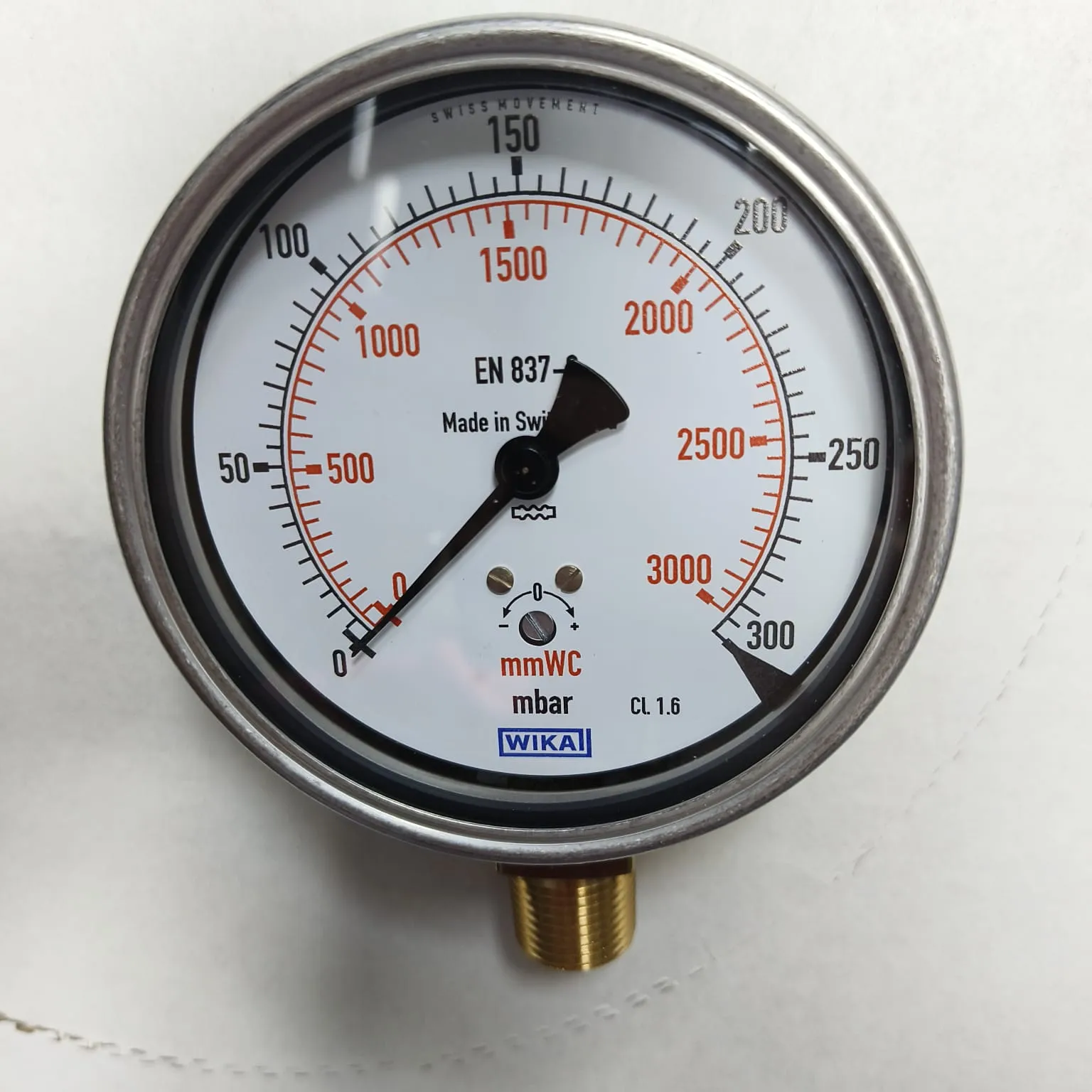

The WIKA 612.20.100 capsule pressure gauge provides accurate measurement of low pressures from 0…300 mbar using a copper alloy capsule measuring system. A 100 mm dial with 0…300 mbar primary scale and red mmWC secondary scale allows easy reading of pressure in mbar and water column units. The instrument is built with a stainless steel case and cam-ring (bayonet) bezel, flat instrument glass window and 1/2" NPT lower Mount process connection, offering a rugged housing for industrial, HVAC and environmental applications. Design and performance are based on EN 837-3 with class 1.6 accuracy and typical permissible ambient temperatures from -20…+60 °C. This configuration is well suited for low-pressure pneumatic systems, filter monitoring and level indication where medium pressure ranges up to 300 mbar are required.

Key Features

Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
Dual scale 0…300 mbar primary & secondary scale mmWC (red).

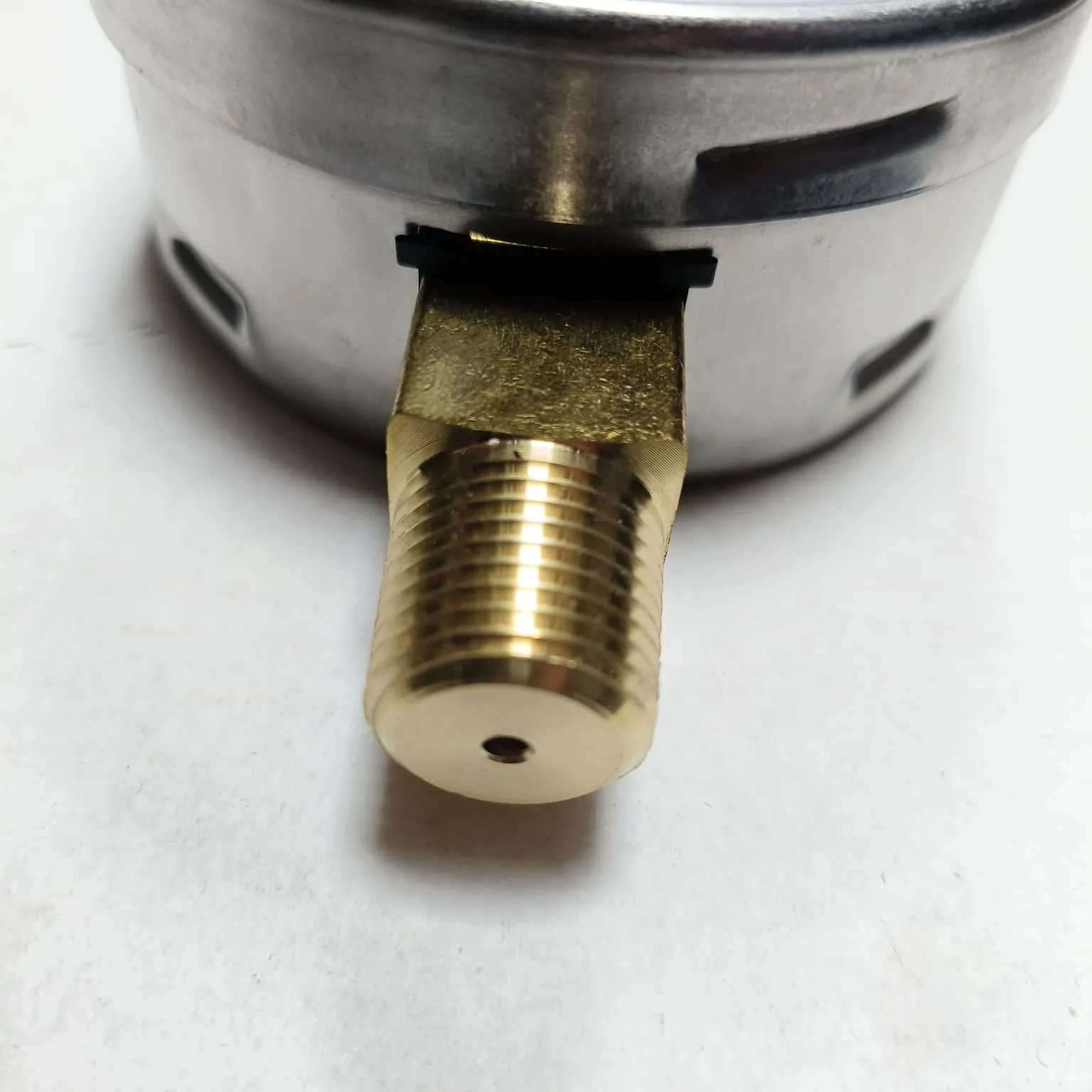

1/2" NPT lower Mount process connection
Copper alloy capsule measuring system for dry, non-aggressive gases

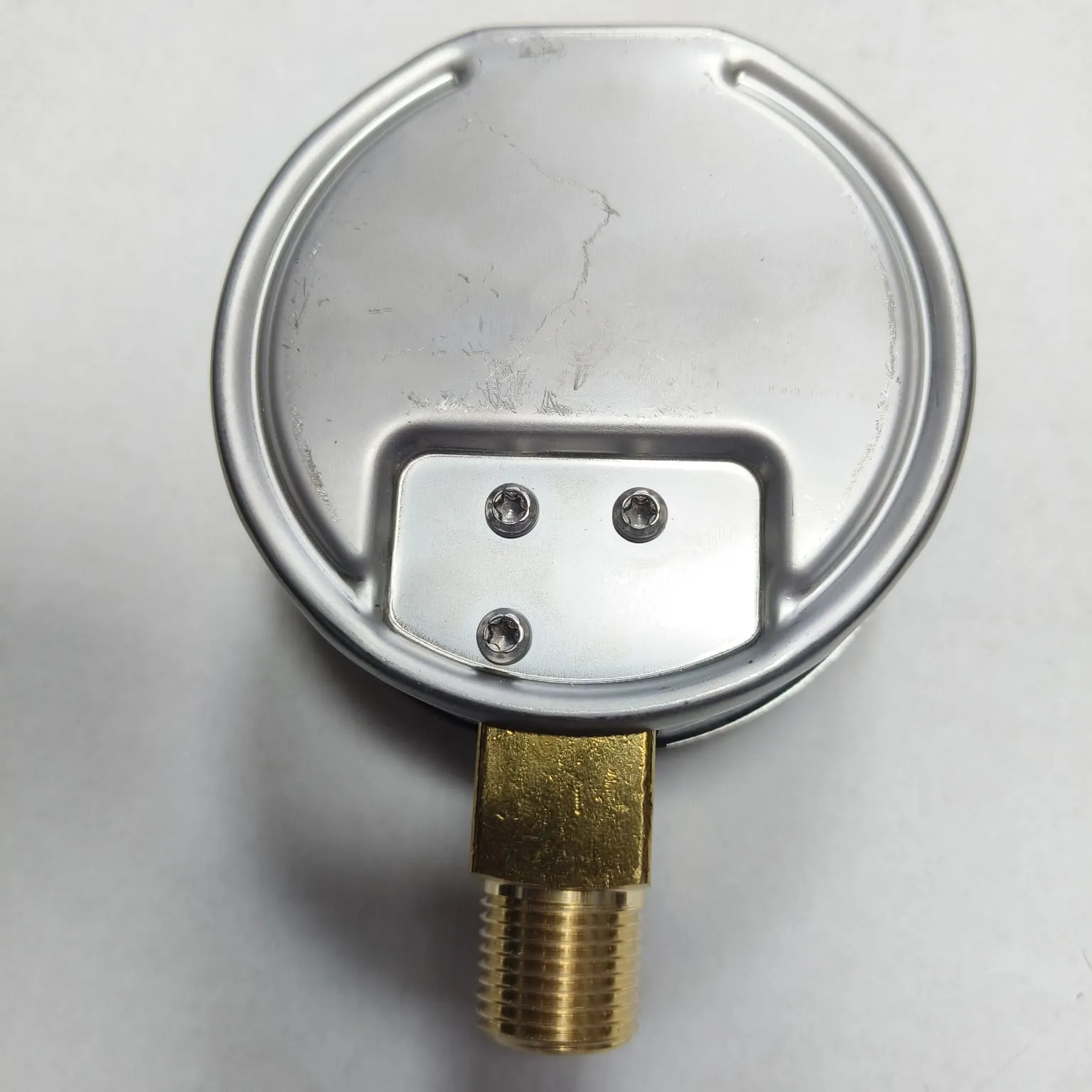

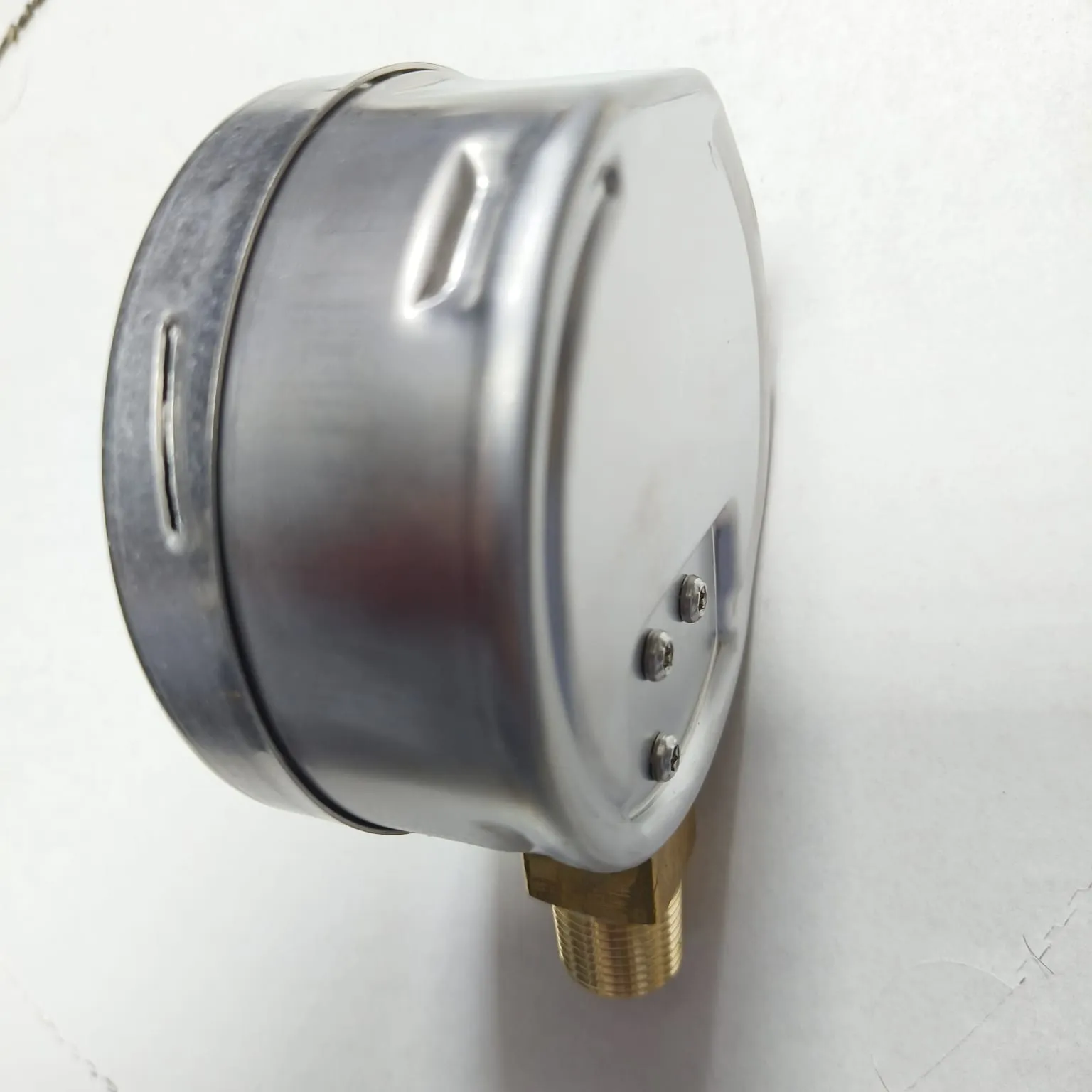

Stainless steel case with cam-ring (bayonet) bezel and flat glass window
Accuracy class 1.6 to EN 837-3
Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
High resolution at low pressures for accurate draft and level indication
Made in Switzerland.

Typical Applications

Draft and chimney pressure monitoring in boilers, heaters and flues
Filter and blower differential pressure indication at very low pressures
Sensitive low-pressure pneumatic control and monitoring
Level measurement in open tanks using mmWC indication at low ranges
Laboratory and environmental monitoring of ultra-low gas pressures

Downloads

Wika Datasheet 84272196.pdf

pdf

Download

Wika 612.20 Model Datasheet.pdf

pdf

Download

Wika 612.20 Model Technical Data.pdf

pdf

Download

Wika Pressure Gauge Operating Instructions.pdf

pdf

Download

Specifications

Measuring Range

0...300 mbar

Dial Size

100 mm / 4"

Process Connection

1/2" Male NPT

Accuracy Class

Class 1.6 to EN 837-3

Case Material

Stainless steel case with cam-ring (bayonet) bezel

Wetted Parts

Copper alloy

Window

Flat instrument glass

Ambient Temperature Range

-20...+60 °C

Ingress Protection

IP54

Media Compatibility

Dry, non-aggressive gases that do not corrode copper alloy

Mounting Position

Lower mount
