Wika Capsule Pressure Gauge Model 612.20.100, 0...600 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272195
Mfg. Part No. : 84272195
SKU : PW40-MBAR-600
Brand :
![WIKA]()
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
WIKA 84272195 — Wika Capsule Pressure Gauge Model 612.20.100, 0...600 mbar, Dual Scale, 4" Dial, 1/2" NPT Lower Mount, 84272195. Stocked by Indspare for Kuwait and GCC delivery.

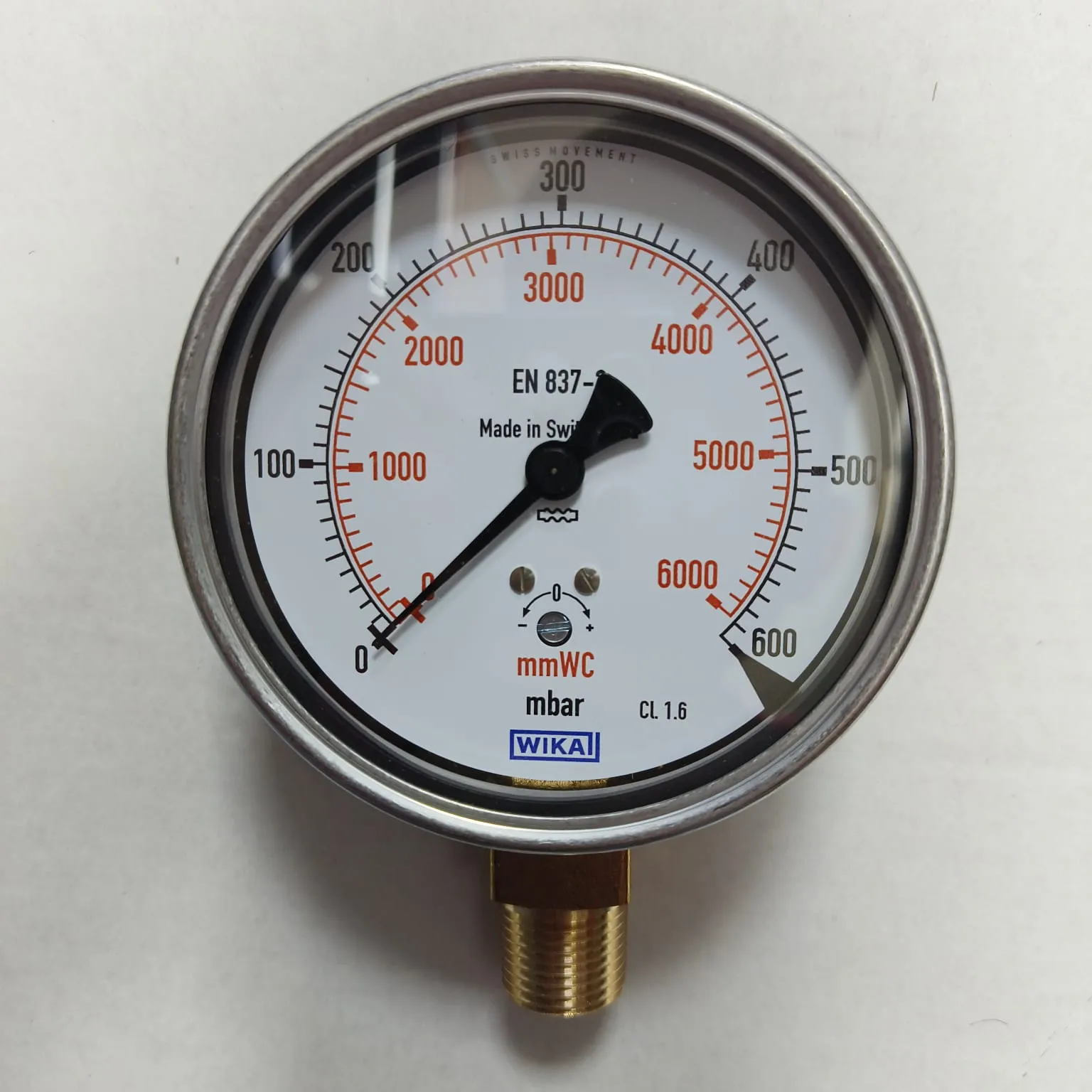

The WIKA 612.20.100 capsule pressure gauge extends the industrial low-pressure series to a 0…600 mbar range for higher low-pressure applications. The copper alloy capsule measuring system is designed specifically for low over-pressures of dry, non-aggressive gases and transmits the applied pressure to a precision pointer mechanism. A 100 mm dial with 0…600 mbar primary scale and red mmWC secondary scale provides clear reading of pressure in both units. The gauge features a stainless steel case with cam-ring (bayonet) bezel, flat instrument glass window and 1/2" NPT lower Mount process connection, offering robust mechanical protection and easy installation. In accordance with EN 837-3, the instrument achieves accuracy class 1.6 and typical temperature limits of -20…+60 °C ambient and up to +100 °C medium. These characteristics make it suitable for filter monitoring, low-pressure gas distribution and level indication in process, HVAC and environmental systems.
Key Features
- Capsule pressure gauge, industrial series model 612.20.100 for ultra-low pressures
- Dual scale 0…600 mbar primary & secondary scale mmWC (red).
- 1/2" NPT lower Mount process connection
- Copper alloy capsule measuring system for dry, non-aggressive gases
- Stainless steel case with cam-ring (bayonet) bezel and flat glass window
- Accuracy class 1.6 to EN 837-3
- Typical ambient temperature -20…+60 °C, medium temperature up to +100 °C
- High resolution at low pressures for accurate draft and level indication
- Made in Switzerland.
Typical Applications
- Draft and chimney pressure monitoring in boilers, heaters and flues
- Filter and blower differential pressure indication at very low pressures
- Sensitive low-pressure pneumatic control and monitoring
- Level measurement in open tanks using mmWC indication at low ranges
- Laboratory and environmental monitoring of ultra-low gas pressures
