Tival Sensors FF 4-2 DAH Pressure Switch, G 3/8" Female Port, 0.11-2 Bar, 1010061
- Mfr. part no.
- 1010061
- SKU
- SWITCH-F-1010061
Specifications
| Model | FF 4-2 DAH |
|---|---|
| Product Type | Mechanical Pressure Switch |
| Measuring Range | Upper switching point 0.11 to 2 bar |
| Port Size | G 3/8" Female Thread |
| Body Material | Die-Cast Aluminium-Alloy |
| Media Compatibility | Mineral Oils, Water and Air |
| Maximum Pressure | 20 bar |
| Permissible Medium Temperature | Up to 70 °C |
| Ingress Protection | IP54 / IP65 |
| Compliance Standards | VDE 0660, IEC 337-1, IEC 553-1 |
Key Features
- Adjustable upper switching point from 0.11 to 2 bar.
- Lower switching point can be adjusted from 0.04 to 1.89 bar.

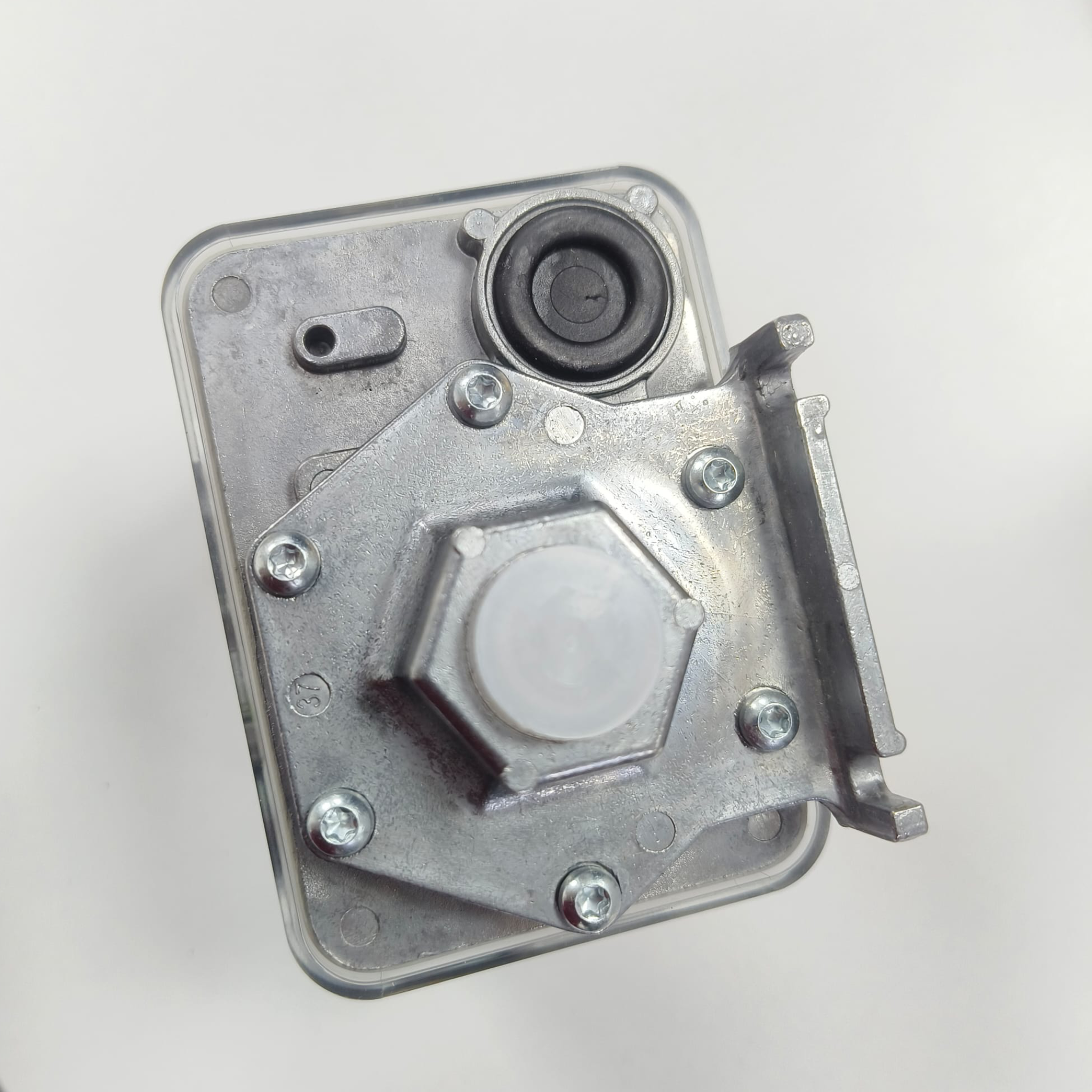

- G 3/8" female ALSi 12 Silumin pressure connection.
- Perbunan diaphragm suitable for mineral oils, water and air.

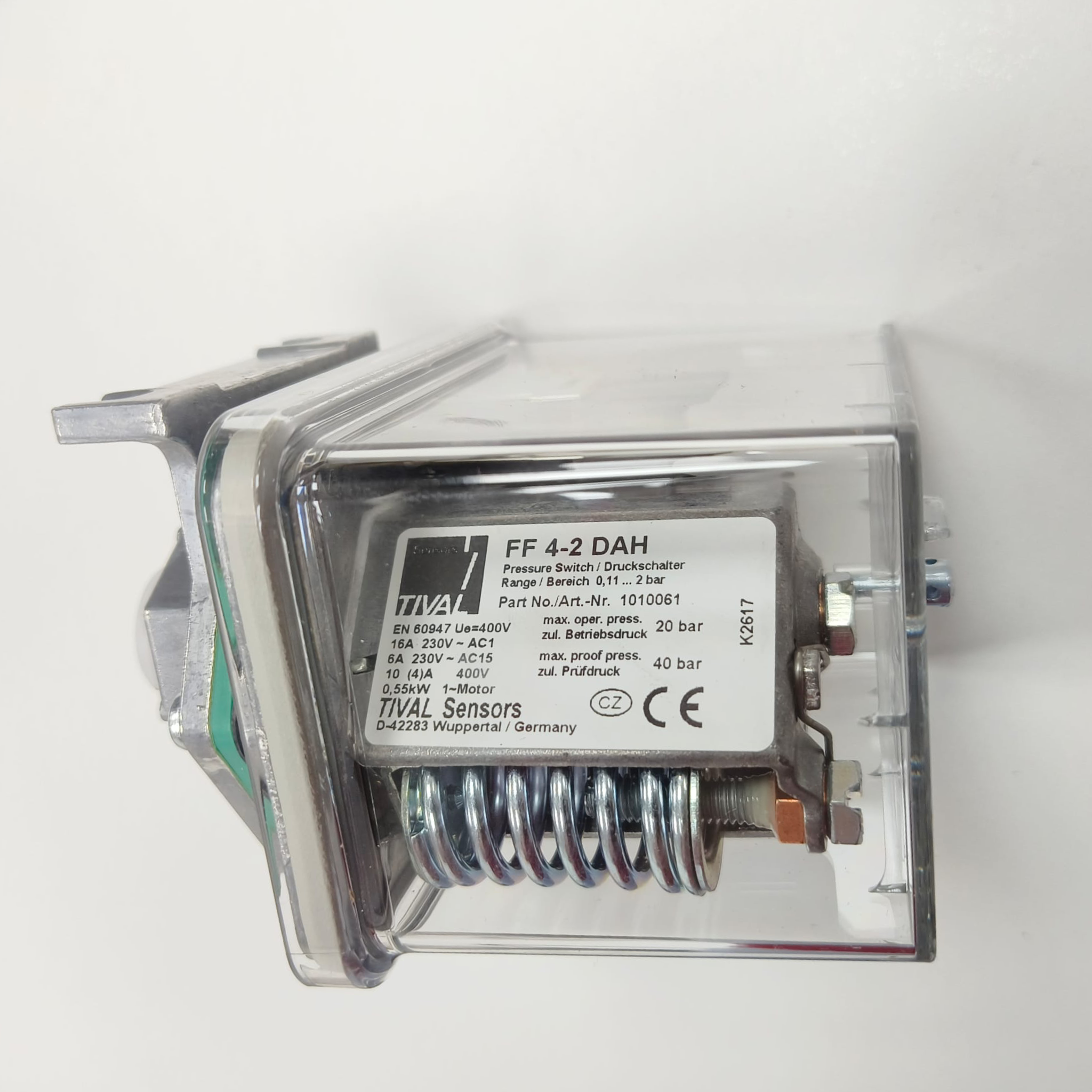

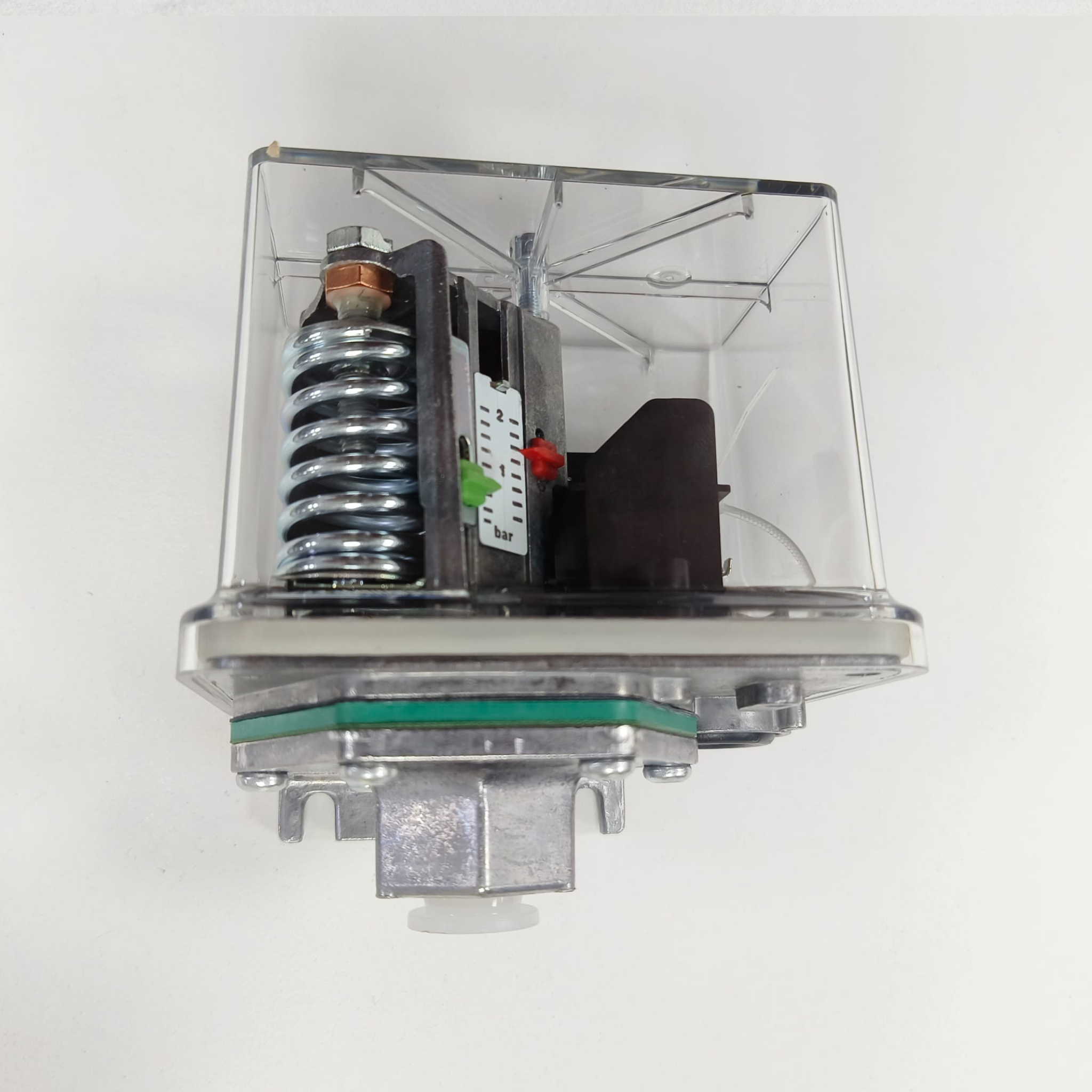

- Transparent polycarbonate cover keeps the scale visible during adjustment.
- Snap-action SPDT contact supports reliable control and alarm switching.
- Made in Czech Republic.
Description
Tival Sensors FF 4-2 DAH pressure switch 1010061 is built for straightforward pressure monitoring and automatic switching in pumps, compressors, lubrication lines and general plant equipment. Its snap-action change-over contact gives flutter-free switching, while the upper switch point can be adjusted from 0.11 to 2 bar and the lower switch point from 0.04 to 1.89 bar. This DAH version uses a Perbunan diaphragm for mineral oils, water and air, an ALSi 12 Silumin G 3/8" female pressure connector, die-cast aluminium-alloy base and an impact-resistant transparent polycarbonate cover, so the scale and switch remain visible and protected during on-site adjustment.
Applications
- Pump and compressor pressure control systems.
- Water booster, firefighting and air compressor equipment.
- Lubrication and cooling circuit pressure monitoring.
- Industrial pipelines, tanks, vessels and machinery protection circuits.
- Control panels where a mechanical pressure switch or pressure control switch is required.
