Sick Through-Beam Photoelectric Sensor Pair, 0-45 m, 10-30V DC, M12 x 4-Pin Male Connector, WSE16P-24162100A00 / 1088329
KWD 81.500
Lead time confirmed on order.
Technical overview

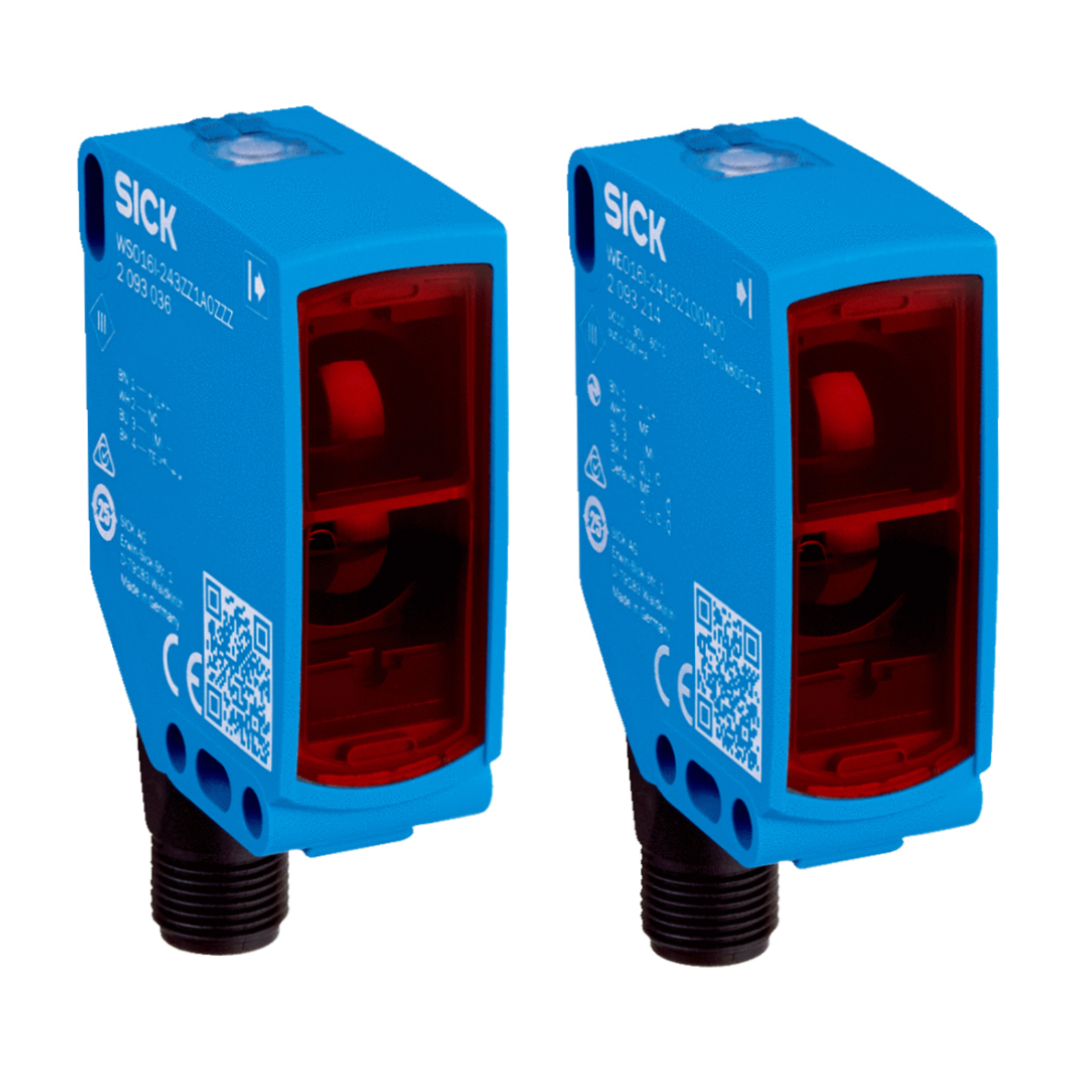

Sick WSE16P-24162100A00 is a complete W16 through-beam photoelectric sensor set for reliable emitter-receiver beam detection in conveyors, gates, packaging lines and machine automation. The set uses a visible red PinPoint LED, BluePilot alignment aid, 0 to 45 m maximum range and 0 to 30 m recommended operating range, with 10 to 30 V DC supply, push-pull PNP/NPN output, light/dark switching, IO-Link V1.1 and M12 4-pin connection. This model considered as a replacement or alternative for SICK WS/WE18-3D460 / 2031731 sensor.
Key Features
- Complete W16 through-beam photoelectric sensor set with sender and receiver.
- Maximum sensing range up to 45 m with 0 to 30 m recommended operating range.
- Visible red PinPoint LED and BluePilot alignment aid for fast setup and signal checking.
- Push-pull PNP/NPN output with light/dark switching and two complementary digital outputs.
- IO-Link V1.1 support for configuration, diagnostics and Smart Task functions.
- M12 4-pin connection with IP66, IP67 and IP69 rated VISTAL housing.
Applications
- Through-beam object detection on conveyors, packaging lines and material handling systems.
- Gate, opening, product flow and presence detection where high operating reserve is needed.
- Industrial automation replacement for sender-receiver photoelectric sensor installations.
Specifications
Product TypeThrough-Beam Photoelectric Sensor Set
Sensing Range0 to 45 m (0-30 recommended)
Power Supply10 to 30 V DC
Output SignalPush-Pull PNP/NPN
Connection TypeM12 x 4-Pin Male Connector
Light SourcePinPoint LED, Visible Red, 635 nm
Response Time≤ 500 µs
Body MaterialPlastic
Ingress ProtectionIP66, IP67, IP69
Ambient Temperature Range-40 °C to +60 °C
