Sick

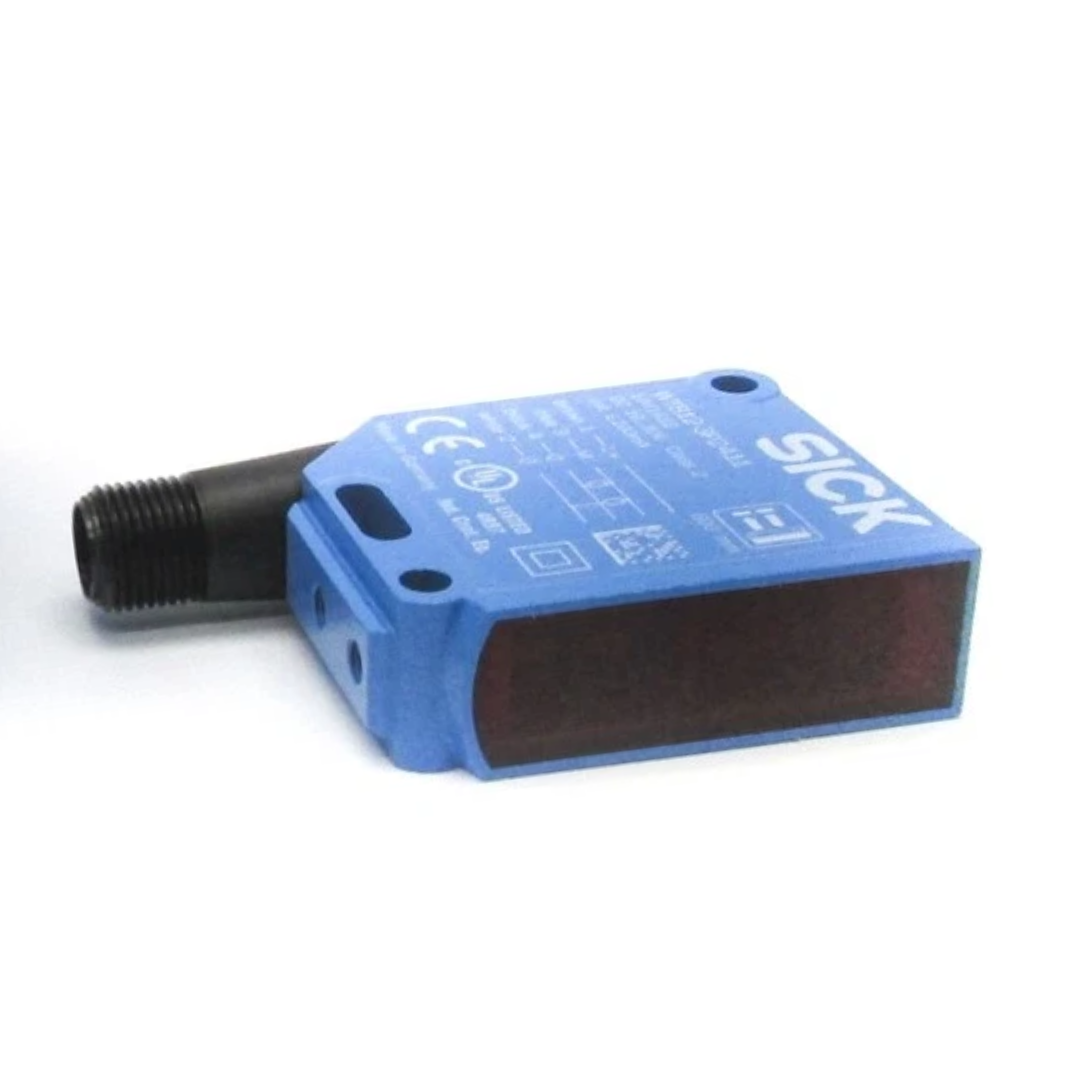

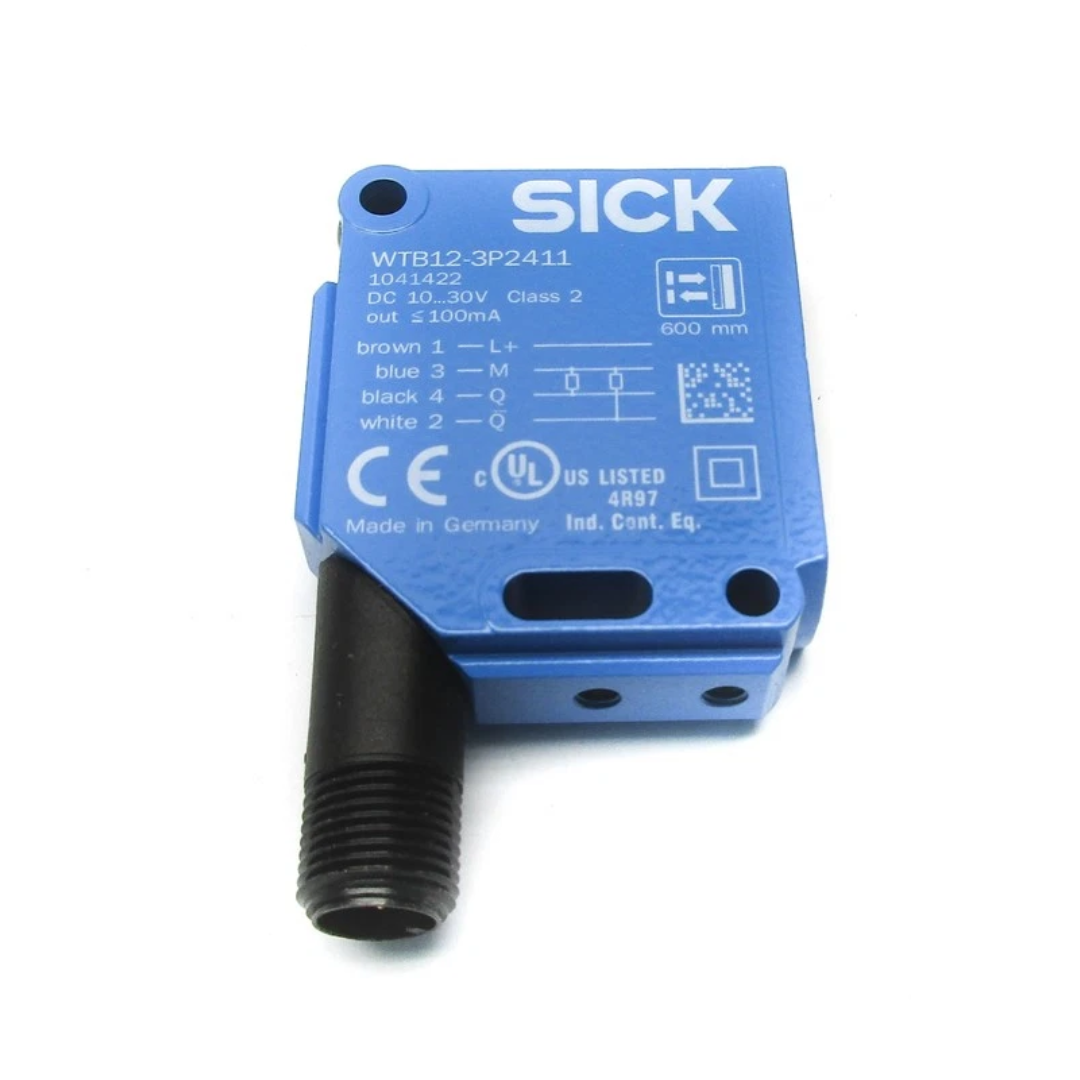

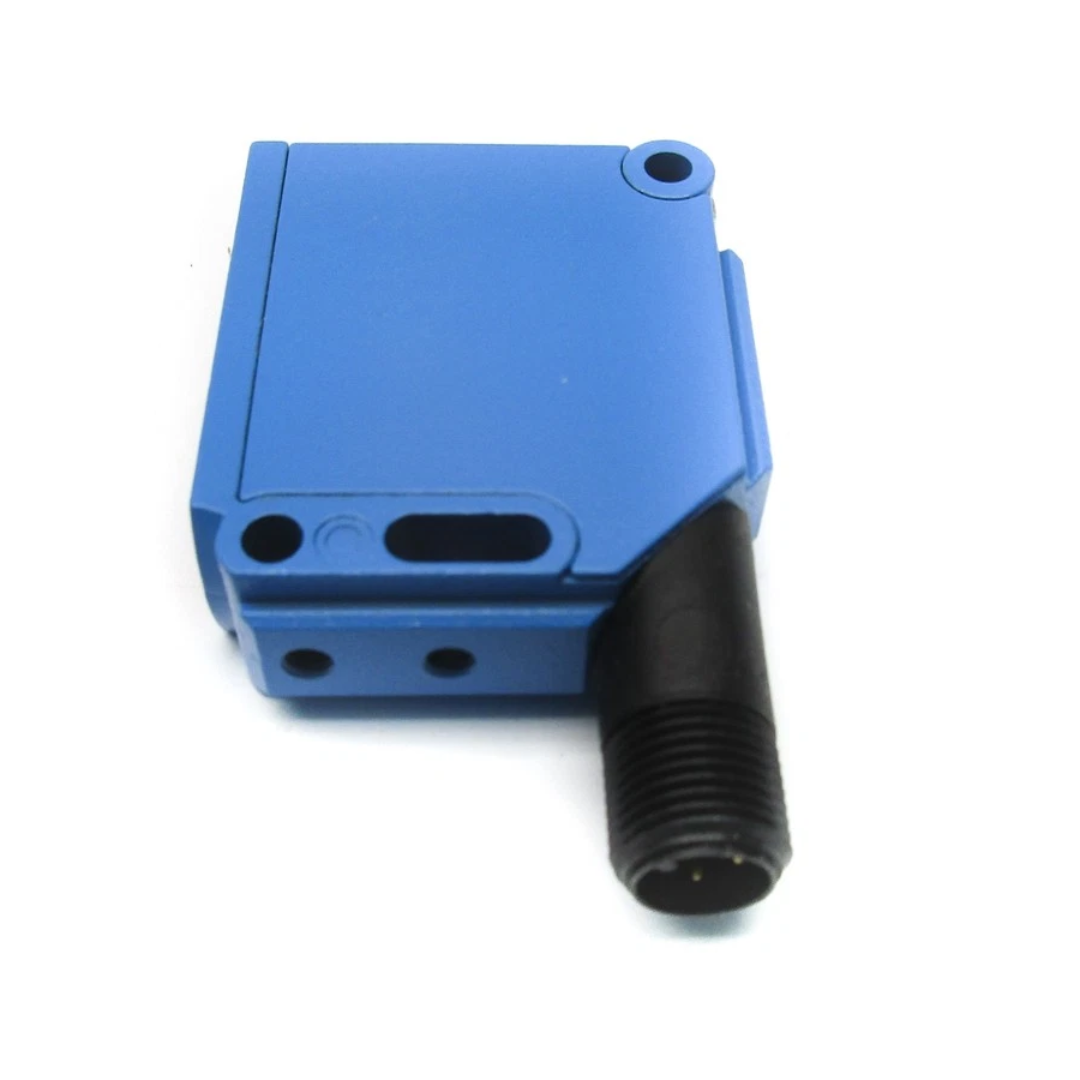

Sick Photoelectric Proximity Sensor, 20-600 mm, 10-30V DC, M12 x 4-Pin Male Connector, WTB12-3P2411 / 1041422
- Mfr. part no.
- WTB12-3P2411 / 1041422
Specifications
| Product Type | Photoelectric Proximity Sensor |
|---|---|
| Sensing Range | 20 to 600 mm |
| Power Supply | 10 to 30 V DC |
| Output Signal | PNP |
| Connection Type | M12 x 4-Pin Male Connector |
| Light Source | Infrared LED, 850 nm |
| Body Material | Metal, Plastic front screen |
| Ingress Protection | IP66, IP67, IP69K |
| Ambient Temperature Range | -40 °C to +60 °C |
Key Features
- W12 series photoelectric proximity sensor with background suppression for stable object detection.
- 20 mm to 600 mm sensing range for short and medium distance detection points.
- Infrared LED light source with 850 nm wavelength and 5-turn potentiometer adjustment.
- PNP complementary output with light/dark switching for flexible PLC input wiring.
- M12 4-pin male connector, rectangular metal housing and PMMA front screen.
- IP66, IP67 and IP69K protection ratings for demanding industrial environments.
Description
Sick WTB12-3P2411 is a compact W12 background suppression photoelectric proximity sensor designed for stable object detection where the background must be ignored. The sensor uses an infrared LED beam, 5-turn potentiometer adjustment, 20 to 600 mm sensing range, PNP complementary light/dark switching output and fast 330 µs response for conveyor, packaging, handling and machine automation applications. Its metal housing, PMMA front screen, M12 4-pin connector and IP66, IP67 and IP69K ratings support demanding industrial sensor replacement and object detection points.
Applications
- Object detection on packaging machines, conveyors and handling systems.
- Position checking where background suppression is needed to ignore rear surfaces.
- Part detection, product flow monitoring and machine automation sensing.
Documents
-
PDF, 551 KB Download
Sick-WTB12-3P2411 — Datasheet
PDF, 551 KB
