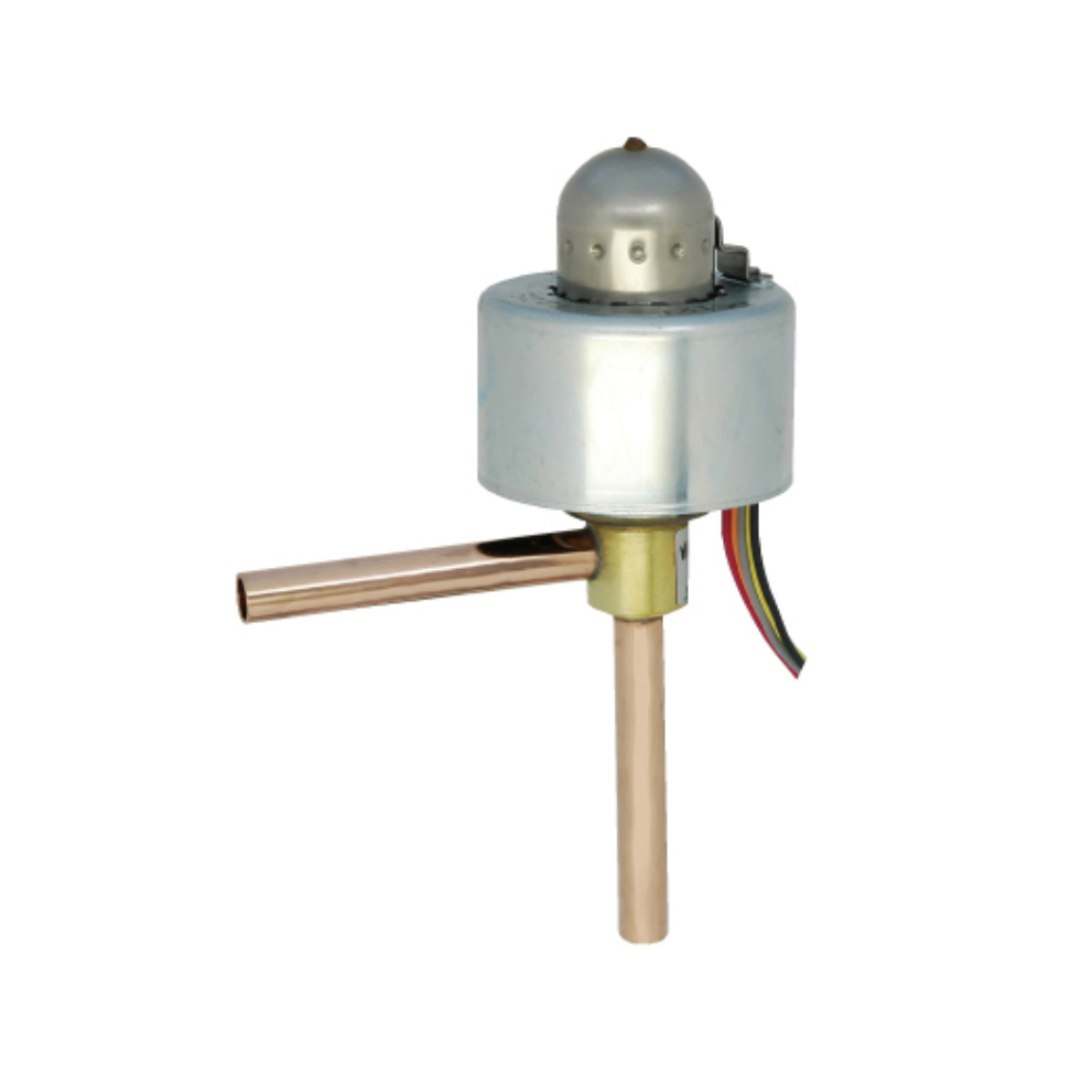

Saginomiya Electronic Expansion Valve Assembly with 12 VDC Coil, VKV40 61 / VKVDC12V
- Mfr. part no.
- VKV40 61 / VKVDC12V
Specifications
| Product Type | Electronic Expansion Valve Assembly |
|---|---|
| Coil Voltage | 12 V DC with 0.38 A/Phase |
| Orifice Size | 4.0 mm |
| Connection Size | (12.7 mm) 1/2" |
| Connection Type | Solder |
| Maximum Pressure | 45 bar |
| Maximum Differential Pressure | 25 bar |
| Maximum Reverse Pressure | 3 bar |
Key Features
- Electronic expansion valve and coil assembly for refrigerant flow control
- Stepper-motor actuation supports accurate pulse-based valve positioning
- 4.0 mm orifice size for VKV 40 capacity range applications
- 12.7 mm × 12.7 mm solder connections for refrigeration piping
- 45 bar maximum working pressure with bi-flow operating capability
- 12 VDC coil with 0.38 A per phase control input
Description

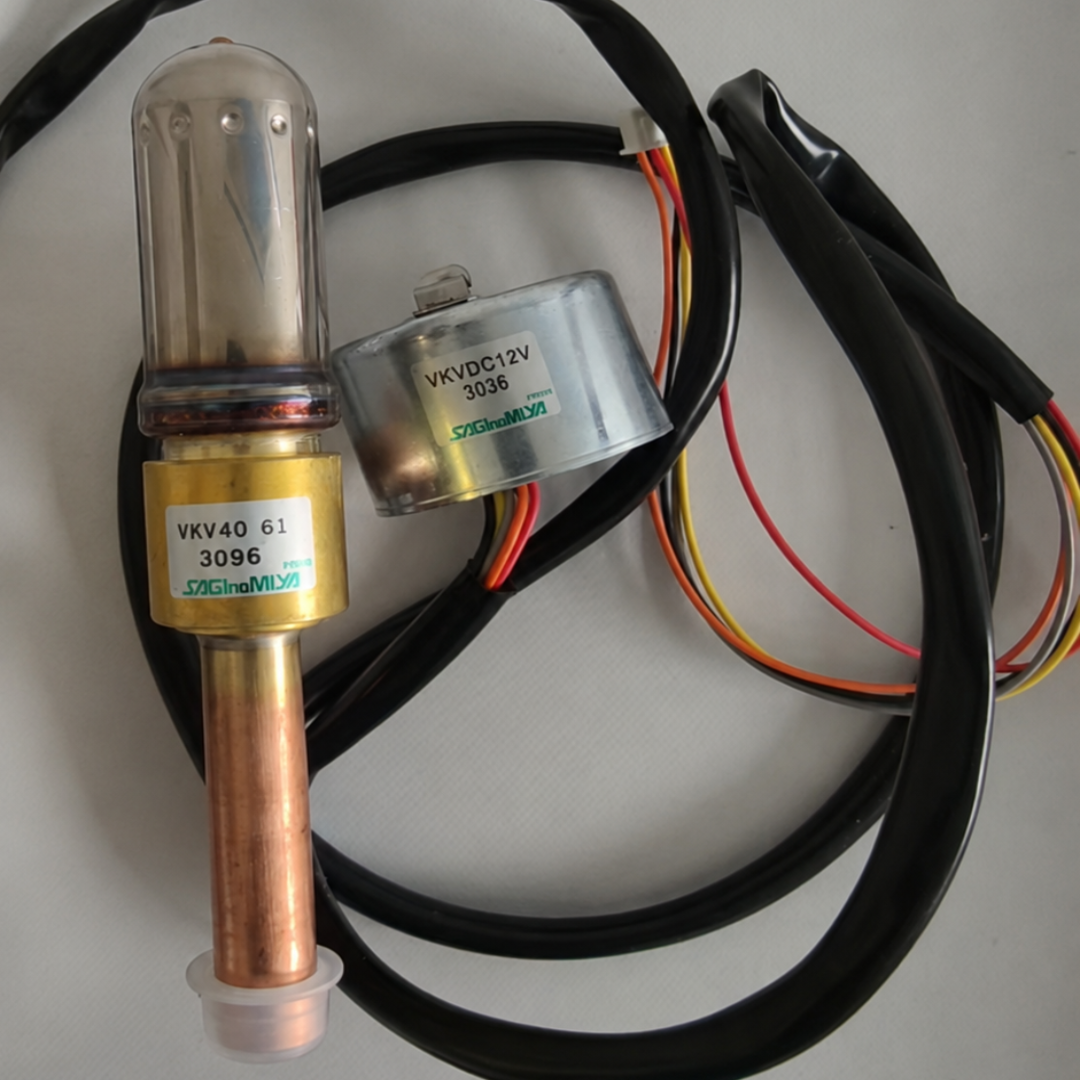

Saginomiya VKV40 61 / VKVDC12V is an electronic expansion valve assembly used to meter and regulate refrigerant flow in air conditioning, refrigeration, heat pump and chiller equipment. The valve operates through a magnet-needle and screw mechanism driven by electrical pulse signals from the surrounding stepper-motor coil, allowing accurate opening control from 0 to 480 pulses without holding power. It supports a 4.0 mm orifice, (12.7 mm) 1/2" solder connections, 45 bar maximum working pressure, 25 bar maximum operating pressure differential, 3 bar maximum reverse pressure and bi-flow operation for common refrigerants such as R22, R134a, R404A, R407C and R410A. The matching 12 VDC coil data supports 0.38 A per phase, IP66 enclosure protection and Class E insulation for reliable actuation in refrigeration control circuits. Cross reference note: the visible valve marking VKV40 61 and coil marking VKVDC12V are used as the item identification, while the current references are VKV-40D61 / 061L4168 for the valve body and VKV-MOZS243B0 / 061L4171 for the 12 VDC coil.
Applications
- Air conditioning refrigerant metering circuits
- Commercial refrigeration and freezer equipment
- Water chillers and packaged cooling systems
- Heat pump systems requiring bi-flow refrigerant control
- Refrigerated display cases and process cooling units
