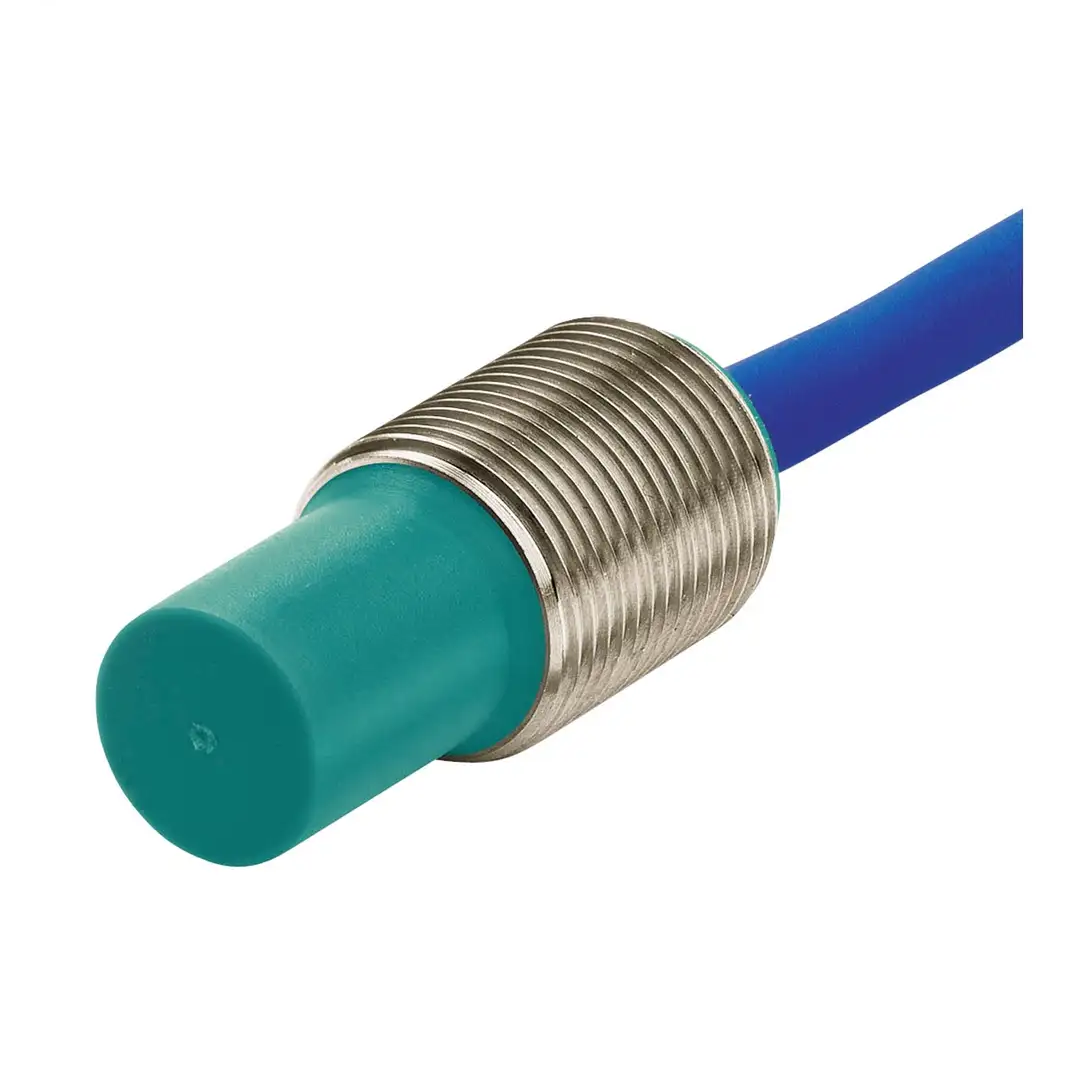

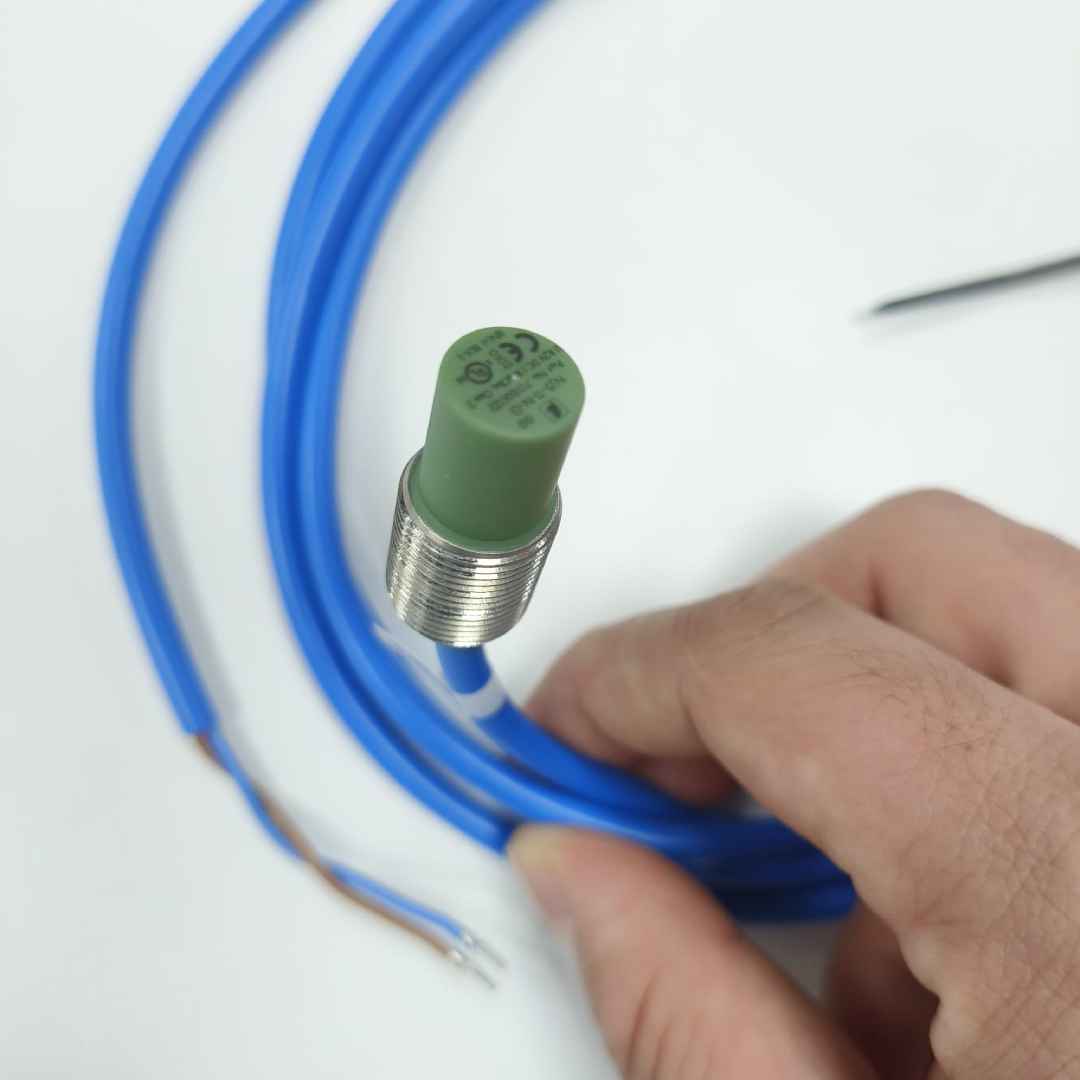

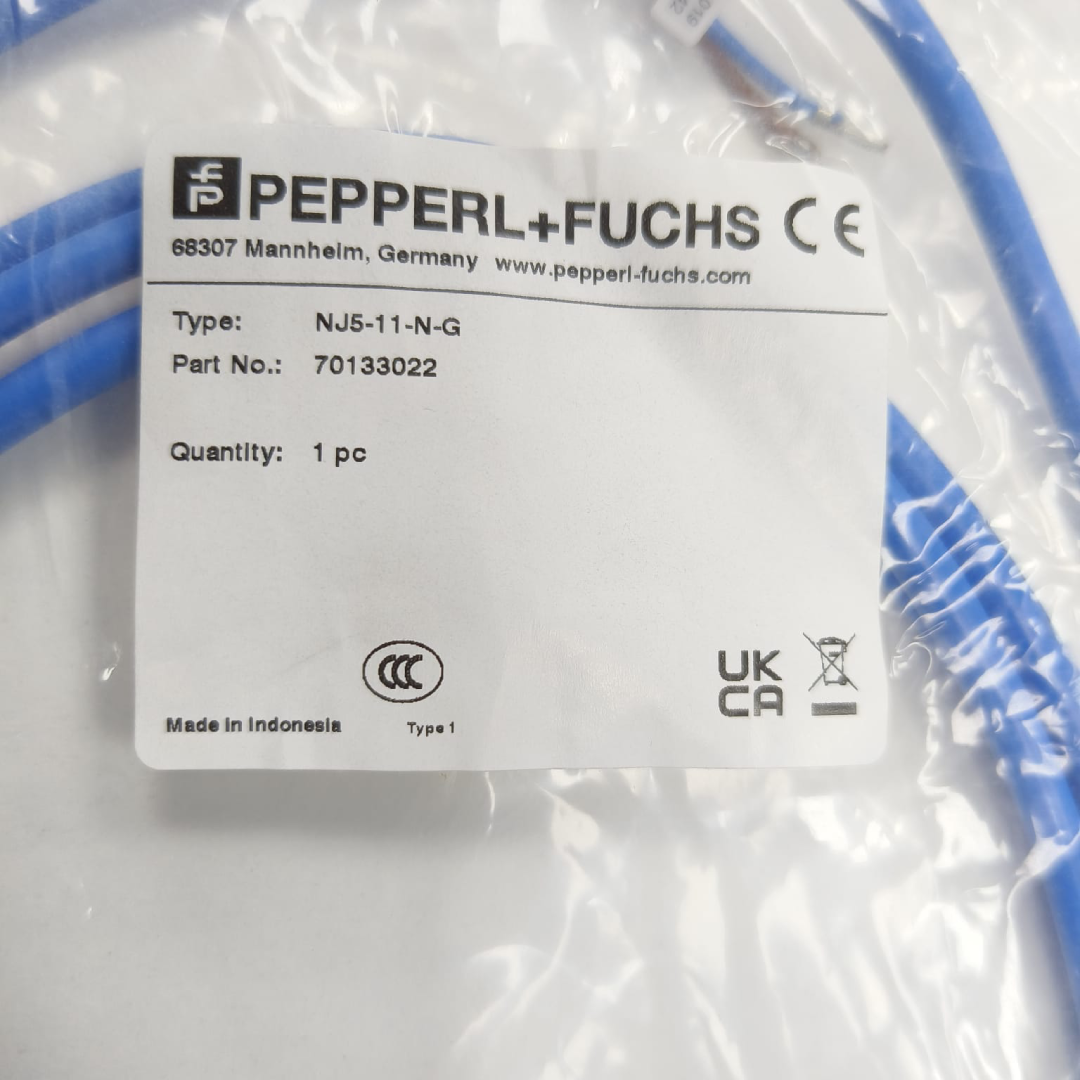

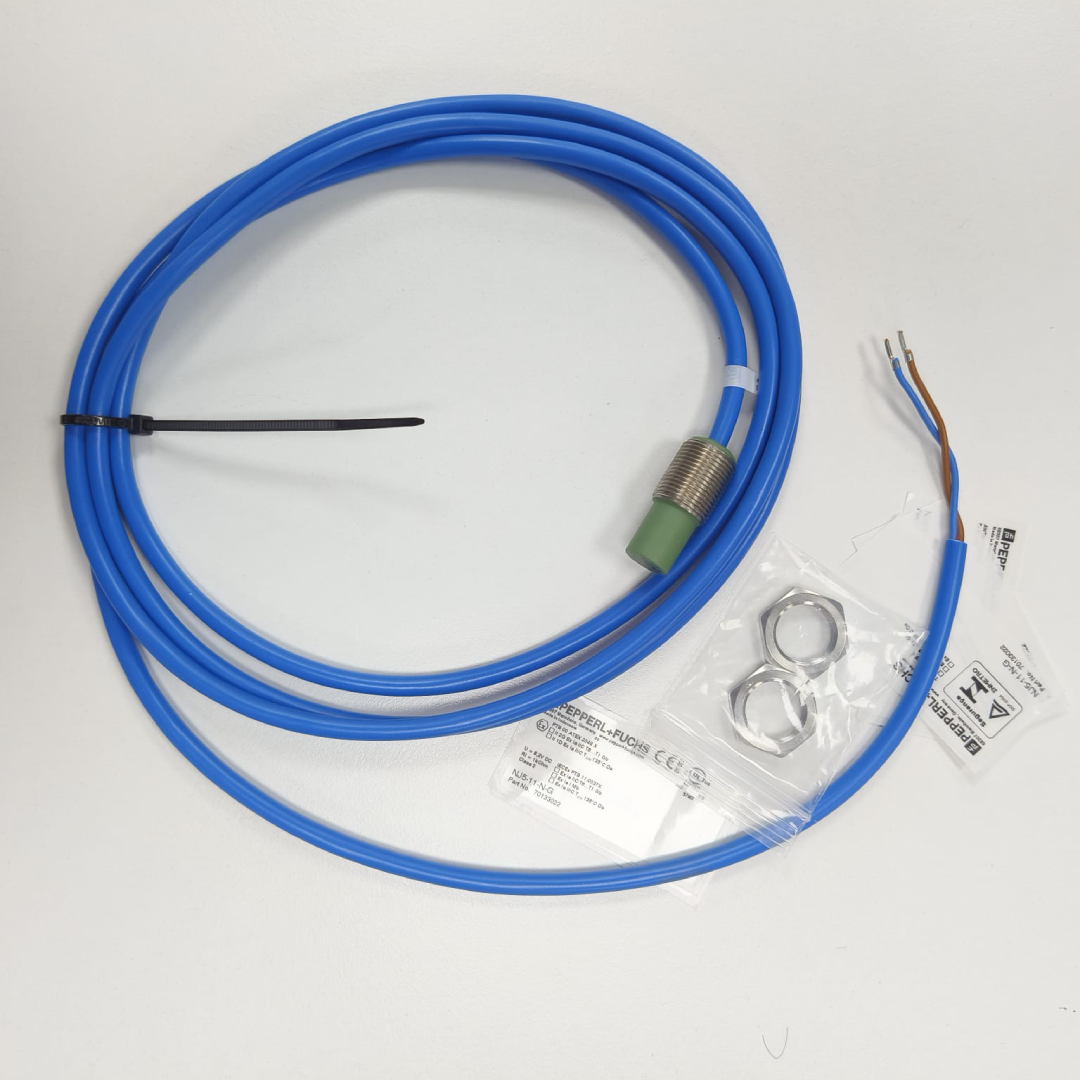

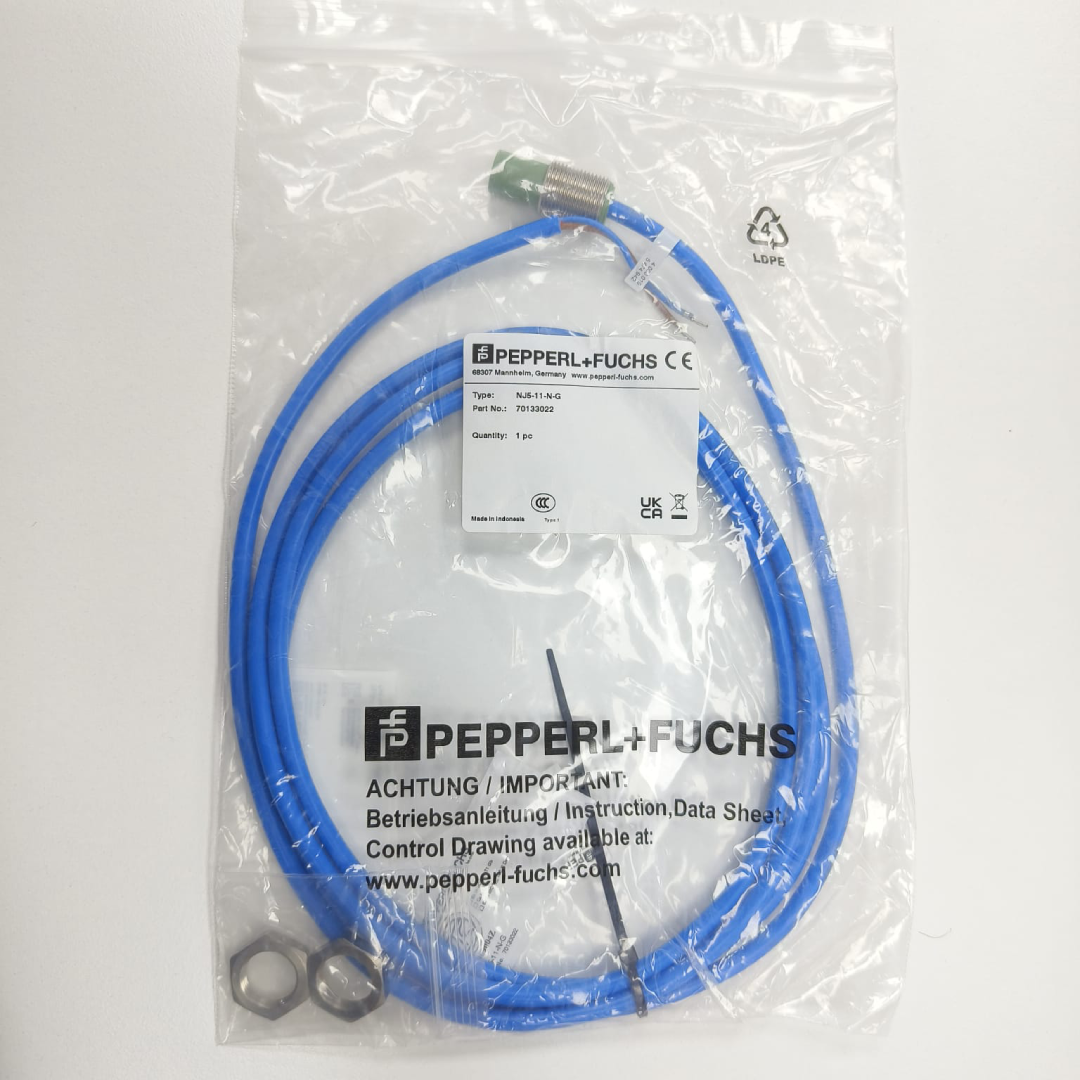

Pepperl+Fuchs NJ5-11-N-G Inductive Proximity Sensor, 5 mm, NAMUR Output, 2 Mtr Cable, 70133022
Pepperl+Fuchs

Pepperl+Fuchs NJ5-11-N-G Inductive Proximity Sensor, 5 mm, NAMUR Output, 2 Mtr Cable, 70133022

Mfr. part no.
70133022
SKU
IS-PF-NJ5-11-N-G

Specifications

Sensing Range 5 mm
Output Signal NAMUR, 2-wire, Normally Closed (NC)
Rated Voltage 8.2 V DC
Installation Type Non-flush
Cable Length 2 m
Ingress Protection IP68
Model NJ5-11-N-G

Key Features

  • 5 mm rated inductive sensing distance
  • NAMUR 2-wire normally closed output
  • Non-flush M14 × 1 stainless-steel housing
  • Fast switching frequency up to 3000 Hz
  • 2 m PVC cable for direct connection
  • IP68 protection for demanding industrial environments
  • Usable up to SIL 2 according to IEC 61508
  • Made in Indonesia.

Description

The Pepperl+Fuchs NJ5-11-N-G is an inductive proximity sensor for reliable non-contact detection of metallic targets in industrial automation and machinery. It provides a 5 mm rated operating distance with a NAMUR 2-wire normally closed output, nominal voltage of 8.2 V DC and switching frequency up to 3000 Hz. The sensor uses a non-flush M14 × 1 stainless-steel housing, a 2 m PVC cable and IP68 protection, with an ambient operating range of -25°C to +100°C. It is suitable for position detection, limit sensing, machine monitoring and automation applications, and can be used up to SIL 2 according to IEC 61508.

Applications

  • Non-contact detection of metallic objects
  • Machine position and end-position sensing
  • Industrial automation and control systems
  • Conveyor and material handling equipment
  • Speed, presence and limit monitoring
  • Safety-related automation applications requiring SIL 2 capability

Documents

  • Pepperl Fuchs-NJ5-11 N G — Datasheet

    PDF, 690 KB
