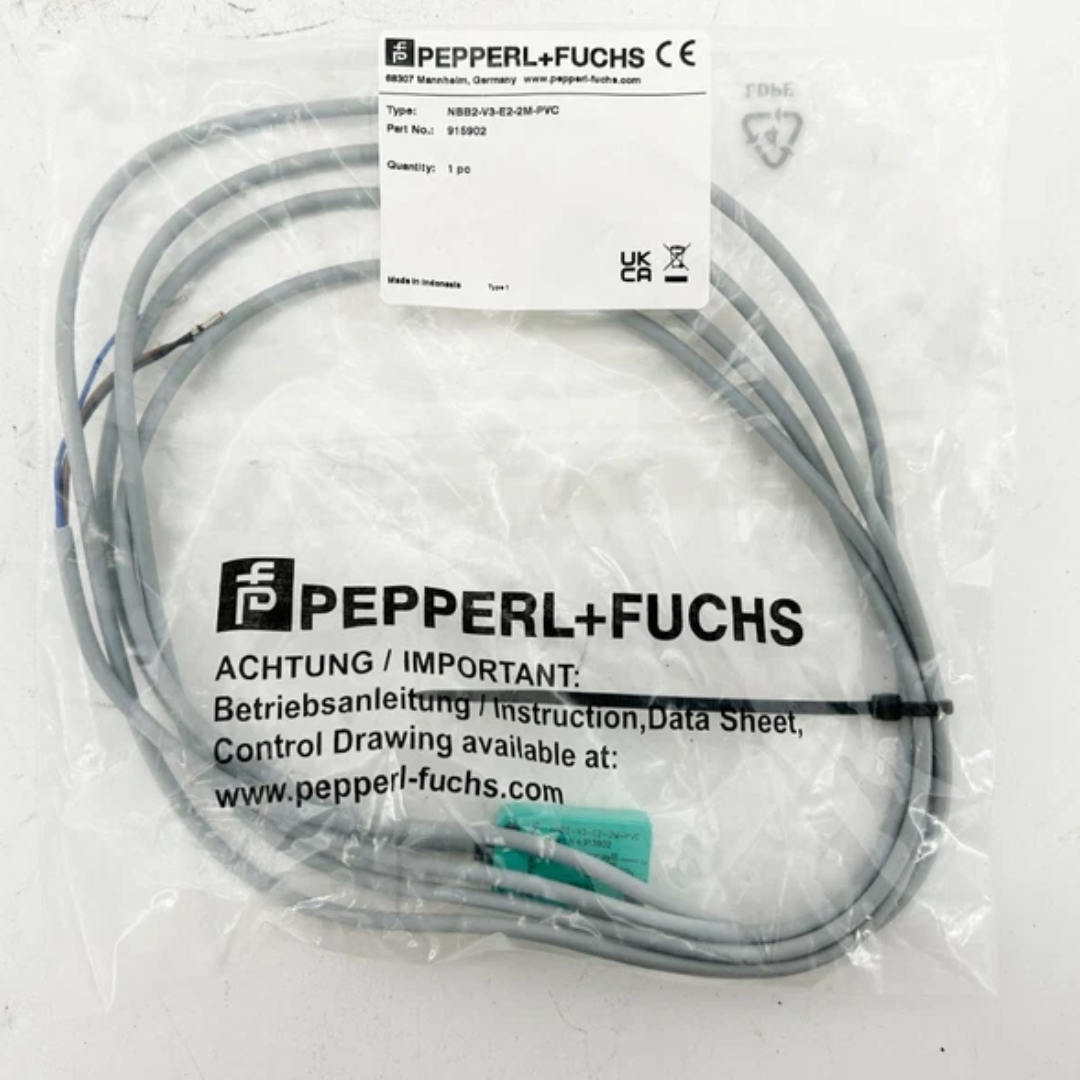

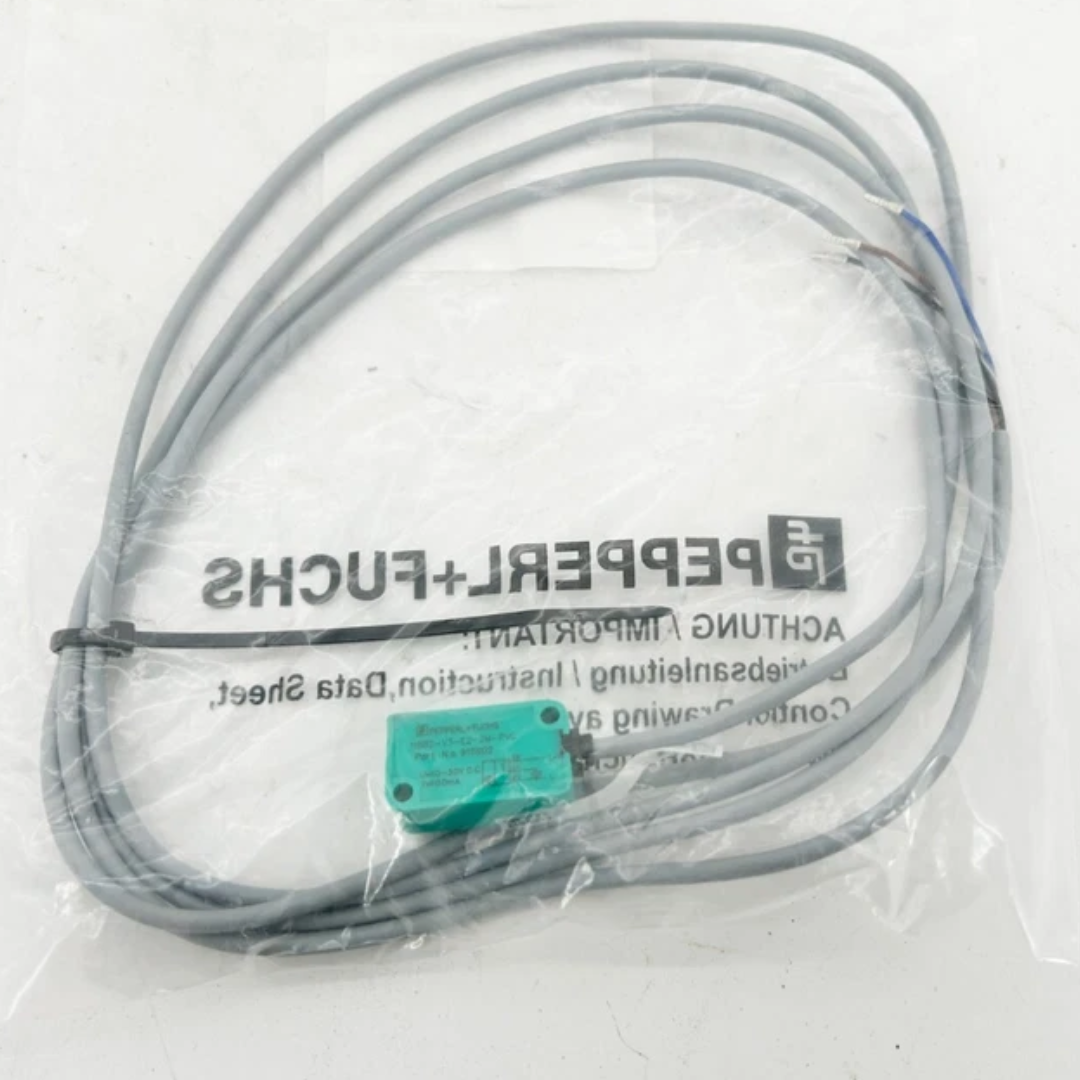

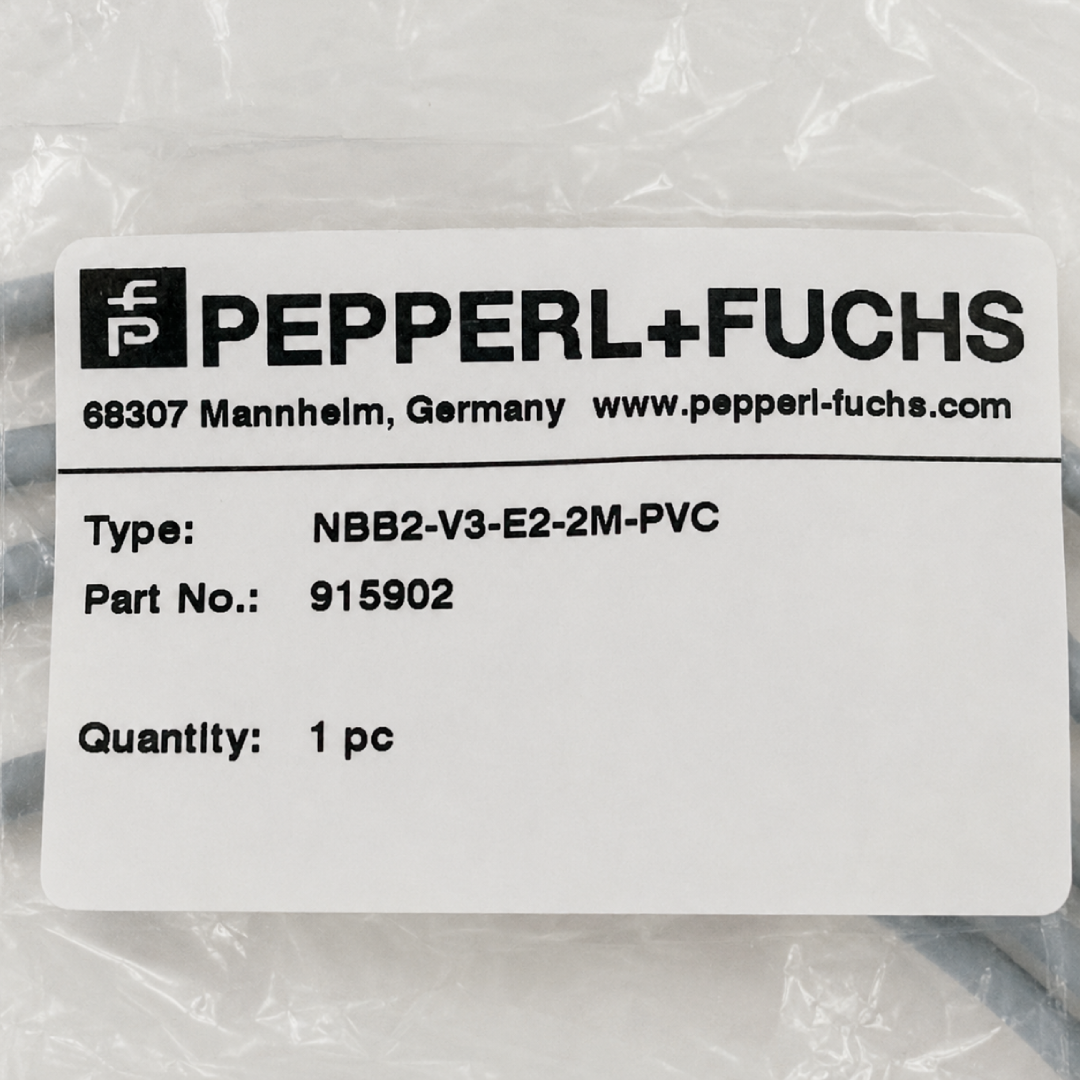

Pepperl+Fuchs Inductive Proximity Sensor, 2m Cable, PNP, 10-30V DC, NBB2-V3-E2-2M-PVC / 915902
KWD 11.000
Lead time confirmed on order.
Technical overview
Pepperl+Fuchs NBB2-V3-E2-2M-PVC is a compact Basic Series inductive proximity sensor for non-contact metal target detection in tight automation spaces. It provides 2 mm flush sensing, 10 to 30 V DC operation, PNP normally open 3-wire output and a 2 m grey PVC cable for direct machine wiring. The PBT housing, yellow switching LED, reverse polarity protection, pulsing short-circuit protection and IP67 rating make it suitable for position sensing, actuator end detection, fixtures, guards and general industrial replacement sensor use.
Key Features
- Compact Pepperl+Fuchs Basic Series inductive proximity sensor for non-contact metal detection.
- Flush mountable 2 mm rated sensing distance for space-limited machine installations.
- 3-wire DC PNP normally open output for common PLC and control panel inputs.
- 10 to 30 V DC supply with reverse polarity and short-circuit protection.
- Integrated yellow LED indicates switching state during commissioning and service checks.
- PBT housing, PVC cable and IP67 protection suit industrial automation use.
Applications
- Metal part presence detection in machinery and automation equipment.
- End-position sensing for small actuators, slides, guards and fixtures.
- PLC input signal detection in packaging, assembly and material handling machines.
Specifications
Product TypeInductive Proximity Sensor
Output SignalPNP, Normally Open (NO)
Sensing Range2 mm
Installation TypeFlush
Power Supply10 to 30 V DC
Connection Type2m Cable, 3-Wire DC
Body MaterialPBT
Ingress ProtectionIP67
Ambient Temperature Range-25 °C to +70 °C
