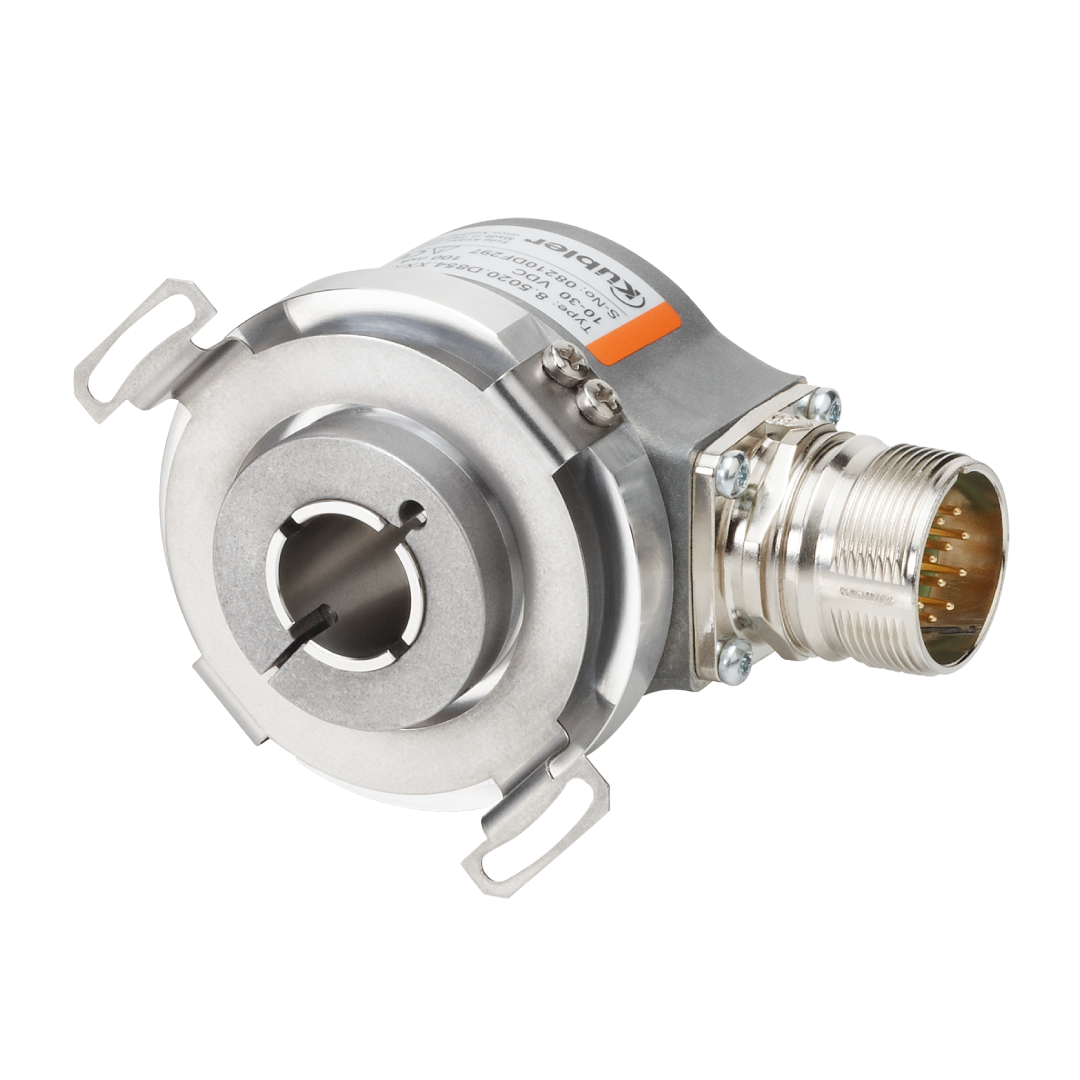

Kubler Sendix 5020 Incremental Hollow Shaft Rotary Encoder, 12 mm, 1024 PPR, M23 12-pin Connector, 8.5020.1544.1024
- Mfr. part no.
- 8.5020.1544.1024
Specifications
| Product Type | Incremental Rotary Encoder |
|---|---|
| Measuring System | Optical |
| Shaft Type | Through Hollow Shaft |
| Inside Diameter | 12 mm |
| Resolution | 1024 PPR |
| Output Signal | RS422 with Inverted Signals |
| Power Supply | 5 VDC |
| Electrical Connection | Radial M23, 12-pin |
| Ingress Protection | IP66/IP67 |
| Ambient Temperature Range | -40 °C to +85 °C |
| Maximum Speed | 6000 min⁻¹ |
| Body Material | Die-Cast Metal |
Key Features
- Optical incremental encoder for speed and position feedback
- 12 mm through hollow shaft for direct shaft mounting
- 1024 PPR resolution for accurate pulse feedback
- 5 VDC RS422 output with inverted signals
- Radial M23 12-pin connector for secure electrical connection
- Safety-Lock bearing design for high vibration resistance
- Rugged housing with protection up to IP66/IP67
Description
Kubler Sendix 5020 is a standard optical incremental encoder designed for reliable speed and position feedback on rotating shafts in motors, drives, machinery, conveyors and automation equipment. The encoder uses a hollow shaft design for direct mounting, Safety-Lock bearing construction for improved resistance to vibration and installation errors, and a rugged die-cast housing with high ingress protection for demanding industrial environments. This configured version provides 1024 pulses per revolution, 5 VDC RS422 output with inverted signals, 12 mm through hollow shaft, radial M23 12-pin connection and wide operating temperature capability for machine control and motion monitoring applications. This product is the current standard Sendix 5020 successor for discontinued Kubler 8.5820.0812.1024.
Applications
- Motor speed feedback systems
- Industrial automation machinery
- Conveyors and material handling equipment
- Packaging and printing machines
- Drive control and motion monitoring applications
- Rotating shaft position feedback systems
