Gemu 0324 3/2-Way Pilot Solenoid Valve, G 1/4" Port, DN 2, 24V DC Coil, 0324 2M1474 41C1010607B4K3

Mfr. part no.: 0324 2M1474 41C1010607B4K3
SKU: PN-PLT-302-04-GEMU

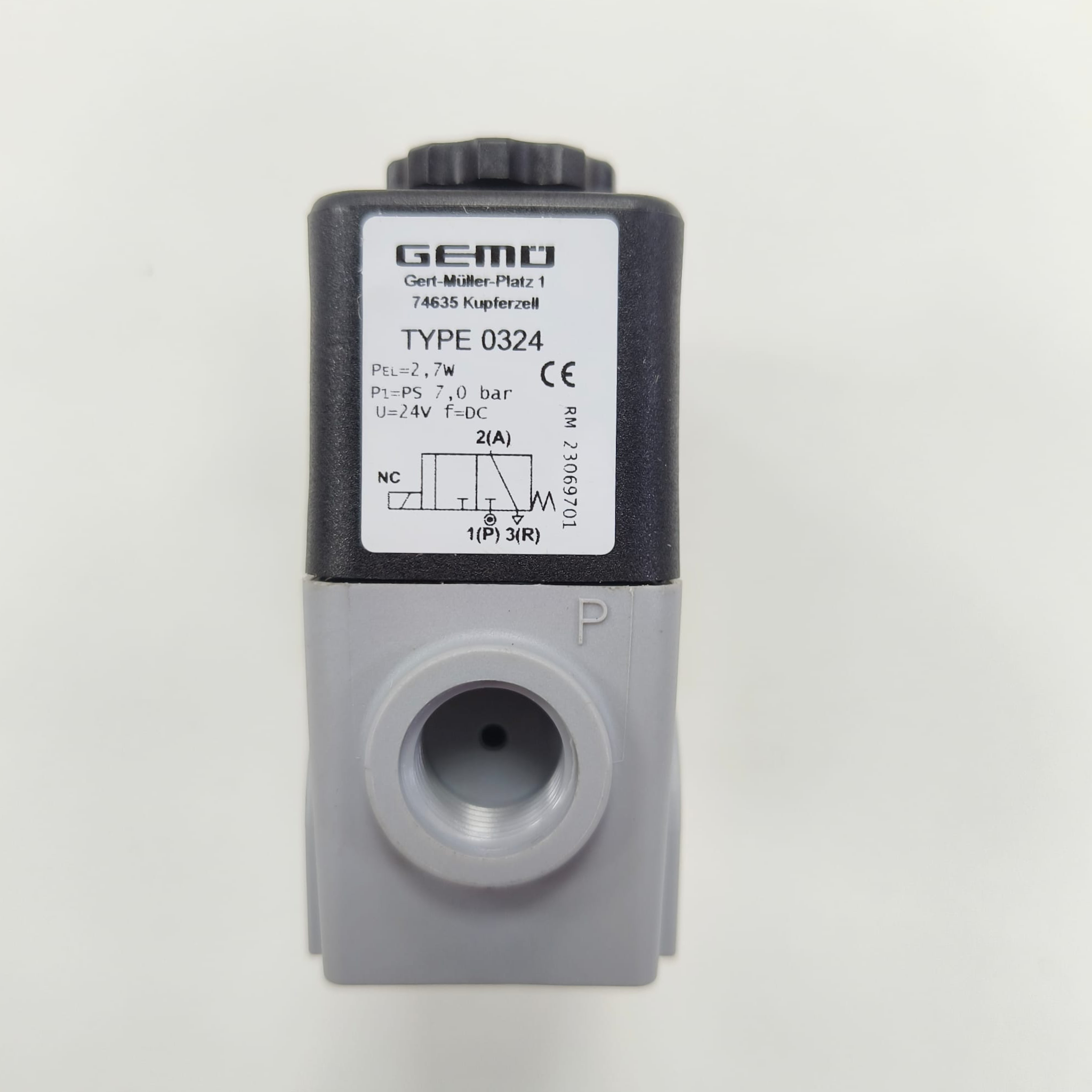

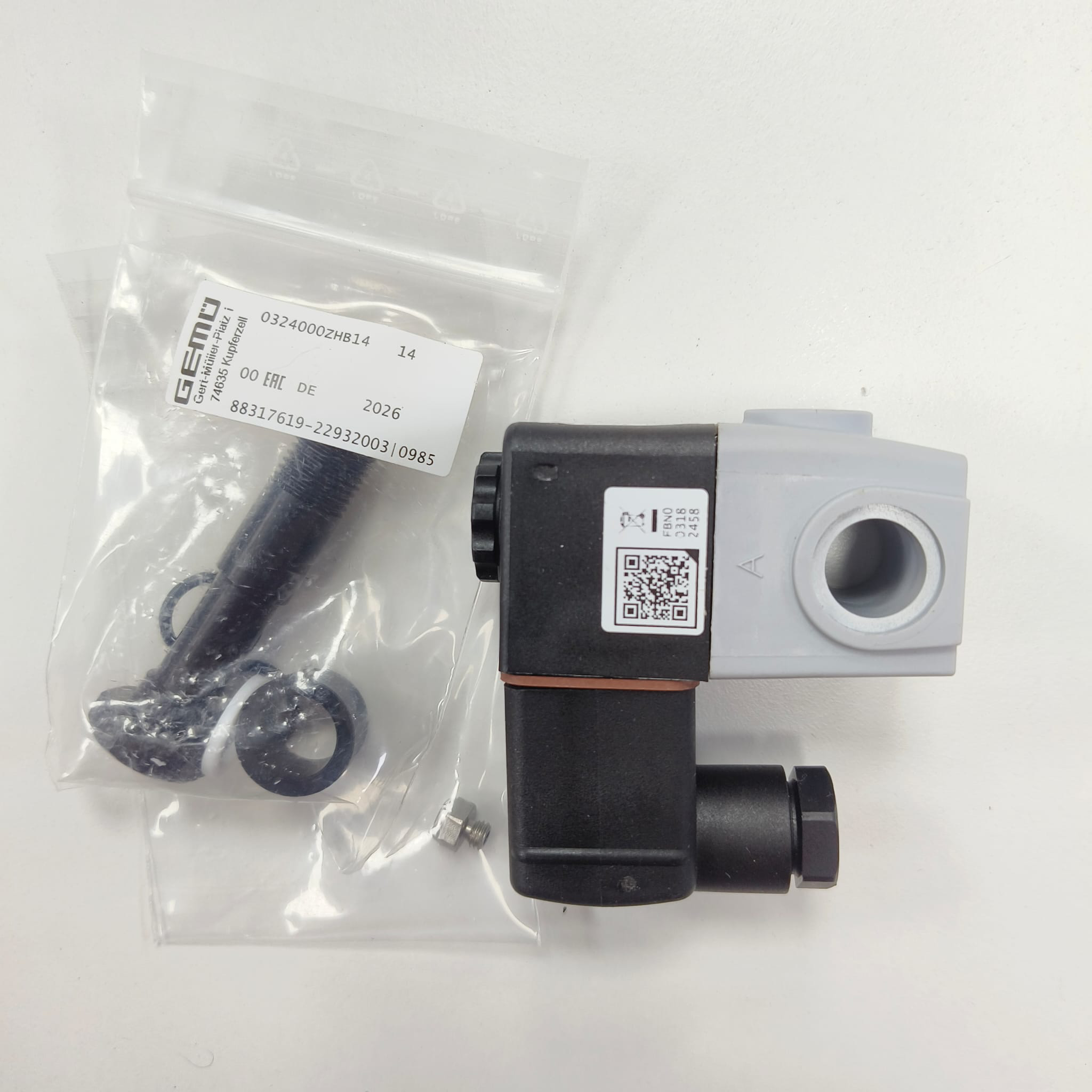

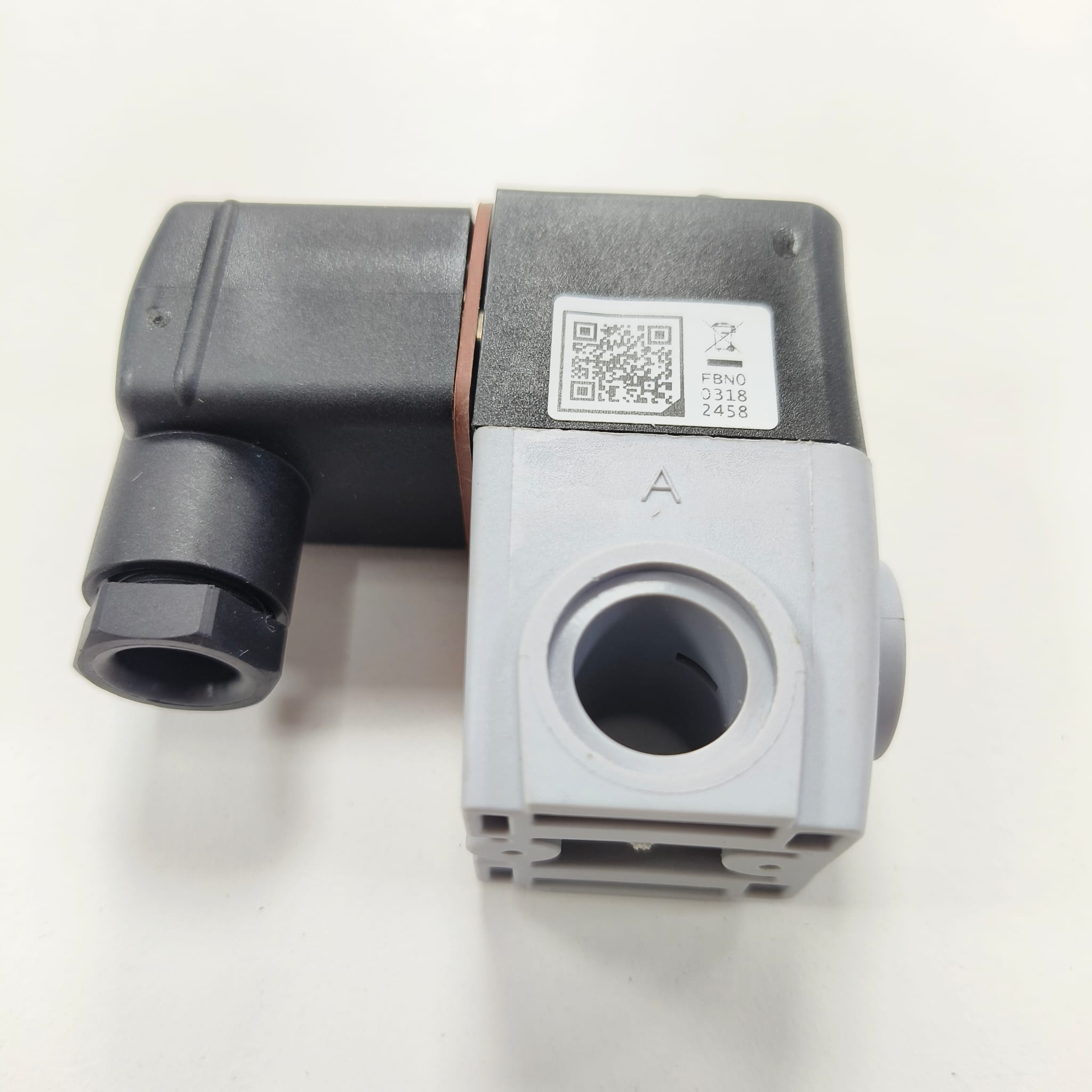

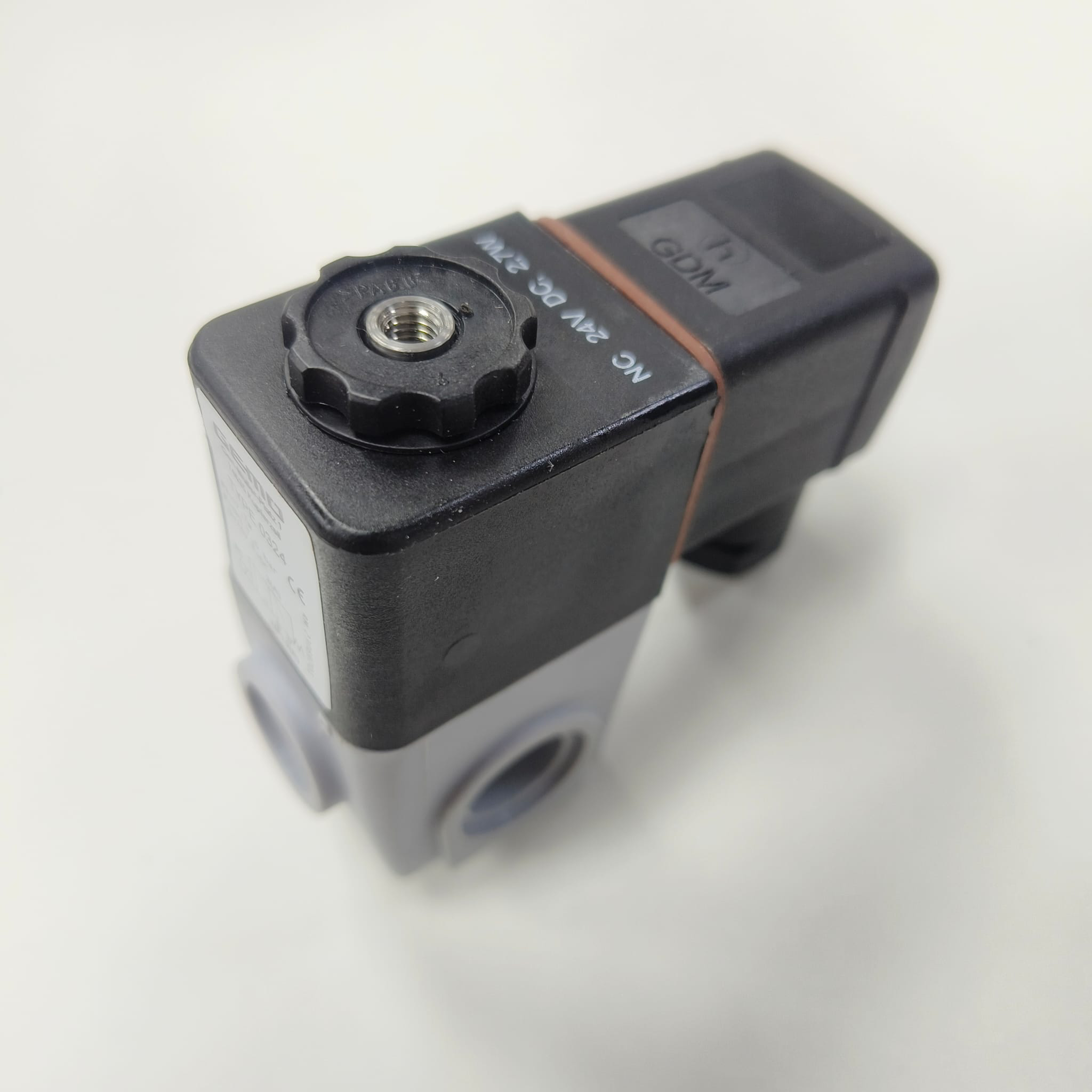

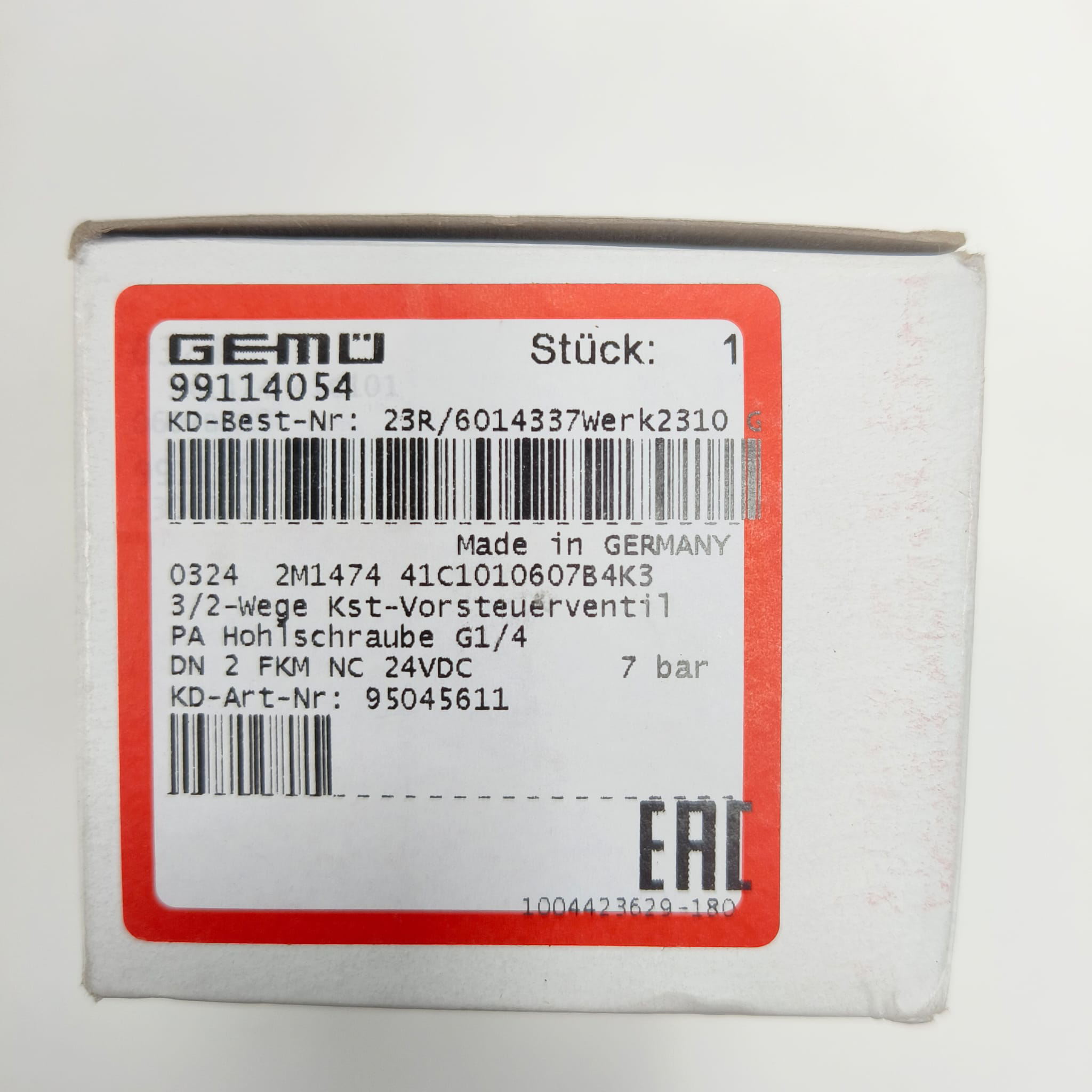

Gemu 0324 is a directly controlled 3/2-way plastic pilot solenoid valve for operating pneumatically actuated process valves. This exact 24 V DC normally closed version is supplied with DN 2 size, G 1/4" threaded hollow-bolt connection and plug design A electrical connection.

2 documents 1 cross-reference

Specifications

Model	0324
Product Type	Directly Controlled Pilot Solenoid Valve
Valve Function	3/2-Way Normally Closed (NC)
Port Size	G 1/4 Threaded Socket DIN ISO 228 With Hollow Bolt
Electrical Connection	Plug Design A
Coil Voltage	24 V DC
Power Consumption	2.7 W
Maximum Pressure	7 bar
Body Material	PA Polyamide / PBT Valve Body Components
Seal Material	FKM / FPM
Ingress Protection	IP65

Key Features

Directly controlled 3/2-way plastic pilot solenoid valve.
Designed for direct mounting to pneumatically operated valves.
DN 2 nominal size with G 1/4 threaded hollow-bolt connection.
24 V DC normally closed operation for pilot air control.
Plug design A electrical connection for common industrial wiring.
PA, PBT, aluminium and FKM/FPM material construction as per product data.
Made in Germany.

Description

Gemu 0324 2M1474 41C1010607B4K3 / 99114054 is a compact 3/2-way plastic pilot solenoid valve designed for direct mounting to pneumatically operated process valves. This 24 V DC normally closed unit uses DN 2 nominal size, G 1/4 threaded socket with hollow bolt and plug design A electrical connection for clean compressed-air pilot circuits. Material details include PA/polyamide valve body/solenoid material, PBT valve body components, PA plug, PA 6 coil housing, aluminium hollow bolt and FKM/FPM seals, making it a serviceable pilot valve for automation panels, valve control stations and pneumatic process valve actuation. This valve type 0324 is the equivalent replacement model for the discontinued Gemu type 324-1.

Applications

Pilot actuation of pneumatic process valves.
Control air circuits in automation panels and valve stations.
Water treatment, chemical, industrial utility and process automation systems.
Machine pneumatic control where a compact 3/2 solenoid valve is required.
Replacement or spare use for installed Gemu 0324 valve assemblies.

Documents

Gemu-0324 Solenoid Valve — Datasheet

PDF, 2.4 MB

PDF, 2.4 MB Download
Gemu-0324 Solenoid Valve Operating — Instructions

PDF, 2.7 MB

PDF, 2.7 MB Download

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

Bürkert 334870

Bürkert Type 6014 3/2-way pilot solenoid valve, G1/4", DN2, 24V DC, NC, plastic body

Bürkert Type 6014 is a miniature 3/2-way normally closed solenoid valve specifically designed as a pilot valve for pneumatically operated process valves. It offers G1/4 threaded connection, DN2 nominal orifice, 24V DC coil, plastic (PA) body, and FKM seals — closely mirroring the GEMU 0324 specification. It is widely stocked across GCC distributors and accepted as a direct replacement in valve control panels.

Specifications of the Bürkert part

Function: 3/2-way normally closed
Port Size: G 1/4"
Orifice DN: DN 2
Voltage: 24V DC
Body Material: PA (Polyamide)
Seal Material: FKM
Electrical Connection: Plug connector
Application: Pilot valve for pneumatic actuators

We carry 0324 2M1474 41C1010607B4K3 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
