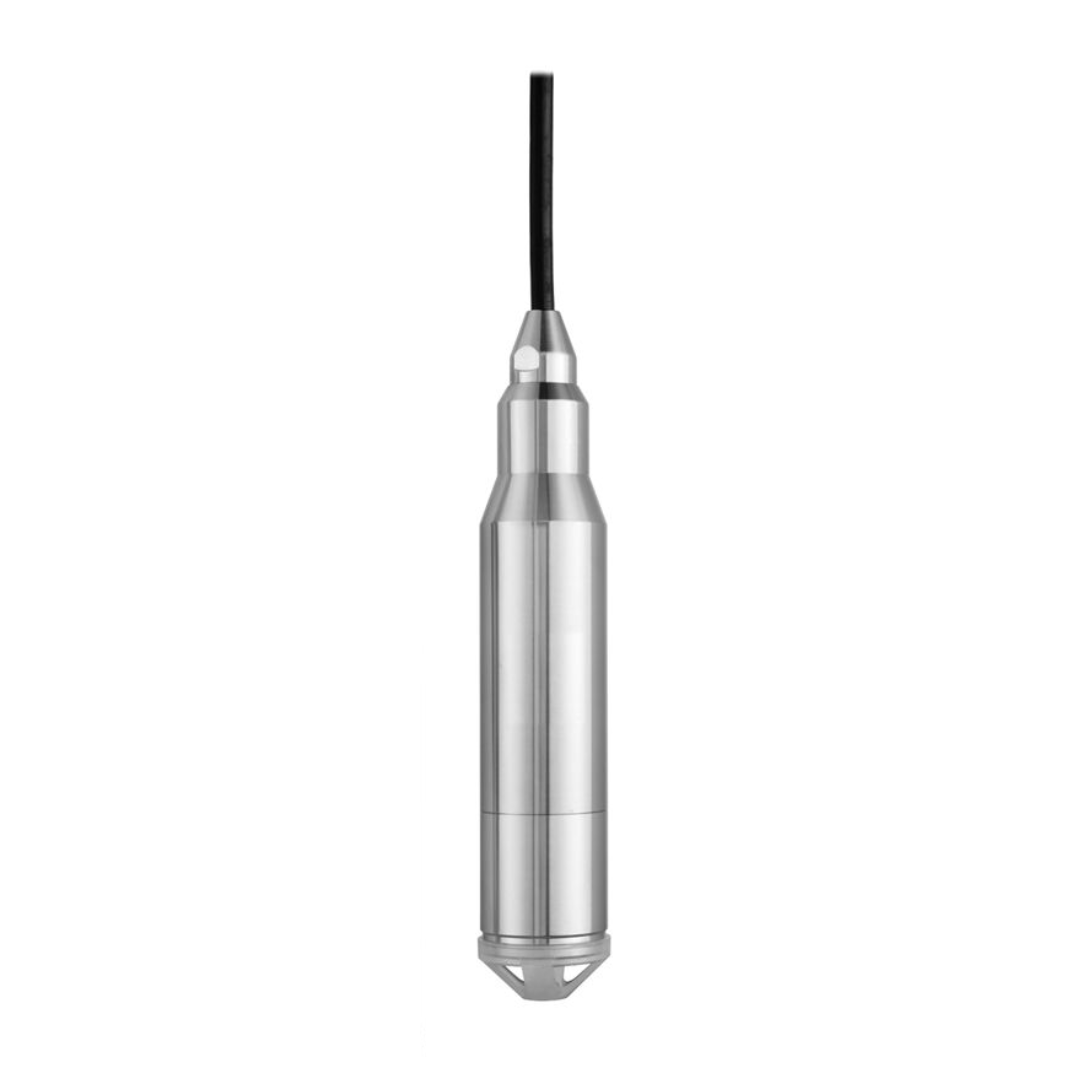

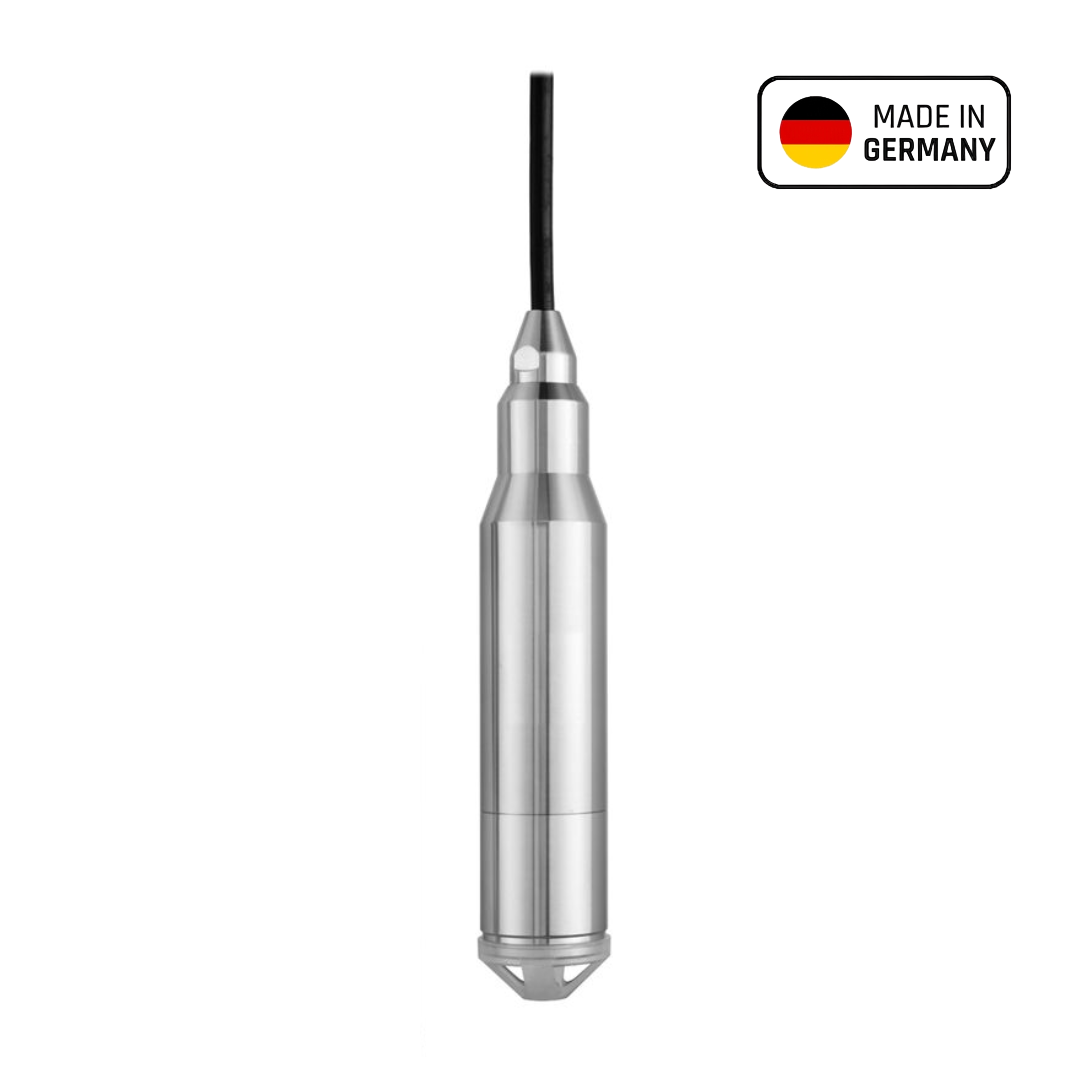

Endress+Hauser Waterpilot FMX21 Hydrostatic Level Probe Assembly, 0–1 bar, 10 m PE Cable, PT100, FMX21-1KD70/0
- Mfr. part no.
- FMX21-1KD70/0
- SKU
- LT-FMX21-1KD70-0
Specifications
| Measuring Range | 0 to 1 bar |
|---|---|
| Output Signal | 4 to 20 mA analog |
| Power Supply | 10.5 to 35 V DC |
| Cable Length | 10 m, PE |
| Wetted Parts | 42 mm, SS316L, ceramic measuring cell, FKM seal |
| Measuring System | Integrated Pt100, 4-wire |
| Temperature Range | −10 to +70 °C |

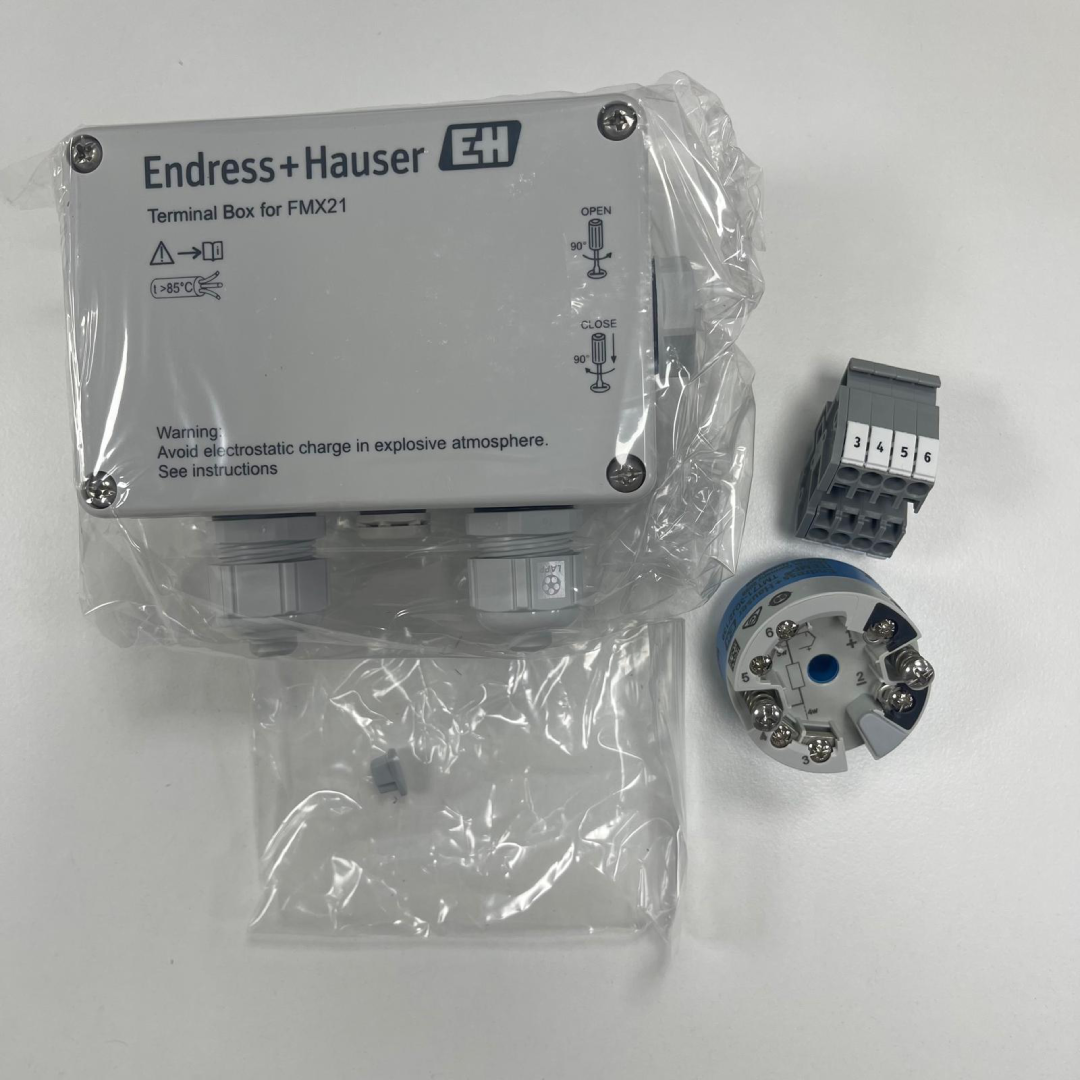

Included Components
- Waterpilot FMX21 – FMX21-1KD70/0

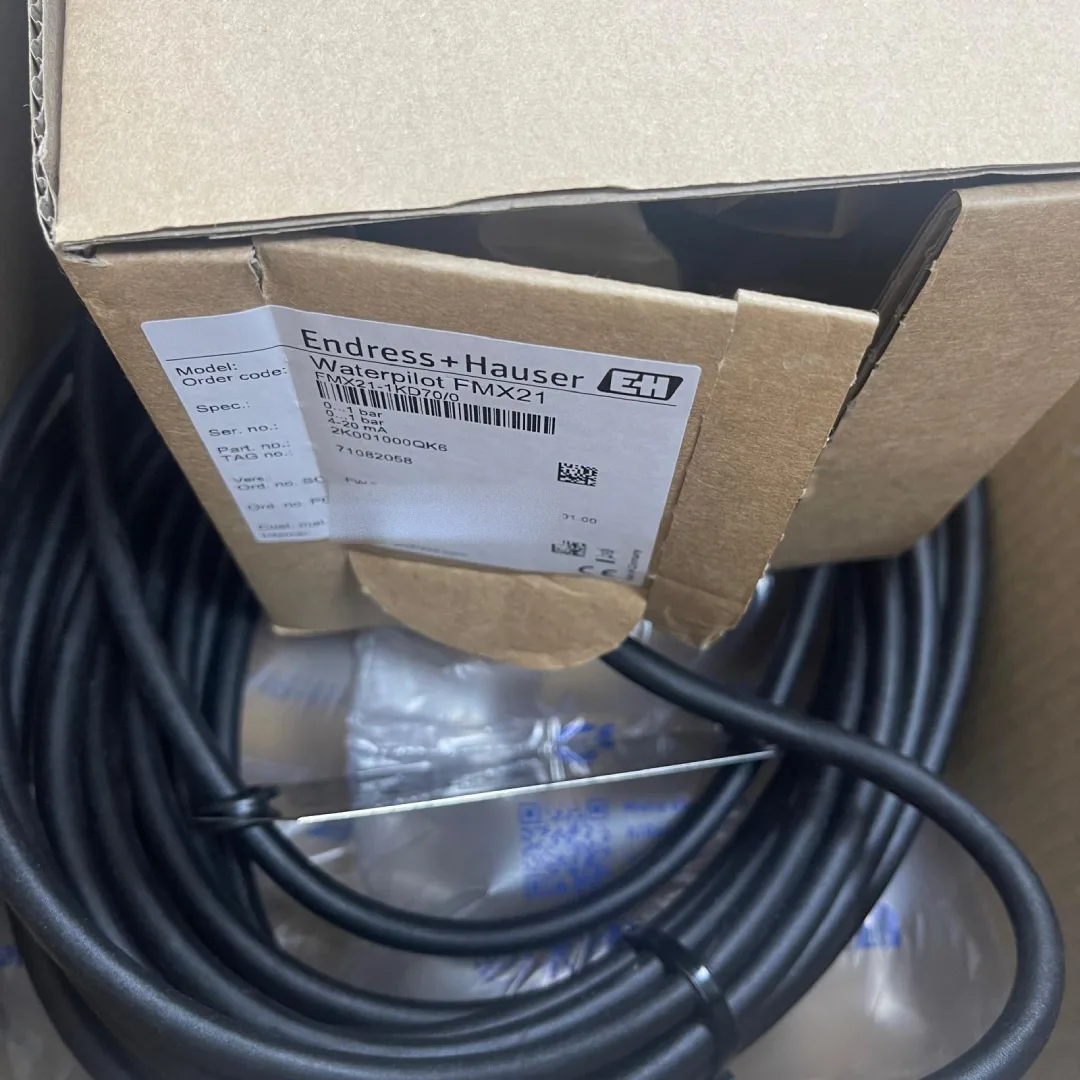

- Extension Cable, 10 m – Included in FMX21-1KD70/0

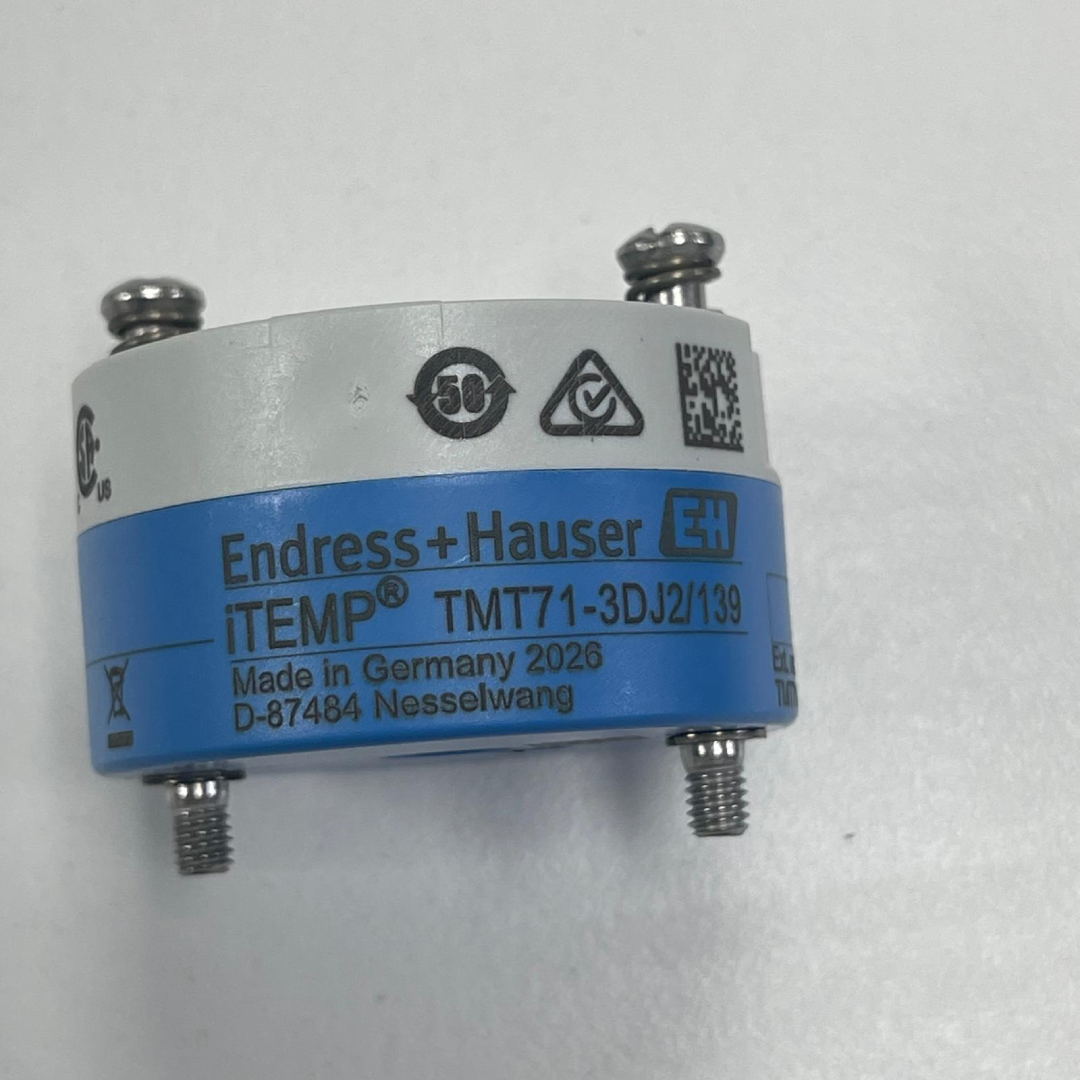

- iTEMP TMT71 – TMT71-3DJ2/139

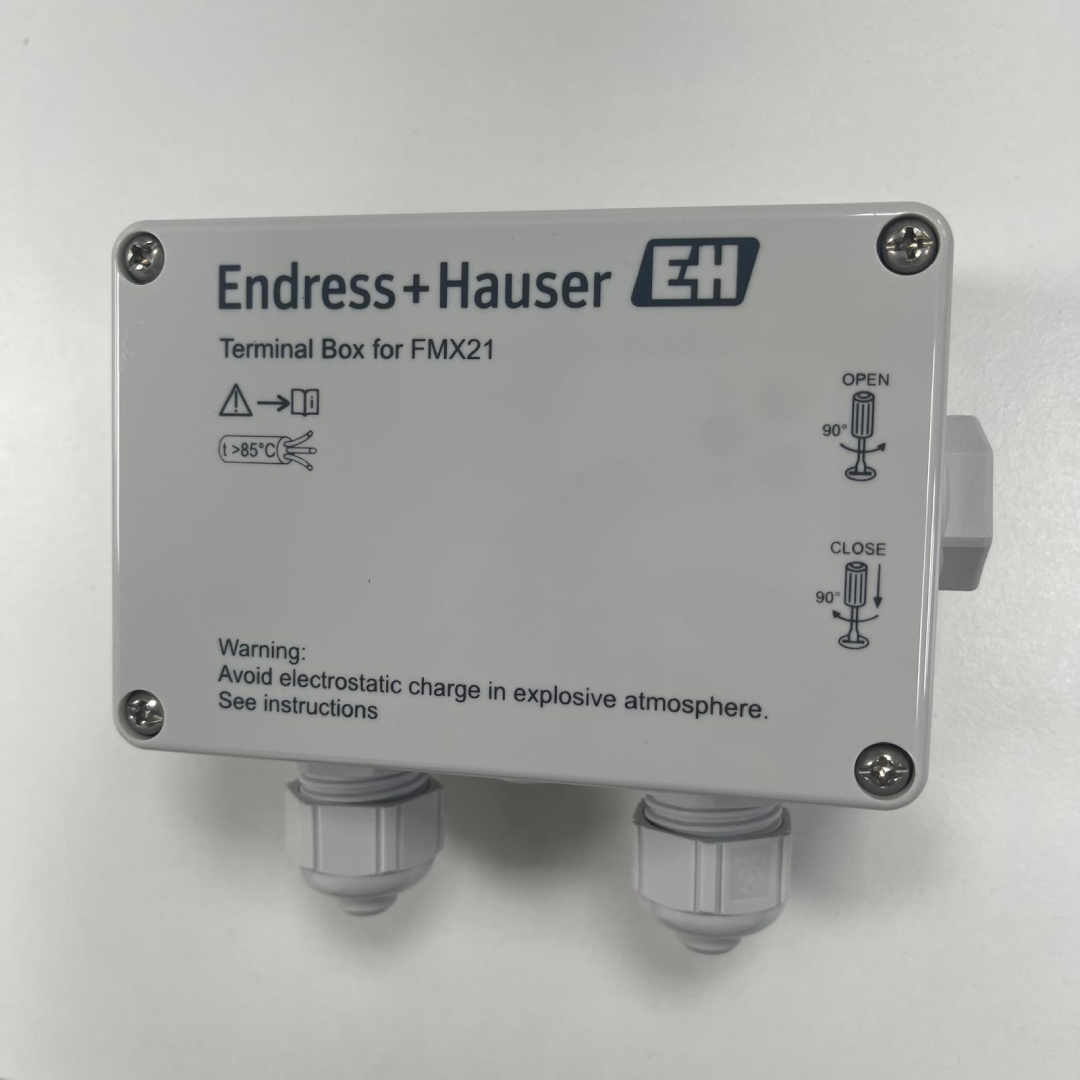

- FMX21 Terminal Box – 52006152

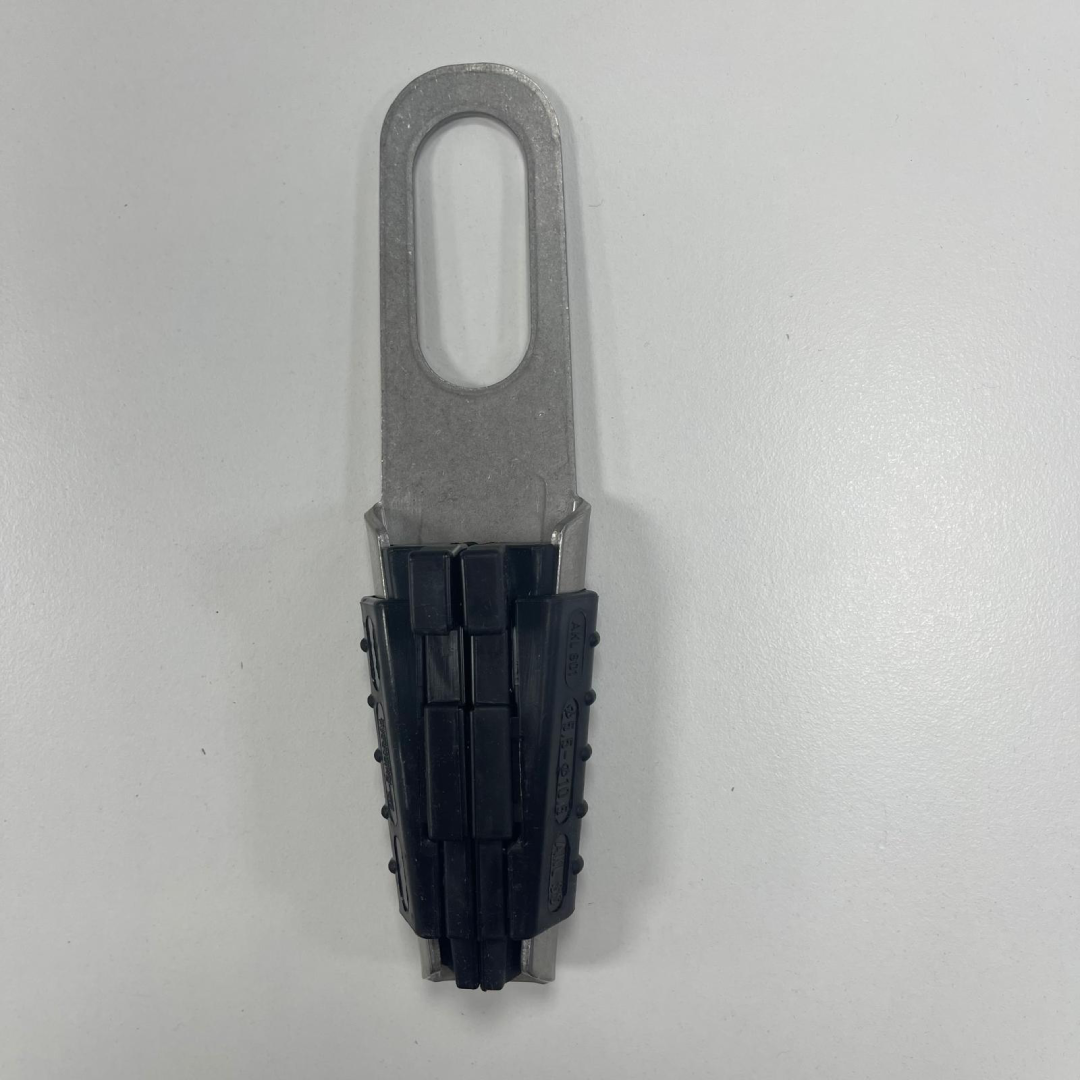

- Suspension Clamp – 52006151
The complete set includes all the components listed above.
Key Features
- Continuous hydrostatic level measurement over a 0–1 bar range.
- Oil-free ceramic measuring cell for dependable level monitoring.
- Durable 316L stainless steel probe body for industrial liquid applications.
- Integrated Pt100 sensor enables temperature measurement.
- Standard 4–20 mA analog output for connection to monitoring and control systems.

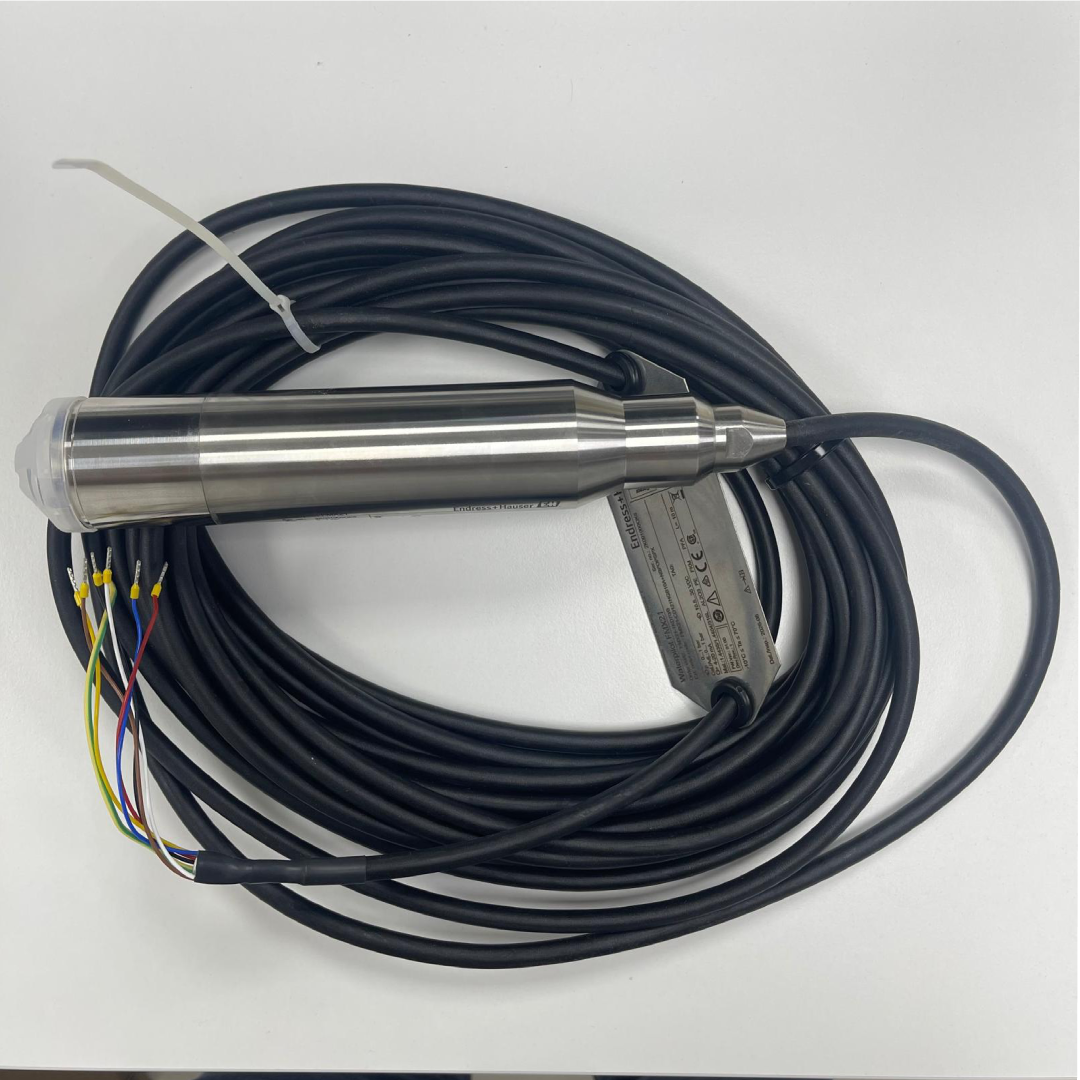

- 10 m PE extension cable offers flexibility when positioning the probe.
- Flush-mounted measuring cell is suited to water and wastewater applications.
- Made in Germany.
Description

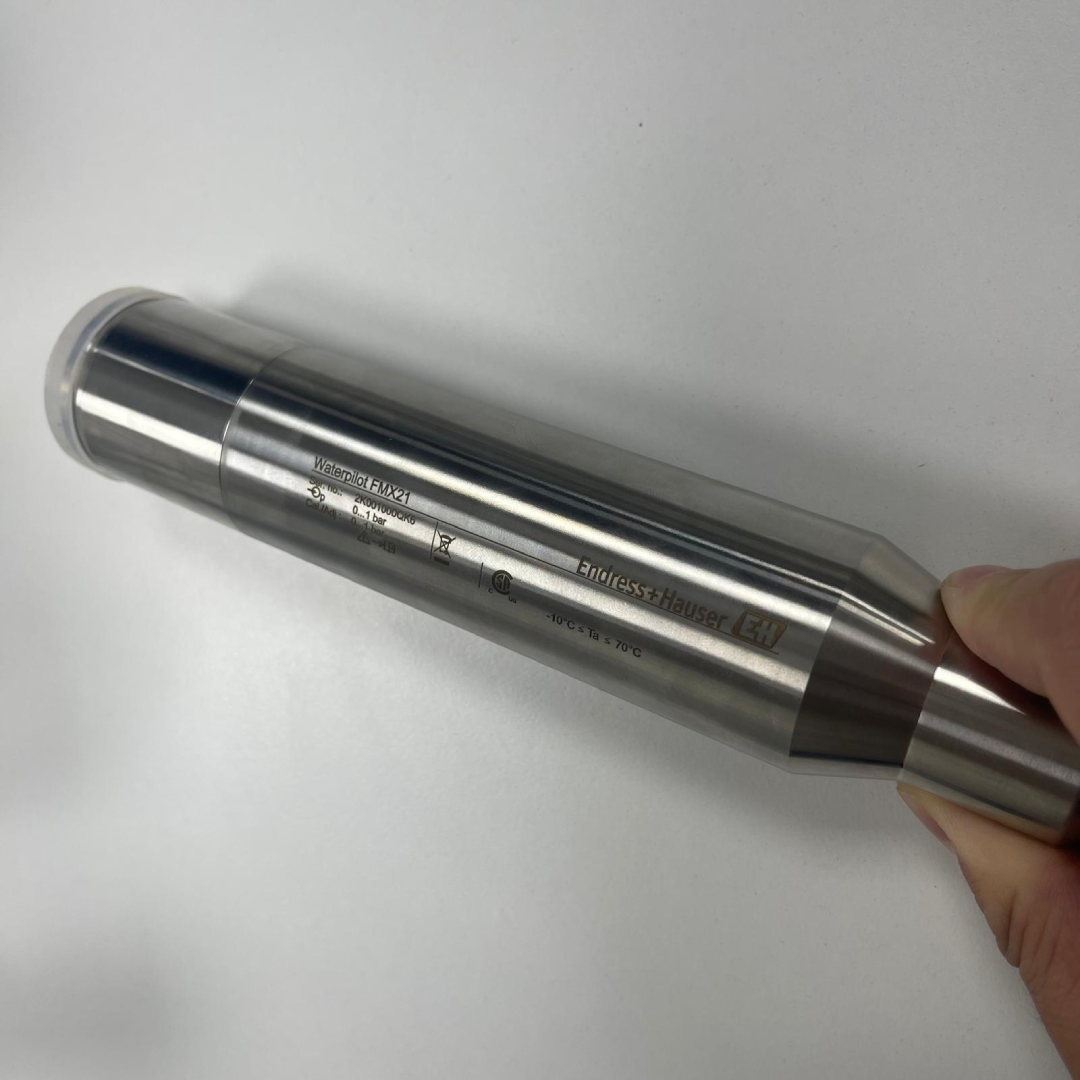

The Endress+Hauser Waterpilot FMX21 measures liquid level by sensing hydrostatic pressure in tanks, reservoirs and wastewater systems. Its oil-free ceramic measuring cell converts pressure into a standard 4–20 mA signal for straightforward connection to monitoring and control systems. This probe has a 0–1 bar measuring range, a 42 mm stainless steel 316L body, a 10 m PE extension cable and an integrated Pt100 temperature sensor. Its submersible design supports continuous level measurement in industrial and water-management applications.
Applications
- Continuous liquid level monitoring in storage tanks.
- Water level measurement in reservoirs and collection tanks.
- Level monitoring in wastewater treatment facilities.
- Hydrostatic measurement in industrial liquid storage systems.
- Water management and pumping applications.
