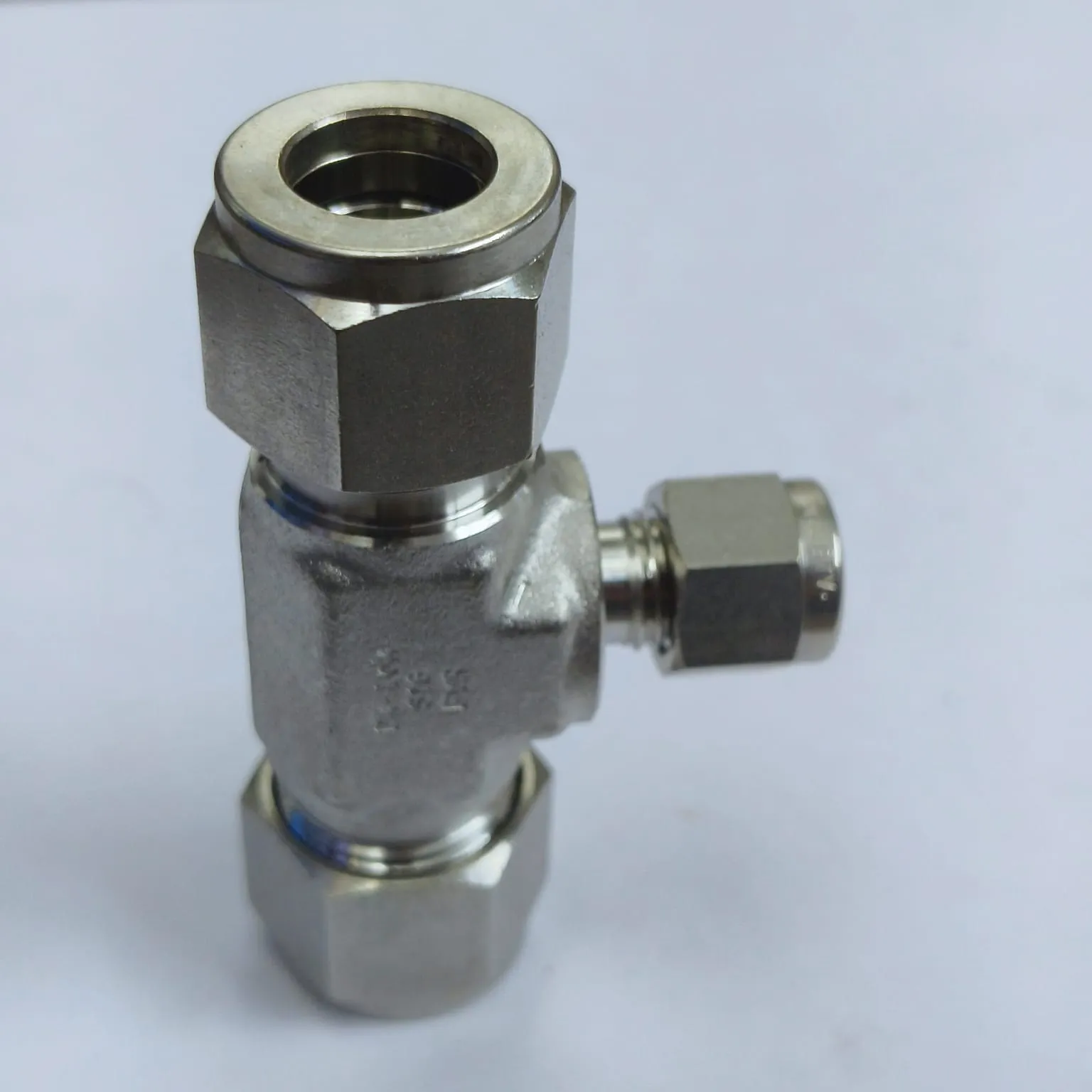

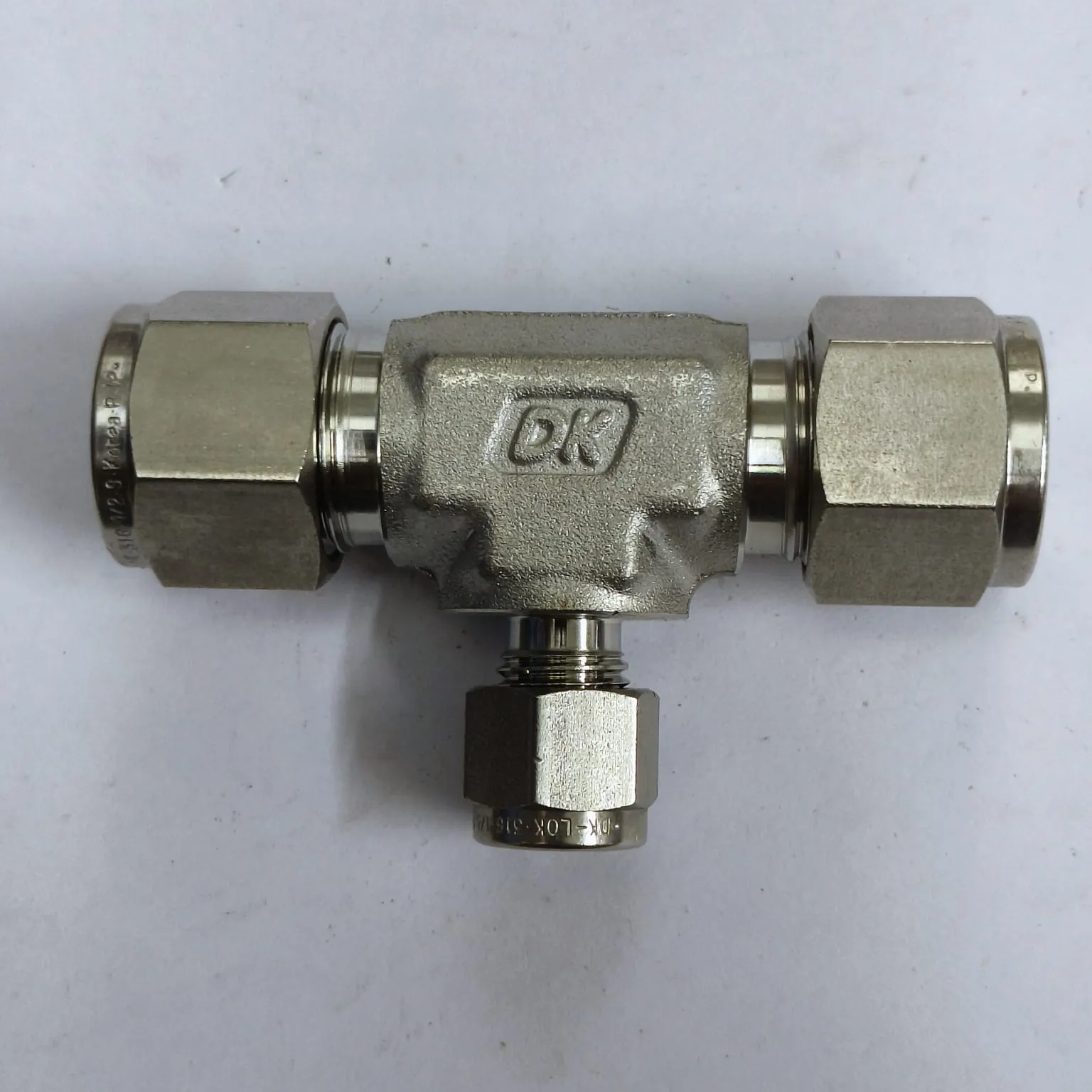

DK-LOK Compression Tube Reducing Tee Fitting, 1/2" Tube OD x 1/2" Tube OD x 1/4" Tube OD, SS316, DTR-8-8-4-S
Technical overview
DK-LOK DTR Series straight reducing union tee fitting with 1/2" Tube OD x 1/2" Tube OD x 1/4" Tube OD connections, manufactured from SS316/316L stainless steel. This compression tube-to-tube tee provides a leak-tight, vibration-resistant seal using a standard double-ferrule design (front ferrule creates the primary seal and rear ferrule provides strong tube grip) for reliable service in instrumentation and general hydraulic/pneumatic tubing systems.
Key Features
- Tee configuration to split or combine flow paths in tubing systems
- Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
- SS316 stainless steel construction for corrosion resistance
- Suitable for instrumentation and process tubing service
Applications
- Instrumentation and control lines
- Hydraulic and pneumatic tubing systems
- Process and utility service lines
- General industrial fluid and gas handling
Specifications
Connection Size (End 1)1/2" Tube OD
Connection Size (End 2)1/2" Tube OD
Connection Size (End 3)1/4" Tube OD
Body Material316 stainless steel
Ferrule DesignStandard double ferrule (front & back ferrules)
Documentation
DK-Lok-Compression-Tube-Fittings-Catalog
Download
