Tube-to-Tube Fittings

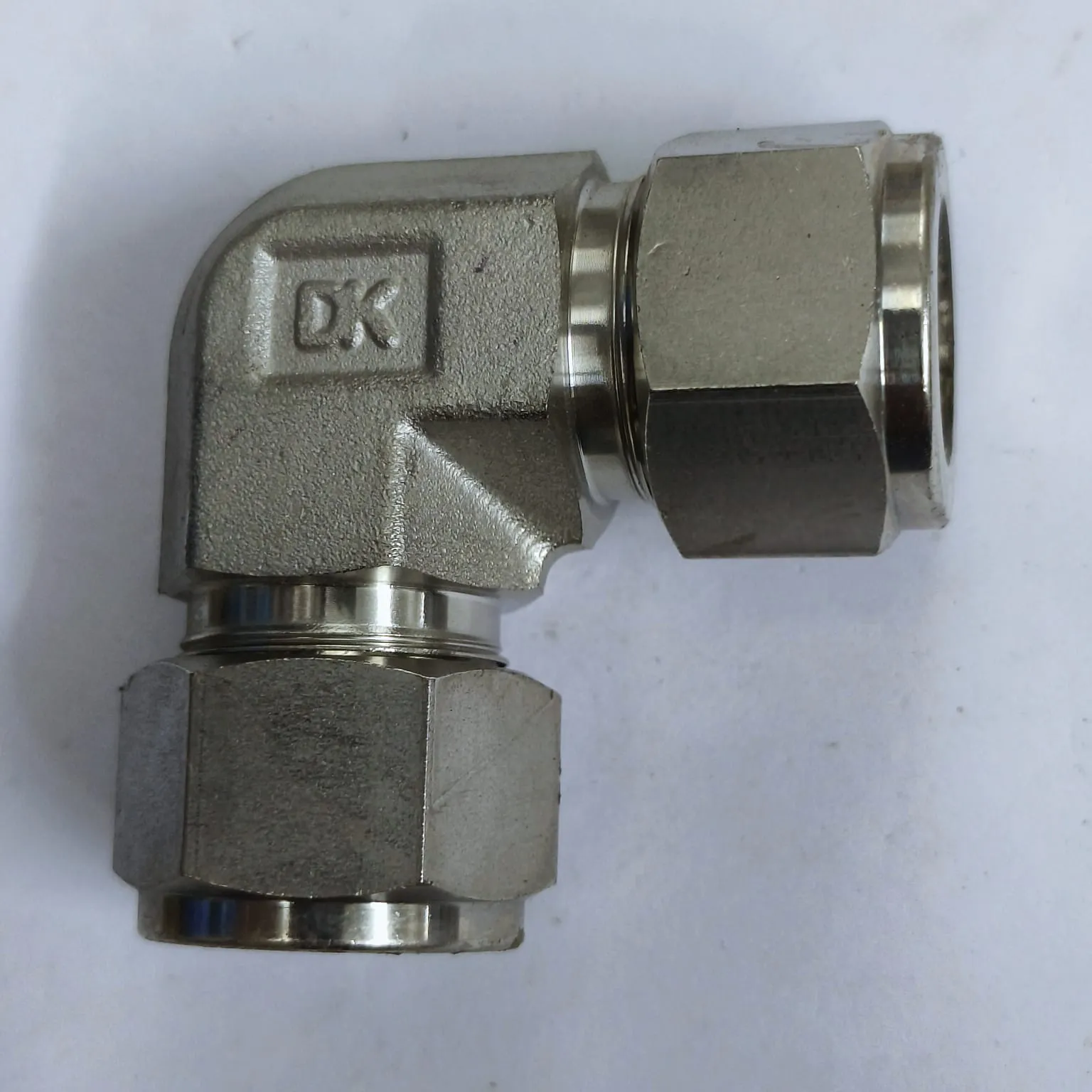

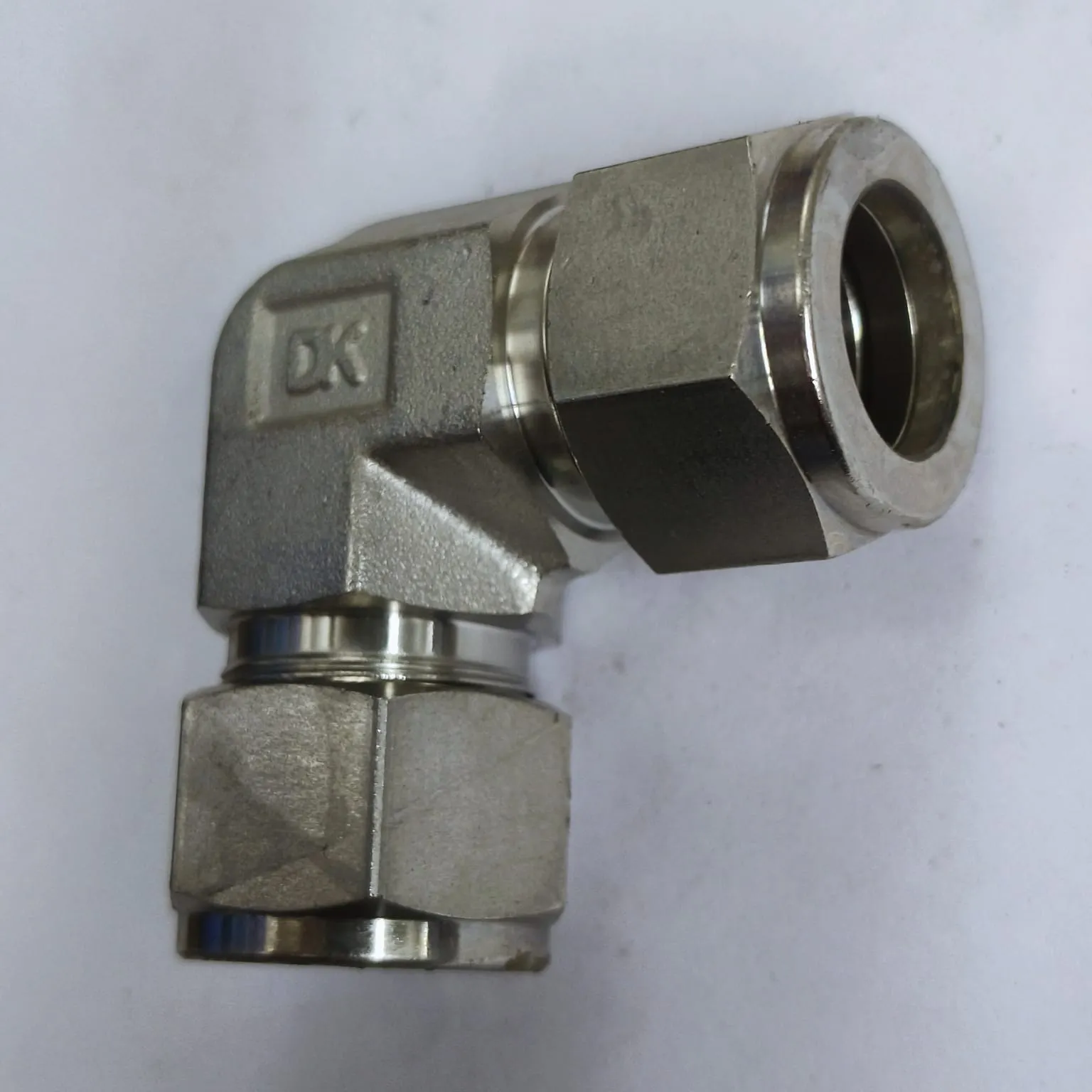

DK-LOK Compression Tube 90° Elbow Fitting, 5/8" Tube OD x 5/8" Tube OD, SS316, DL-10-S
DK-LOK

DK-LOK Compression Tube 90° Elbow Fitting, 5/8" Tube OD x 5/8" Tube OD, SS316, DL-10-S

Mfr. part no.
DL-10-S
SKU
DK-VB86861010

Specifications

Connection Size (End 1) 5/8" Tube OD
Connection Size (End 2) 5/8" Tube OD
Body Material 316 stainless steel
Ferrule Design Double ferrule (front & back ferrules)

Key Features

  • 90° elbow body for compact routing and reduced tubing stress
  • Double-ferrule design (front & back ferrules) for secure tube grip and leak-tight sealing
  • SS316 stainless steel body, nut and ferrules for corrosion resistance
  • Designed for repeatable make-up and easy installation with standard tools

Description

DK-LOK DL Series 90° tube union elbow fitting with 5/8" Tube OD x 5/8" Tube OD configuration, manufactured from 316 stainless steel with a proven double-ferrule design (front and back ferrules) for strong tube grip and leak-tight sealing. Suitable for instrumentation and process tubing systems where vibration and pressure cycling are present. Part number: DL-10-S.

Applications

  • Instrumentation and control lines
  • Hydraulic and pneumatic tubing systems
  • Process and utility service lines
  • General industrial fluid and gas handling

Documents

  • DK Lok Compression Tube Fittings — Catalog

    PDF, 6.2 MB
