Aventics

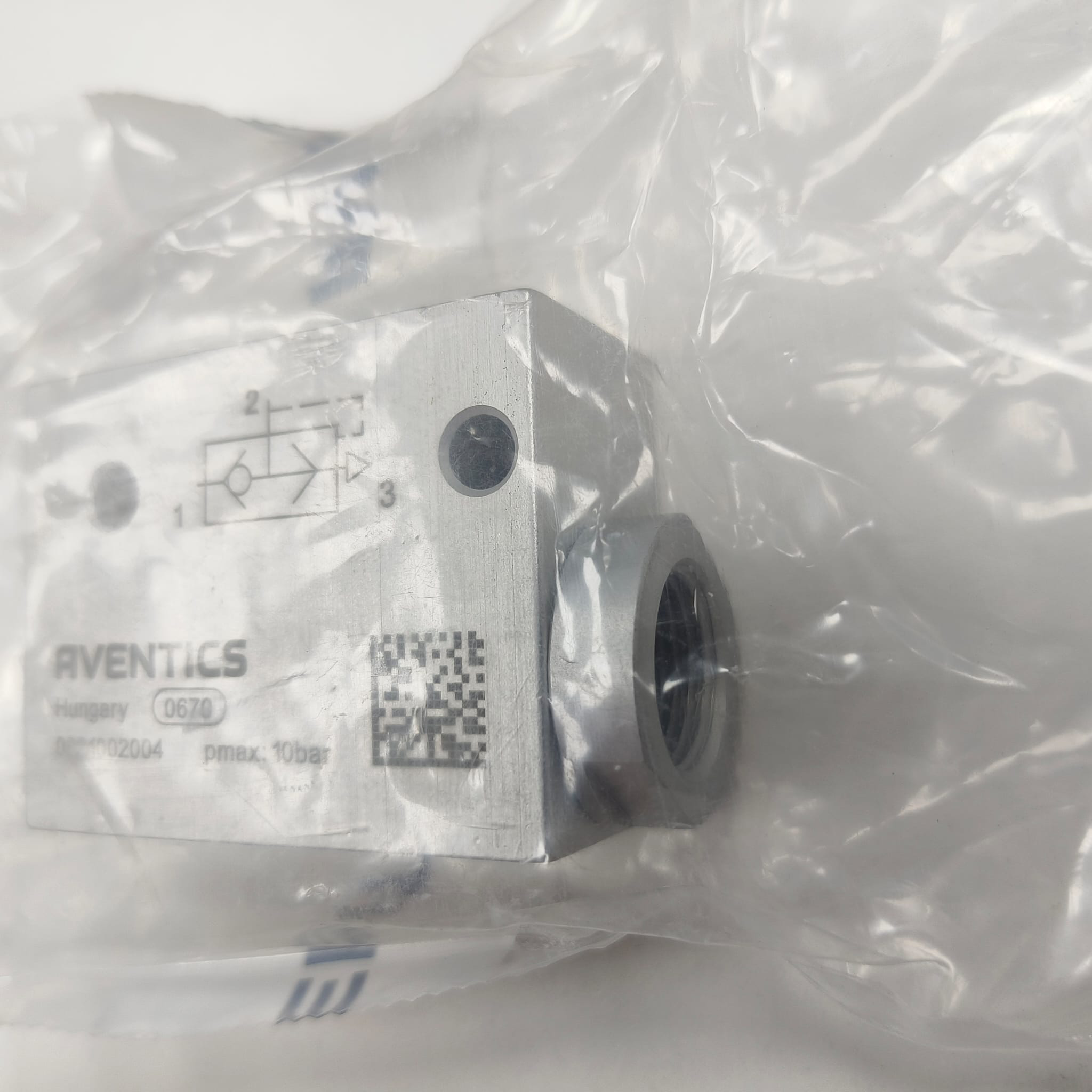

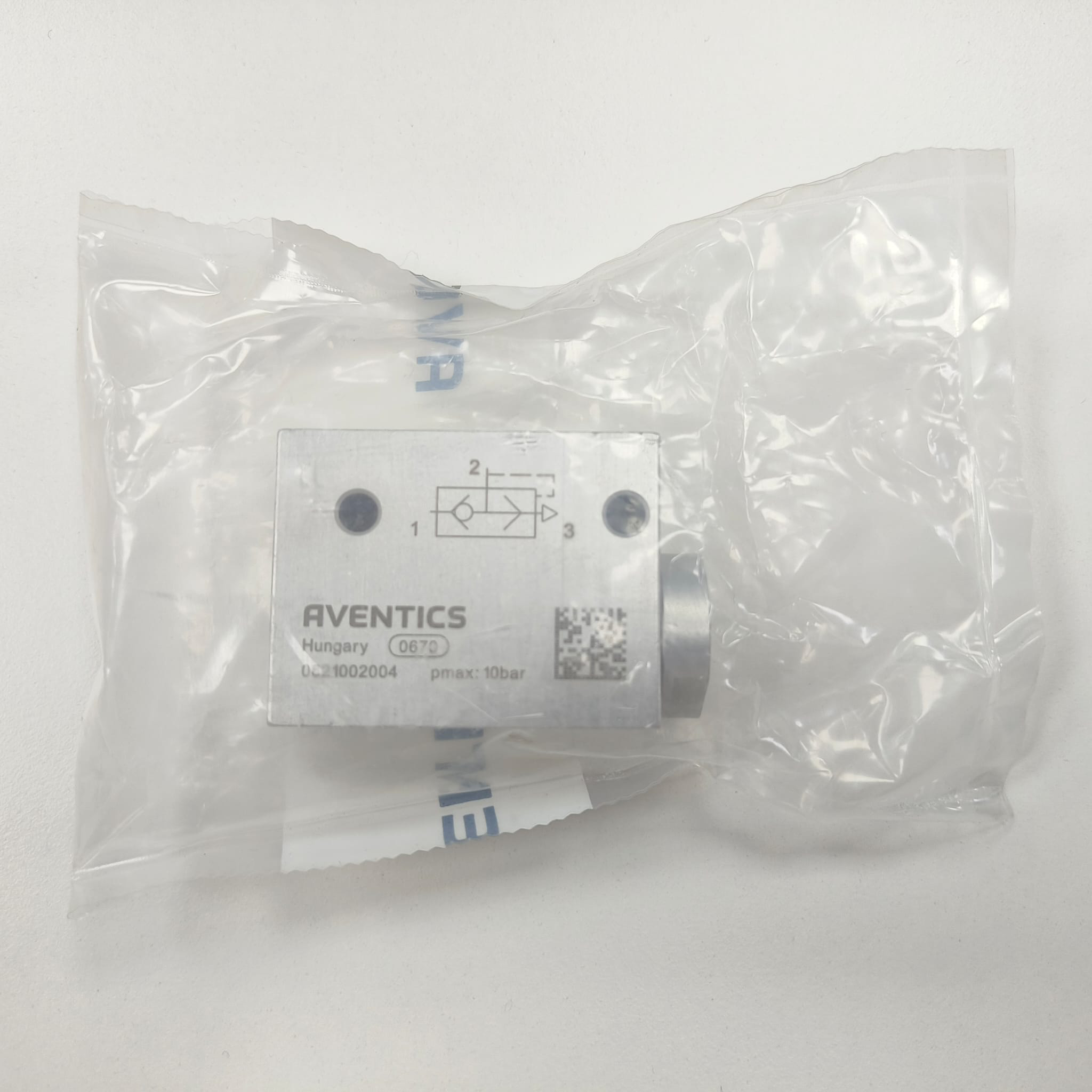

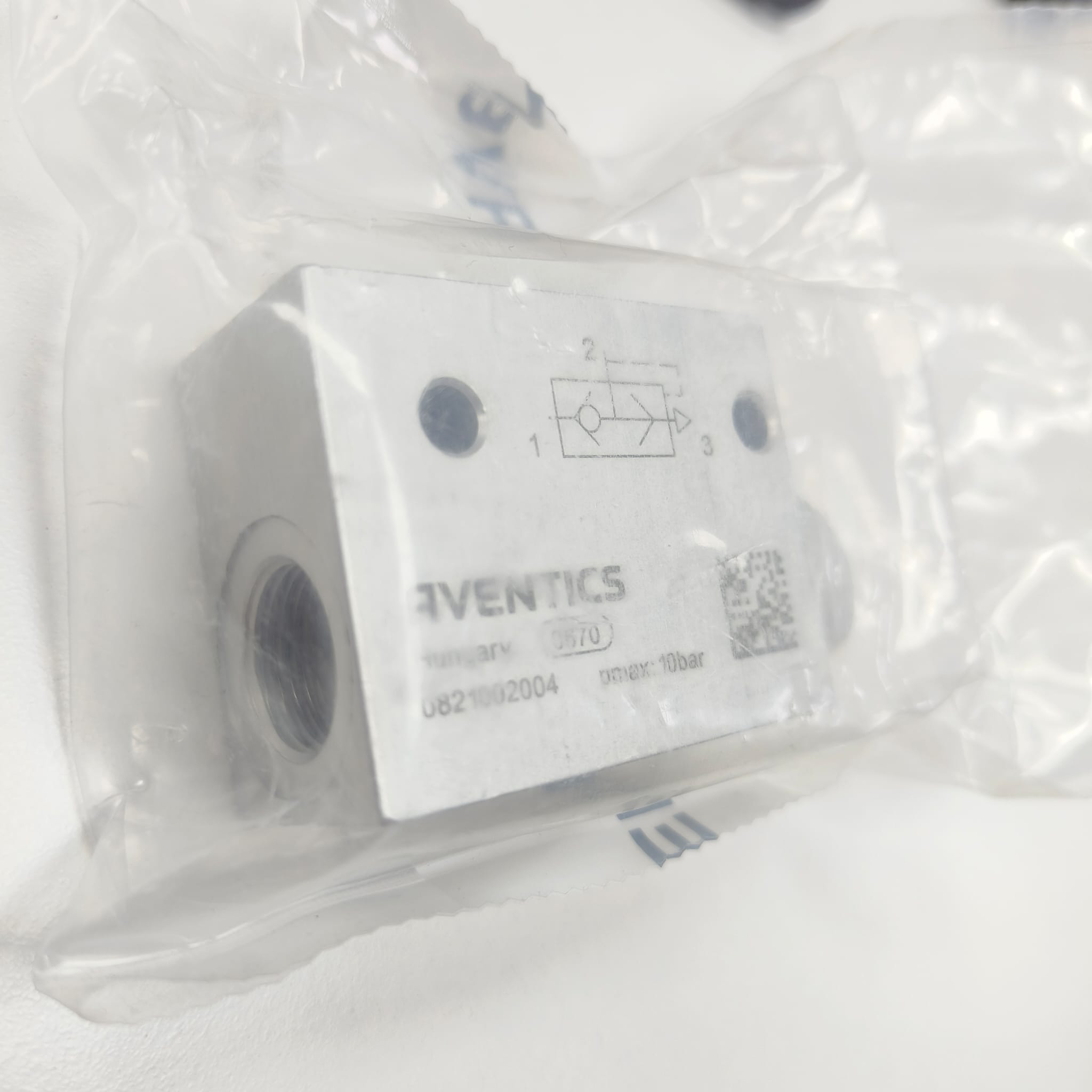

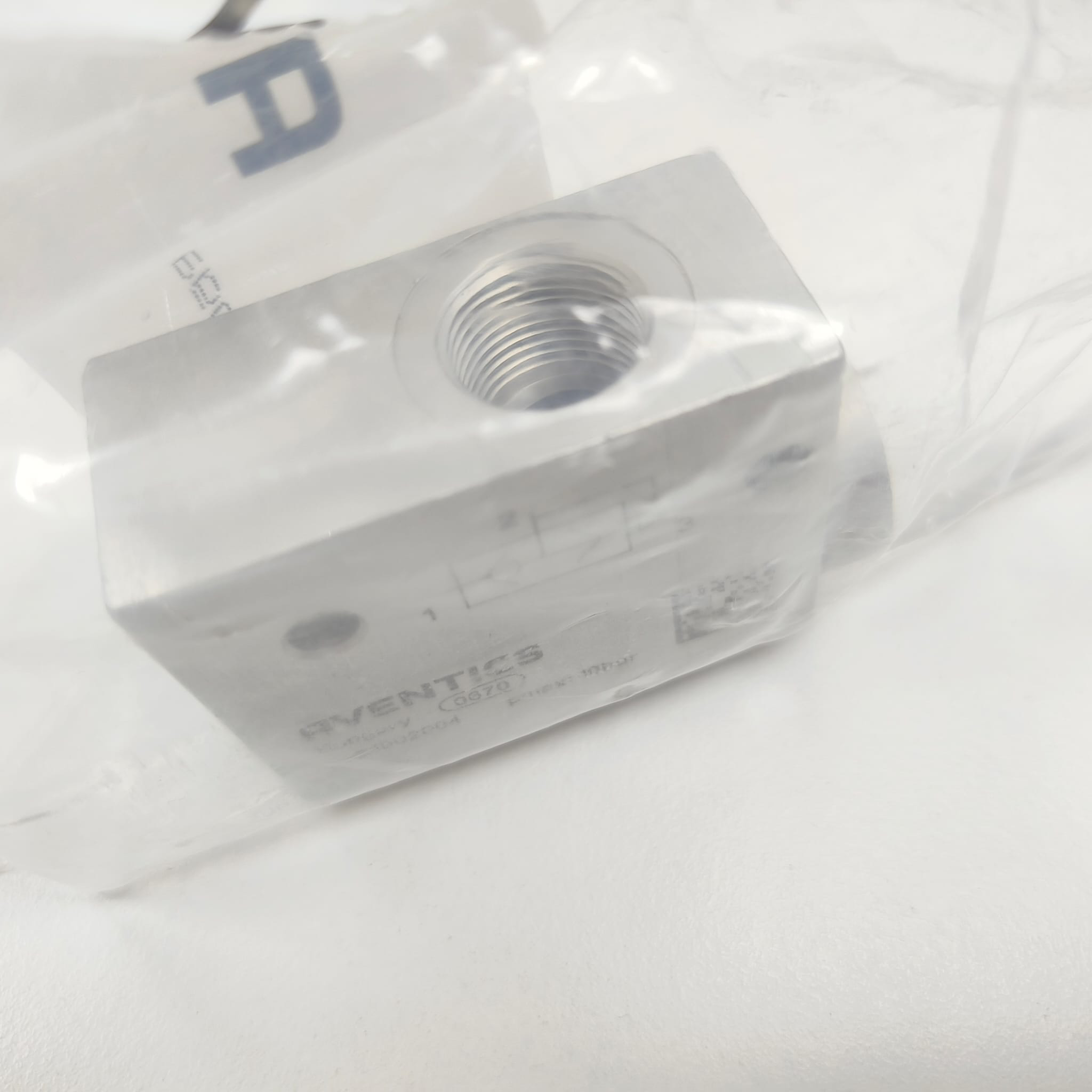

Aventics Quick Exhaust Valve, G 3/8" Female Ports, Max Pressure 10 Bar, 0821002004
- Mfr. part no.
- 0821002004
- SKU
- PN-AVENTICS-0821002004
Specifications
| Valve Type | Poppet quick exhaust valve |
|---|---|
| Connection Size | G 3/8" Female Thread |
| Media Compatibility | Compressed air |
| Nominal Flow Rate | 2050 l/min |
| Working Pressure Range | 0.5 to 10 bar |
| Temperature Range | 0 to 80 °C |
| Body Material | Aluminum |
| Seal Material | Acrylonitrile butadiene rubber |
Key Features
- Efficient speed control in pneumatic systems
- Reliable and durable quick exhaust valve design
- Easy installation with G 3/8 internal threaded connections
- Speeds the exhausting of air cylinders, clutches and pneumatic devices
- Large internal air passages for quick air discharge
- Special diaphragm design helps eliminate chattering associated with exhaust valves
- Made in Hungary.
Description
Aventics 0821002004 is a G 3/8 quick exhaust valve designed to improve the response of pneumatic cylinders and other compressed-air equipment by venting exhaust air close to the actuator. Its aluminium housing, acrylonitrile butadiene rubber seal and poppet-type construction support dependable operation in industrial automation systems, with a 2050 l/min nominal flow rate, 0.5 to 10 bar working pressure range and 0 to 80 °C operating temperature range.
