Aventics 521 Series 5/2 Directional Valve, Air Spring Return, Single Solenoid, G 1/4" Ports, 24V DC Coil, 52100001
- Mfr. part no.
- 52100001
- SKU
- PN-SOL-AVENTICS-52100001
Specifications
| Series | Series 521 |
|---|---|
| Valve Type | Directional Spool type valve |

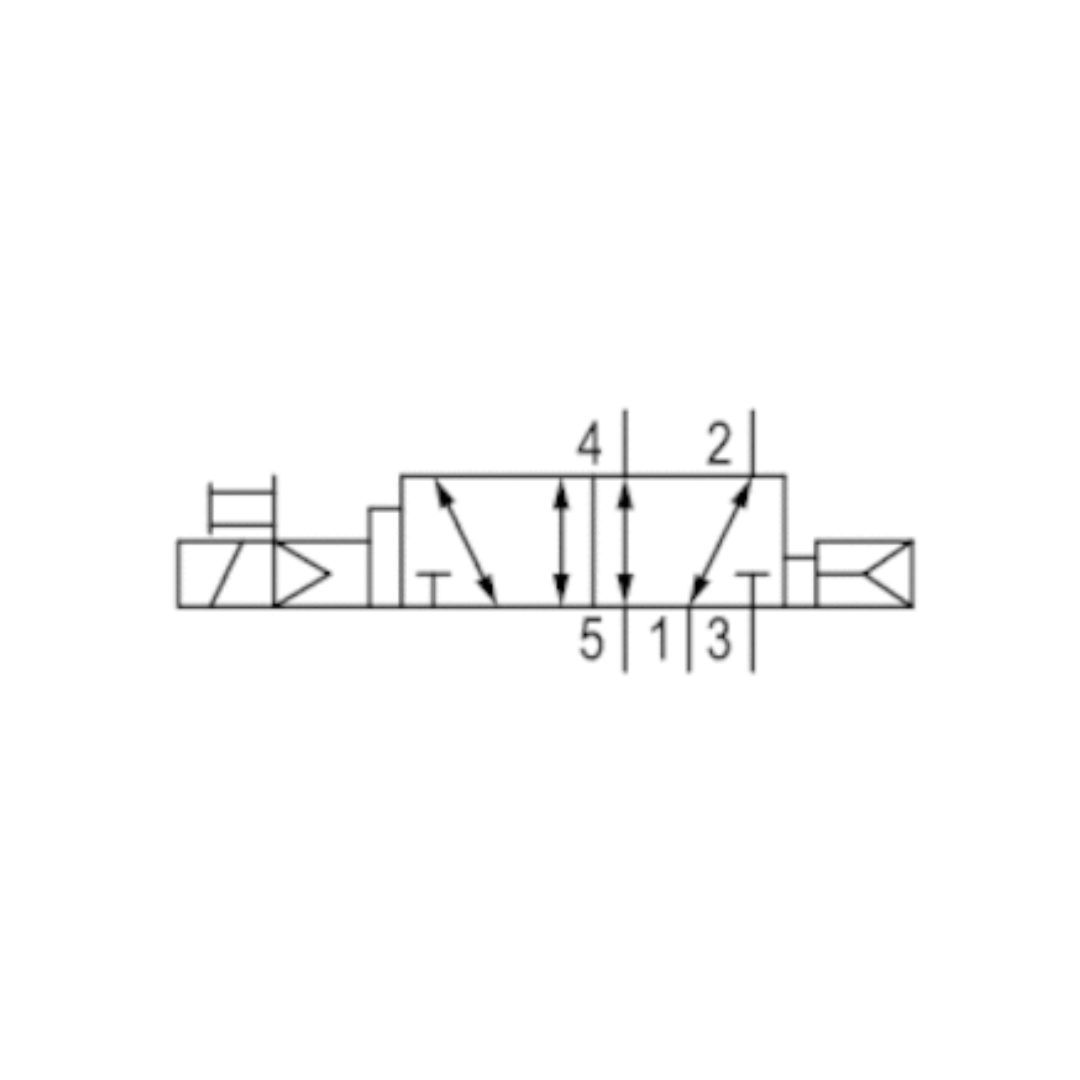

| Valve Function | 5/2, With Air Spring Return |
| Connection Size | G 1/4" Female Thread |
| Nominal Flow Rate | 1050 l/min |
| Working Pressure Range | 1.5 to 8 bar |
| Electrical Connection | 24 V DC Coil with Connector |
| Ingress Protection | IP65 With Connection |
| Power Consumption | 1.6 W |
| Temperature Range | 5 to 50 °C |
| Body Material | Anodized Aluminum |
| Seal Material | NBR |
Key Features
- Solenoid air-operated mini-spool valve for piloting pneumatic cylinders
- High-quality 24V DC coil resistant to heat and moisture
- Suitable for high ambient temperatures and harsh industrial environments
- Can be mounted on joinable subbases for manifold applications
- Anodized aluminium G 1/4 tapped body with NBR seals for extended service life
- Handles lubricated or non-lubricated compressed air and neutral gas
- Non-breathing construction with solenoid valve exhaust collection
- Made in Poland.
Description

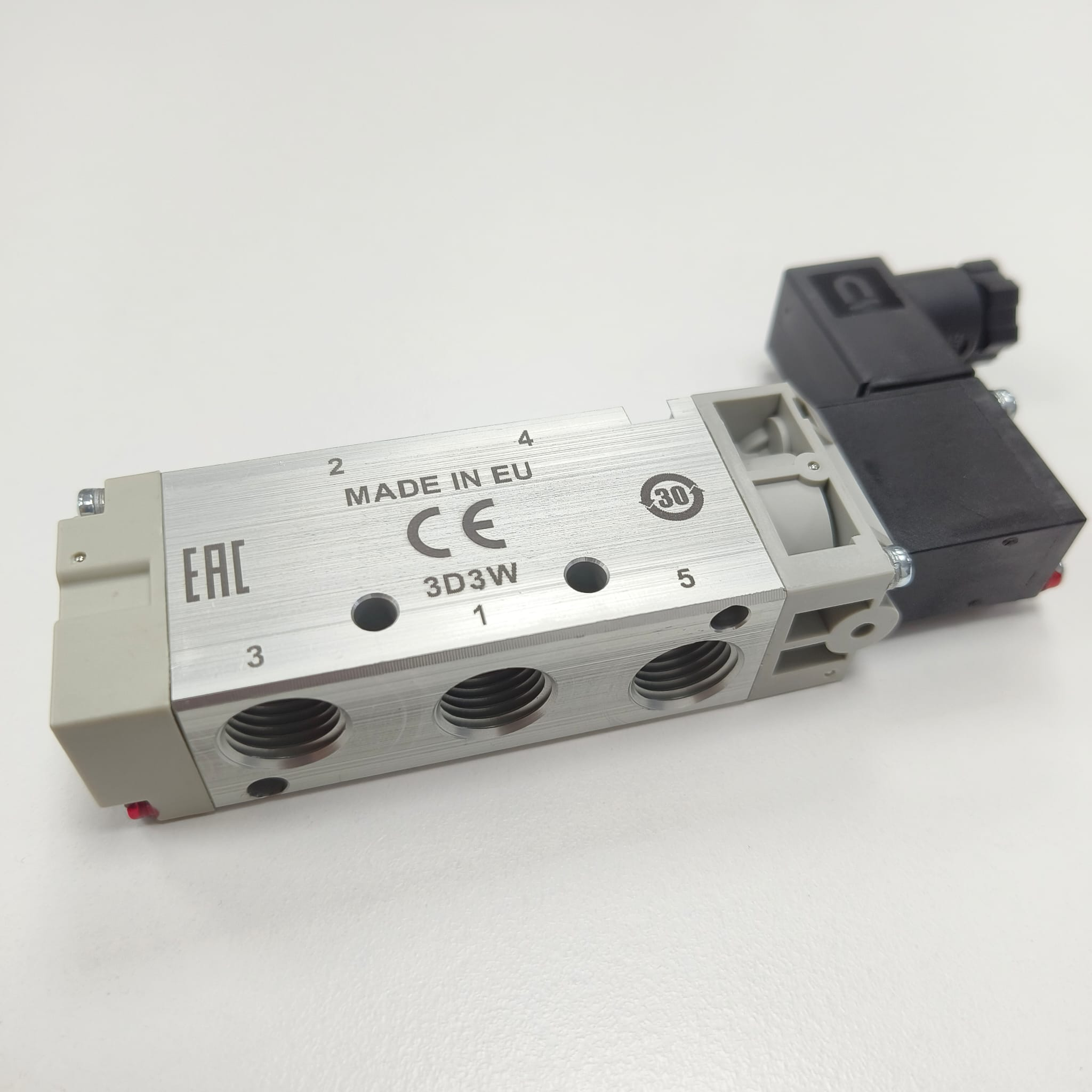

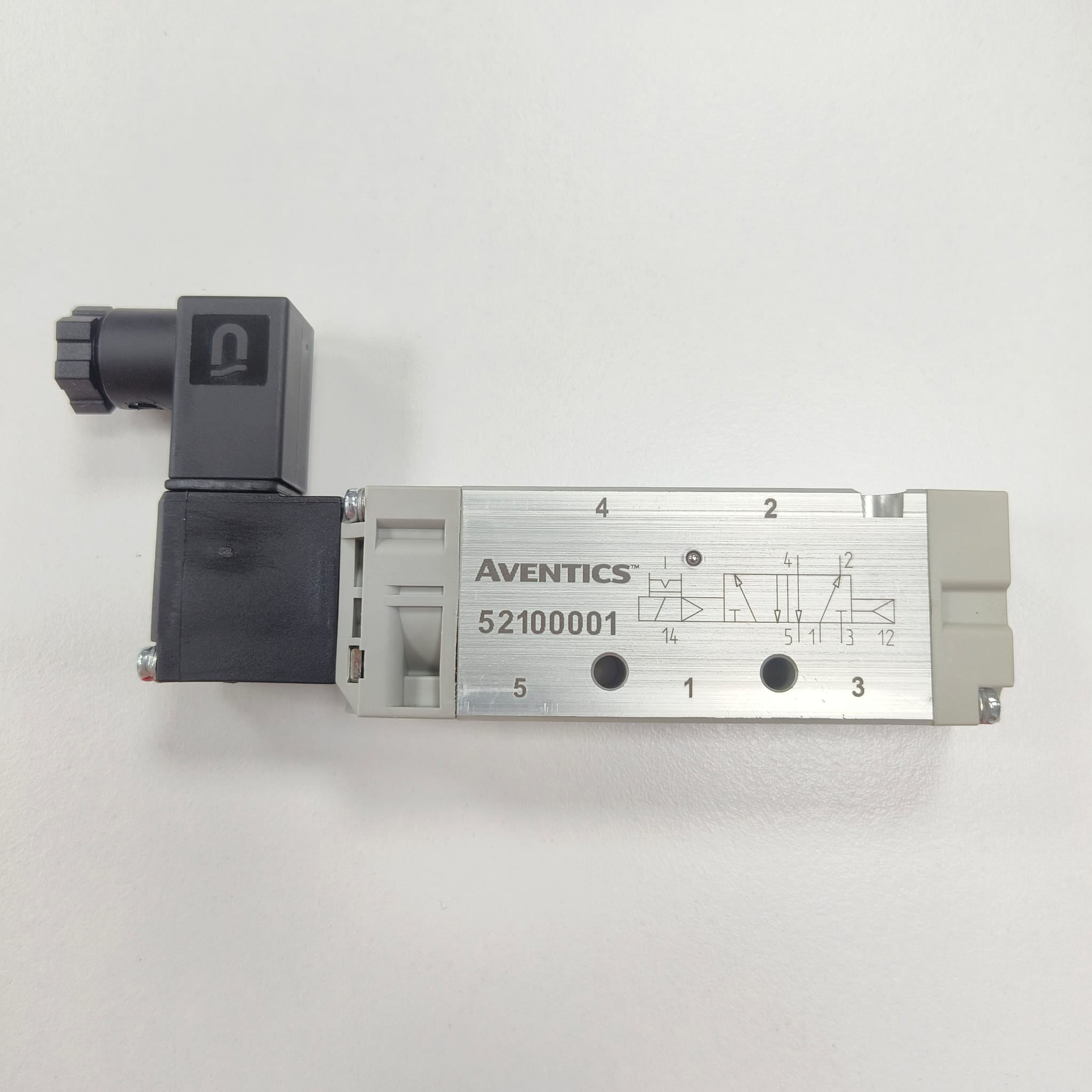

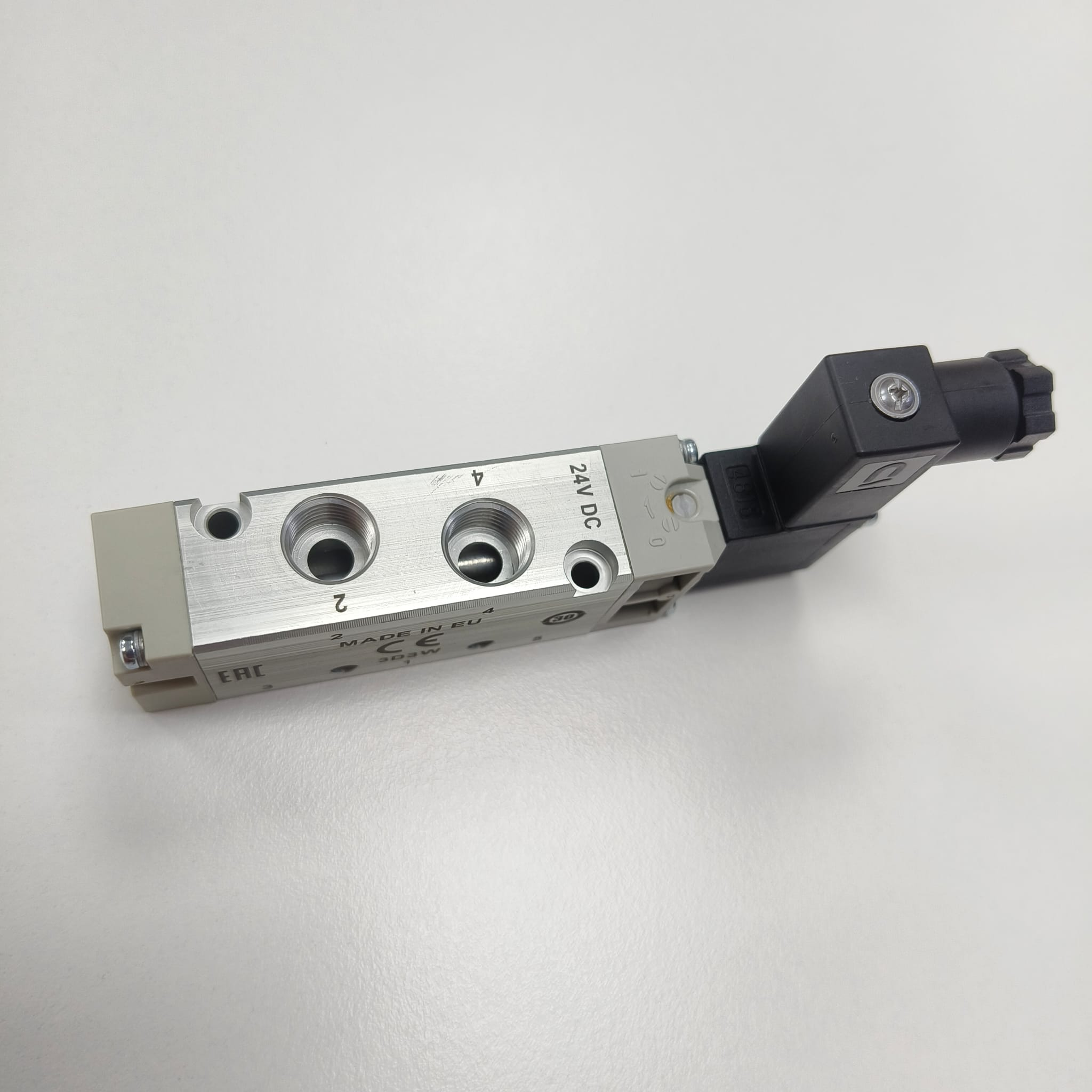

Aventics 52100001 is an electrically operated Series 521 mini-spool valve built for piloting pneumatic cylinders and other compressed-air actuators. The valve uses a 5/2 function with air spring return, internal pilot operation, G 1/4 pipe connections and an EN 175301-803 Form C plug connection. This valve has high-quality 24V DC coil resistant to heat and moisture and suitable for high ambient temperatures and harsh environments. Its anodized aluminium housing, NBR sealing and IP65 protection with connection make it suitable for demanding industrial machinery, manifold assemblies and automated pneumatic control systems.
Applications
- Pneumatic cylinder piloting in automated machinery
- Compressed-air control in packaging and case packing equipment
- Automotive production and assembly line pneumatic systems
- Tire manufacturing machinery and industrial actuator control
- Manifold-mounted valve stations using joinable subbases
- General 5/2 solenoid valve applications for double-acting pneumatic actuators
