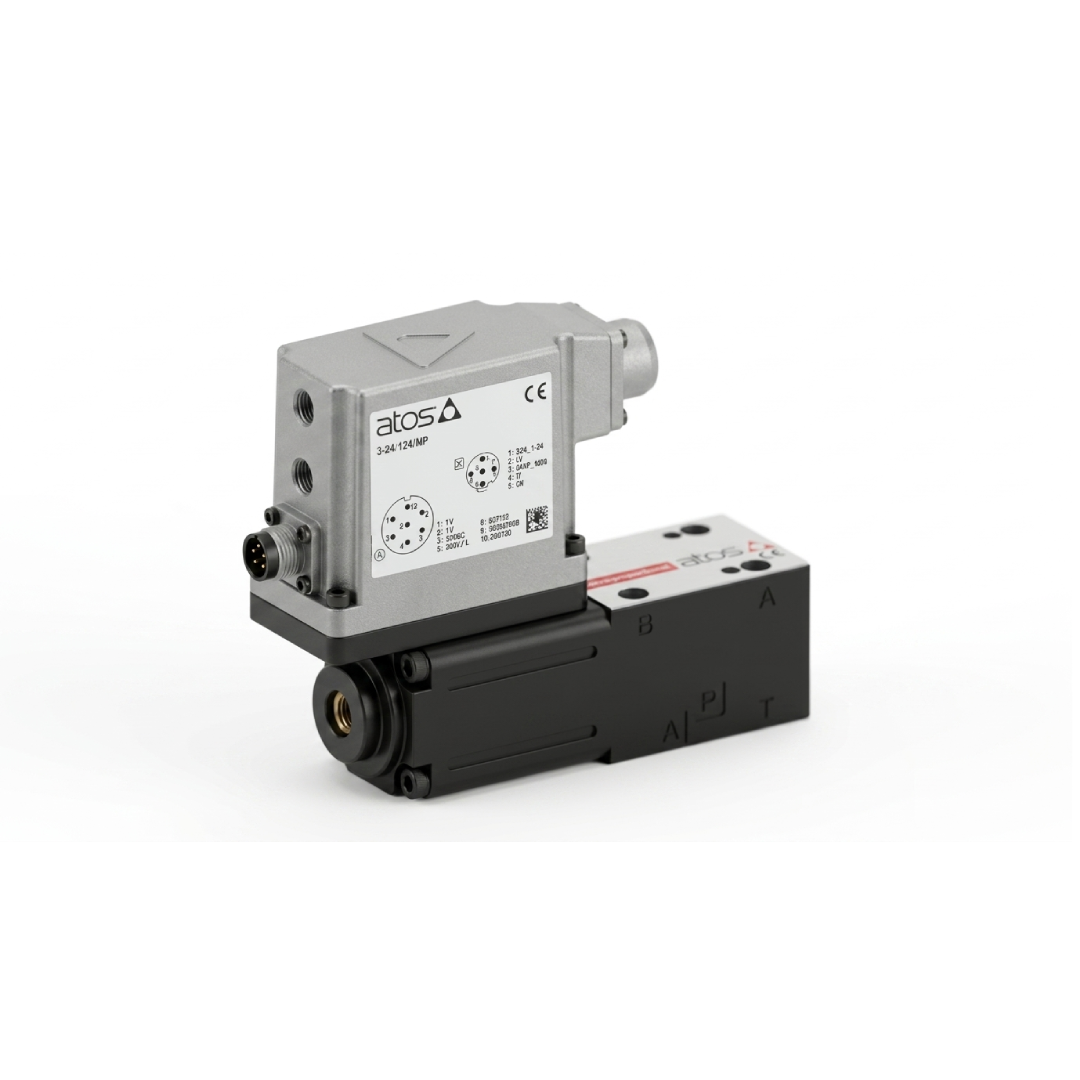

Atos RZGO-AEB Series Digital Proportional Pressure Reducing Valve, Size 06, 100 bar, 12 l/min, RZGO-AEB-NP-010/100
Technical overview
The Atos RZGO-AEB-NP-010/100 is a direct-operated, spool-type digital proportional pressure reducing valve designed for open-loop hydraulic pressure control. The Size 06 / NG6 valve regulates pressure on port A with discharge to port T, with a maximum regulated pressure of 100 bar, maximum flow of 12 l/min and maximum operating pressure up to 350 bar. The AEB execution incorporates a basic on-board digital driver with 24 VDC power supply and standard 0–10 VDC analog reference control, while the NP execution indicates that the IO-Link interface is not present. Bluetooth/USB connection is available for valve settings and real-time diagnostics, making the valve suitable for industrial hydraulic systems requiring precise electronically adjustable pressure control.
Key Features
- Direct-operated spool-type digital proportional pressure reducing valve for open-loop hydraulic control
- Maximum regulated pressure of 100 bar with maximum flow up to 12 l/min
- Maximum operating pressure up to 350 bar
- ISO 4401 Size 06 / NG6 subplate mounting configuration
- AEB basic on-board digital driver with 24 VDC power supply, standard 0–10 VDC analog reference and NP execution without IO-Link
- Made in Italy.
Applications
- Proportional hydraulic pressure regulation
- Industrial hydraulic power units
- Hydraulic presses and forming machinery
- Machine tools and production equipment
- Hydraulic actuator and clamping circuits
- Automated machinery requiring electronically adjustable reduced pressure
Specifications
Documentation
No documentation uploaded yet for this product.
Need a datasheet or manual? Request it →
