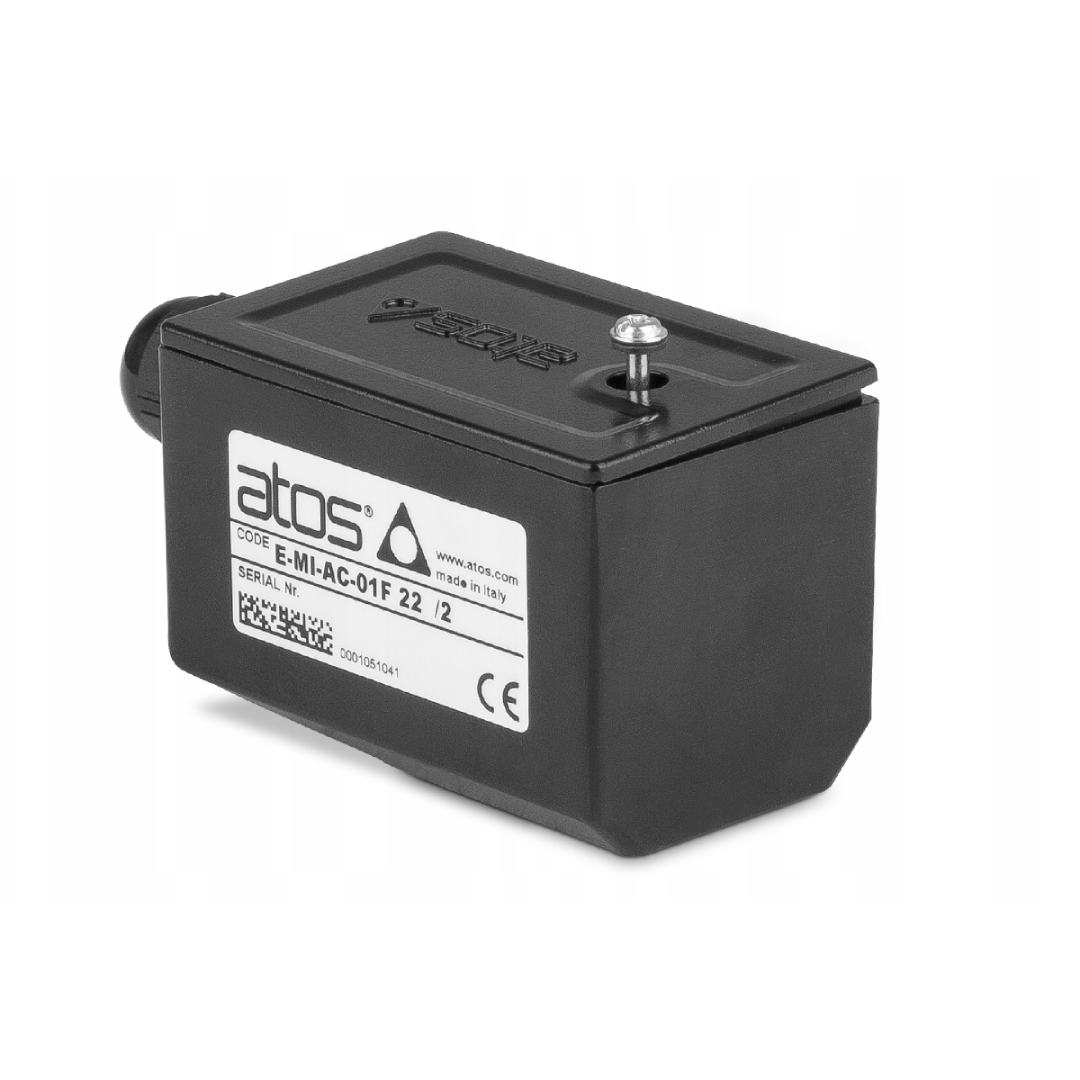

Atos E-MI-AC Series Analog Electronic Driver, 24 VDC, 0-10 VDC Input, 2.7 A Output, E-MI-AC-01F
KWD 92.000
Lead time: 3-4 Weeks
Technical overview
The Atos E-MI-AC-01F analog electronic driver provides current control for single-solenoid Atos proportional valves without pressure or LVDT position transducers. It uses a 24 VDC nominal supply and 0-10 VDC reference signal, supplies up to 2.7 A to the solenoid and includes adjustable bias, scale and ramp functions. The DIN 43650 plug-in aluminum enclosure is IP65 rated and is suited to hydraulic flow, pressure and actuator-control systems.
Key Features
- Analog electronic driver for single-solenoid proportional valves without transducer
- 24 VDC nominal power supply with 0-10 VDC reference signal
- Maximum solenoid output current up to 2.7 A with 50 W maximum power consumption
- DIN 43650 plug-in format for direct installation on compatible Atos proportional valves
- Adjustable bias, scale and ramp functions with factory preset calibration
- IP65 aluminium housing with electronic filtering on input and output lines
Applications
- Proportional pressure control systems
- Proportional hydraulic flow control
- Hydraulic actuator position control
- Speed control of hydraulic cylinders and motors
- Open-loop and closed-loop electrohydraulic systems
- PLC and external reference signal controlled hydraulic systems
Specifications
Product TypeAnalog Electronic Driver
Power Supply24 VDC
Input Signal0–10 VDC
Output Current2.7 A
Electrical ConnectionDIN 43650 Plug-In
Ingress ProtectionIP65
