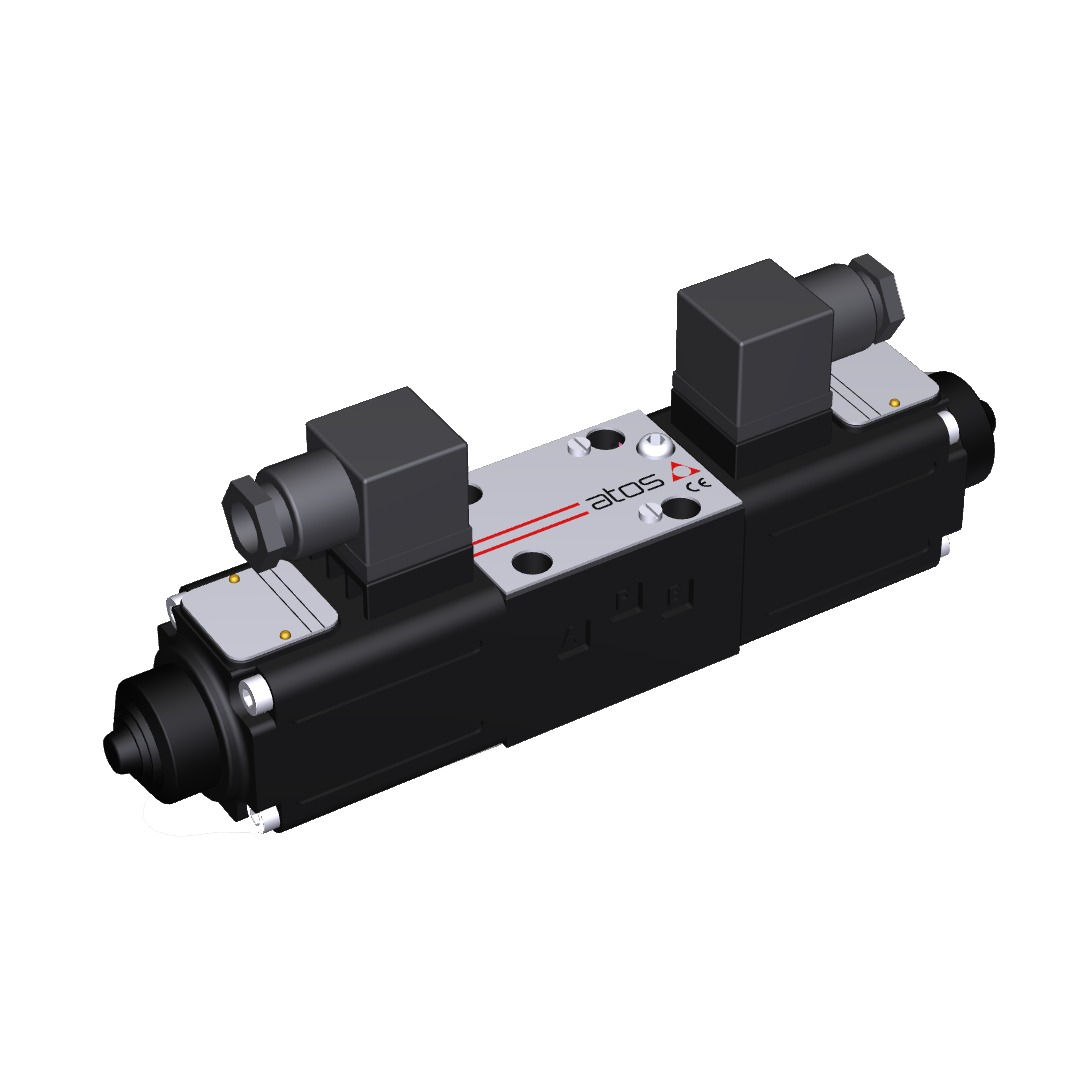

Atos DHZO-A Series Proportional Directional Valve, Size 06, 8 l/min, 350 bar, L1 Linear Spool, DHZO-A-071-L1-20
- Mfr. part no.
- DHZO-A-071-L1-20
Specifications
| Connection Standard | ISO 4401 Size 06 / NG6 |
|---|---|
| Valve Function | 3 Position, Spring Centered |
| Spool Type | L1 Linear |
| Nominal Flow Rate | 8 l/min at Δp 30 bar |
| Maximum Pressure | 350 bar |
| Position Detection | Without Position Transducer |
Key Features
- Direct-operated proportional directional valve without position transducer
- ISO 4401 size 06 with 3-position spring-centered configuration
- L1 linear spool with positive P, A, B and T overlap
- Maximum flow 8 l/min at 30 bar valve pressure drop
- Maximum operating pressure up to 350 bar at P, A and B ports
- Designed for operation with an external Atos electronic driver
Description
The Atos DHZO-A-071-L1-20 is a direct-operated proportional directional valve without position transducer, designed for directional and non-compensated flow control through an off-board electronic driver. Configuration 7 provides 3-position spring-centered operation, while the L1 linear spool has positive P, A, B and T overlap. Maximum flow is 8 l/min at a valve pressure drop of 30 bar, with pressure capability up to 350 bar at ports P, A and B and 210 bar at port T.
Applications
- Proportional hydraulic direction and flow control
- Hydraulic cylinder speed control
- Hydraulic actuator position control
- Industrial motion control systems
- Hydraulic press control applications
- Open-loop and closed-loop electrohydraulic systems
Documents
-
PDF, 1.4 MB Download
Datasheet Atos DHZO Propotionla Directional Valve
PDF, 1.4 MB
