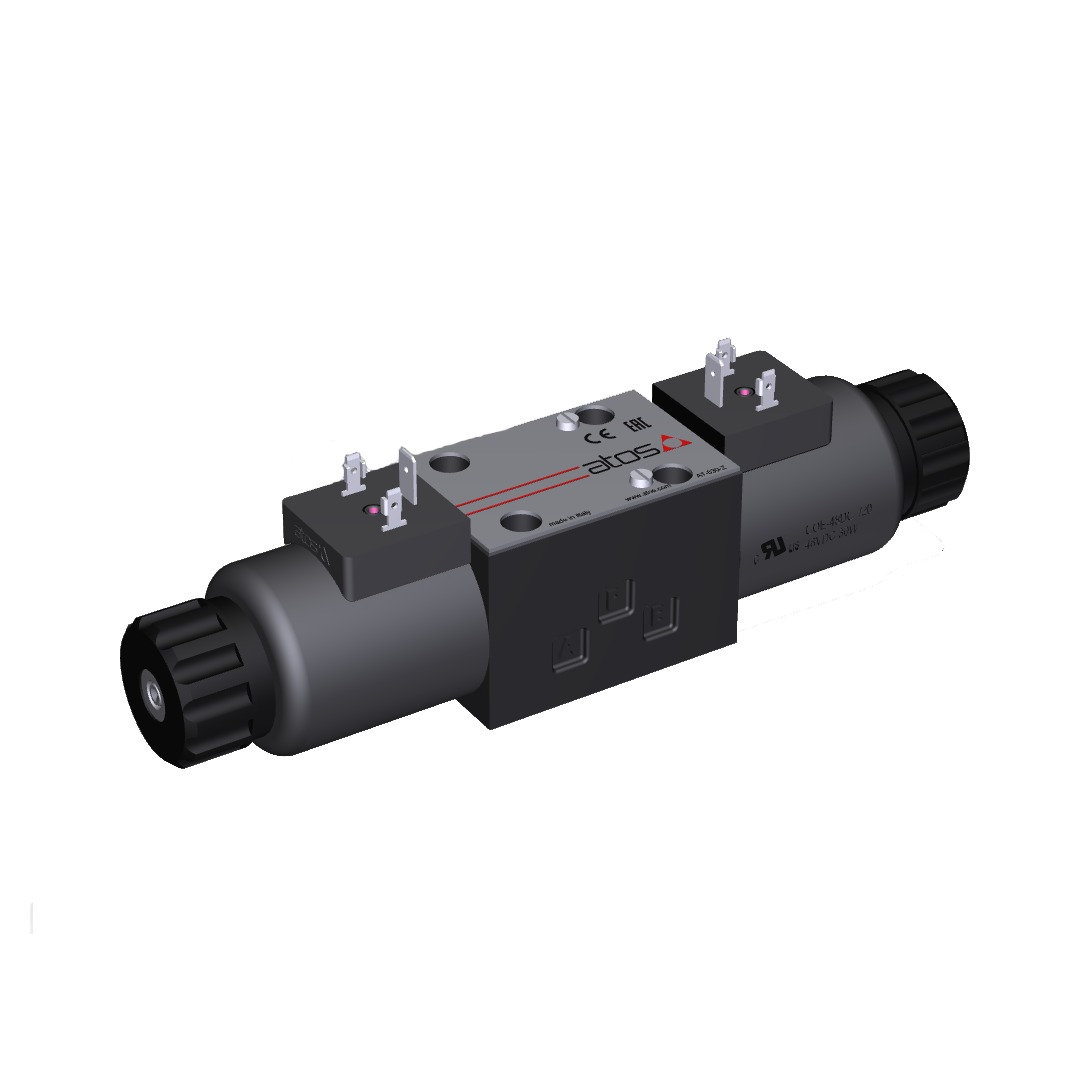

Atos DHE Series Solenoid Directional Valve, Size 06, 80 l/min, 350 bar, Single Solenoid, DHE-0671/23
- Mfr. part no.
- DHE-0671/23
Specifications
| Connection Standard | ISO 4401 Size 06 / NG6 |
|---|---|
| Valve Function | Single Solenoid, Center & External Position, Spring Offset |
| Spool Type | Spool 1 |
| Maximum Pressure | 350 bar |
| Coil Voltage | 24 VDC |
Key Features
- Direct-operated spool-type hydraulic directional valve, ISO 4401 size 06
- Single-solenoid configuration with center plus external position and spring offset
- Spool type 1 for hydraulic directional control applications
- Maximum flow capacity up to 80 l/min
- Maximum operating pressure up to 350 bar
- High-performance threaded solenoid design with cURus certification
Description
The Atos DHE-0671/23 is a direct-operated spool-type hydraulic directional valve in ISO 4401 size 06. Configuration 67 uses a single solenoid with center plus external position and spring offset, while spool type 1 defines the hydraulic flow path. The valve is rated for up to 80 l/min and 350 bar at ports P, A and B, with 210 bar maximum at port T for DC versions. The supplied item is specified with a 24 VDC coil and without electrical connector.
Applications
- Directional control of hydraulic cylinders
- Directional control of hydraulic motors
- Industrial hydraulic power units
- Machine tools and production machinery
- Hydraulic presses and press equipment
- Industrial automation and material handling systems
