Atos

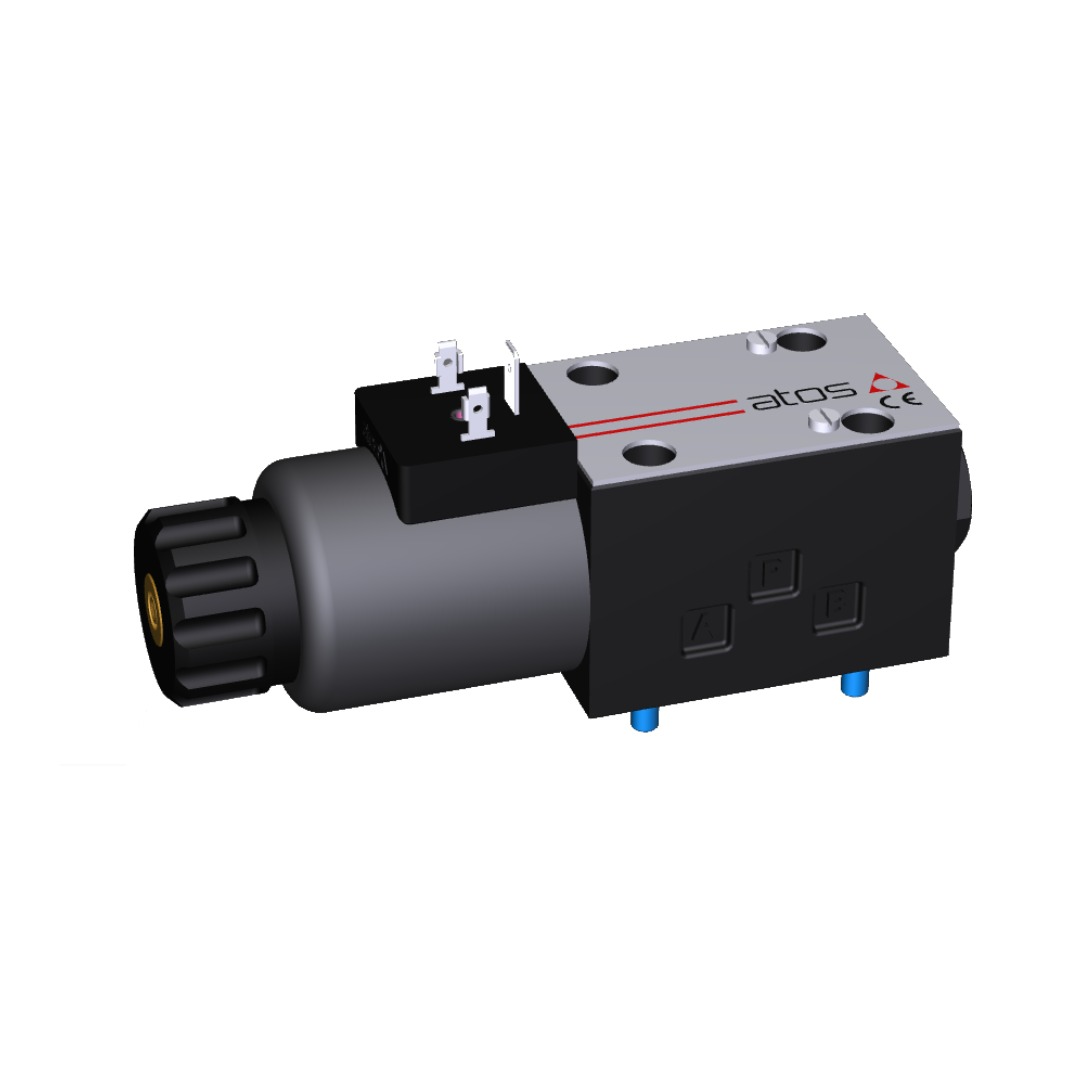

Atos DHE Series Solenoid Directional Valve, Size 06, 80 l/min, 350 bar, 24 VDC, Without Connector, DHE-0671-X-24DC
- Mfr. part no.
- DHE-0671-X-24DC
Specifications
| Connection Standard | ISO 4401 Size 06 / NG6 |
|---|---|
| Valve Function | Single Solenoid, Center & External Position, Spring Offset |
| Spool Type | Spool 1 |
| Maximum Pressure | 350 bar |
| Coil Voltage | 24 VDC |
| Electrical Connection | Without Connector |
Key Features
- Direct-operated spool-type hydraulic directional valve, ISO 4401 size 06
- Single-solenoid configuration with center plus external position and spring offset
- Spool type 1 with maximum flow capacity up to 80 l/min
- Maximum operating pressure up to 350 bar
- 24 VDC solenoid with 100% continuous duty operation
- X execution supplied without electrical connector
Description
The Atos DHE-0671-X-24DC is a direct-operated spool-type hydraulic directional valve in ISO 4401 size 06. Configuration 67 provides a single solenoid with center plus external position and spring offset, while spool type 1 defines the hydraulic flow path. The valve is rated for up to 80 l/min and 350 bar at ports P, A and B, with 210 bar maximum at port T. The 24 VDC coil is rated for continuous duty, and the X code specifies supply without electrical connector.
Applications
- Directional control of hydraulic cylinders
- Directional control of hydraulic motors
- Industrial hydraulic power units
- Machine tools and production machinery
- Hydraulic presses and press equipment
- Industrial automation and material handling systems
Documents
-
PDF, 209 KB Download
Datasheet Atos DHE Directional Valve
PDF, 209 KB
