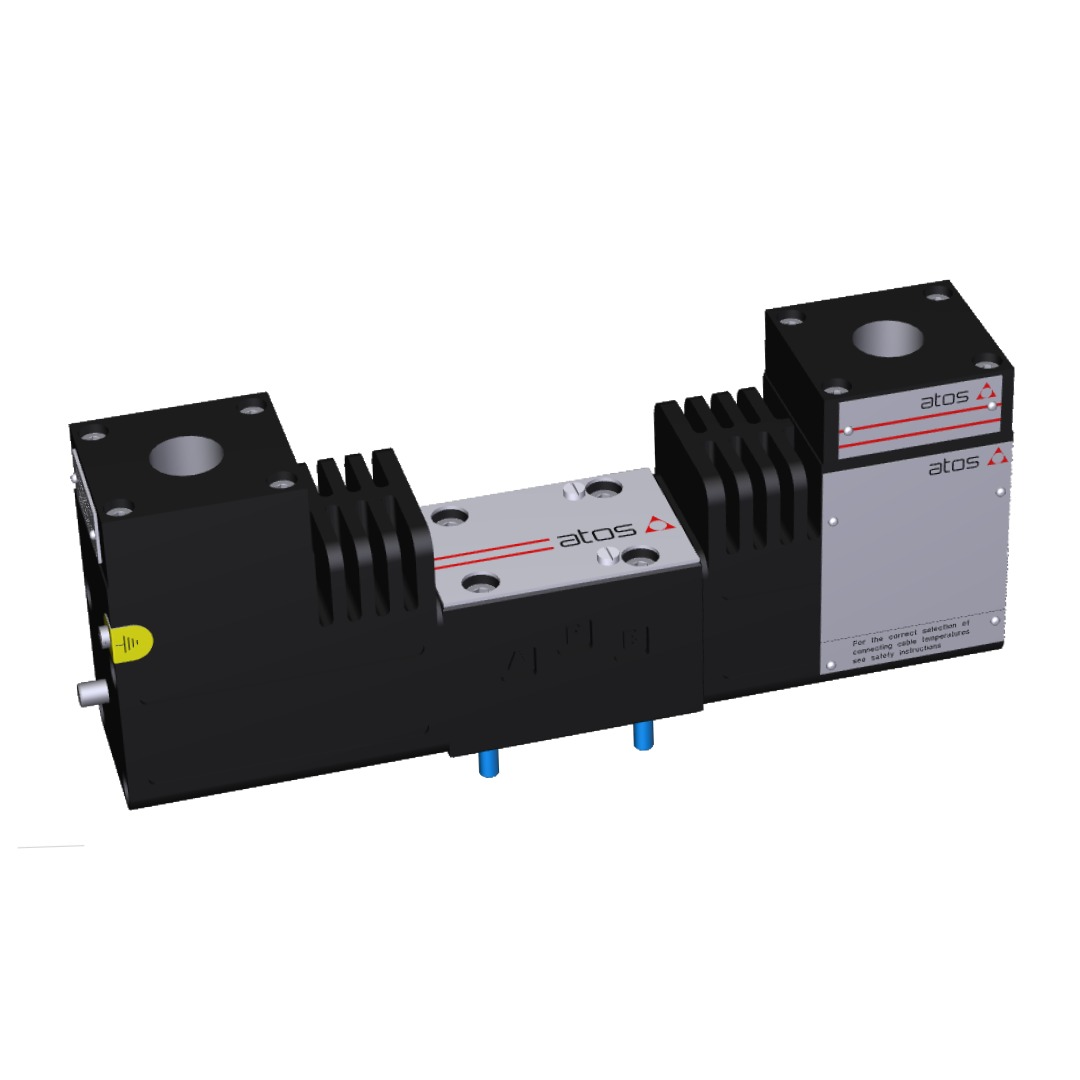

Atos DHA Series Ex-Proof Solenoid Directional Valve, Size 06, 350 bar, 24 VDC, M20 × 1.5, DHA-0713/M/24DC
KWD 750.000
Lead time: 3-4 Weeks
Technical overview
The Atos DHA-0713/M/24DC is an explosion-proof, direct-operated spool directional valve for hydraulic systems in hazardous environments. Configuration 71 uses double-solenoid, 3-position spring-centered operation with spool type 3. The size 06 valve handles up to 70 l/min and 350 bar, uses a 24 VDC solenoid supply and an M20 × 1.5 threaded cable-gland entry. With the relevant cable gland it provides IP66/IP67 protection and carries ATEX, IECEx, EAC, PESO and CCC multicertification.
Key Features
- Ex-proof direct-operated spool-type directional valve for hazardous environments
- Double-solenoid, 3-position spring-centered configuration with spool type 3
- Maximum flow capacity up to 70 l/min and operating pressure up to 350 bar
- 24 VDC solenoids with 100% continuous duty factor
- M20 × 1.5 threaded connection for the electrical cable gland
- ATEX, IECEx, EAC, PESO and CCC certified with IP66/IP67 protection
Applications
- Hydraulic systems in potentially explosive atmospheres
- Hazardous-area industrial machinery
- Surface plant hydraulic control systems
- Mining machinery and hydraulic equipment
- Directional control of hydraulic actuators in gas and dust hazardous areas
- ATEX and IECEx compliant electrohydraulic systems
Specifications
Connection StandardISO 4401 Size 06 / NG6
Valve FunctionDouble Solenoid, 3 Position, Spring Centered
Spool TypeSpool 3
Maximum Pressure350 bar
Coil Voltage24 VDC
ApprovalsATEX, IECEx, EAC, PESO, CCC
Electrical ConnectionM20 × 1.5
Documentation
1 file
