Allen-Bradley

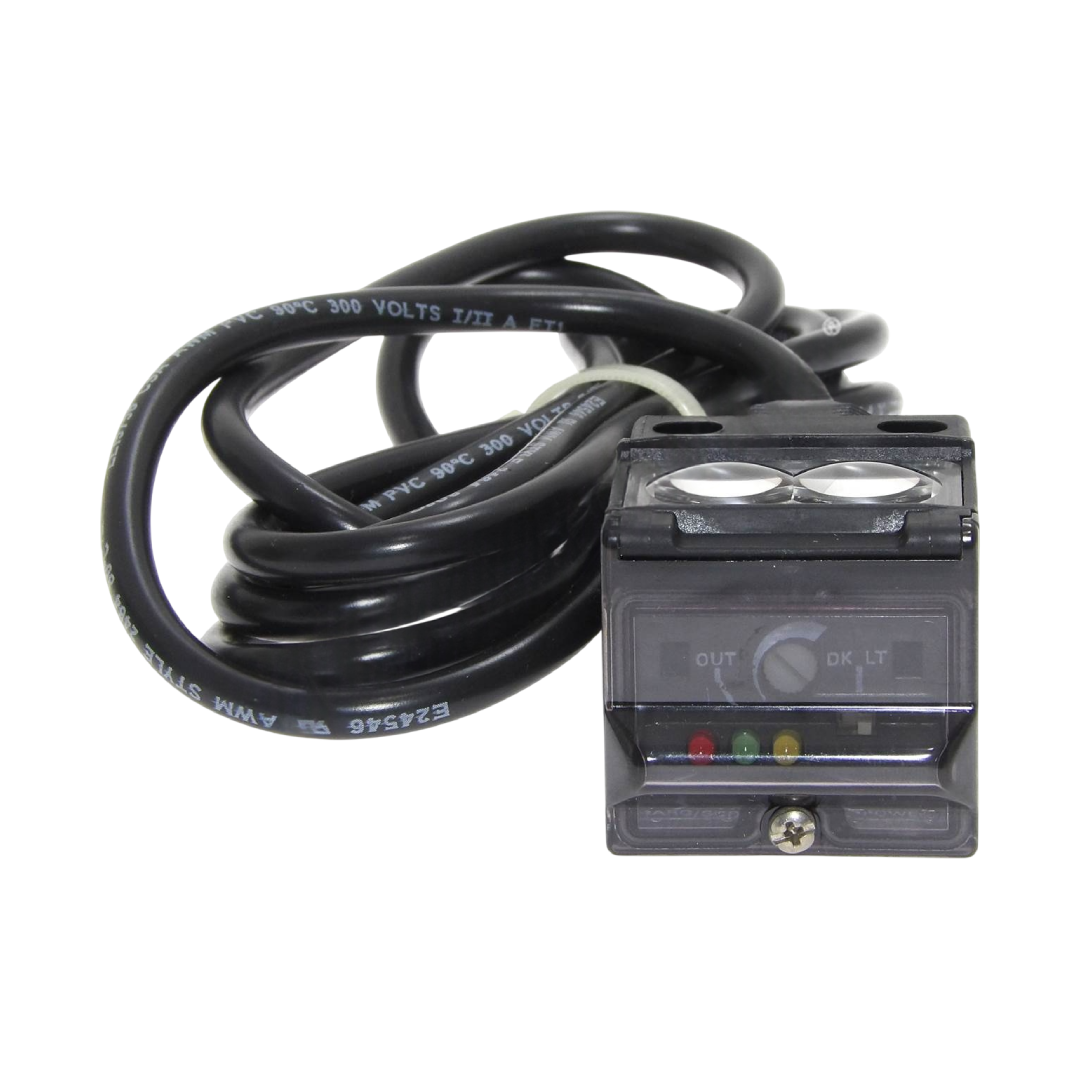

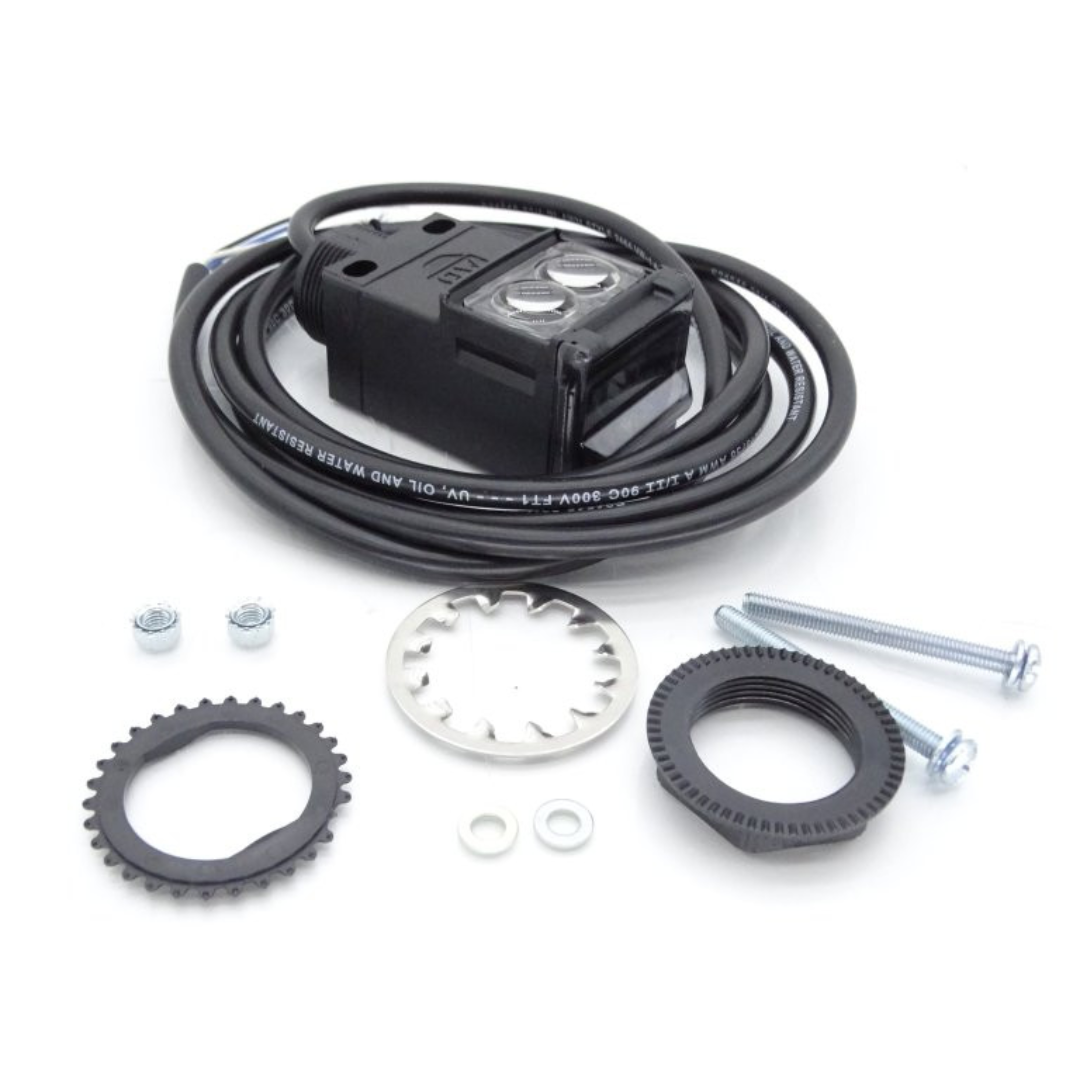

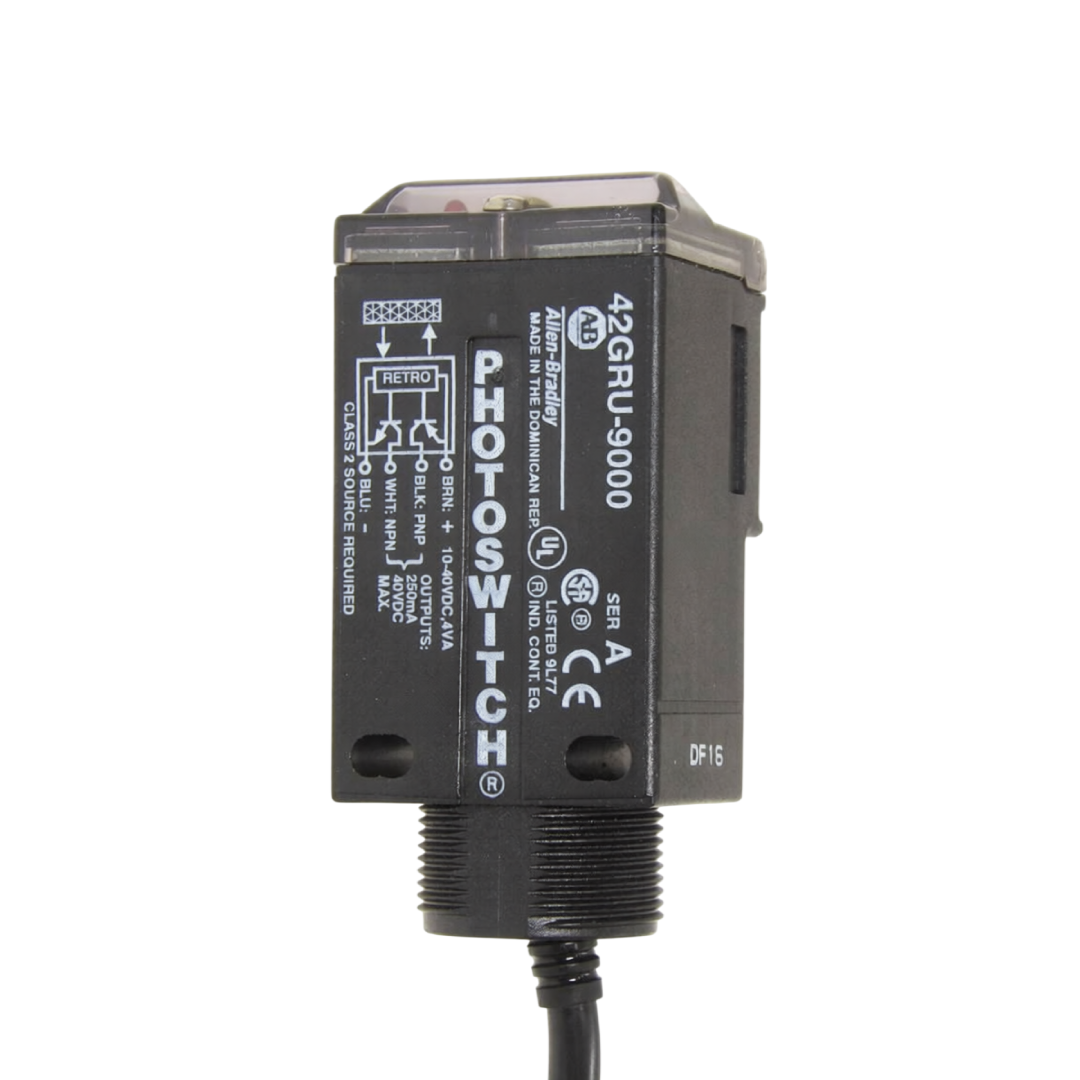

Allen-Bradley Retroreflective Photoelectric Sensor, 50mm-9m, PNP/NPN, 10-30V DC, 2m Cable, 42GRU-9000
- Mfr. part no.
- 42GRU-9000
Specifications
| Product Type | Retroreflective Photoelectric Sensor |
|---|---|
| Sensing Range | 50 mm to 9.1 m |
| Power Supply | 10 to 30 V DC |
| Output Signal | PNP and NPN |
| Electrical Connection | 2 m Cable, 300V |
| Light Source | Visible Red LED |
| Wavelength | 660 nm |
| Response Time | 2 ms |
| Ingress Protection | IP69K, IP67, NEMA 13 |
| Body Material | Plastic |
| Ambient Temperature Range | -34 °C to +70 °C |
Key Features
- Series 9000 PHOTOSWITCH sensor for industrial object detection and machine automation.
- Retroreflective sensing style with visible red 660 nm beam for target detection with reflector.
- Maximum switching distance up to 9.1 m for long-range sensing points.
- 10 to 30 V DC operation with PNP and NPN transistor switching output.
- Selectable light or dark switching mode to match machine control logic.
- Manual adjustment, 2 ms response time and IP67/NEMA 13 protection.
Description
Allen-Bradley 42GRU-9000 is a Series 9000 PHOTOSWITCH retroreflective photoelectric sensor used for non-contact object presence detection in conveyors, packaging machines, material handling lines and industrial automation systems. The sensor uses a visible red 660 nm beam with manual sensitivity adjustment, light/dark switching, 2 ms response time and a maximum switching distance up to 9.1 m when used with a suitable reflector. Its 10 to 30 V DC supply, PNP/NPN transistor output, 2 m cable, plastic housing and IP67/NEMA 13 rated construction make it suitable for replacement and maintenance of Allen-Bradley retroreflective sensor points.
Applications
- Conveyor object detection, part counting and presence checking.
- Packaging machinery, filling lines and material handling equipment.
- Door, chute, bin, carton, pallet and reflector-based detection points.
