RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009

RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009

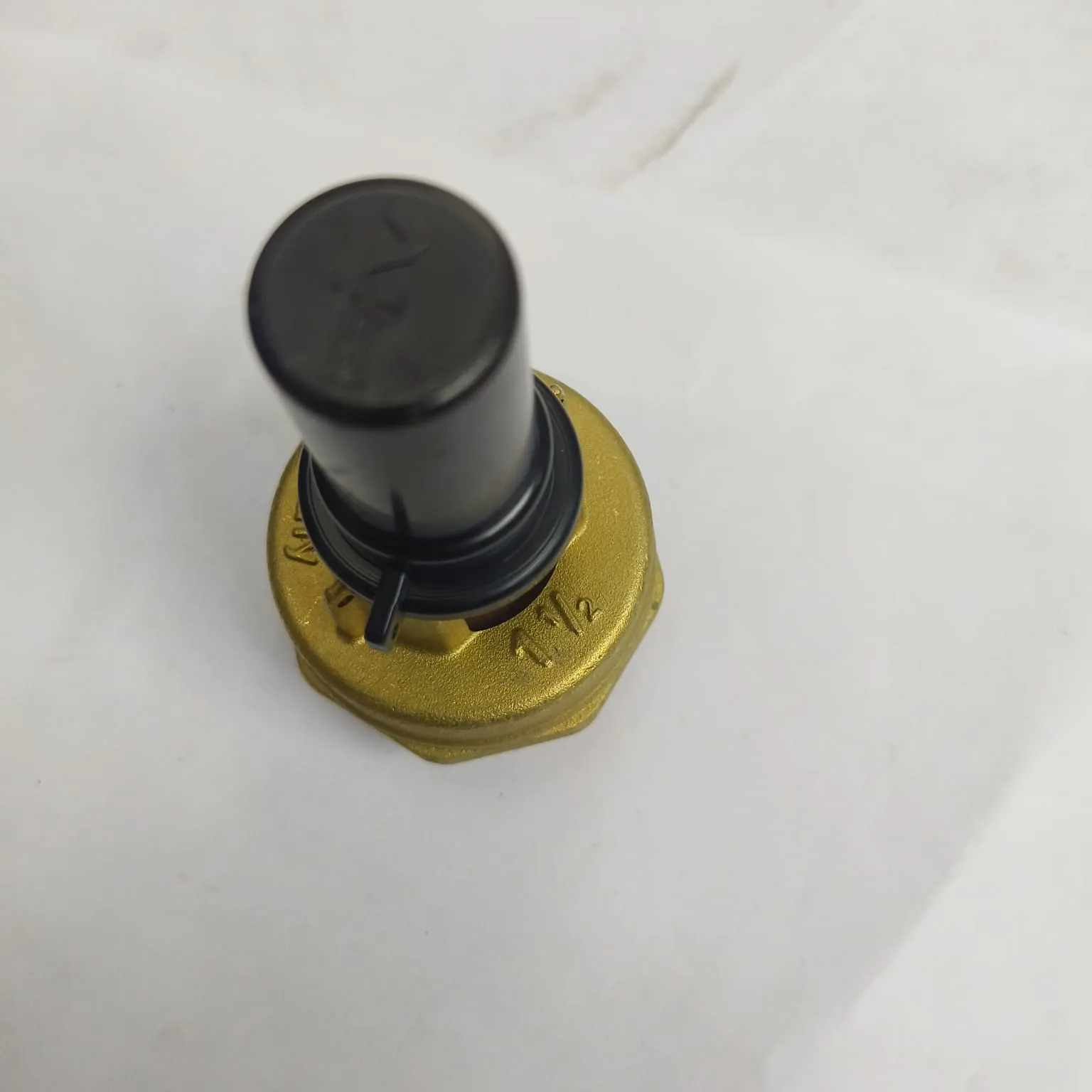

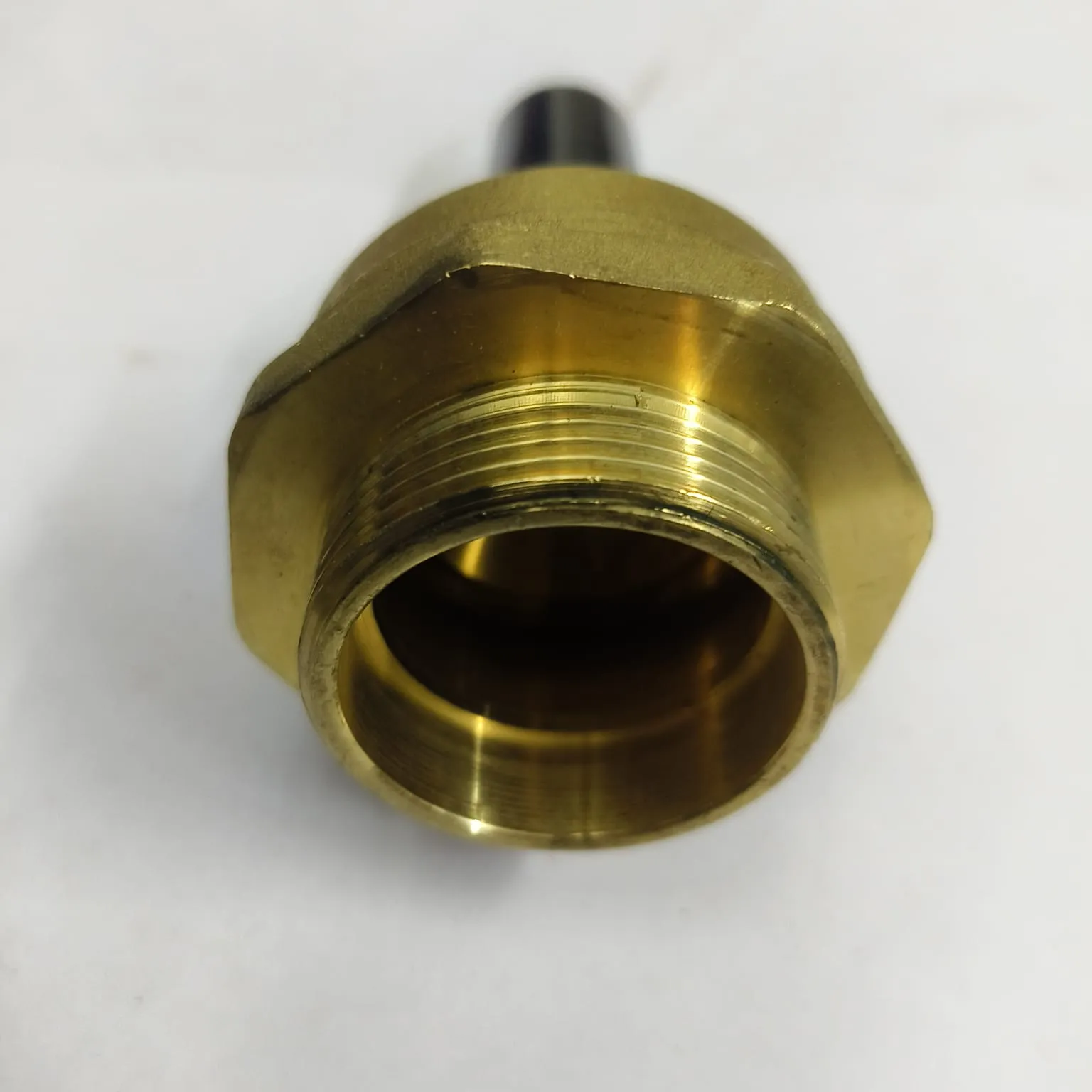

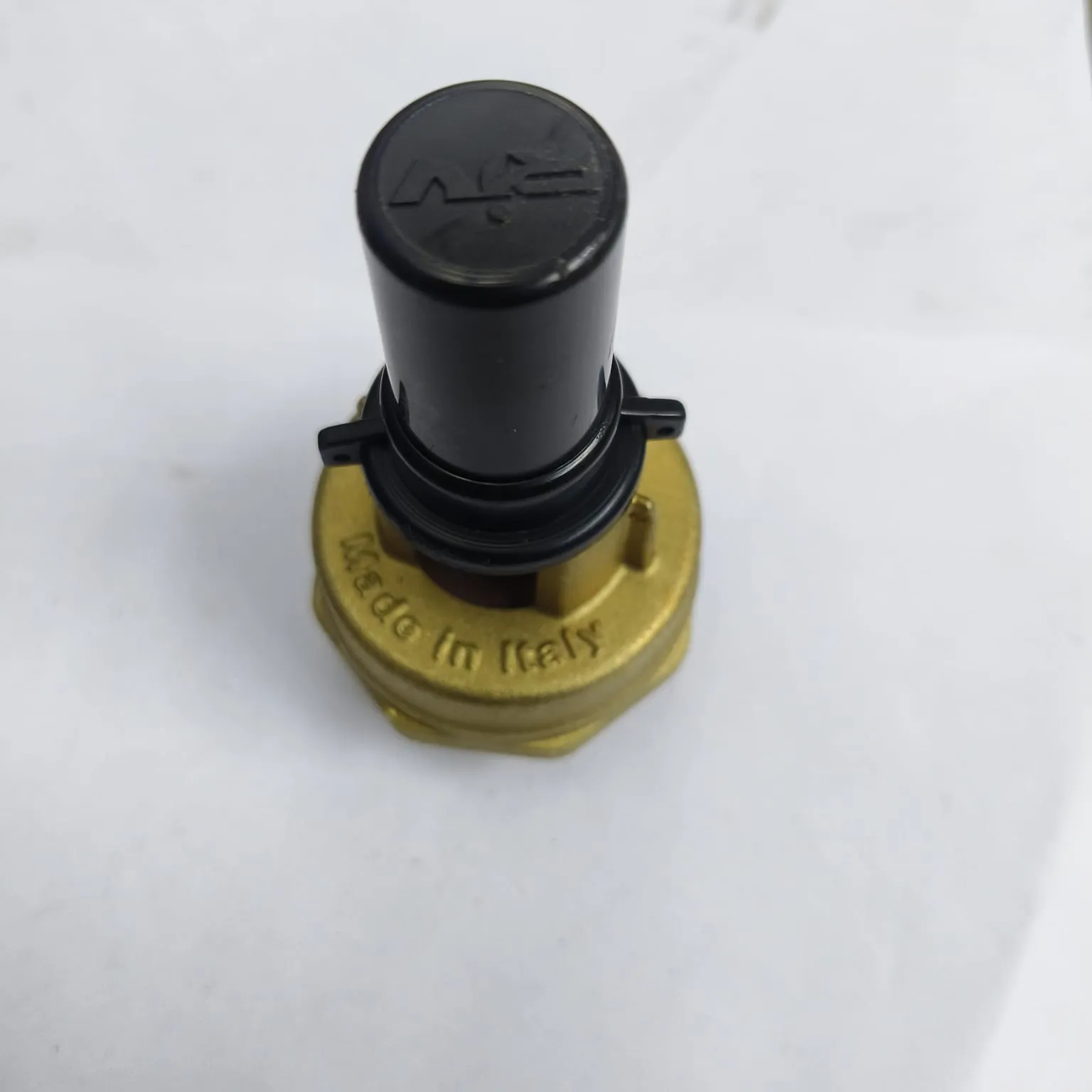

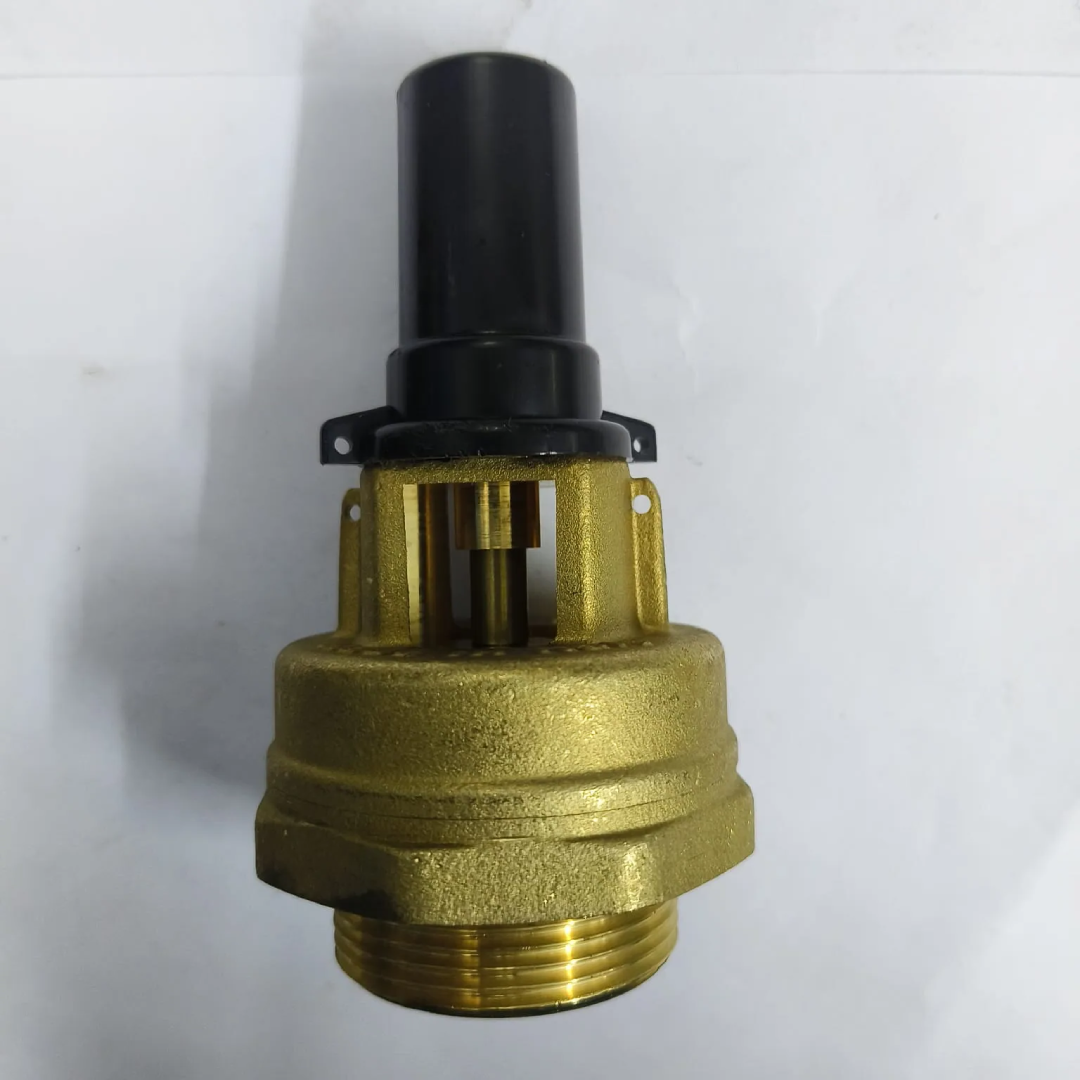

RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009 - image 2
RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009 - image 3
RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009 - image 4
RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009 - image 5
RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009

Mfg. Part No. : 050290000009

SKU : VRV-BRASS-024

Brand :
RIV

RIV 290 Ambra is a spring-adjustable vacuum relief valve with a 1-1/2" BSPP inlet that protects tanks by admitting air when excessive vacuum occurs.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  9 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

RIV 050290000009 — RIV 290 Ambra Series Vacuum Relief Valve, 1-1/2" BSPP Inlet, -0.3 bar, 050290000009. Stocked by Indspare for Kuwait and GCC delivery.

RIV 290 Ambra is a vacuum relief valve designed to protect tanks from excessive vacuum by allowing air intake when negative pressure occurs. It has a 1-1/2" ISO 228/1 (BSPP) threaded inlet and vents to atmosphere under a protective cap. Safety features include a mechanical stop that controls maximum opening, a second stop that prevents loosening from vibration and keeps a minimum calibration of about -0.3 bar (-4 psi), and an obturator design that helps prevent internal parts from falling into the equipment.

Features

  • Protects tanks by relieving excessive vacuum through controlled air admission.
  • Uses a 1-1/2" ISO 228/1 (BSPP) threaded inlet for direct installation.
  • Limits maximum opening using a mechanical stop for safer operation.
  • Prevents loosening from vibration and maintains about -0.3 bar (-4 psi) minimum calibration.
  • Uses an obturator design that helps prevent internal parts from falling into the equipment.
  • Allows tamper-proof sealing after setting using drilled tongues on the cap.
  • Made in Itlay.

Downloads

Datasheet Ambra - RIV 290.pdf

pdf
Download

Riv_290_Setting_Instruction_Uk.pdf

pdf
Download

Specifications

Body Material
Brass CW617N
Series
Ambra 290 Series
Valve Type
Vacuum relief
Inlet Port
1-1/2" ISO 228/1 (BSPP)
Outlet Port
Atmospheric vent
Min Calibration
-0.3 bar (-4 psi)
Temperature Range
0 to 180°C (without liquid)
Seal Material
FKM
Application
Vacuum tank protection
