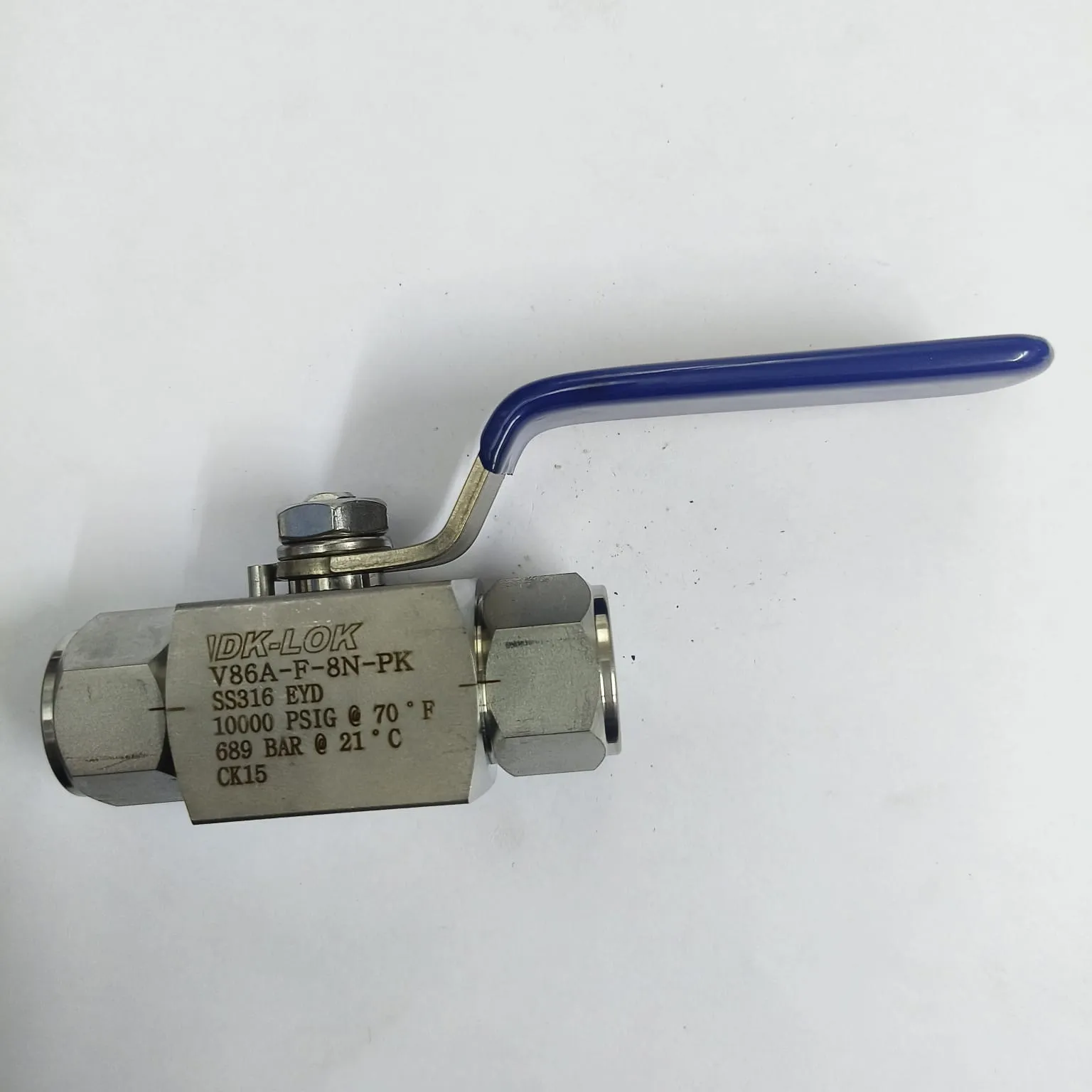

DK-LOK V86A Series Ball Valve, 10,000 psig, 1/2" Female NPT Connections, SS316, V86A-F-8N-PK - image 4
DK-LOK V86A Series Ball Valve, 10,000 psig, 1/2" Female NPT Connections, SS316, V86A-F-8N-PK video thumbnail
DK-LOK V86A Series Ball Valve, 10,000 psig, 1/2" Female NPT Connections, SS316, V86A-F-8N-PK

Mfg. Part No. : V86A-F-8N-PK

SKU : DK-SSBV-08-10K

Brand :
DK-LOK

DK-LOK V86A high pressure ball valve designed for reliable on/off isolation in high-pressure instrument and process lines. The quarter-turn lever handle enables quick operation, while the stainless steel body and engineered soft seat provide tight shutoff and long service life in demanding fluid and gas applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  28 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

DK-LOK V86A-F-8N-PK — DK-LOK V86A Series Ball Valve, 10,000 psig, 1/2" Female NPT Connections, SS316, V86A-F-8N-PK. Stocked by Indspare for Kuwait and GCC delivery.

DK-LOK V86A Series ball valves are high-pressure, quarter-turn on/off valves designed for reliable shutoff in instrumentation and process service. Built with a blowout-proof internally loaded stem and a robust positive stop, the lever handle provides clear open/close indication and fast operation. The SS316 body with PEEK seats delivers high flow capacity and dependable sealing, with a pressure rating 10,000 psig (689 bar) and temperature rating -65 to 500°F (-54 to 260°C). Commonly used for hydraulic, gas, and chemical service lines where compact size and safe, repeatable operation are required.

Key Features

  • Pressure rating 10,000 psig (depends on seat material)
  • Quarter-turn 2-way on/off operation
  • Blowout-proof design with internally loaded stem
  • Positive stop with robust stop pin
  • Handle indicates flow direction / open-close position
  • High flow rate with maximum orifice design
  • Panel mounting option available on select models

Applications

  • Instrumentation impulse and isolation lines
  • Hydraulic and pneumatic systems
  • Oil & gas, petrochemical and general process service
  • High-pressure sampling and test panels
  • Utility and industrial gas distribution lines

Downloads

DK-LOK V86A-F-8N-PK-S Datasheet.pdf

pdf
Download

DK-LOK V86 Series Ball Valves Catalog.pdf

pdf
Download

Specifications

Series
V86A
Valve Function
2-way on/off
Connection Size
1/2" Female NPT
Body Material
316 stainless steel (SS316)
Seat Material
PEEK
Maximum Pressure
10,000 psig
Temperature Range
-65 to 500°F (-54 to 260°C)
Stem Design
Blowout-proof, internally loaded stem
Handle
Lever handle, flow direction indication
Seal Material
FKM (Viton) end seal
