DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S

DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S

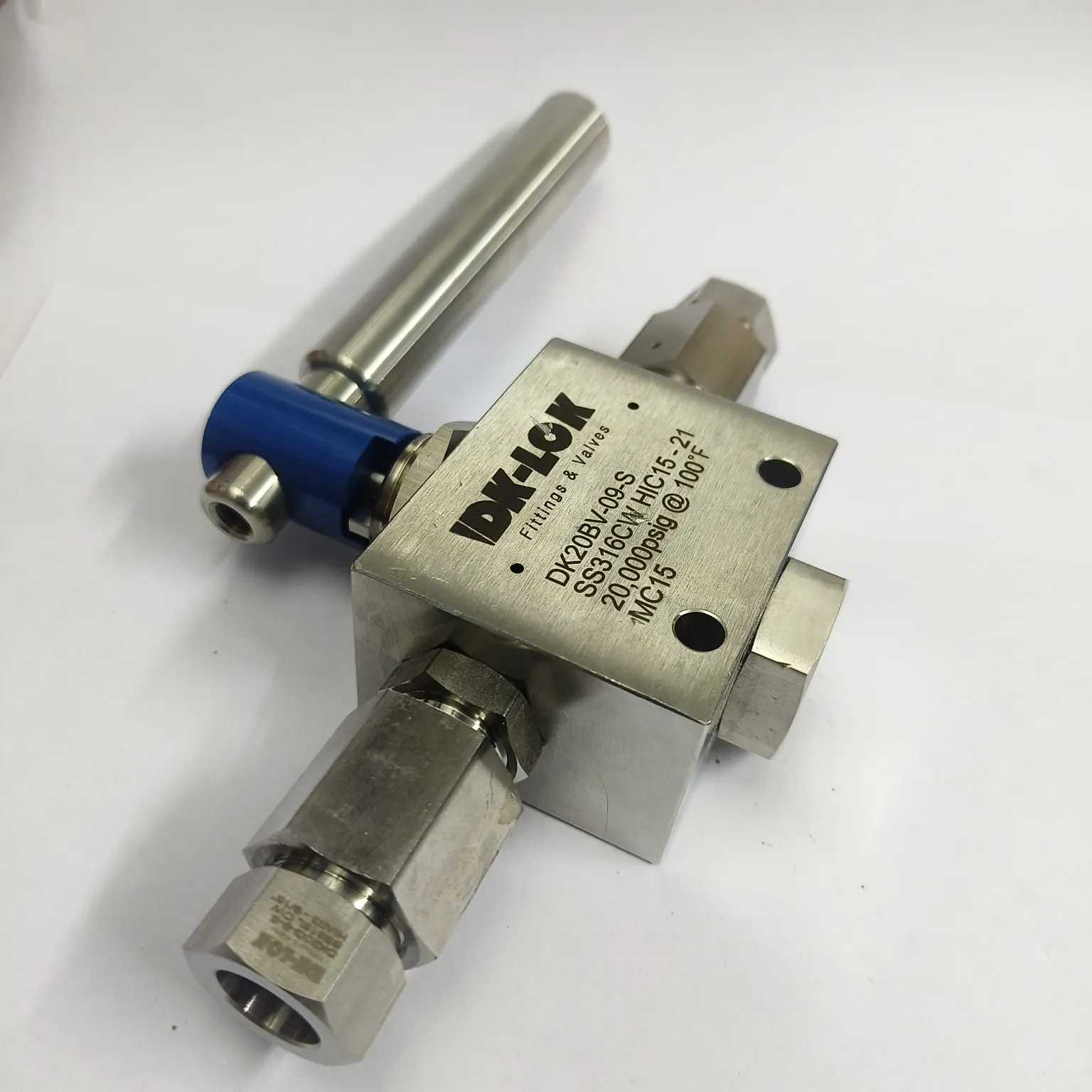

DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S - image 2

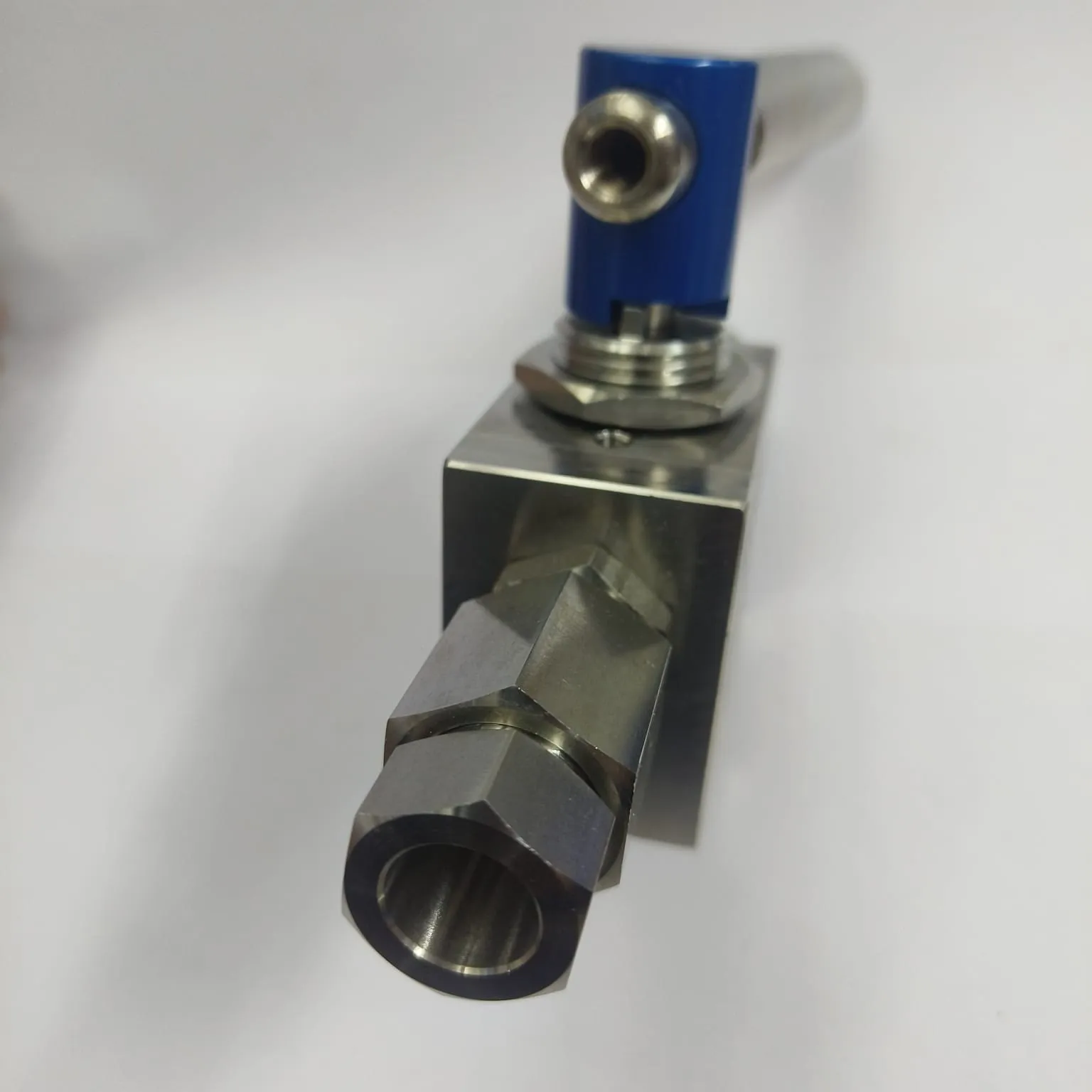

DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S - image 3
DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S video thumbnail
DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S

Part Number : DK20BV-09-S

Brand :
DK-LOK

DK-LOK DK-BV high pressure ball valve designed for reliable on/off isolation in high-pressure instrument and process lines. The quarter-turn lever handle enables quick operation, while the stainless steel body and engineered soft seat provide tight shutoff and long service life in demanding fluid and gas applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 165.000

Quantity

Shipping will be calculated at checkout after you enter delivery address.

In stock (19 available).

Available Qty: 19

Description
Specifications
Downloads
Related products

Description

DK-LOK High Pressure Ball Valves are trunnion-style, quarter-turn valves engineered for very high-pressure service where fast shutoff and reliable sealing are critical. The SS316 body uses PEEK seats for excellent wear and chemical resistance, and the compact design supports safe operation in hydraulic test rigs, sampling systems, and high-pressure gas service. This series is rated up to 20,000 psig and uses standard Viton O-rings with a typical temperature range of -100 to 600°F (-73 to 315°C) depending on packing selection.

Key Features

  • Maximum working pressure 20,000 psig
  • Quarter-turn open/close operation (trunnion ball)
  • PEEK seat for abrasion, friction and chemical resistance
  • Standard Viton O-ring sealing
  • Designed for high-pressure tubing systems and test panels

Applications

  • High-pressure hydraulic and instrumentation systems
  • Pressure testing / calibration rigs
  • Sampling and injection lines
  • High-pressure gas service and industrial utilities

Downloads

DK-LOK Hi-Pressure Series Valves Catalog.pdf

pdf
Download

Specifications

Series
DK-BV (High Pressure Ball Valve)
Valve function
2-way on/off ball valve, quarter-turn
Connection size
Choose a connection size that matches the size of the pipe or hose it will be connected to. Alternatively, you can size the valve based on the Kv value for more accuracy.
9/16" Tube OD
Body Material
316 stainless steel (SS316)
Seat Material
PEEK
Max Working Pressure
20,000 psig
Temperature Range
-100 to 600°F (-73 to 315°C) (PTFE or graphite packing options)
Operation
The operating principle of the solenoid valve.
Trunnion-style ball, fast open/close
Seals / O-rings
Viton
