DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC

Name: DK-LOK V86A Series Ball Valve 6000 psig 1/4 Tube OD Connections SS316 V86A-D-4T-PC
Brand: DK-LOK
SKU: V86A-D-4T-PC
Price: 23.000 KWD
Availability: InStock

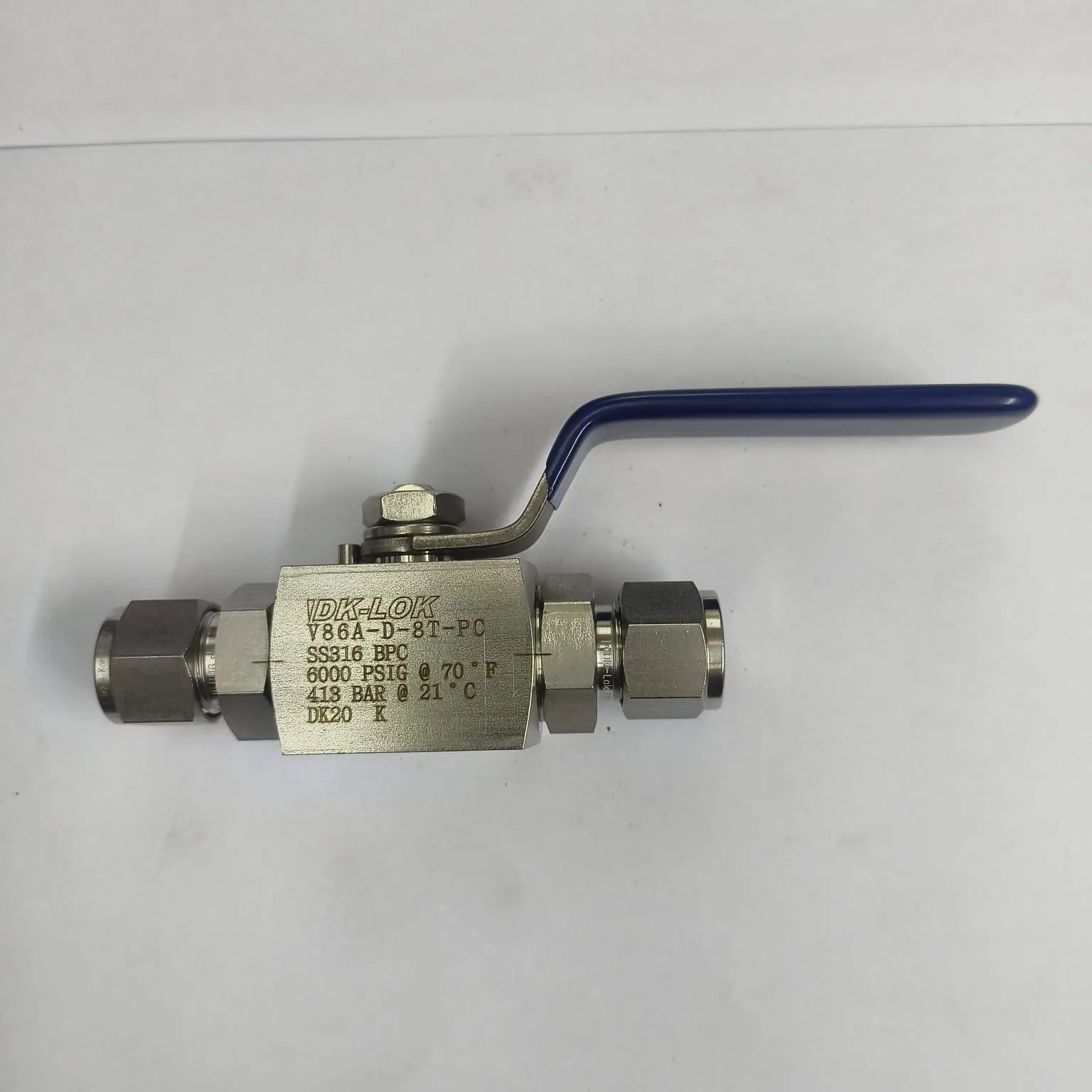

DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC - image 2

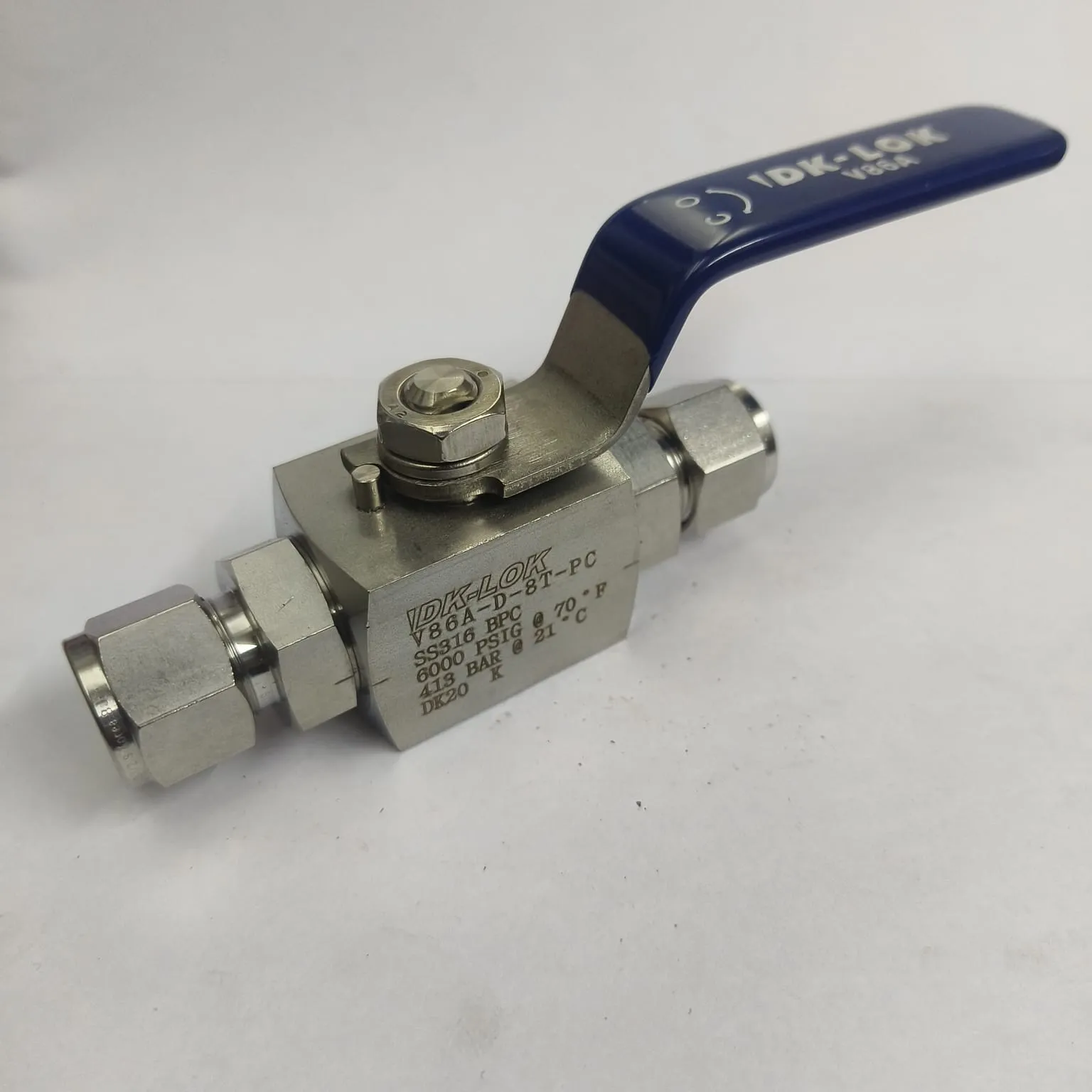

DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC - image 3

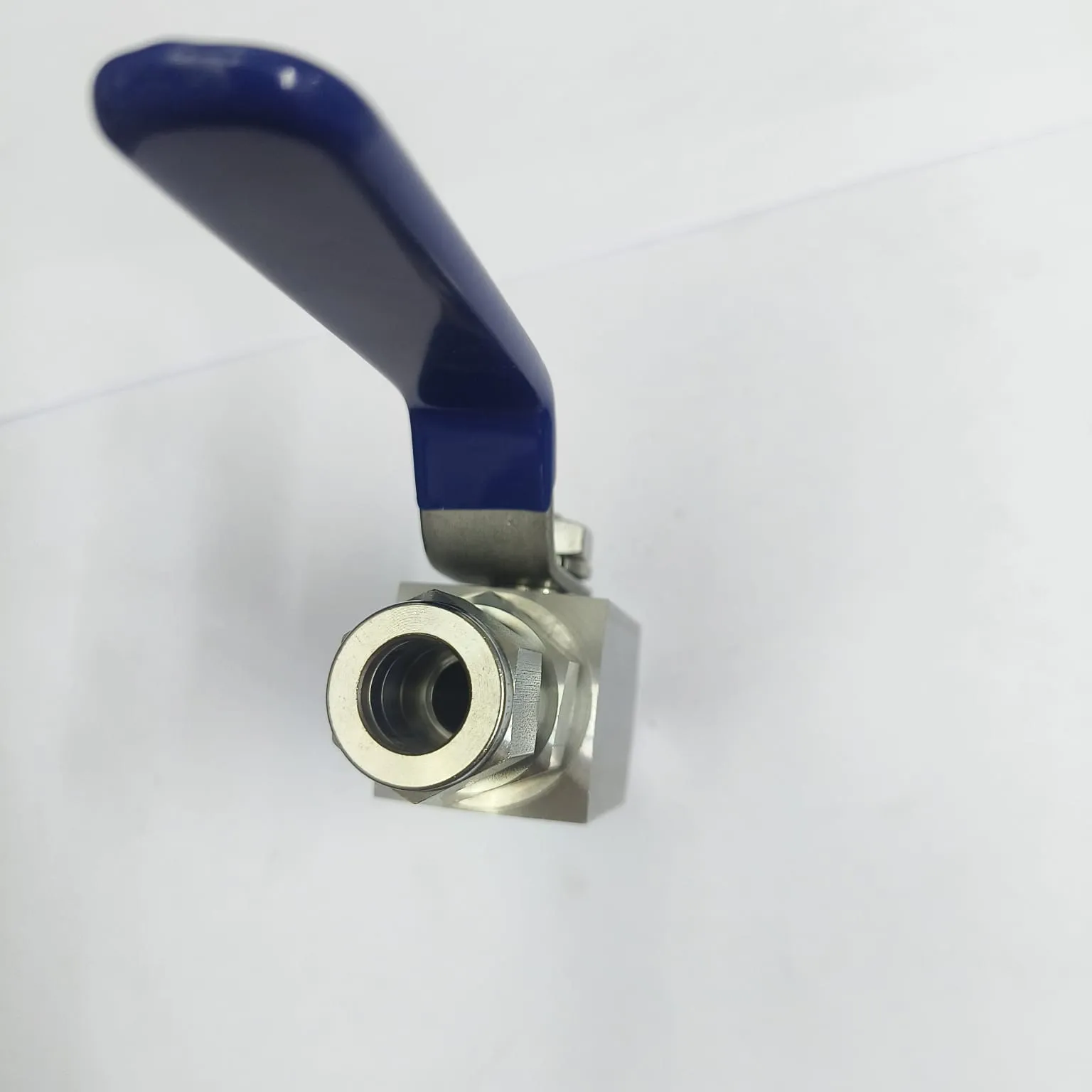

DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC - image 4

DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC video thumbnail

Mfg. Part No. : V86A-D-4T-PC

SKU : DK-SSBVT-6K-04

Brand :

DK-LOK V86A high pressure ball valve designed for reliable on/off isolation in high-pressure instrument and process lines. The quarter-turn lever handle enables quick operation, while the stainless steel body and engineered soft seat provide tight shutoff and long service life in demanding fluid and gas applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

Quantity

In Stock · 5 available

Shipping calculated at checkout. Log in for an estimate.

Description

Specifications

Downloads

Description

DK-LOK V86A-D-4T-PC — DK-LOK V86A Series Ball Valve, 6,000 psig, 1/4" Tube OD Connections, SS316, V86A-D-4T-PC. Stocked by Indspare for Kuwait and GCC delivery.

DK-LOK V86A Series ball valves are high-pressure, quarter-turn on/off valves designed for reliable shutoff in instrumentation and process service. Built with a blowout-proof internally loaded stem and a robust positive stop, the lever handle provides clear open/close indication and fast operation. The SS316 body with PCTFE seats delivers high flow capacity and dependable sealing, with a pressure rating 6,000 psig (413 bar) and temperature rating -22 to 356°F (-30 to 180°C). Commonly used for hydraulic, gas, and chemical service lines where compact size and safe, repeatable operation are required.

Key Features

Pressure rating 6,000 psig (depends on seat material)
Quarter-turn 2-way on/off operation
Blowout-proof design with internally loaded stem
Positive stop with robust stop pin
Handle indicates flow direction / open-close position
High flow rate with maximum orifice design
Panel mounting option available on select models

Applications

Instrumentation impulse and isolation lines
Hydraulic and pneumatic systems
Oil & gas, petrochemical and general process service
High-pressure sampling and test panels
Utility and industrial gas distribution lines

Downloads

DK-LOK V86 Series Ball Valves Catalog.pdf

pdf

Download

Specifications

Series

V86A

Valve Function

2-way on/off

Connection Size

1/4" Tube OD

Body Material

316 stainless steel (SS316)

Seat Material

PCTFE

Maximum Pressure

6,000 psig

Temperature Range

-22 to 356°F (-30 to 180°C)

Stem Design

Blowout-proof, internally loaded stem

Handle

Lever handle, flow direction indication

Seal Material

FKM (Viton) end seal
