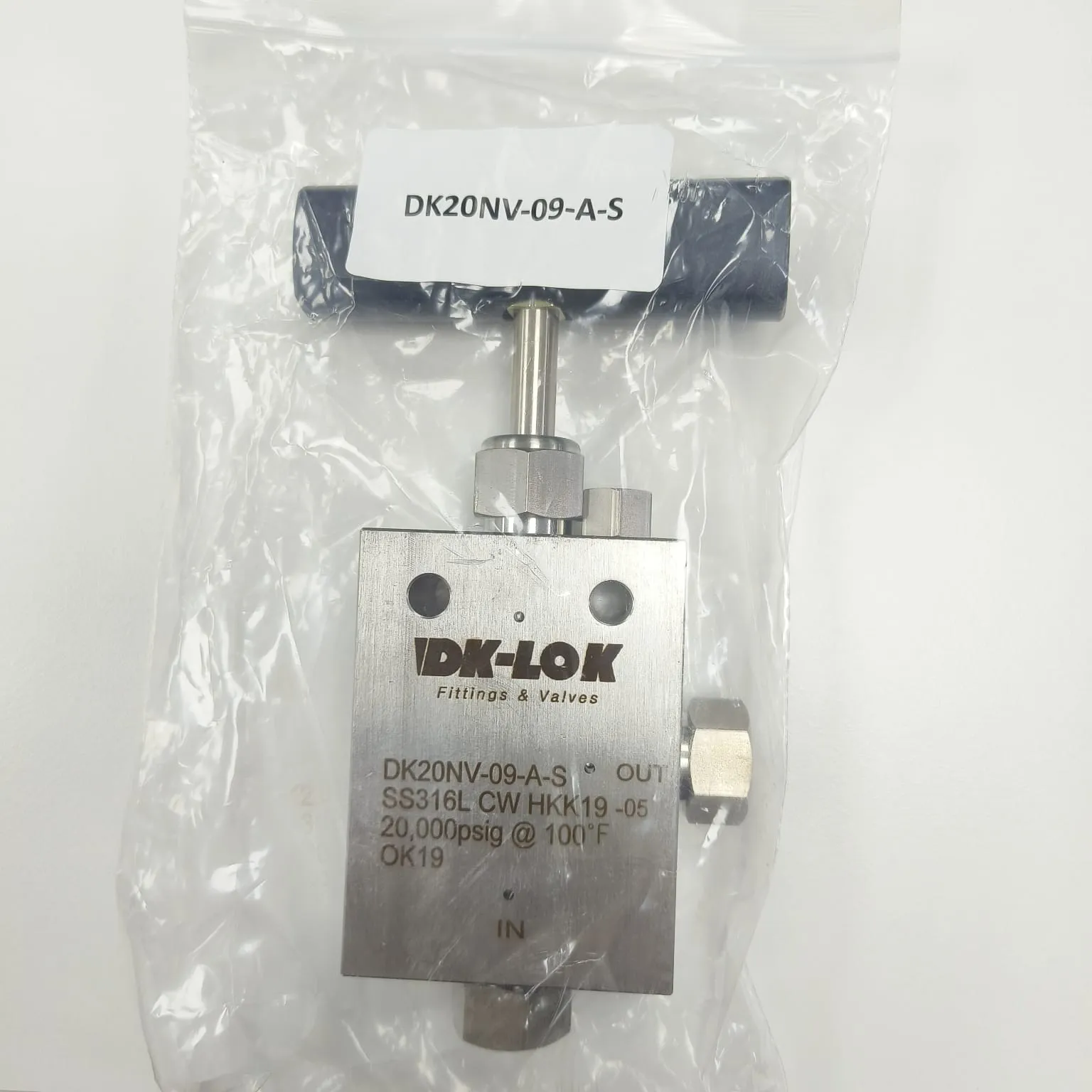

DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S - image 2

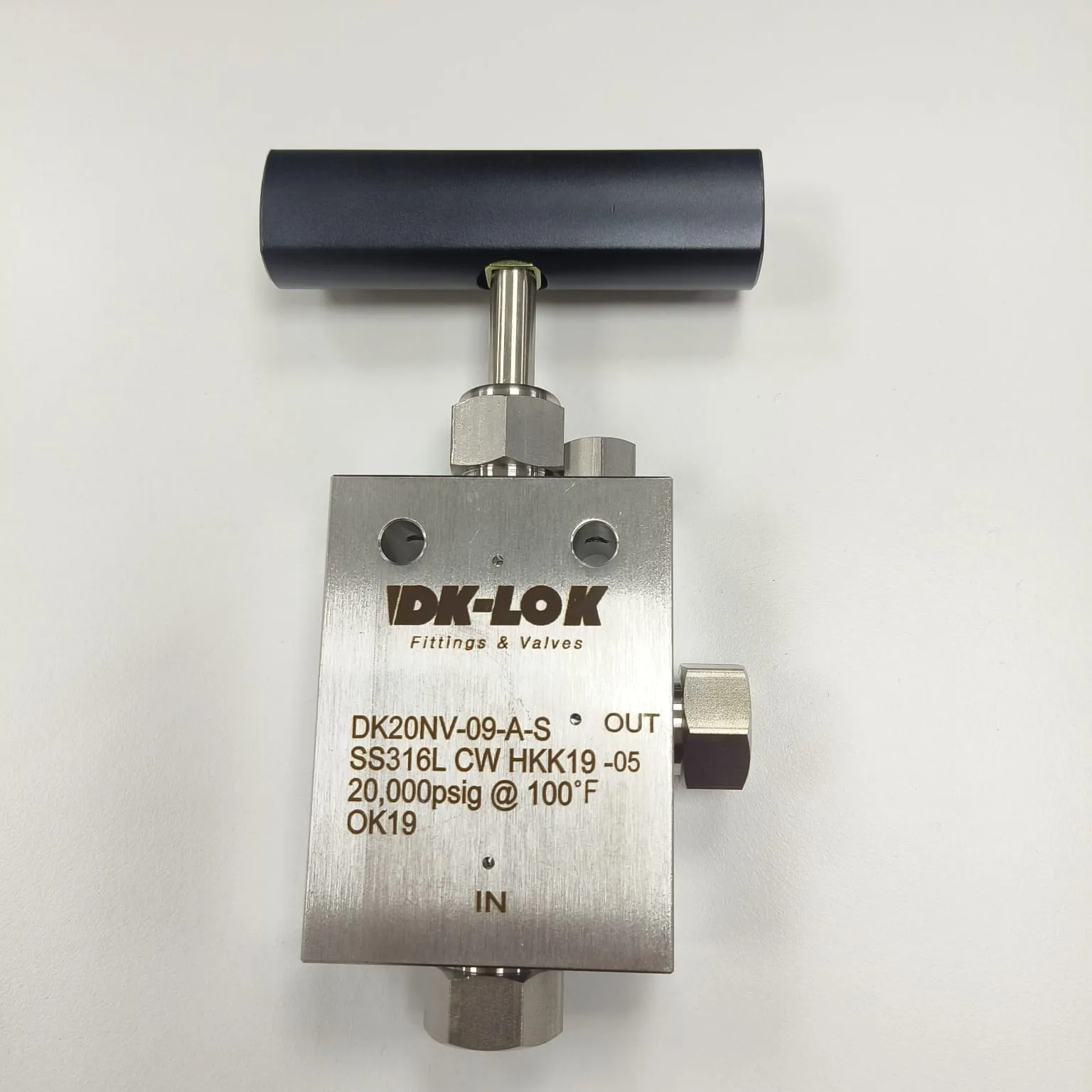

DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S - image 3

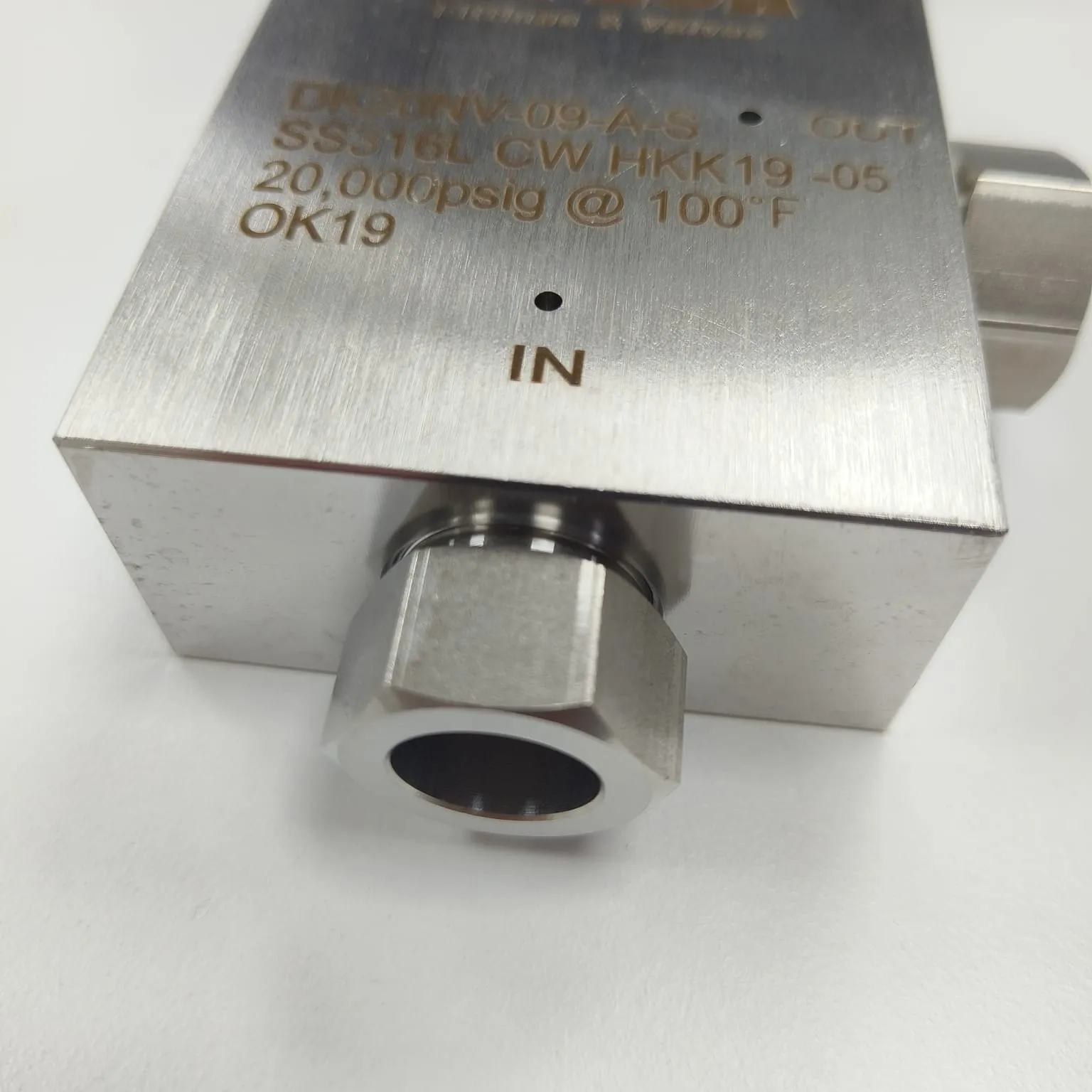

DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S - image 4

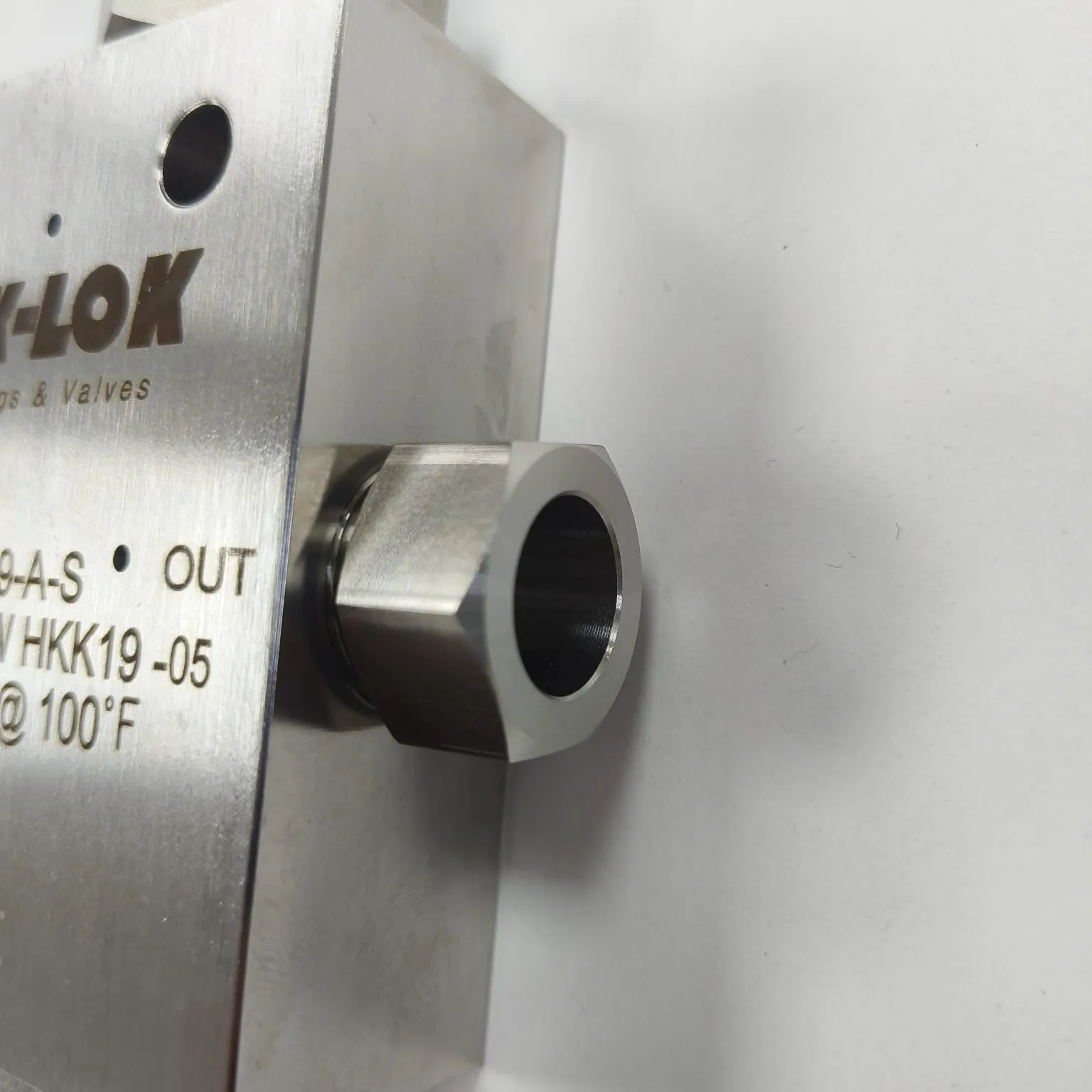

DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S - image 5

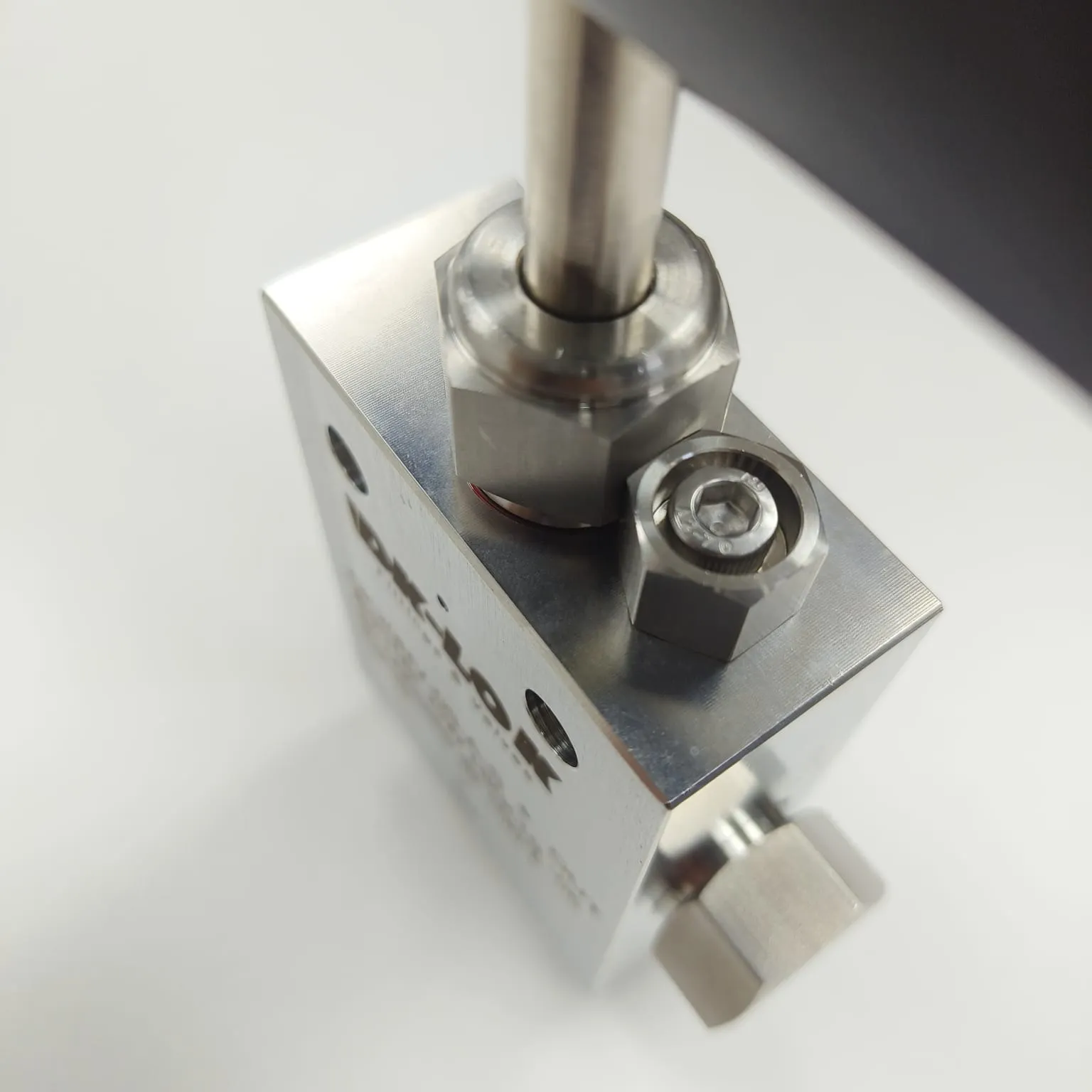

DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S - image 6
DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S video thumbnail
DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S

Mfg. Part No. : DK20NV-09-A-S

SKU : DK-NV22K-14-ANGLE

Brand :
DK-LOK

DK-LOK DK20NV-09-A-S is a 20,000 psi angle type high pressure needle valve for precise throttling and shutoff in compact tubing systems. It is made with 9/16" tube connections and suits demanding fluid and gas service where reliable metering is required.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  10 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

DK-LOK DK20NV-09-A-S — DK-LOK High Pressure Needle Valve, 20,000 psi, Angle Type, 9/16" Tube OD Connections, SS316L, DK20NV-09-A-S. Stocked by Indspare for Kuwait and GCC delivery.

DK-LOK DK20NV-09-A-S high pressure angle needle valve is designed for 20,000 psig service at 100°F and provides precise throttling and positive shutoff in compact high pressure installations. The 90 degree flow path suits tighter layouts, while the 9/16 inch tube connections design supports high pressure tubing service on both sides. The body is ASTM A276 Type 316L stainless steel and the stem is ASTM A564 Type 630 for dependable strength in severe service. Standard PTFE packing with optional graphite, an aluminum handle, and the standard Vee stem tip support reliable operation across high pressure gas and liquid systems.

Key Features

  • 20,000 psi class angle type high pressure needle valve
  • 90 degree flow path helps in compact tubing layouts
  • 9/16 inch tube connection on both sides
  • ASTM A276 Type 316L stainless steel body with Type 630 stem
  • PTFE packing as standard with optional graphite packing

Applications

  • High pressure test equipment and calibration setups
  • Chemical injection and dosing systems
  • Instrumentation isolation and sampling lines
  • Hydraulic and gas service requiring precise manual control
  • Subsea and process systems using high pressure tubing

Downloads

DK-LOK High-Pressure Series Valves Catalog.pdf

pdf
Download

Specifications

Series
High Pressure Needle Valve (DK-NV)
Valve Pattern
Angle Type
Maximum Pressure
20,000 psig @ 100°F (38°C)
Temperature Range
-100°F to 600°F (-73°C to 315°C)
Connection Size
9/16" Tube OD
Orifice Size
7.94 mm
Body Material
316 stainless steel
Packing Material
PTFE optional Graphite
Stem Tip
Standard Vee
