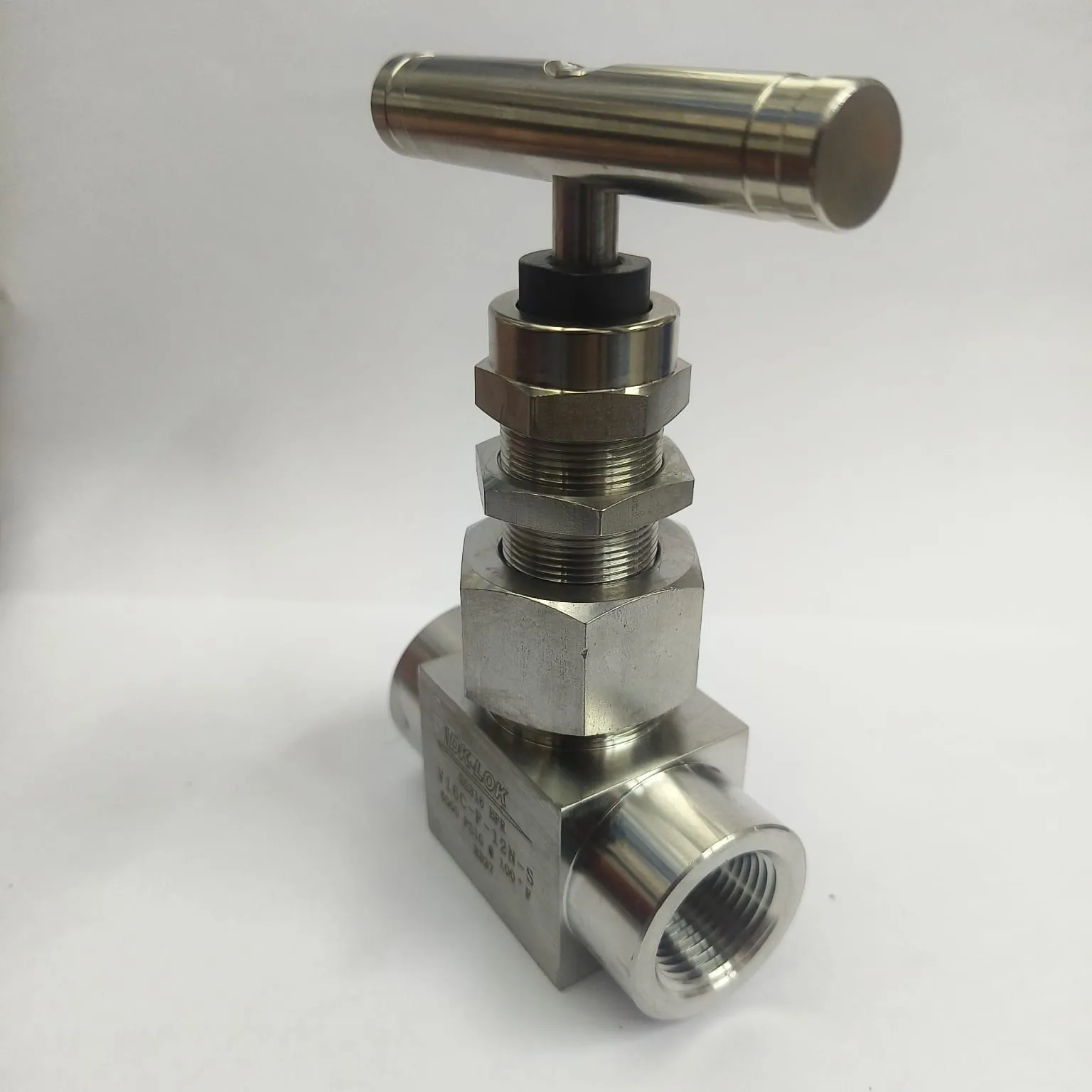

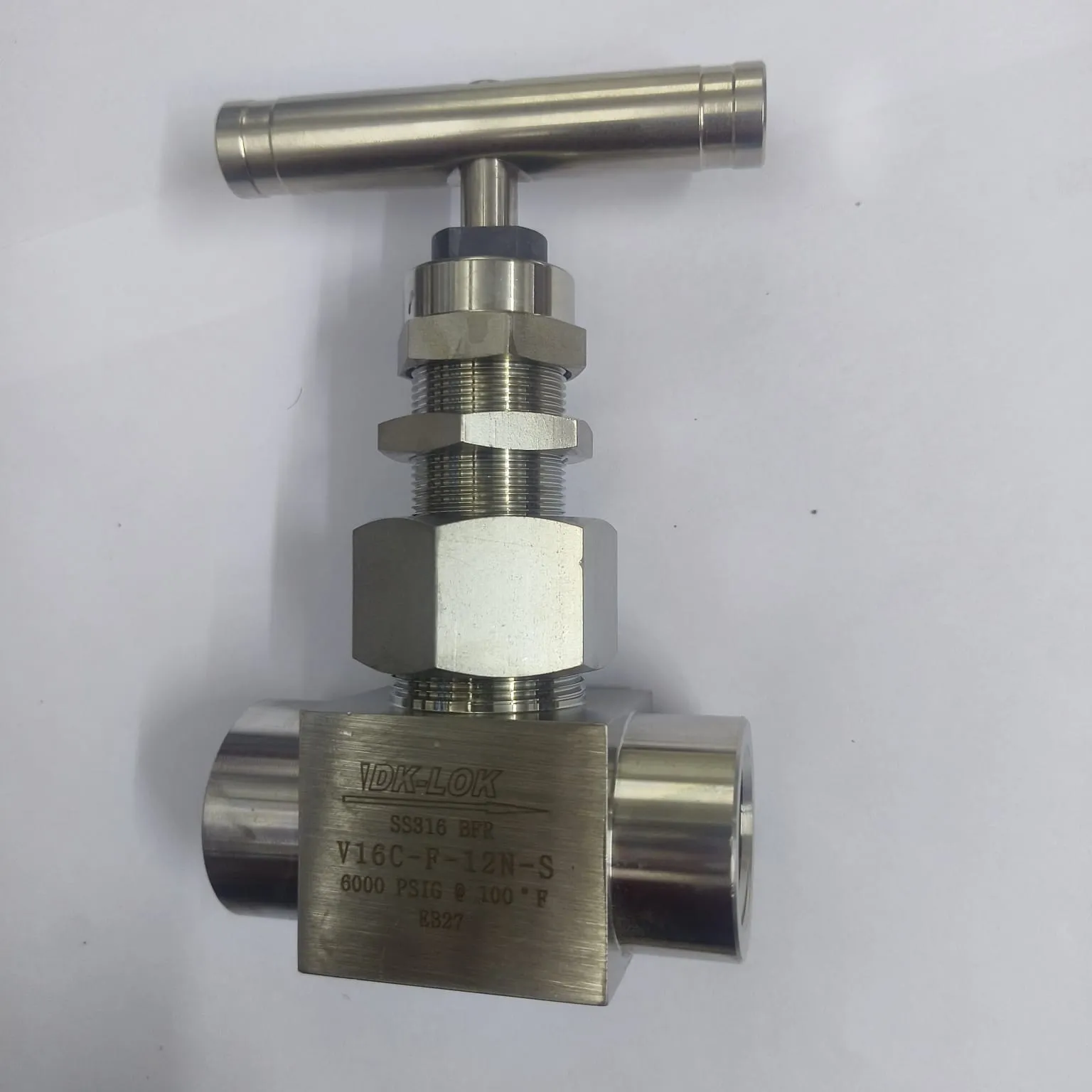

DK-LOK V16 Series Needle Valve, 6000 psi, 3/4" Female NPT Connections, SS316, V16C-F-12N-S
Mfg. Part No. : V16C-F-12N-S
SKU : DK-NV06-012
Brand :
![DK-LOK]()
DK-LOK V16 series needle valves provide precise throttling and reliable shutoff in high-pressure instrument and process lines. Built in SS316 with a robust bonnet design, they are commonly used to isolate gauges and transmitters, control flow to sampling systems, and handle aggressive fluids where repeatable regulation and leak-tight sealing are required.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
Specifications
Downloads
Related
products
Description
DK-LOK V16C-F-12N-S — DK-LOK V16 Series Needle Valve, 6000 psi, 3/4" Female NPT Connections, SS316, V16C-F-12N-S. Stocked by Indspare for Kuwait and GCC delivery.
The DK-LOK V16 series severe service needle valve with 3/4" female NPT connections is designed for accurate flow control and positive isolation up to 6000 psi. Its non-rotating stem tip and packing below the stem threads help reduce galling and protect the stem from system media, while the union bonnet construction supports maintenance and long service life. Ideal for instrumentation manifolds, chemical injection, sampling, and hydraulic/pneumatic control circuits where stable adjustment and dependable shutoff are essential.
Key Features
- Pressure rating up to 6000 psi @ 100°F (38°C)
- Severe service bonnet design for dependable shutoff and control
- Non-rotating stem tip helps reduce galling and improves sealing
- Packing located below stem threads to isolate threads from system media
- SS316 construction suitable for many corrosive services
Applications
- Instrumentation isolation for gauges and pressure transmitters
- Sampling panels and analyzer lines
- Chemical injection and dosing skids
- Hydraulic and pneumatic control circuits
- General high-pressure process isolation and throttling
Specifications
Series
V16 Severe Service Union Bonnet
Maximum Pressure
6,000 psig @ 100°F (38°C)
Connection Size
3/4" Female NPT x 3/4" Female NPT
Valve Pattern
Inline
Body Material
Stainless Steel 316
Packing Material
PTFE
Orifice Size
11.1 mm
Handle
SS316 Bar Handle
