DK-LOK V16 Series Needle Valve, 6000 psi, 1/2" Female NPT Connections, SS316, V16C-F-8N-S

Name: DK-LOK V16 Series Needle Valve 6000 psi 1/2 Female NPT Connections SS316 V16C-F-8N-S
Brand: DK-LOK
SKU: V16C-F-8N-S
Price: 72.500 KWD
Availability: InStock

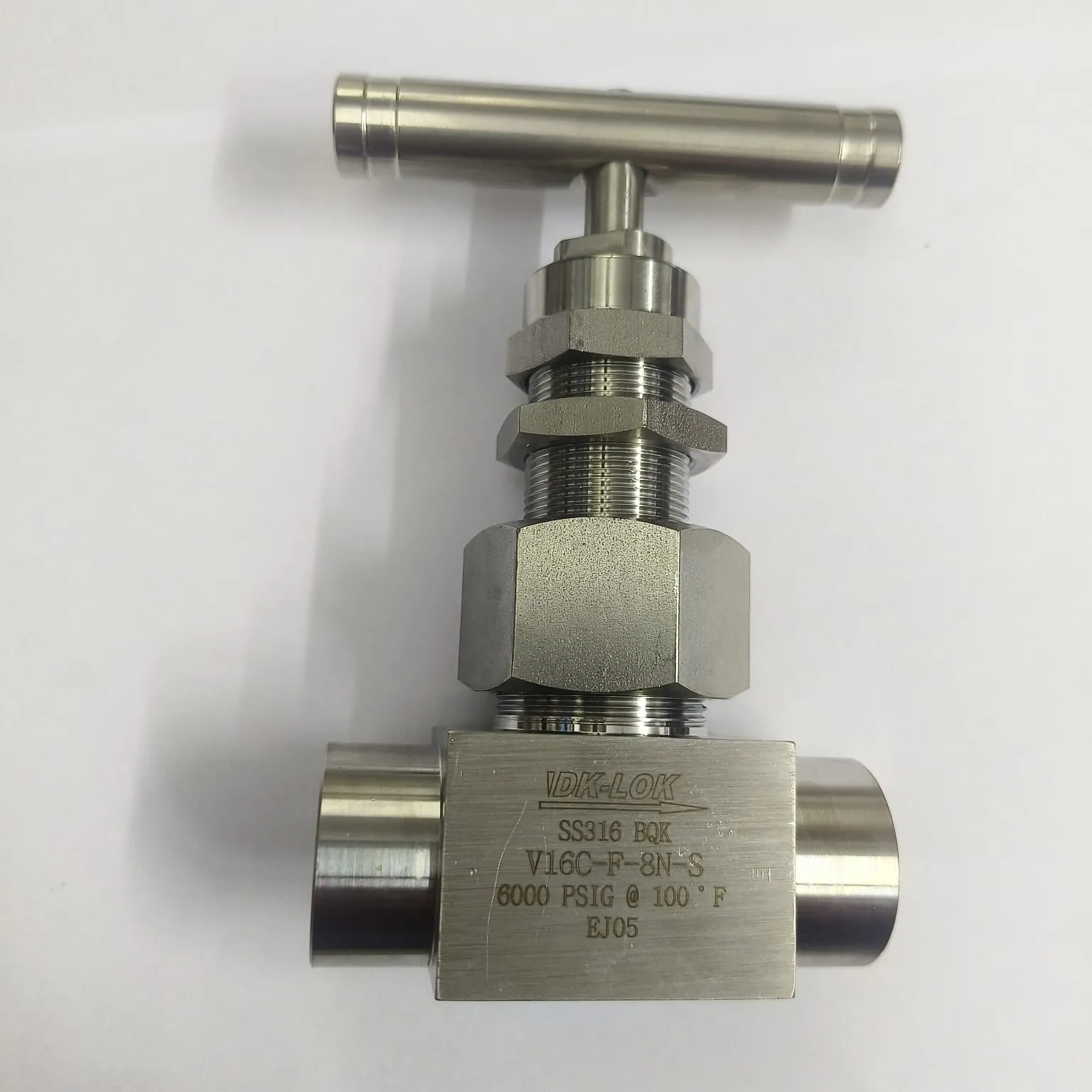

DK-LOK V16 Series Needle Valve, 6000 psi, 1/2" Female NPT Connections, SS316, V16C-F-8N-S - image 2

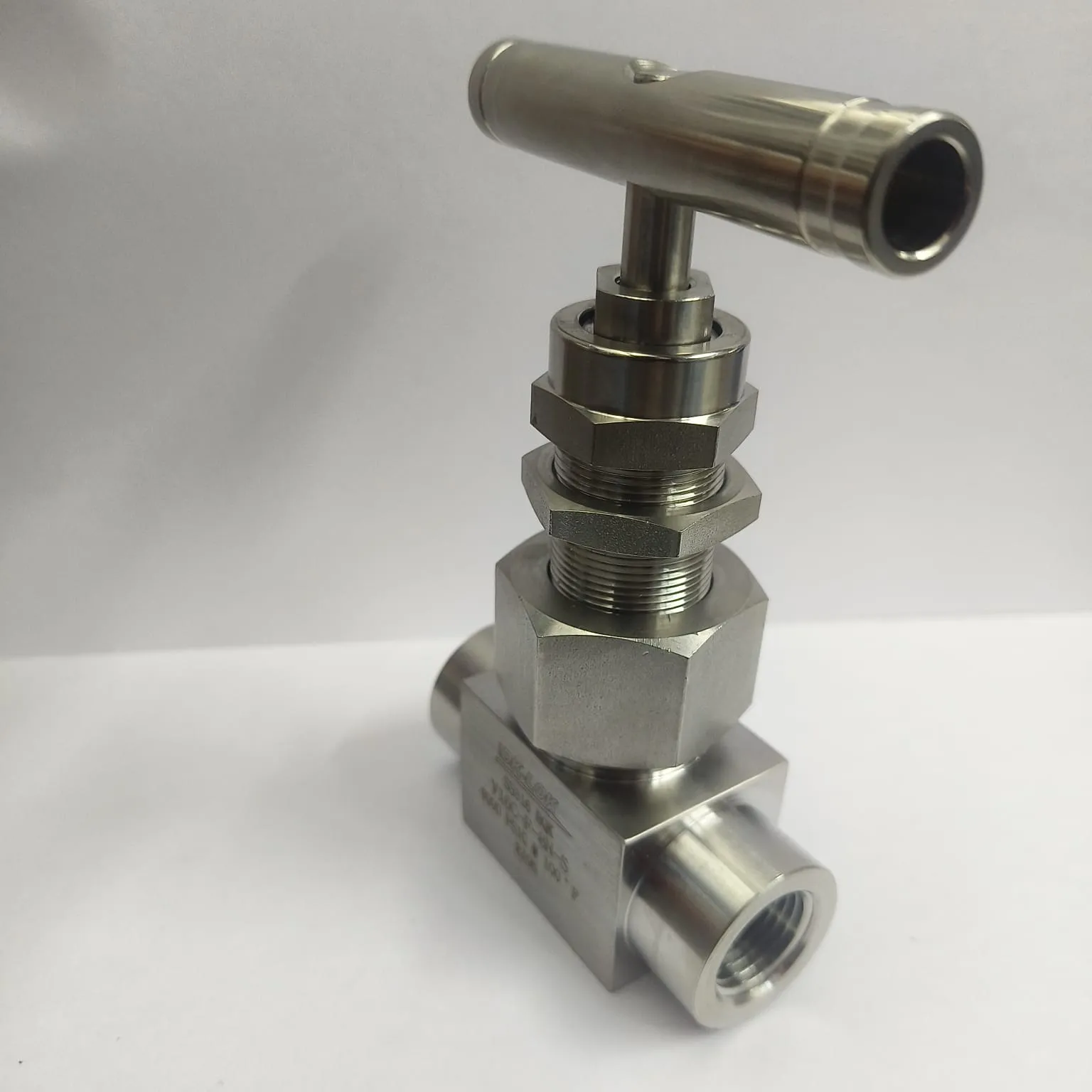

DK-LOK V16 Series Needle Valve, 6000 psi, 1/2" Female NPT Connections, SS316, V16C-F-8N-S - image 3

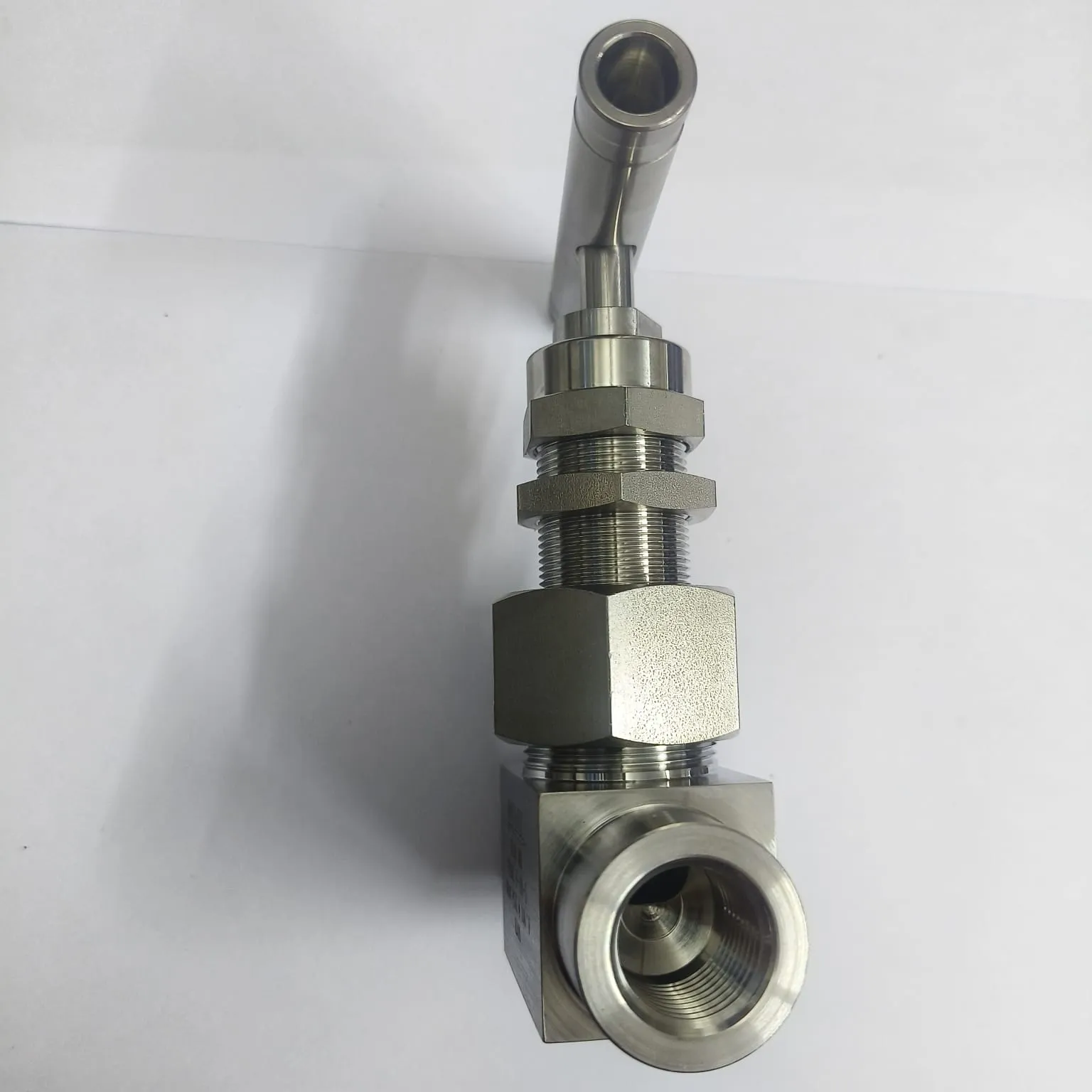

DK-LOK V16 Series Needle Valve, 6000 psi, 1/2" Female NPT Connections, SS316, V16C-F-8N-S - image 4

DK-LOK V16 Series Needle Valve, 6000 psi, 1/2" Female NPT Connections, SS316, V16C-F-8N-S video thumbnail

Part Number : V16C-F-8N-S

Brand :

DK-LOK V16 series needle valves provide precise throttling and reliable shutoff in high-pressure instrument and process lines. Built in SS316 with a robust bonnet design, they are commonly used to isolate gauges and transmitters, control flow to sampling systems, and handle aggressive fluids where repeatable regulation and leak-tight sealing are required.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 72.500

Quantity

Shipping will be calculated at checkout after you enter delivery address.

In stock (26 available).

Available Qty: 26

Description

Specifications

Downloads

Description

The DK-LOK V16 series severe service needle valve with 1/2" female NPT connections is designed for accurate flow control and positive isolation up to 6000 psi. Its non-rotating stem tip and packing below the stem threads help reduce galling and protect the stem from system media, while the union bonnet construction supports maintenance and long service life. Ideal for instrumentation manifolds, chemical injection, sampling, and hydraulic/pneumatic control circuits where stable adjustment and dependable shutoff are essential.

Key Features

Pressure rating up to 6000 psi @ 100°F (38°C)
Severe service bonnet design for dependable shutoff and control
Non-rotating stem tip helps reduce galling and improves sealing
Packing located below stem threads to isolate threads from system media
SS316 construction suitable for many corrosive services

Applications

Instrumentation isolation for gauges and pressure transmitters
Sampling panels and analyzer lines
Chemical injection and dosing skids
Hydraulic and pneumatic control circuits
General high-pressure process isolation and throttling

Downloads

DK-LOK V16C-F-8N-S Datasheet.pdf

pdf

Download

DK-LOK V16 Series Needle Valves Catalog.pdf

pdf

Download

Specifications

Series

V16 Severe Service Union Bonnet

Max Working Pressure

6,000 psig @ 100°F (38°C)

End Connection

1/2" Female NPT x 1/2" Female NPT

Valve Pattern

Inline

Body Material

Stainless Steel 316

Packing Material

PTFE

Orifice

11.1 mm

Stem Disc

Globe

Handle

SS316 Bar Handle

Handle Diameter (D)

121.0 mm
