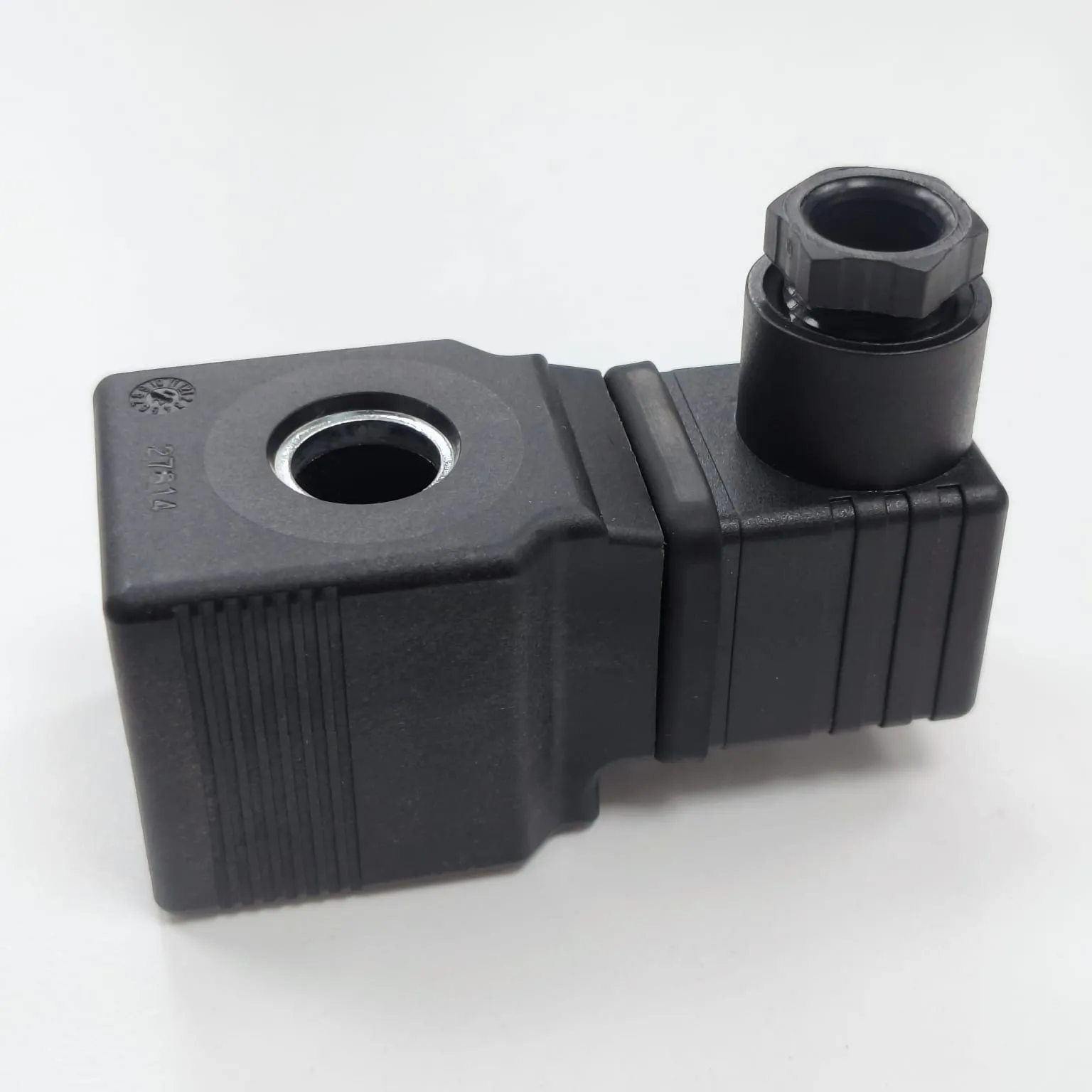

ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522 - image 2
ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522 - image 3
ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522 - image 4

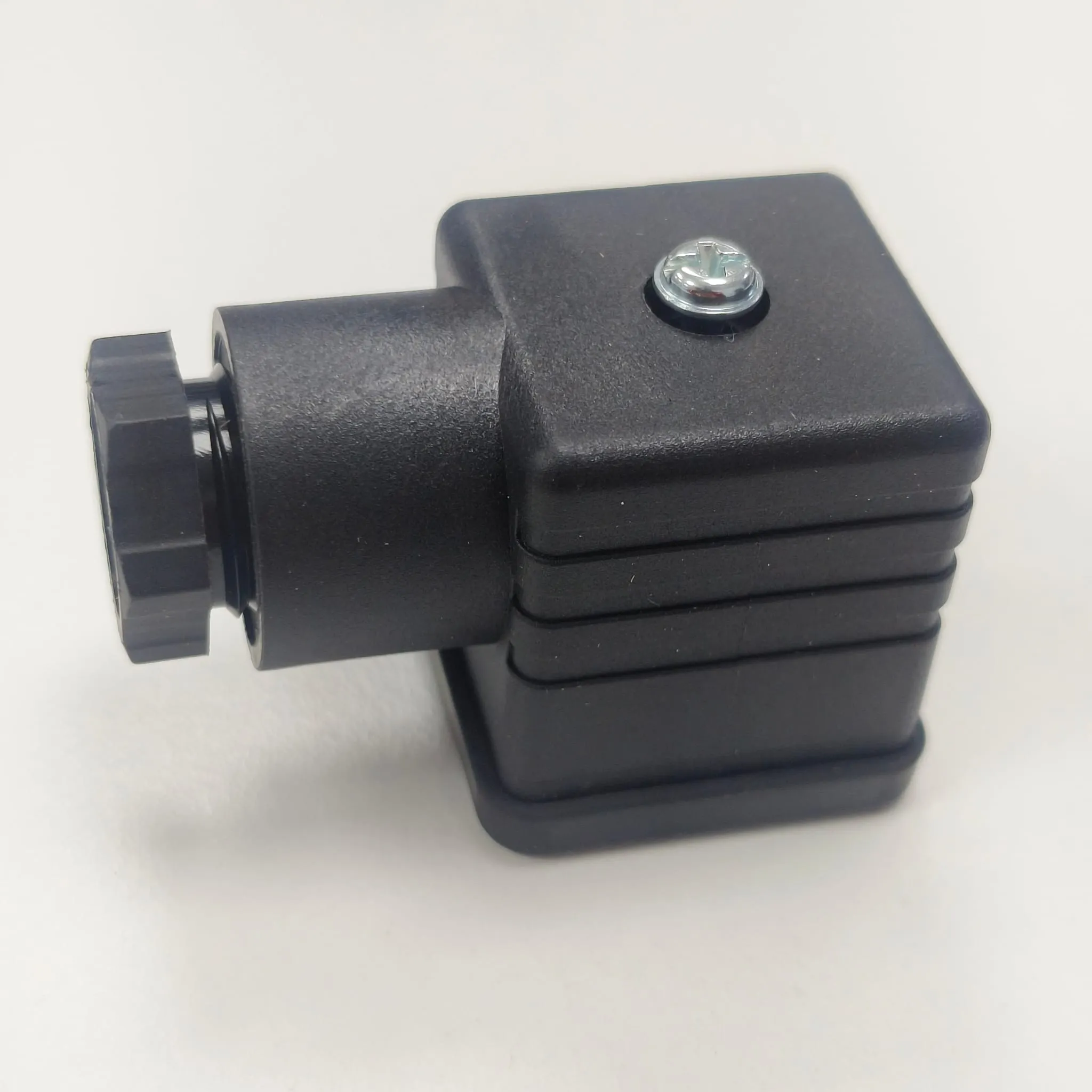

ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522 - image 5

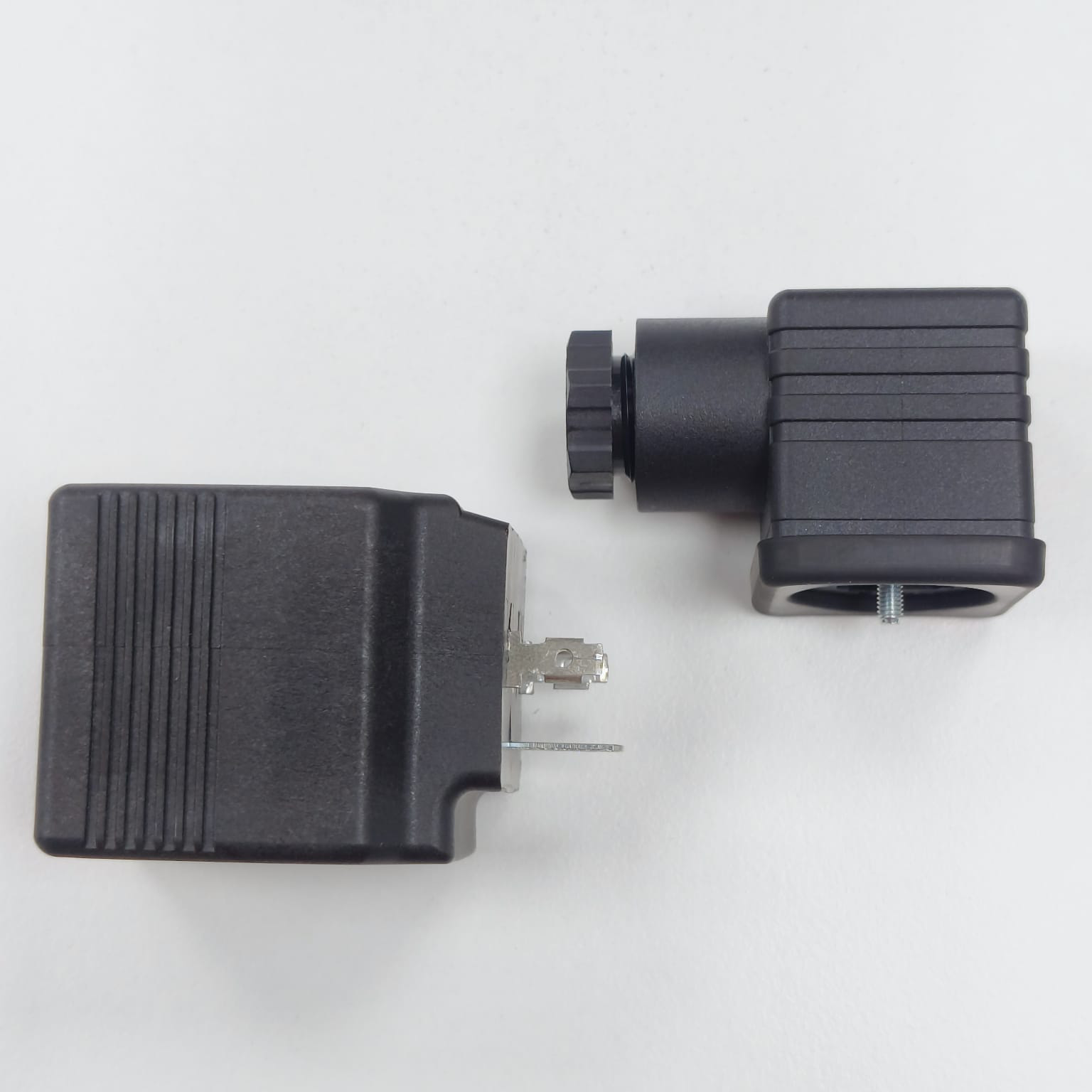

ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522 - image 6
ACL Series 5 Coil with Connector, 48V DC for Solenoid Valves, 522

Mfg. Part No. : 522

SKU : SOL-COIL-108-48DC-522

Brand :
ACL

ACL Series 5 replacement solenoid coil supplied with matching PG11 connector code 10349001 for compatible ACL solenoid valves. This 36 mm encapsulated coil is designed for reliable continuous-duty service in industrial valve applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 9.640

Quantity
In Stock  ·  10 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

ACL coil code 522 is a series 5 replacement solenoid coil supplied with PG11 connector code 10349001. It is rated for 48V DC and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 27 W nominal power at 20°C with a 36 mm body Class H insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.

Key Features

  • Series 5 encapsulated coil with 36 mm body
  • Class H insulation
  • 27 W nominal power rating at 20°C
  • Supplied with PG11 connector code 10349001
  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance DC ±10%
  • Made in Italy

Downloads

ACL Solenoid Valves & Coils Catalog.pdf

pdf
Download

Specifications

Model
522
Series
Series 5 (36 mm width)
Rated Voltage
48V DC
Power Consumption
27 W
Body Material
Polyarylamide
Insulation Class
Class H
Ingress Protection
IP65 with connector fitted
Electrical Connection
DIN 43650 A (EN 175301-803 / ISO 4400)
Connector Type
PG11 10349001
Duty Cycle
ED100% continuous service
Ambient Temperature Range
-10°C to +55°C
Compatible Valve Series
106, 107, 108, 206 Series
