ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302

ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302
ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302 - image 2

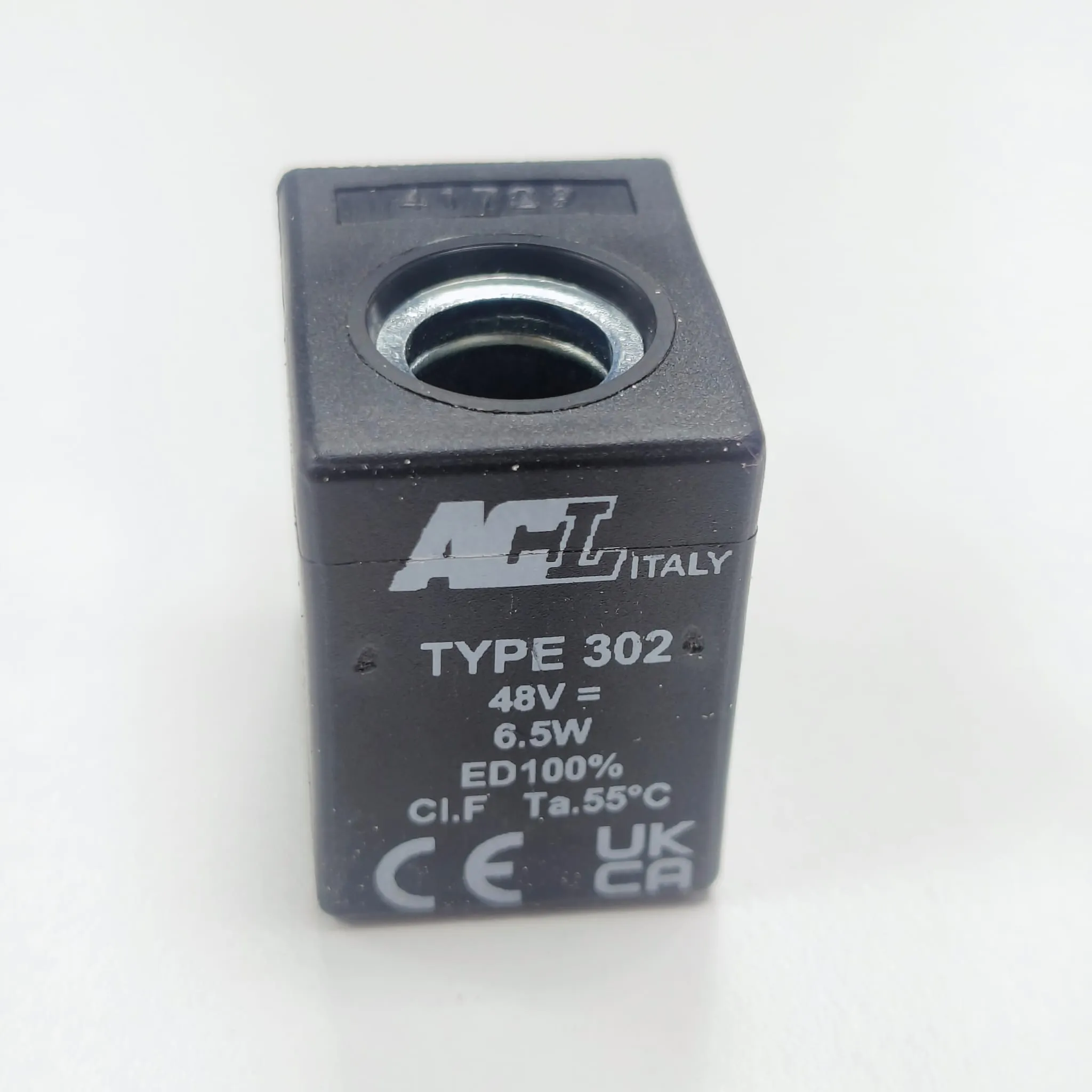

ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302 - image 3

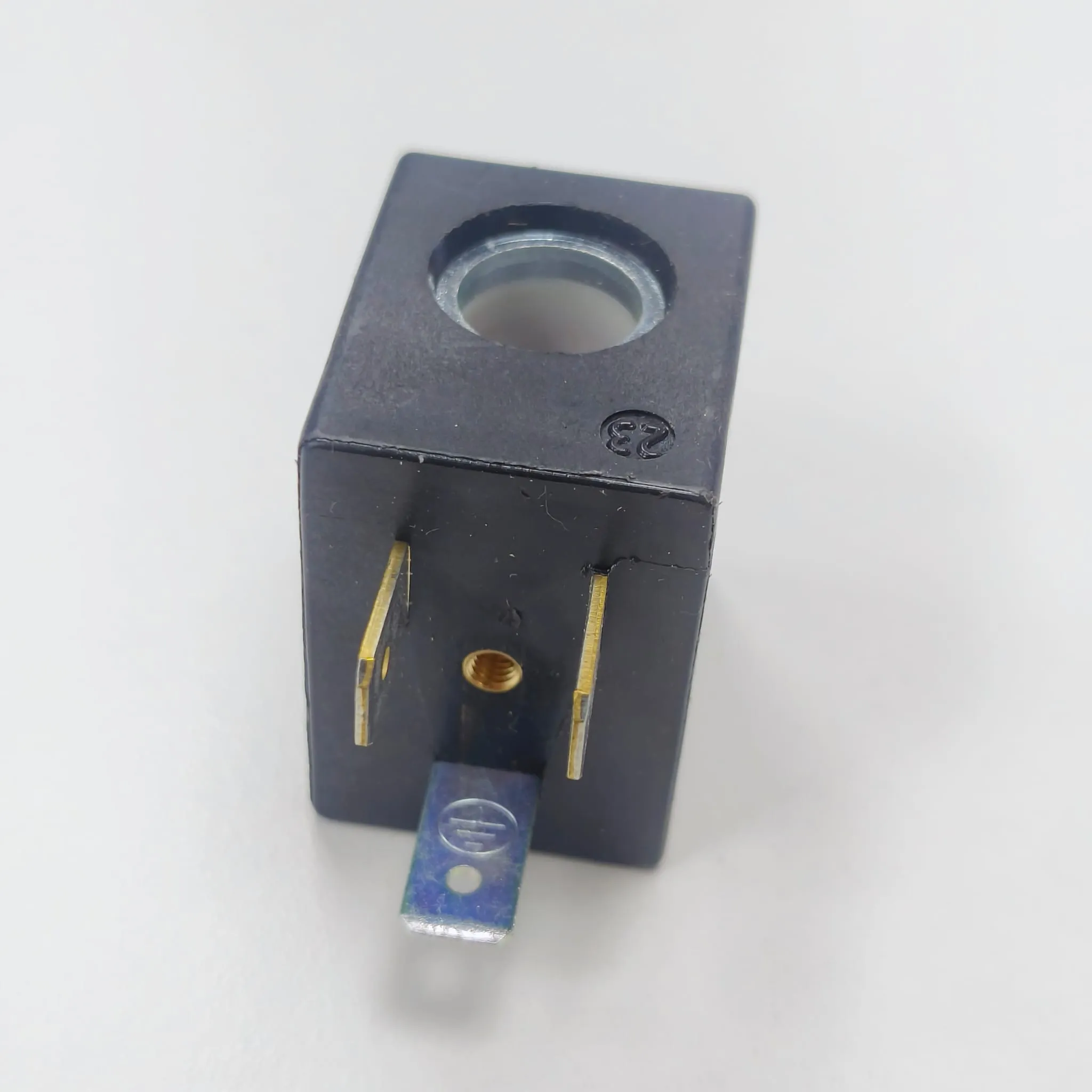

ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302 - image 4
ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302 - image 5
ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302 - image 6
ACL Series 3 Coil with Connector, 48V DC for Solenoid Valves, 302

Mfg. Part No. : 302

SKU : SOL-COIL-107/207-48DC-302

Brand :
ACL

ACL Series 3 replacement solenoid coil supplied with matching PG9 connector code 10348000 for compatible ACL solenoid valves. This 22 mm encapsulated coil is built for dependable continuous-duty service in industrial valve applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 4.910

Quantity
In Stock  ·  20 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

ACL coil code 302 is a series 3 replacement solenoid coil supplied with PG9 connector code 10348000. It is rated for 48V DC and uses DIN 43650 B / DIN 46244 industrial connection. The coil delivers 6.5 W nominal power at 20°C with a 22 mm body Class F insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 107 and 207 solenoid valves.

Key Features

  • Series 3 encapsulated coil with 22 mm body
  • Class F insulation
  • 6.5 W nominal power rating at 20°C
  • Supplied with PG9 connector code 10348000
  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance DC ±10%
  • Made in Italy

Downloads

ACL Solenoid Valves & Coils Catalog.pdf

pdf
Download

Specifications

Model
302
Series
Series 3 (22 mm width)
Rated Voltage
48V DC
Power Consumption
6.5 W
Body Material
Nylon 6 + 18% Fibre Glass
Insulation Class
Class F
Ingress Protection
IP65 with connector fitted
Electrical Connection
DIN 43650 B / DIN 46244 industrial connection
Connector Type
PG9 10348000
Duty Cycle
ED100% continuous service
Ambient Temperature Range
-10°C to +55°C
Compatible Valve Series
107, 207 Series
