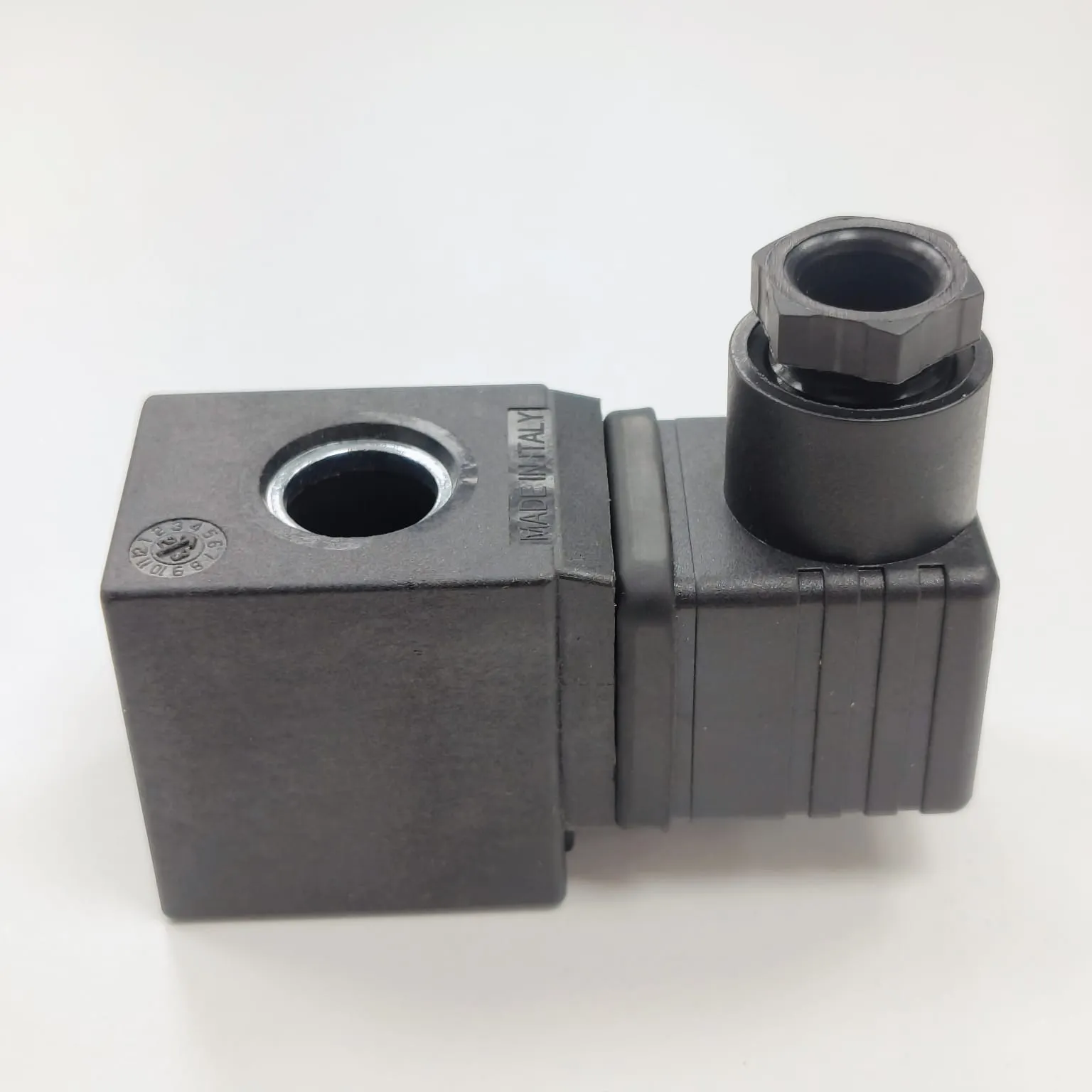

ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B - image 2

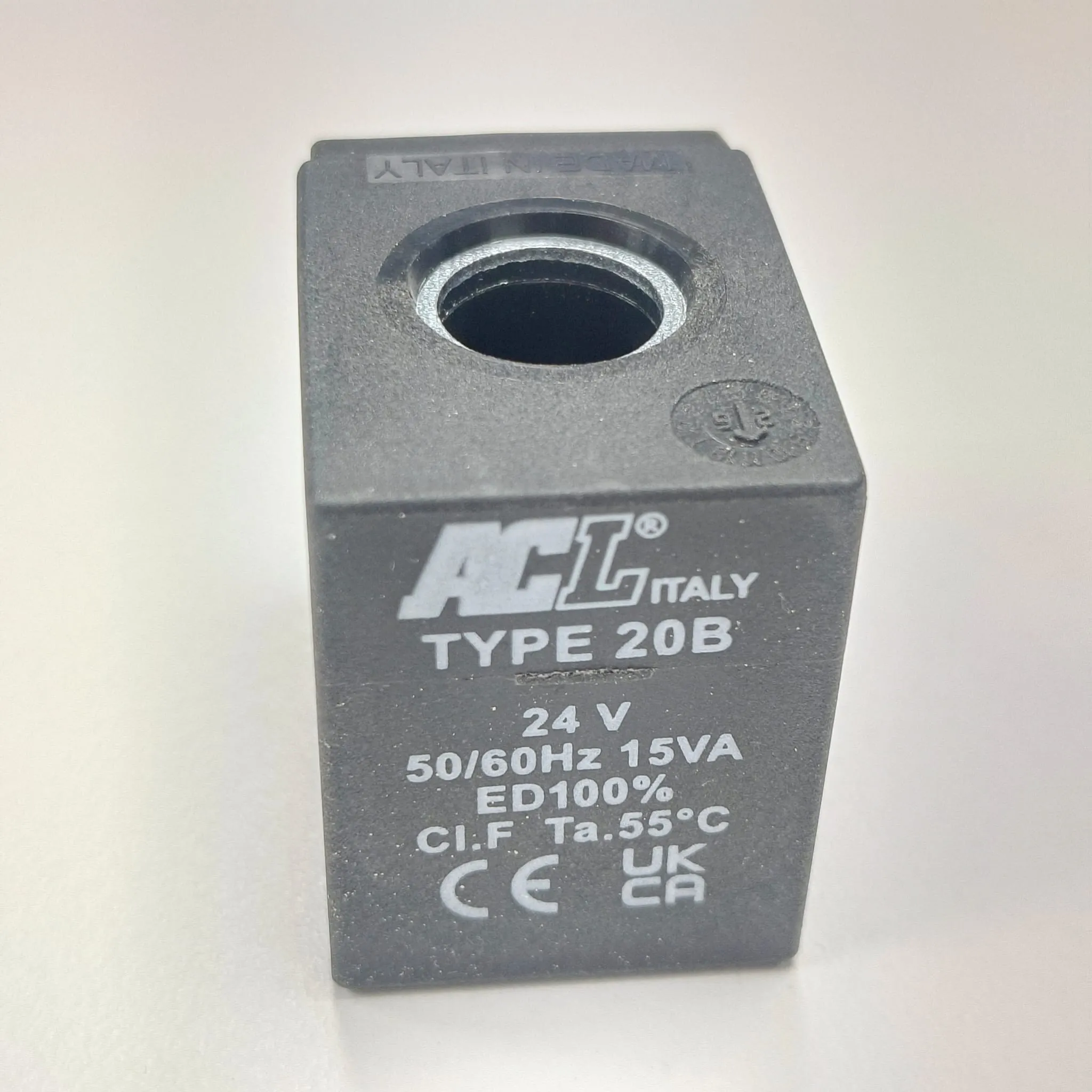

ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B - image 3

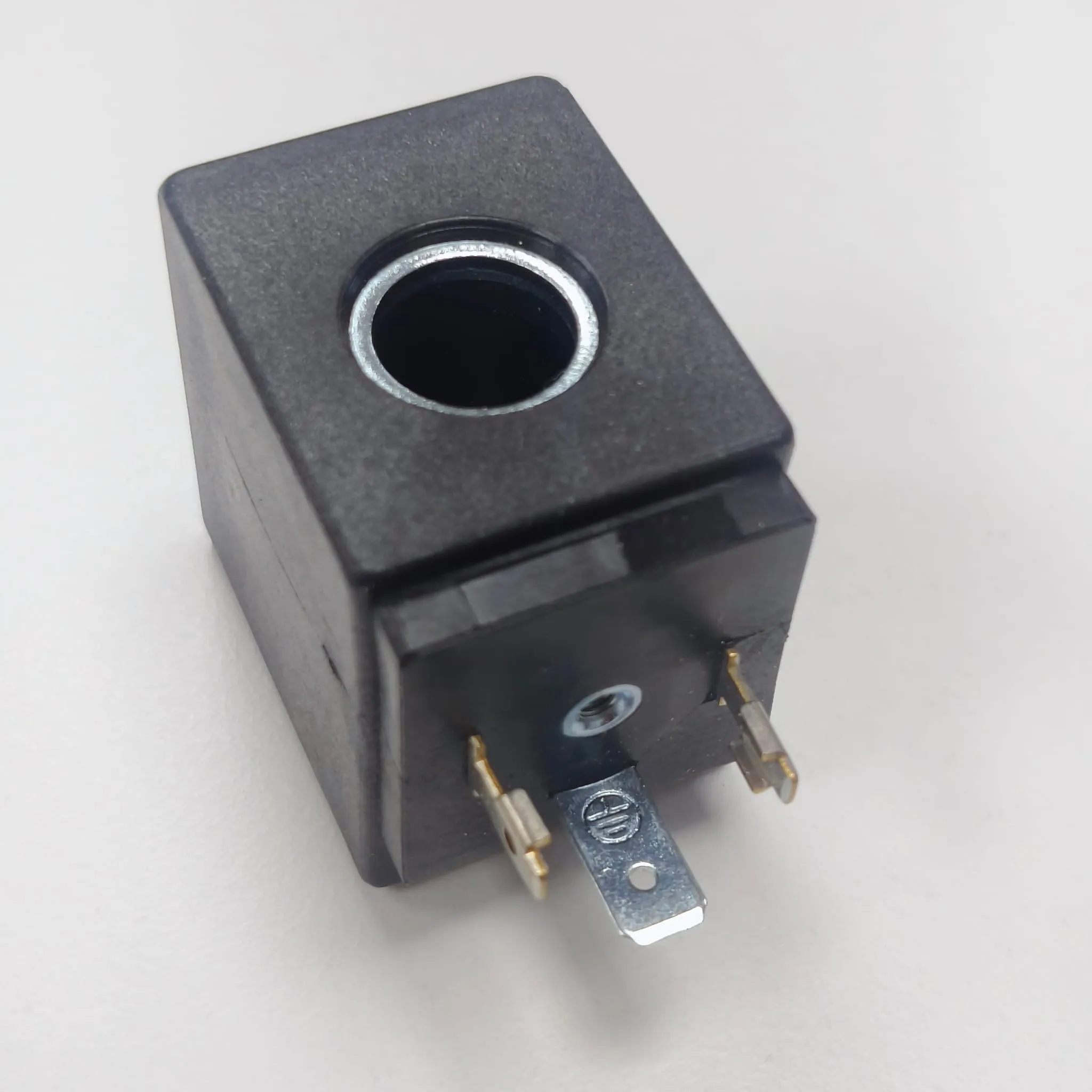

ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B - image 4

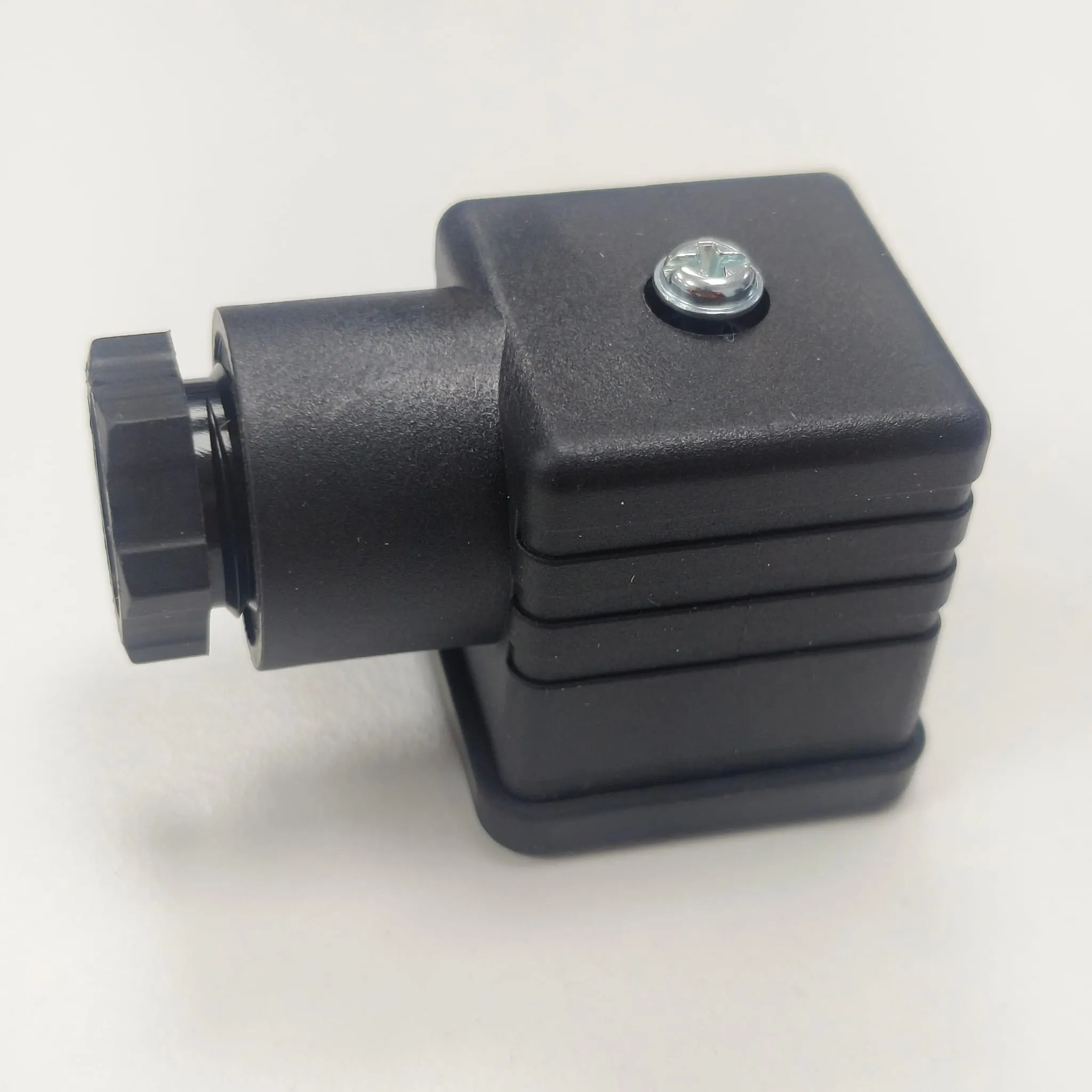

ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B - image 5

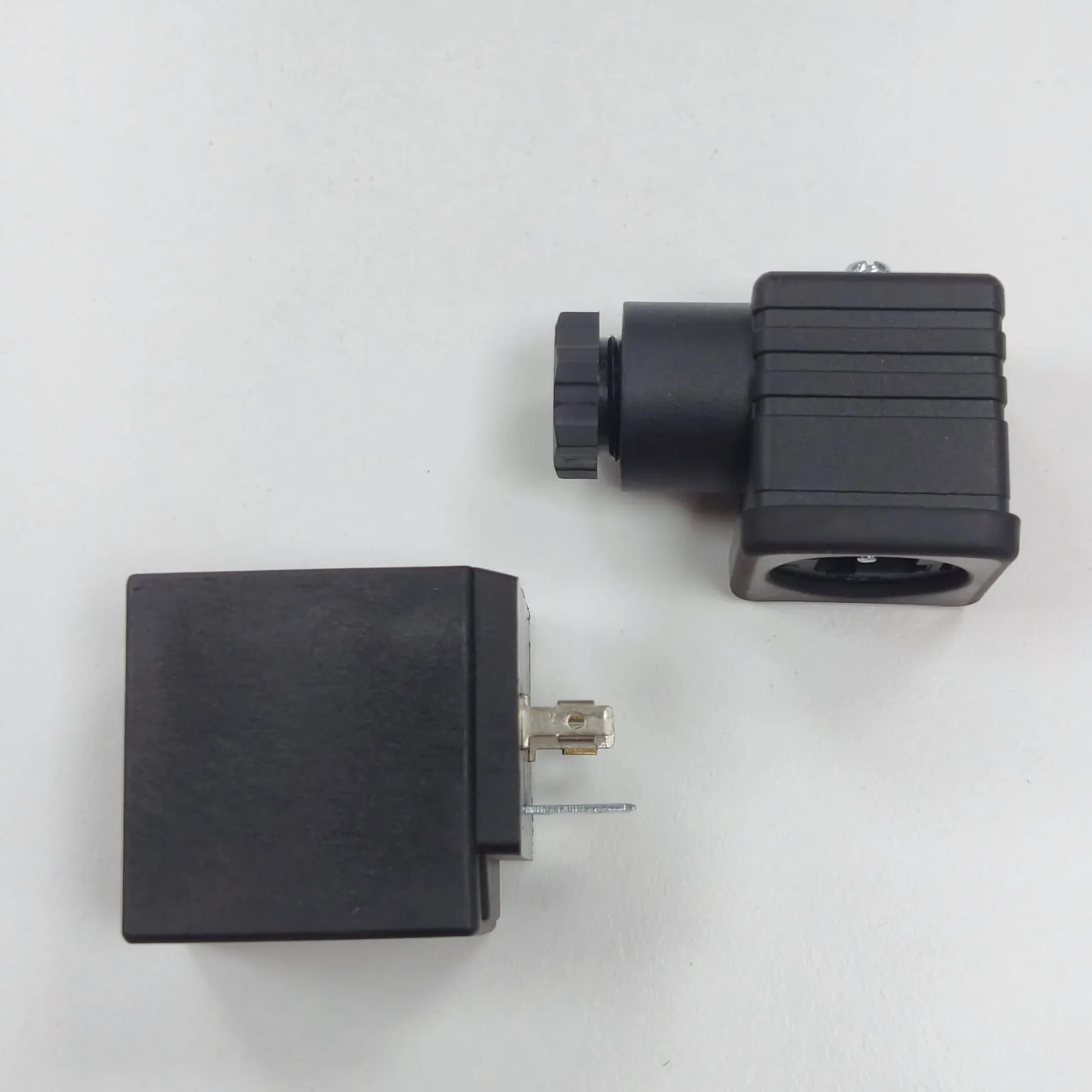

ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B - image 6
ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B

Mfg. Part No. : 20B

SKU : SOL-COIL-108-24AC-20B

Brand :
ACL

ACL Series 2 replacement solenoid coil supplied with matching PG9 connector code 10349000 for compatible ACL solenoid valves. This 30 mm encapsulated coil is designed for reliable continuous-duty service in industrial valve applications.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  18 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

ACL 20B — ACL Series 2 Coil with Connector, 24V AC, 50/60Hz for Solenoid Valves, 20B. Stocked by Indspare for Kuwait and GCC delivery.

ACL coil code 20B is a series 2 replacement solenoid coil supplied with PG9 connector code 10349000. It is rated for 24V AC, 50/60Hz and uses DIN 43650 A (EN 175301-803 / ISO 4400). The coil delivers 15 VA nominal power at 20°C with a 30 mm body Class F insulation and ED100% continuous service. Protection is IP65 when the supplied connector is fitted. It is intended for acl series 108 solenoid valves.

Key Features

  • Series 2 encapsulated coil with 30 mm body
  • Class F insulation
  • 15 VA nominal power rating at 20°C
  • Supplied with PG9 connector code 10349000
  • IP65 with connector fitted, IP00 without connector
  • Voltage tolerance AC +15% / -10%
  • Made in Italy

Downloads

ACL Solenoid Valves & Coils Catalog.pdf

pdf
Download

Specifications

Model
20B
Series
Series 2 (30 mm width)
Rated Voltage
24V AC
Frequency
50/60Hz
Power Consumption
15 VA
Body Material
Nylon 6 + 18% Fibre Glass
Insulation Class
Class F
Ingress Protection
IP65 with connector fitted
Electrical Connection
DIN 43650 A (EN 175301-803 / ISO 4400)
Connector Type
PG9 10349000
Duty Cycle
ED100% continuous service
Ambient Temperature Range
-10°C to +55°C
Compatible Valve Series
106, 107, 108, 206 Series
