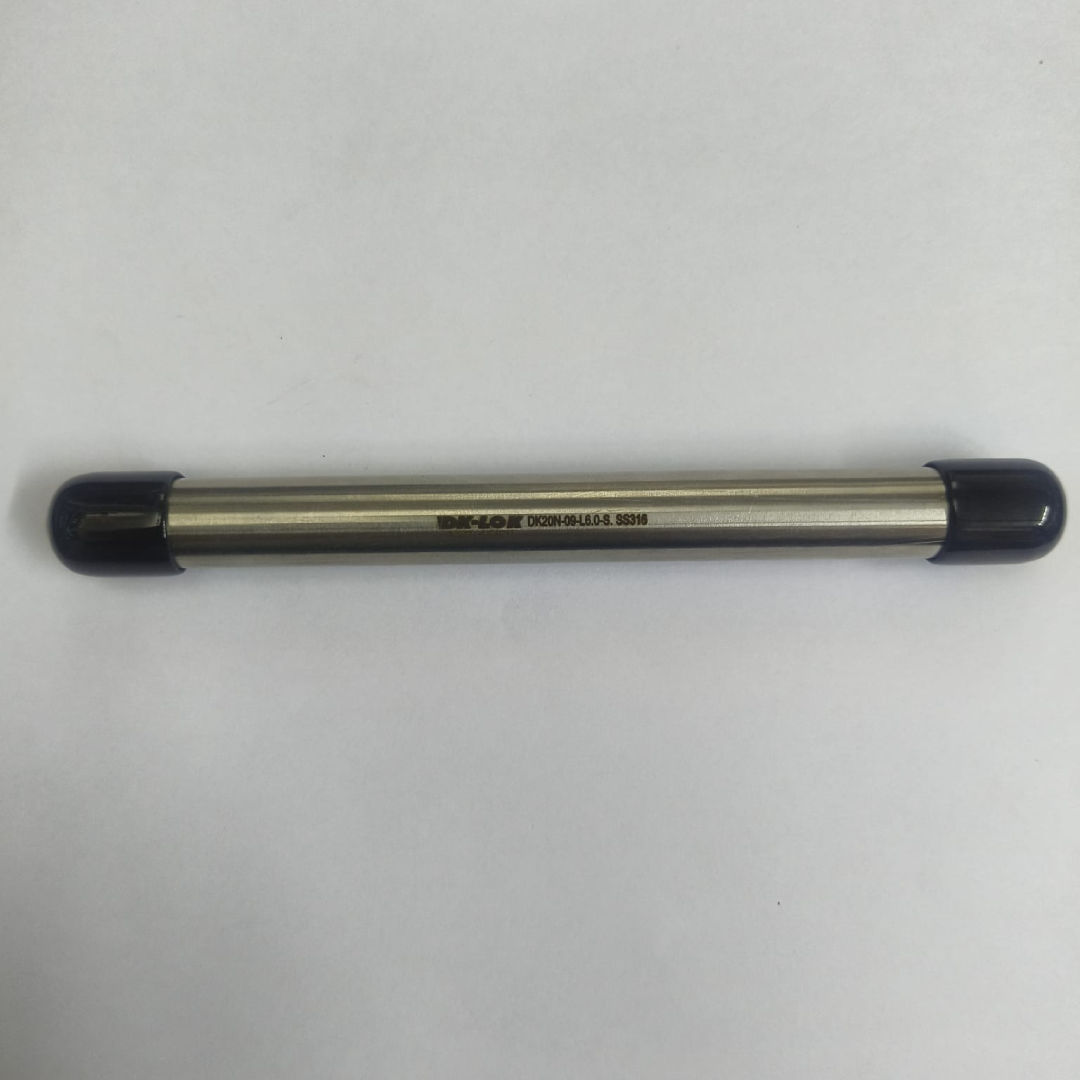

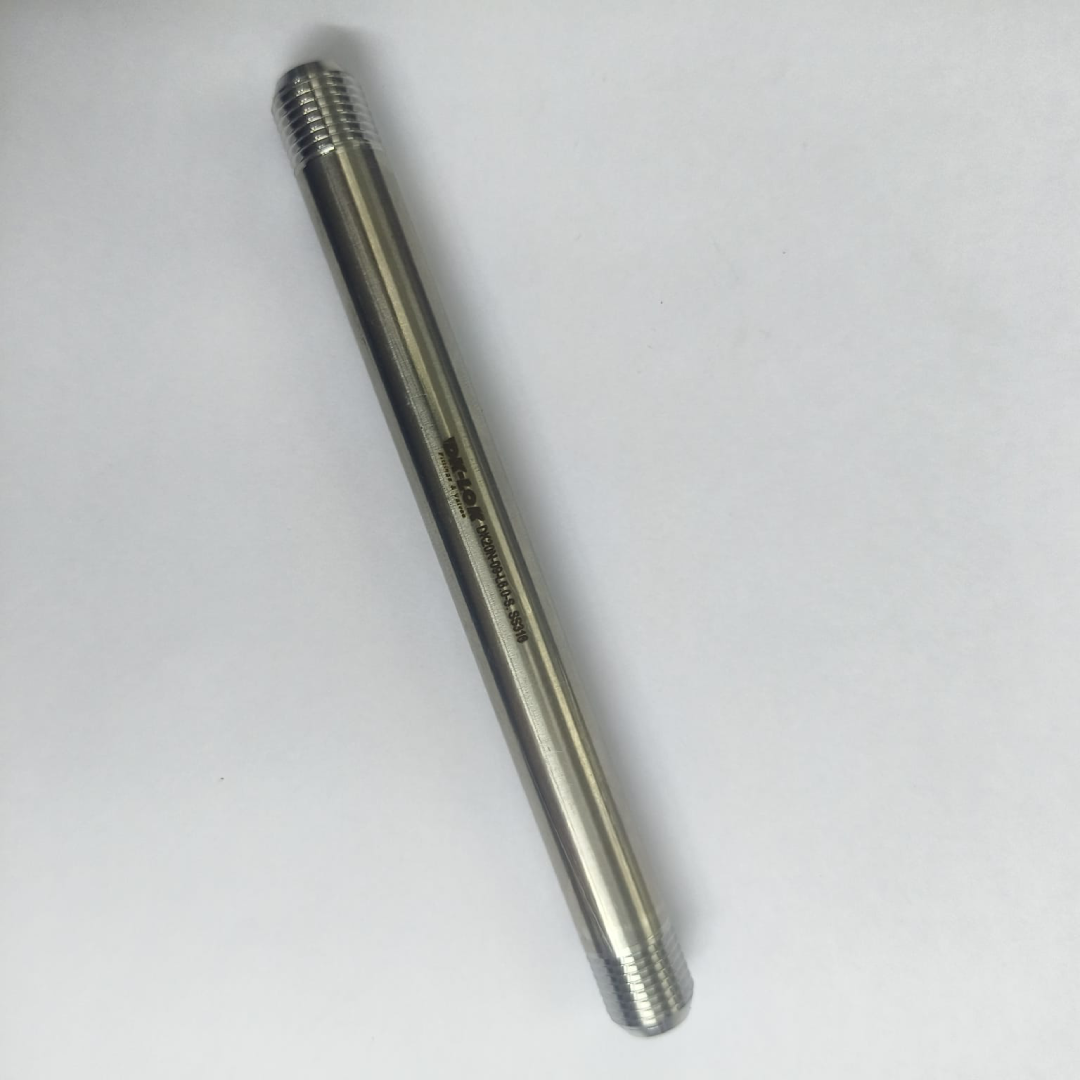

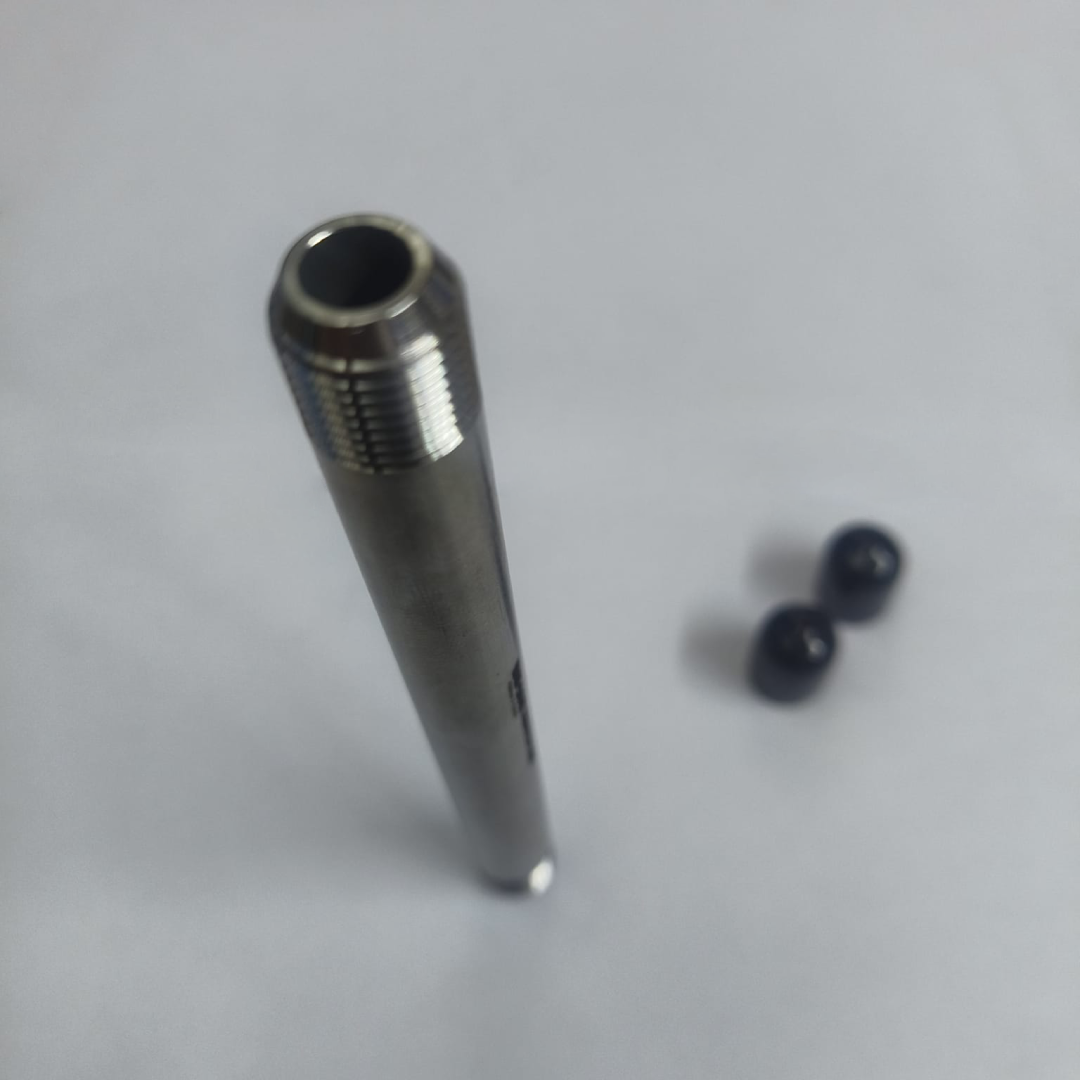

DK-LOK High Pressure Nipple, 20,000 psig, 9/16" Male Threaded Port, 6" Long, SS316, DK20N-09-L6.0-S
All DK-LOK products
DK-LOK Caps, Plugs and Accessories
All Caps, Plugs and Accessories (every brand)
Technical overview
The DK-LOK DK20N-09-L6.0-S is a 20,000 psig high pressure nipple manufactured in SS316 for 9/16" male threaded medium pressure connections and 6" overall length service. It belongs to the DK-N nipple series in DK-LOK's cone-and-thread high pressure range and is designed for use in demanding instrumentation, hydraulic, and process systems. It features a 14.29 mm outside diameter, 7.92 mm inside diameter, 3.18 mm wall thickness, and 49.03 mm² flow area.
Key features
- DK-LOK DK-N series high pressure nipple
- 20,000 psig pressure rating for medium pressure service
- 9/16" male threaded port with 6" overall length
- SS316 stainless steel construction for corrosion resistance
- Cone-and-thread high pressure connection design
Applications
- Chemical injection systems
- High pressure test systems
- Hydraulic and instrumentation lines
- Subsea and process service
Specifications
Maximum Pressure20,000 psig
Port Size9/16" Male Threaded
Body Material316 stainless steel
Outside Diameter14.29 mm
Inside Diameter7.92 mm
Wall Thickness3.18 mm
Flow Area49.03 mm²
