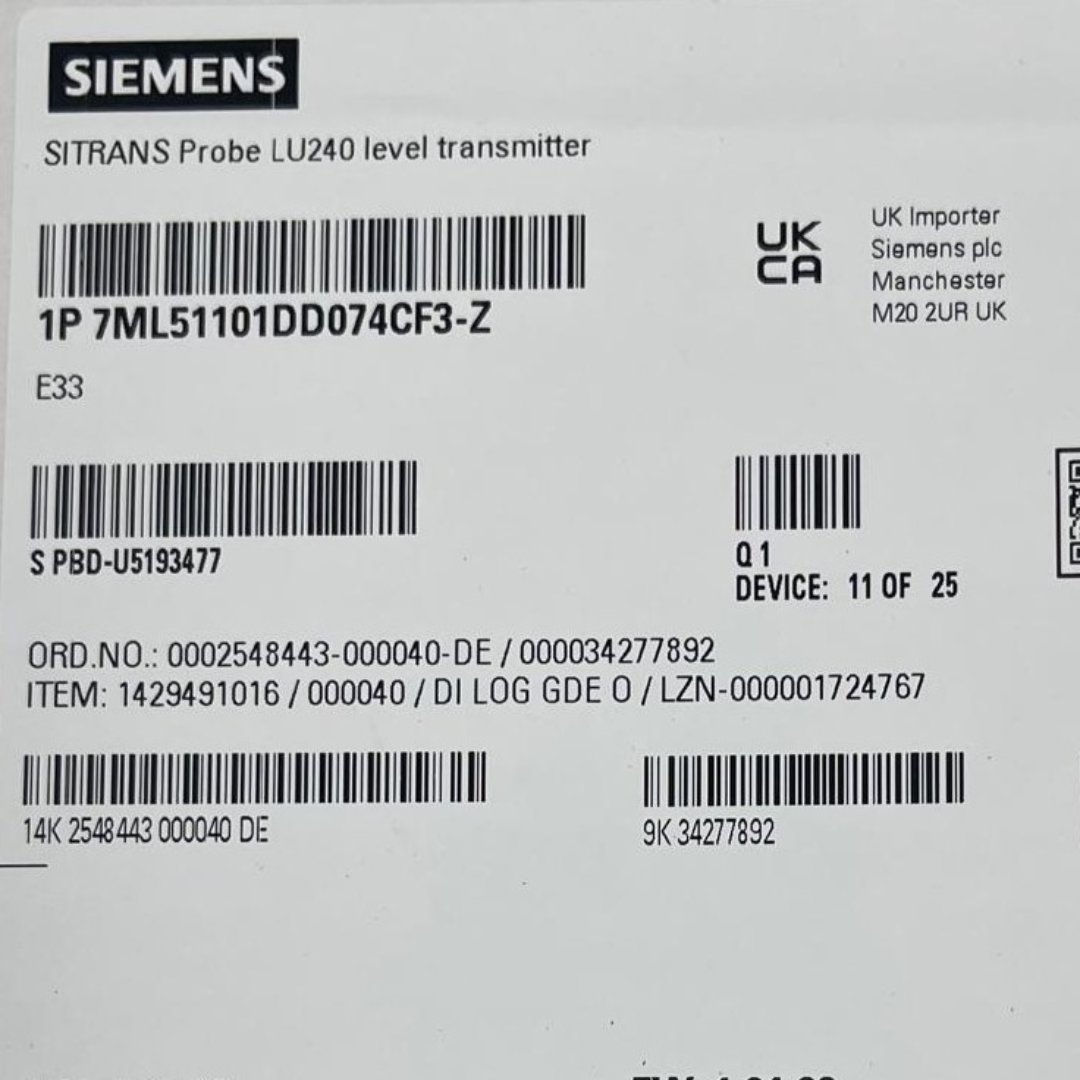

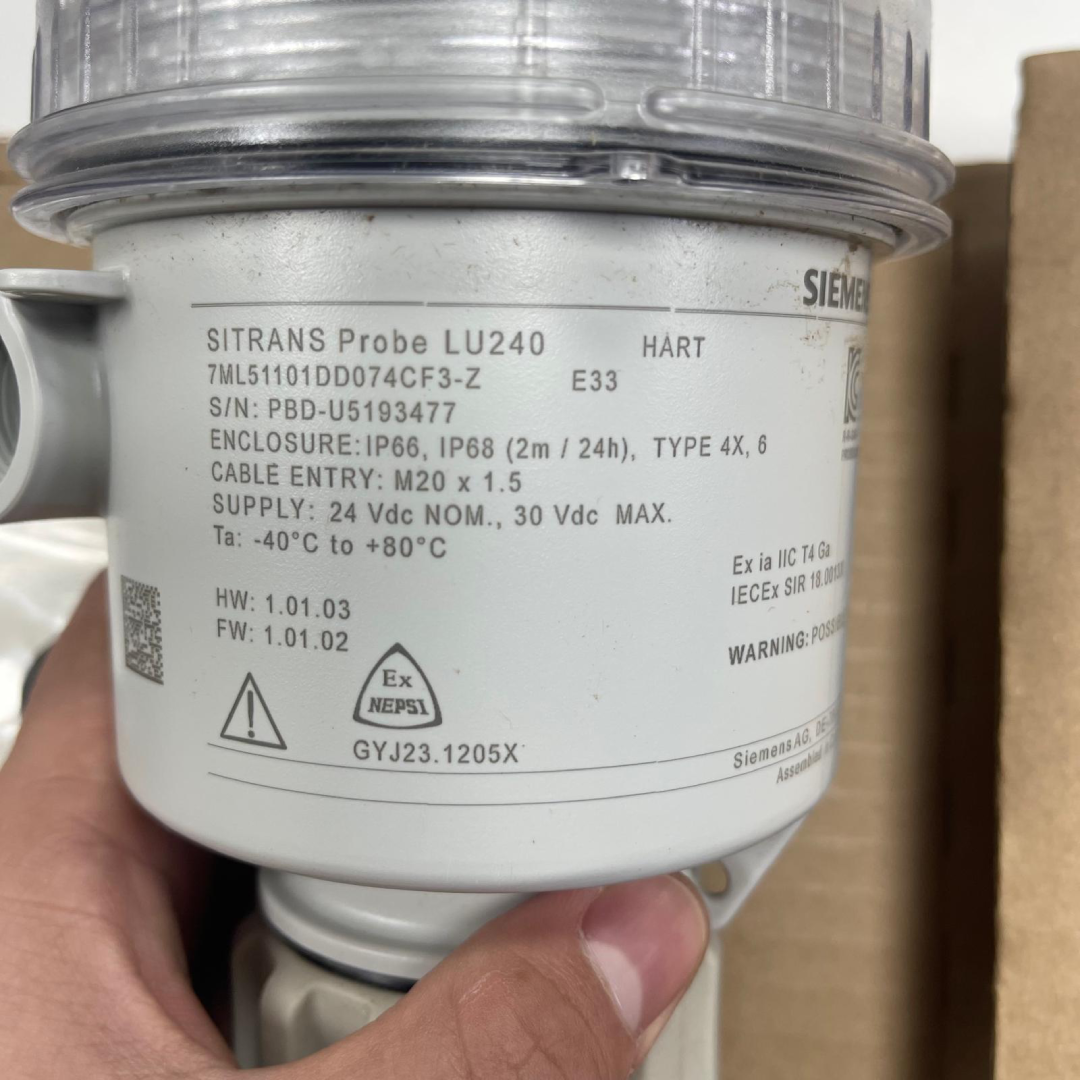

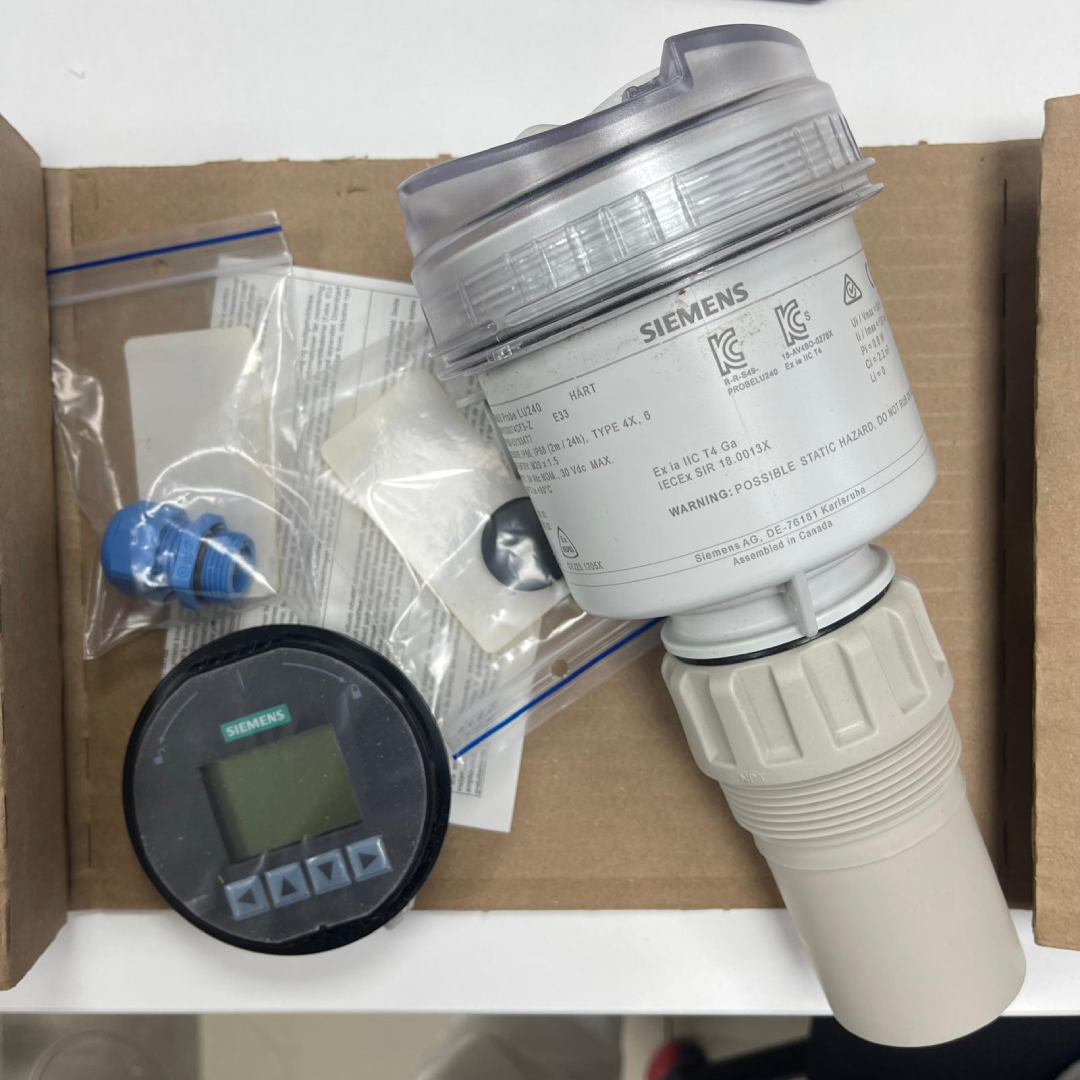

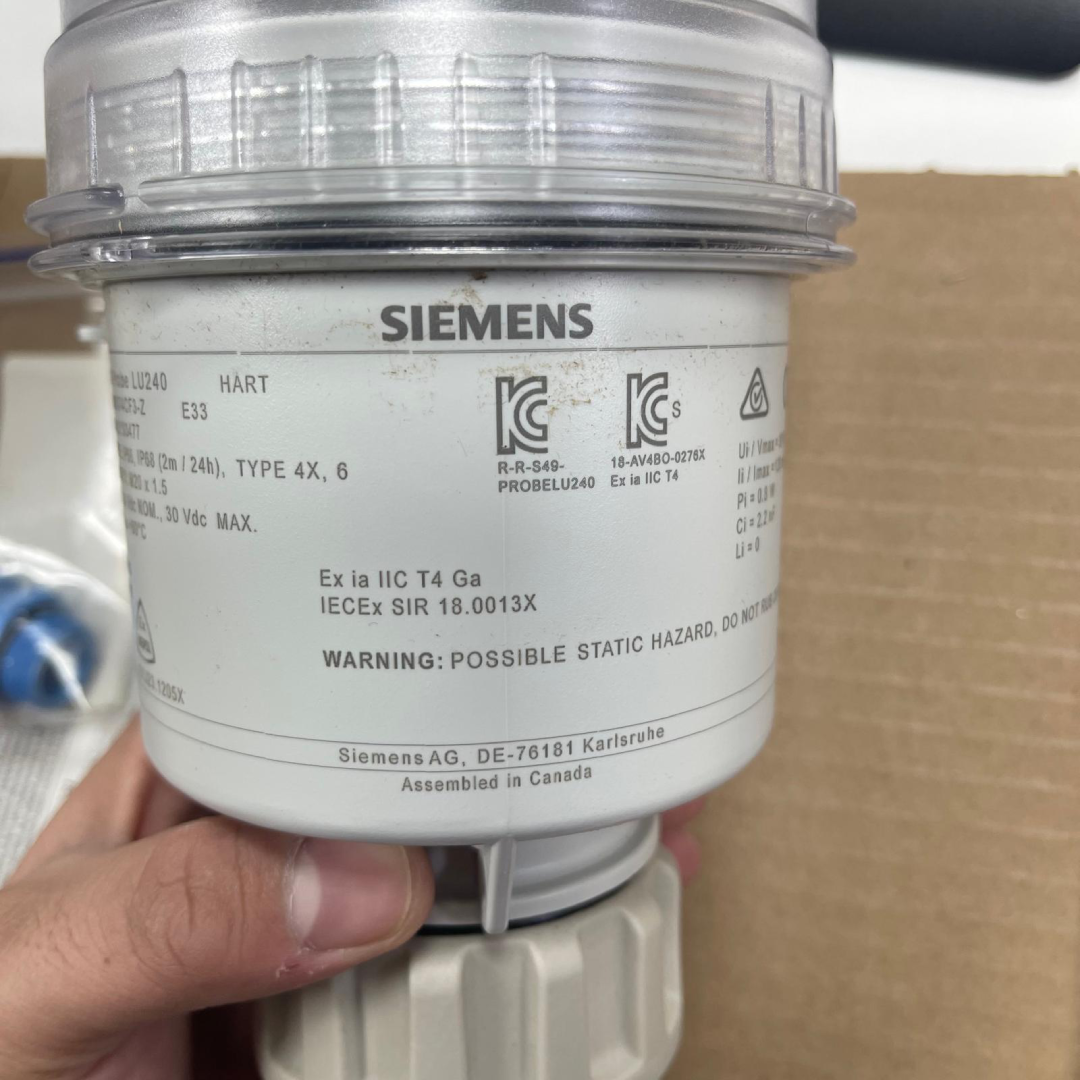

Siemens SITRANS Probe LU240 Ultrasonic Level Transmitter, 0.2–6 m, 2" NPT, HART, 7ML5110-1DD07-4CF3-Z E33
KWD 350.000
Lead time: 6 weeks
All Siemens products
Siemens Measurement and Calibration
All Measurement and Calibration (every brand)
Technical overview
The Siemens SITRANS Probe LU240 is a compact ultrasonic level transmitter designed for continuous, non-contact measurement in tanks, vessels and industrial process applications. This model provides a 0.2–6 m measuring range with a chemically resistant PVDF Copolymer transducer, 2" NPT process connection and 4–20 mA HART communication. Siemens Process Intelligence and Auto False Echo Suppression help maintain reliable readings even where fixed objects may cause unwanted echoes. The clear local display and four-button HMI make commissioning simple, while its IP66/IP68 enclosure and E33 intrinsically safe approval make it suitable for demanding industrial and hazardous-area installations.
Key Features
- Non-contact ultrasonic level measurement from 0.2 to 6 m.
- PVDF Copolymer transducer provides good chemical resistance for demanding process applications.
- 4–20 mA output with HART 7 communication for easy integration into process control systems.
- Siemens Process Intelligence provides dependable echo processing for stable level measurement.
- Auto False Echo Suppression helps reduce interference caused by fixed objects inside the vessel.
- Clear local LCD display with four-button HMI makes setup and everyday operation straightforward.
- IP66/IP68 enclosure with intrinsically safe E33 approval for demanding industrial installations.
- Assembled in Canada.
Applications
- Water and wastewater tanks
- Chemical storage vessels
- Liquid storage and process tanks
- Slurry level monitoring
- Filter beds and small bulk-material hoppers
Specifications
Measuring Range0.2–6 m
Output Signal4–20 mA
Communication ProtocolHART 7
Process Connection2" NPT, ASME B1.20.1
Wetted PartsPVDF Copolymer transducer, Buna-N seal
Accuracy± greater of 0.15% of range or 6 mm, valid from 0.25 m
Ingress ProtectionIP66, IP68, Type 4X, Type 6
