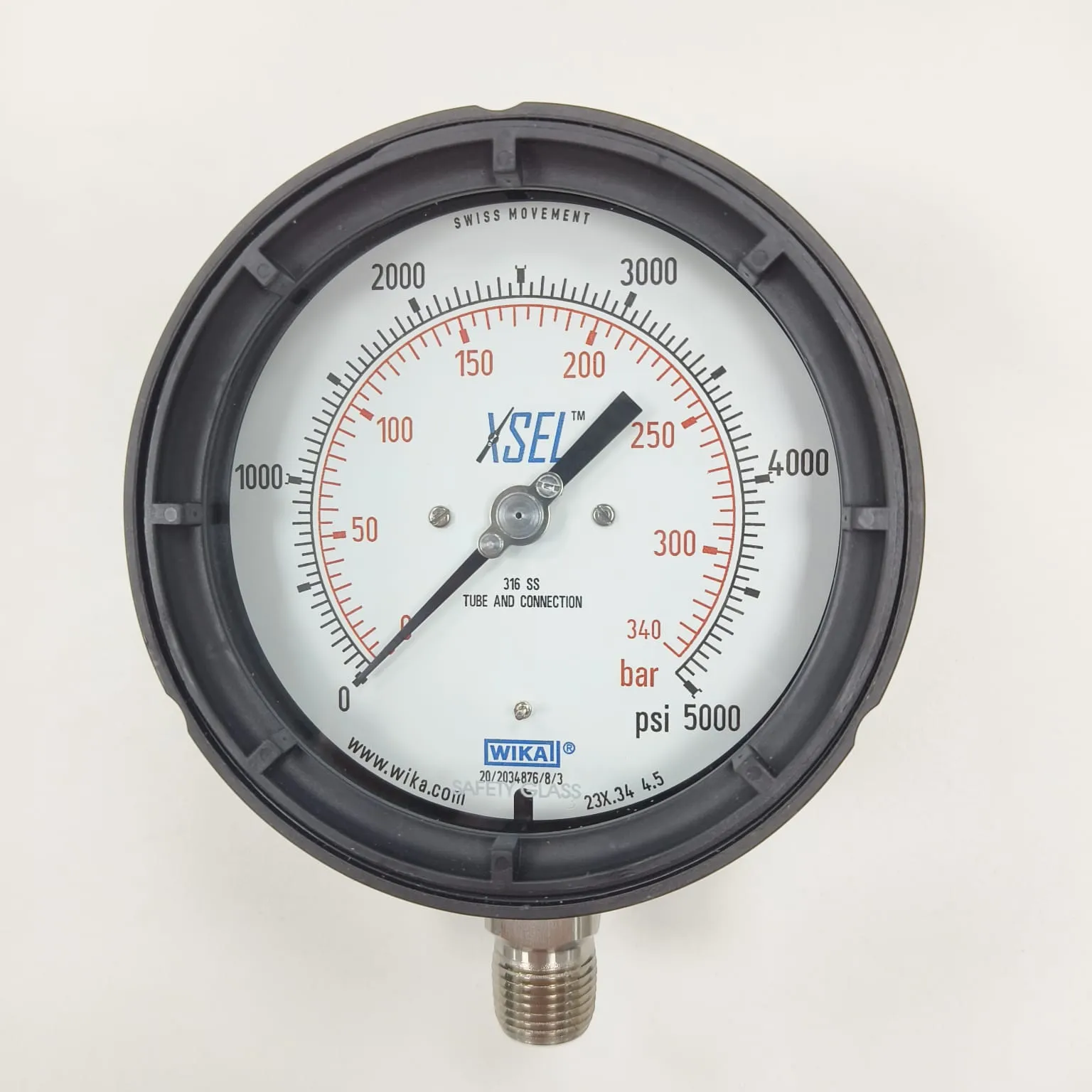

WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676

WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 - image 2
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 - image 3
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 - image 4
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 - image 5
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 - image 6
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676 video thumbnail
WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676

Mfg. Part No. : 52398676

SKU : PW45-PG-05000

Brand :
WIKA

Heavy duty Bourdon tube process pressure gauge engineered for chemical, petrochemical and general plant service, with 316L stainless steel wetted parts and a robust fiberglass reinforced thermoplastic case for excellent shock and vibration resistance, featuring a laminated safety glass window, adjustable pointer, IP65 ingress protection and factory prepared for liquid filling, built to meet ASME B40.100 Grade 2A accuracy requirements for reliable on site indication.
  • Range: 0 to 5000 psi with dual scale psi and bar
  • Connection: 1/2" NPT bottom connection
  • Build: XSEL safety pattern with blow-out back

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  2 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

WIKA 52398676 — WIKA XSEL Bourdon Tube Gauge 232.34, 0...5000 psi, Dual Scale psi/bar, 4.5" Dial, 1/2" Male NPT Bottom Mount, 52398676. Stocked by Indspare for Kuwait and GCC delivery.

This WIKA XSEL Bourdon tube process pressure gauge model 232.34 4.5 is a safety pattern gauge built for demanding process service where operator protection and long term reliability matter. It provides a 0 to 5000 psi measurement range with Dual scale in psi and bar, using a 4.5" dial and a 1/2 NPT Bottom connection. The design follows the XSEL safety concept with a solid front and blow out back, and the laminated safety glass window helps protect the dial in harsh environments. The case is Black Fiberglass Reinforced Thermoplastic (Pocan B4225) with a Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225) bezel, while the measuring system is stainless steel with Measuring System 316L wetted parts for corrosion resistance. Performance features include +/- 0.5% ASME B40.100 Grade 2A accuracy, IP 65 ingress protection, an adjustable pointer, and a stainless steel, D 0.6 restrictor for pressure damping. The gauge is supplied without and prepared for filling for liquid filling when required, and it is supplied in US-Standard execution. This gauge can be identified under WIKA’s current part number 50095595, which corresponds to the exact matching configuration of this product.

Key Features

  • Stainless steel 316L measuring system with stainless tube and connection for corrosive service
  • Solidfront safety case with blowout back, designed to ASME B40.100 requirements
  • 4.5 in nominal size dial with 0 to 5000 psi measuring range and dual scale psi and bar
  • Laminated safety glass window with adjustable pointer and stop pin at 6 o'clock
  • IP65 ingress protection for outdoor and washdown environments
  • Stainless steel restrictor with 0.6 mm orifice to help damp pressure spikes
  • Dial QR code for easy access to instrument specific information and documents
  • Includes: Certificate of calibration and operating and installation instructions paperwork in the box
  • Made in USA

Applications

  • Highly dynamic pressure loads, pulsation and vibration
  • Chemical and petrochemical processing plants
  • Power plants and utilities, mining and heavy industry
  • Onshore and offshore skid packages and general plant construction
  • Aggressive gaseous or liquid media that are not highly viscous or crystallising

Downloads

Wika Datasheet_50095595.pdf

pdf
Download

Wika XSEL_Process Gauge Model 232.34 4.5 Datasheet.pdf

pdf
Download

Wika Model 232.34 4.5 Operating Instructions.pdf

pdf
Download

Specifications

Case Material
Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
Bezel Ring
Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
Measuring System
stainless steel
Case Filling
without
Dial Size
4-1/2"
Measuring Range
0...5000 psi
Process Connection
1/2" Male NPT
Mounting Position
lower mount
Window
laminated safety glass
Restrictor
stainless steel, D 0.6
Pointer
adjustable pointer
Accuracy Class
+/- 0.5% ASME B40.100 Grade 2A
Ingress Protection
IP 65
Pressure Gauge Standard
US-Standard
