Mfg. Part No. : 50403460

SKU : PW45-PG-00160

Brand :
WIKA

Heavy-duty WIKA XSEL process pressure gauge engineered for chemical, petrochemical and industrial process service. Features a solid-front phenolic-style fiberglass reinforced thermoplastic safety case with excellent shock, vibration and corrosion resistance for demanding operating environments.
  • Range: 0 to 160 psi with dual scale psi and bar
  • Connection: 1/2" NPT bottom connection
  • Build: XSEL safety pattern with blow-out back

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  5 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

WIKA 50403460 — WIKA XSEL Phenolic Process Pressure Gauge 232.34, 0...160 psi, 4.5" Dial, 1/2" Male NPT Bottom Mount, 50403460. Stocked by Indspare for Kuwait and GCC delivery.

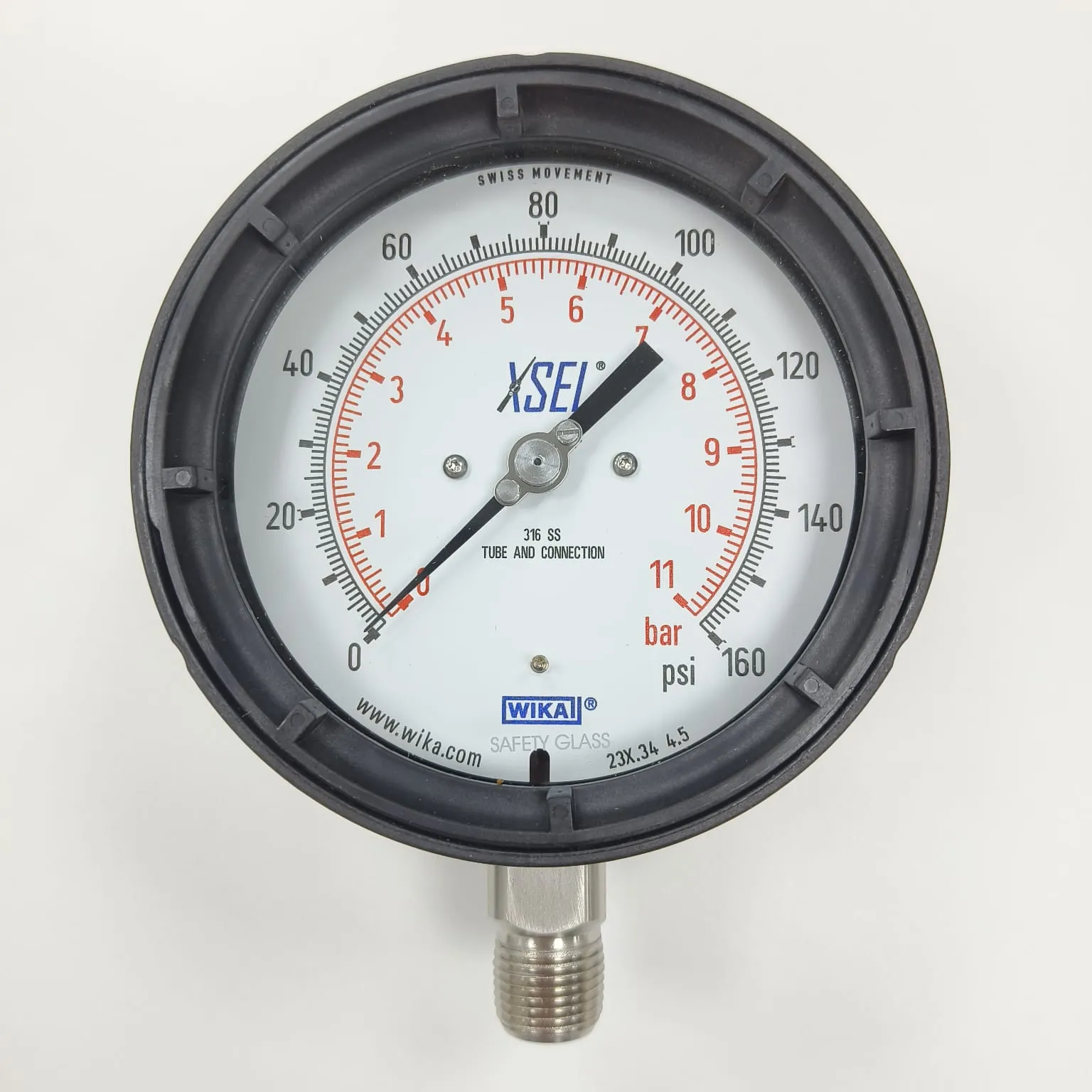

This WIKA 232.34 4.5 XSEL Bourdon tube phenolic process pressure gauge is a safety pattern gauge built for demanding process service where operator protection and long term reliability matter. It provides a 0 to 160 psi measurement range with Dual scale in psi and bar, using a 4.5" dial and a 1/2 NPT Bottom connection. The design follows the XSEL safety concept with a solid front and blow out back, and the laminated safety glass window helps protect the dial in harsh environments. The case is Black Fiberglass Reinforced Thermoplastic (Pocan B4225), while the measuring system is stainless steel with Measuring System 316L wetted parts for corrosion resistance. The gauge is supplied without and prepared for filling for liquid filling when required, and it is supplied in US-Standard execution.

Key Features

  • Stainless steel 316L measuring system with stainless tube and connection for corrosive service
  • Solid-front phenolic-style thermoplastic safety case with blow-out back protection
  • 4.5 in nominal size dial with 0 to 160 psi measuring range and dual scale psi and bar
  • Laminated safety glass window with adjustable pointer and stop pin at 6 o'clock
  • IP65 ingress protection for outdoor and washdown environments
  • Stainless steel restrictor with 0.6 mm orifice to help damp pressure spikes
  • Dial QR code for easy access to instrument specific information and documents
  • Made in USA

Applications

  • Highly dynamic pressure loads, pulsation and vibration
  • Chemical and petrochemical processing plants
  • Power plants and utilities, mining and heavy industry
  • Onshore and offshore skid packages and general plant construction
  • Aggressive gaseous or liquid media that are not highly viscous or crystallising

Downloads

Wika Datasheet_50403460.pdf

pdf
Download

Wika XSEL_Process Gauge Model 232.34 4.5 Datasheet.pdf

pdf
Download

Wika Model 232.34 4.5 Operating Instructions.pdf

pdf
Download

Specifications

Case Material
Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
Measuring System
Bourdon Tube
Case Filling
Dry Case, Prepared for filling
Dial Size
115 mm / 4.5"
Measuring Range
0...160 psi
Process Connection
1/2" Male NPT
Mounting Position
Lower mount
Window
Laminated Safety Glass
Accuracy Class
+/- 0.5% ASME B40.100 Grade 2A
Ingress Protection
IP65
Secondary Scale
2nd scale bar
Model
232.34
Gauge Type
Phenolic Process Pressure Gauge
Case Design
Solid Front Safety Pattern with Blow-Out Back
Wetted Parts
SS316
