WIKA Vacuum Gauge 213.53.100, -1...0 bar, 2nd Scale mmHg, 4" Dial, 1/2" Male NPT Lower Mount, 84269655

Mfg. Part No. : 84269655

SKU : PVV-40-0-mmhg

Brand :
WIKA

WIKA vacuum gauge is a stainless steel bourdon tube gauge with copper alloy wetted parts, designed for reliable vacuum indication in demanding industrial service. It is well suited for pumps, compressors and general industrial systems where vibration or pulsation may be present.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all

KWD 15.000

Quantity
In Stock  ·  20 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

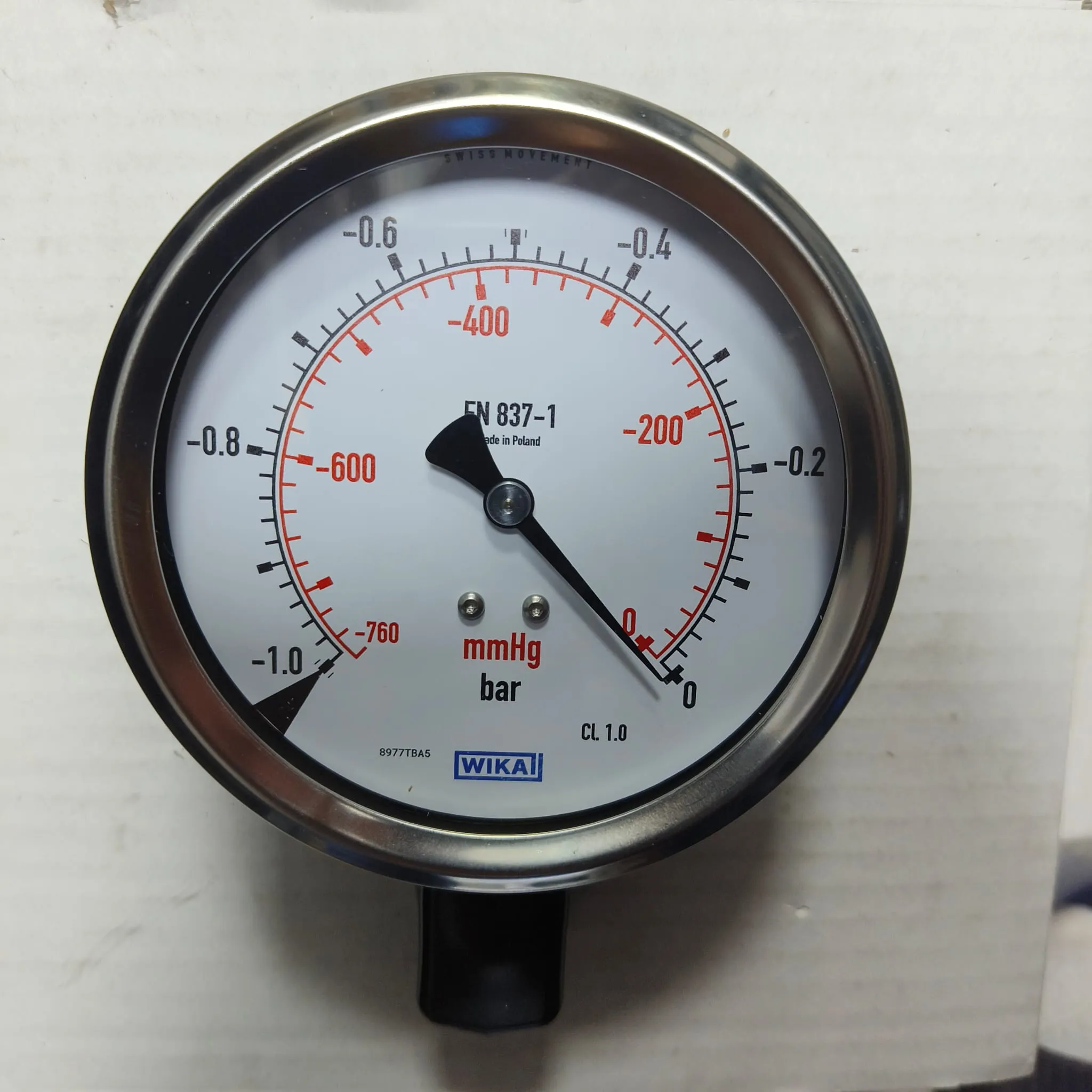

This WIKA 213.53 vacuum gauge is designed for dependable vacuum monitoring in pumps, compressors and general industrial systems. It has a 4" dial with a 1/2" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -1...0 bar measuring range with a black primary bar scale and a red secondary mmHg scale for quick reading.

Key Features

  • Stainless steel case and copper alloy wetted parts support dependable industrial service.
  • 1/2" Male NPT lower mount connection suits common installation points.
  • Primary bar scale is supported by a red secondary mmHg scale for quick reading.
  • Prepared-for-filling construction suits applications with vibration or pulsation.
  • 100 mm / 4" dial size and Class 1.0 accuracy support clear everyday reading.
  • Made in Poland

Applications

  • Vacuum pumps
  • Air compressors
  • Process vacuum lines
  • General industrial service
  • Pulsation service

Downloads

Wika Datasheet 84269655.pdf

pdf
Download

Wika 213.53 Model Pressure Gauge Datasheet.pdf

pdf
Download

Wika Operating Instructions for Pressure Gauges.pdf

pdf
Download

Specifications

Model
213.53.100
Gauge Type
Vacuum
Measuring Range
-1...0 bar
Dial Size
100 mm / 4"
Measuring System
Bourdon Tube
Secondary Scale
2nd scale mmHg
Process Connection
1/2" Male NPT
Mounting Position
Lower mount
Accuracy Class
Class 1.0
Case Filling
Dry Case, Prepared for filling
Wetted Parts
Copper alloy
Case Material
Stainless steel 1.4301
Case Design
Crimp ring case (version 53)
Window
Plastic, clear
