WIKA Vacuum Gauge 213.53.063, -1...0 bar, 2nd Scale inHg, 2.5" Dial, 1/4" Male NPT Lower Mount, 84190697
Mfg. Part No. : 84190697
SKU : PVV-25-0
Brand :
![WIKA]()
WIKA vacuum gauge is a stainless steel bourdon tube gauge with copper alloy wetted parts, designed for reliable vacuum indication in demanding industrial service. It is well suited for pumps, compressors and general industrial systems where vibration or pulsation may be present.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 9.500
Quantity
In Stock · 133 available
Shipping calculated at checkout.
Log in for an estimate.
Description
Specifications
Downloads
Related
products
Description

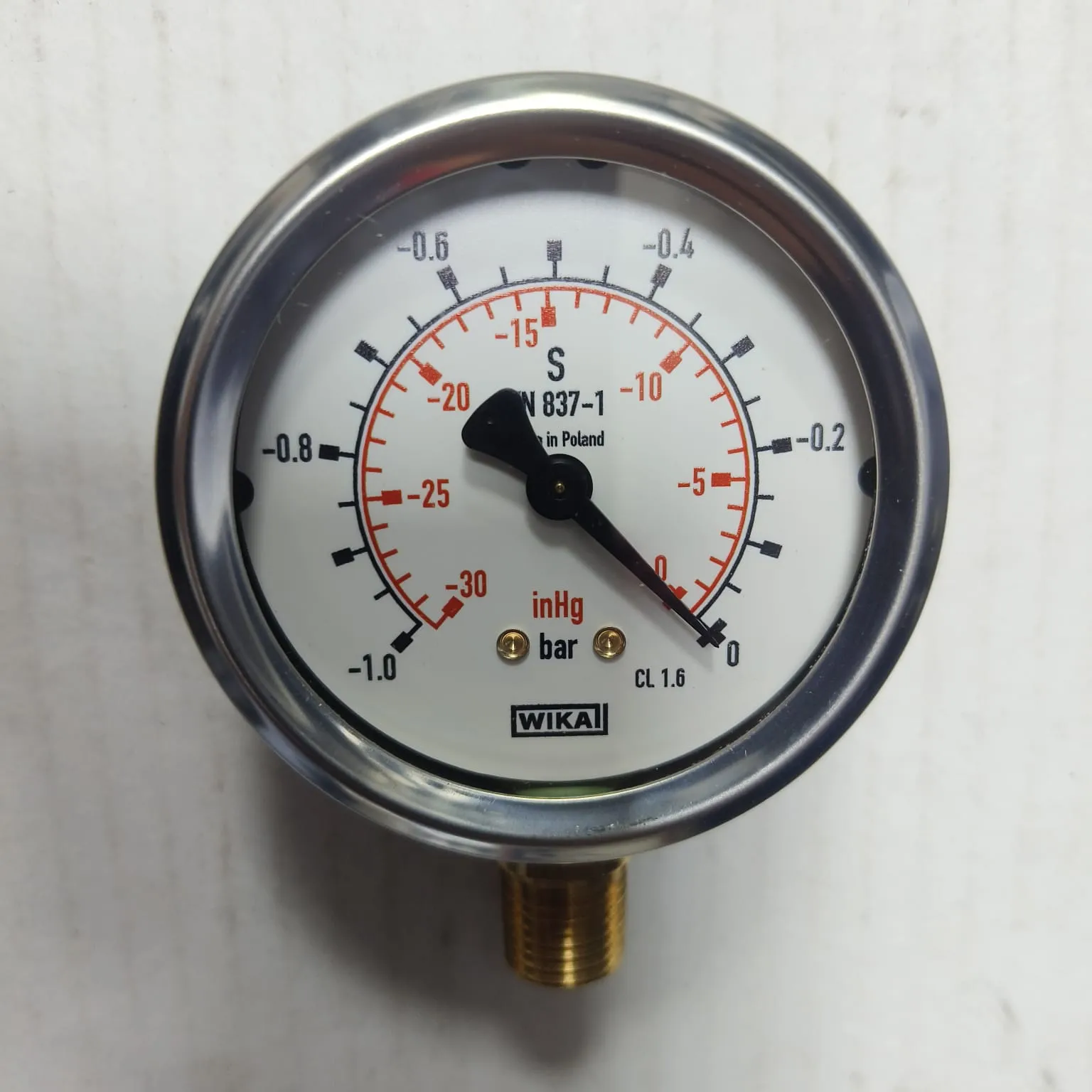

This WIKA 213.53 vacuum gauge is designed for dependable vacuum monitoring in pumps, compressors and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -1...0 bar measuring range with a black primary bar scale and a red secondary inHg scale for quick reading.
Key Features
- Stainless steel case and copper alloy wetted parts support dependable industrial service.
- 1/4" Male NPT lower mount connection suits common installation points.
- Primary bar scale is supported by a red secondary inHg scale for quick reading.
- Prepared-for-filling construction suits applications with vibration or pulsation.
- 63 mm / 2.5" dial size and Class 1.6 accuracy support clear everyday reading.
- Made in Poland
Applications
- Vacuum pumps
- Air compressors
- Process vacuum lines
- General industrial service
- Pulsation service
Specifications
Model
213.53.063
Gauge Type
Vacuum
Measuring Range
-1...0 bar
Dial Size
63 mm / 2.5"
Measuring System
Bourdon Tube
Secondary Scale
2nd scale inHg
Process Connection
1/4" Male NPT
Mounting Position
Lower mount
Accuracy Class
Class 1.6
Case Filling
Dry Case, Prepared for filling
Wetted Parts
Copper alloy
Case Material
Stainless steel 1.4301
Case Design
Crimp ring case (version 53)
Window
Plastic, clear
