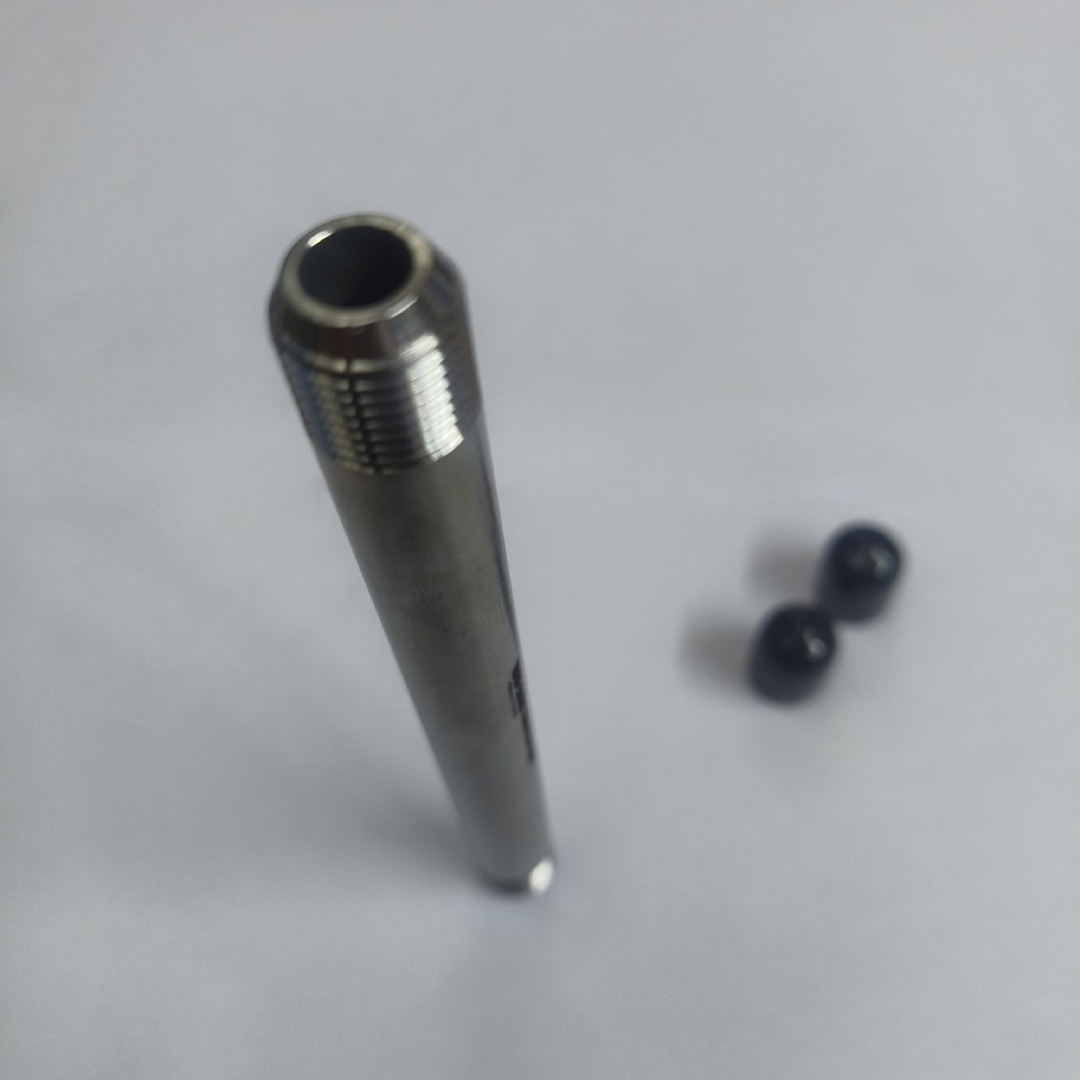

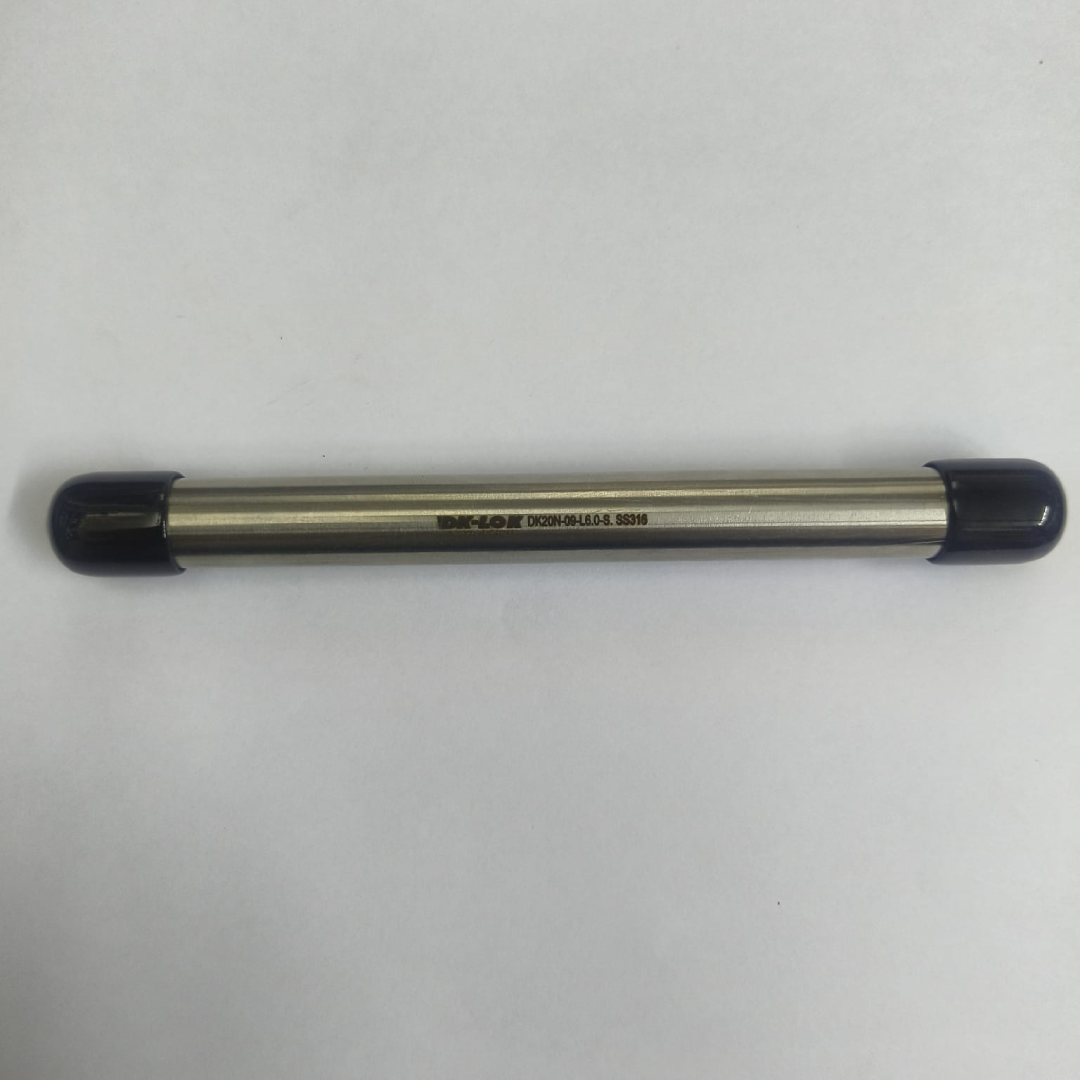

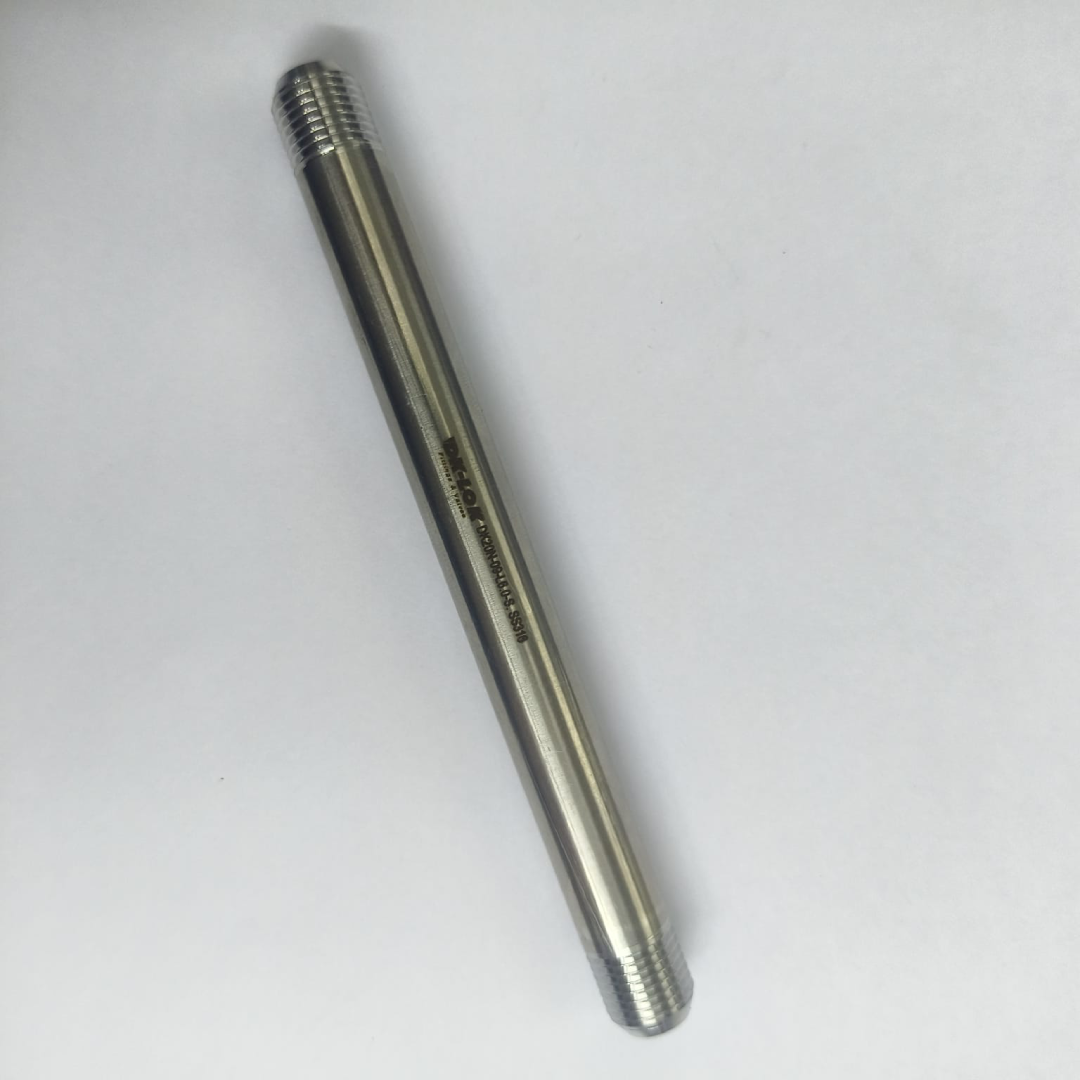

DK-LOK High Pressure Nipple, 20,000 psig, 9/16" Male Threaded Port, 6" Long, SS316, DK20N-09-L6.0-S
Mfg. Part No. : DK20N-09-L6.0-S
SKU : DK-SLA20K-09-DK20N-09-L6.0-S
Brand :
![DK-LOK]()
DK-LOK high pressure nipples are straight connection components used to extend or join medium pressure tubing runs in demanding instrumentation and fluid handling systems. They are commonly used in chemical injection, test systems, hydraulic service, subsea, and process applications where 20,000 psig pressure capability and dependable metal-to-metal sealing are required.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allDescription
Specifications
Downloads
Related
products
Description
DK-LOK DK20N-09-L6.0-S — DK-LOK High Pressure Nipple, 20,000 psig, 9/16" Male Threaded Port, 6" Long, SS316, DK20N-09-L6.0-S. Stocked by Indspare for Kuwait and GCC delivery.
The DK-LOK DK20N-09-L6.0-S is a 20,000 psig high pressure nipple manufactured in SS316 for 9/16" male threaded medium pressure connections and 6" overall length service. It belongs to the DK-N nipple series in DK-LOK's cone-and-thread high pressure range and is designed for use in demanding instrumentation, hydraulic, and process systems. It features a 14.29 mm outside diameter, 7.92 mm inside diameter, 3.18 mm wall thickness, and 49.03 mm² flow area.
Key features
- DK-LOK DK-N series high pressure nipple
- 20,000 psig pressure rating for medium pressure service
- 9/16" male threaded port with 6" overall length
- SS316 stainless steel construction for corrosion resistance
- Cone-and-thread high pressure connection design
Applications
- Chemical injection systems
- High pressure test systems
- Hydraulic and instrumentation lines
- Subsea and process service
Downloads
Specifications
Maximum Pressure
20,000 psig
Port Size
9/16" Male Threaded
Body Material
316 stainless steel
Outside Diameter
14.29 mm
Inside Diameter
7.92 mm
Wall Thickness
3.18 mm
Flow Area
49.03 mm²
