Schneider Electric PowerLogic PM5330 Energy Meter, Modbus RTU/ASCII, Up to 31st Harmonic, 2DI/2DO 35 Alarms, METSEPM5330
Part Number : METSEPM5330
Brand :
![Schneider Electric]()
Schneider Electric PowerLogic PM5330 is a flush-mount energy meter designed for accurate electrical power monitoring in commercial and industrial panels. It measures key electrical parameters, supports Modbus communication and helps track energy use, alarms and harmonic data in one compact meter.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 150.000
Shipping will be calculated at checkout after you enter delivery address.
Backorder. Expected availability: 2026-06-30.
Description

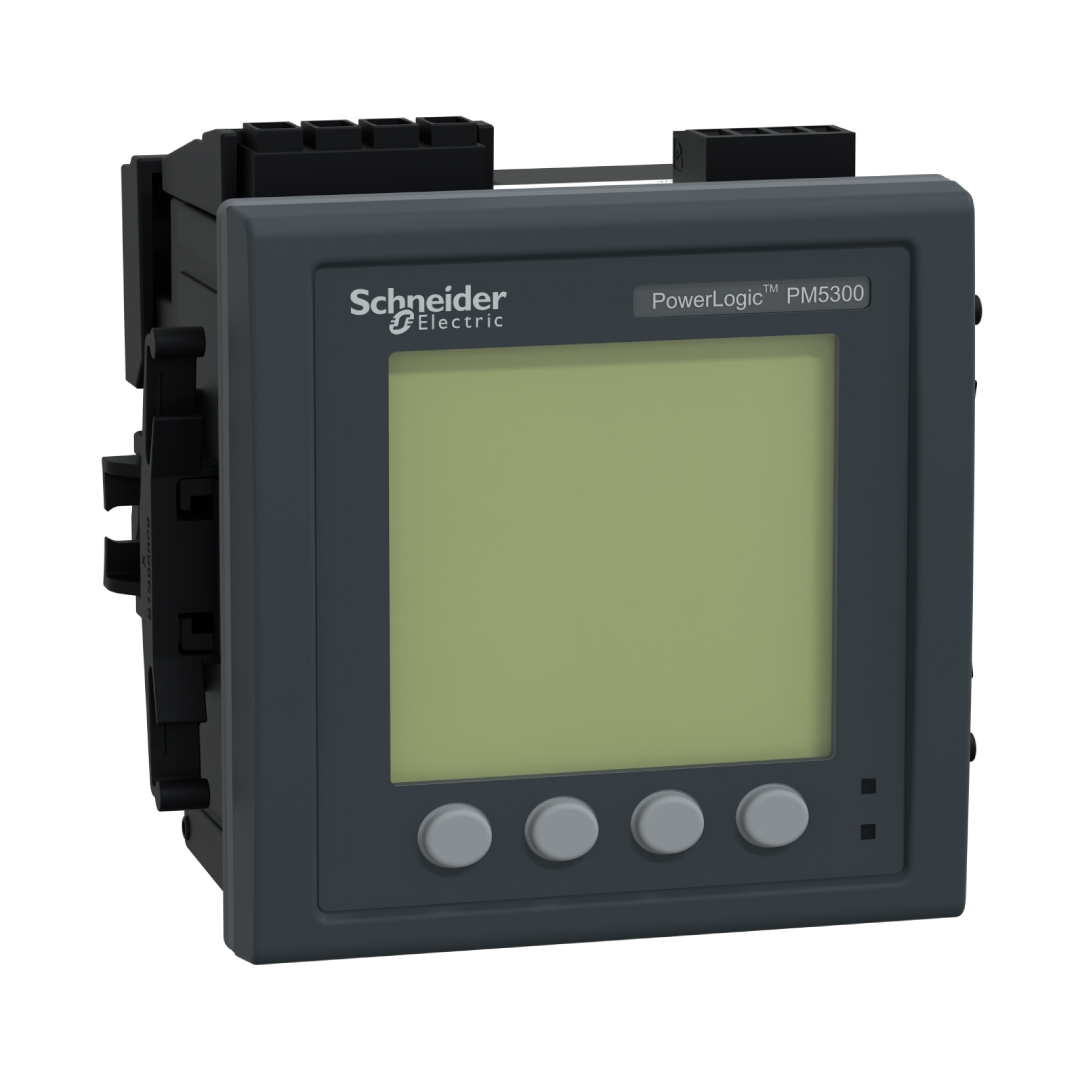

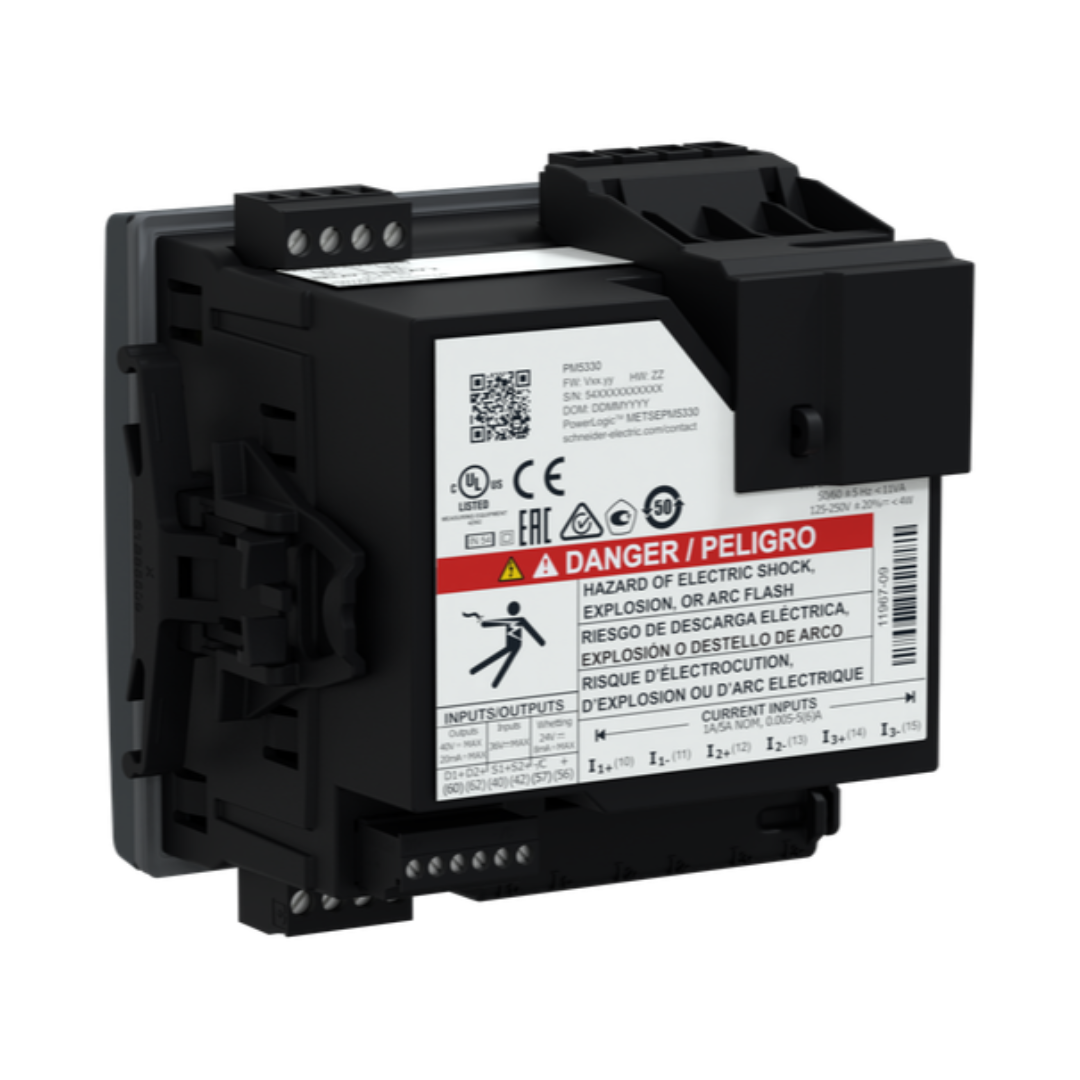

METSEPM5330 is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules.
Key Features
- Class 0.5S active energy accuracy for precise metering applications.
- Measures energy, voltage, current, frequency, power factor and active and reactive power.
- Supports power quality monitoring up to the 31st harmonic.
- Built-in Modbus RTU and ASCII communication over RS485 for remote monitoring.
- Includes 256 kB memory with alarm, event and data logging capability.
- Provides 2 digital inputs, 2 digital outputs and 2 relay outputs for monitoring and control.
Applications
- Electrical panel and switchboard energy monitoring.
- Commercial and industrial building power measurement.
- Remote metering through Modbus based automation systems.
- Power quality review for harmonic and alarm monitoring.
- Multi-tariff energy tracking in facility management systems.
