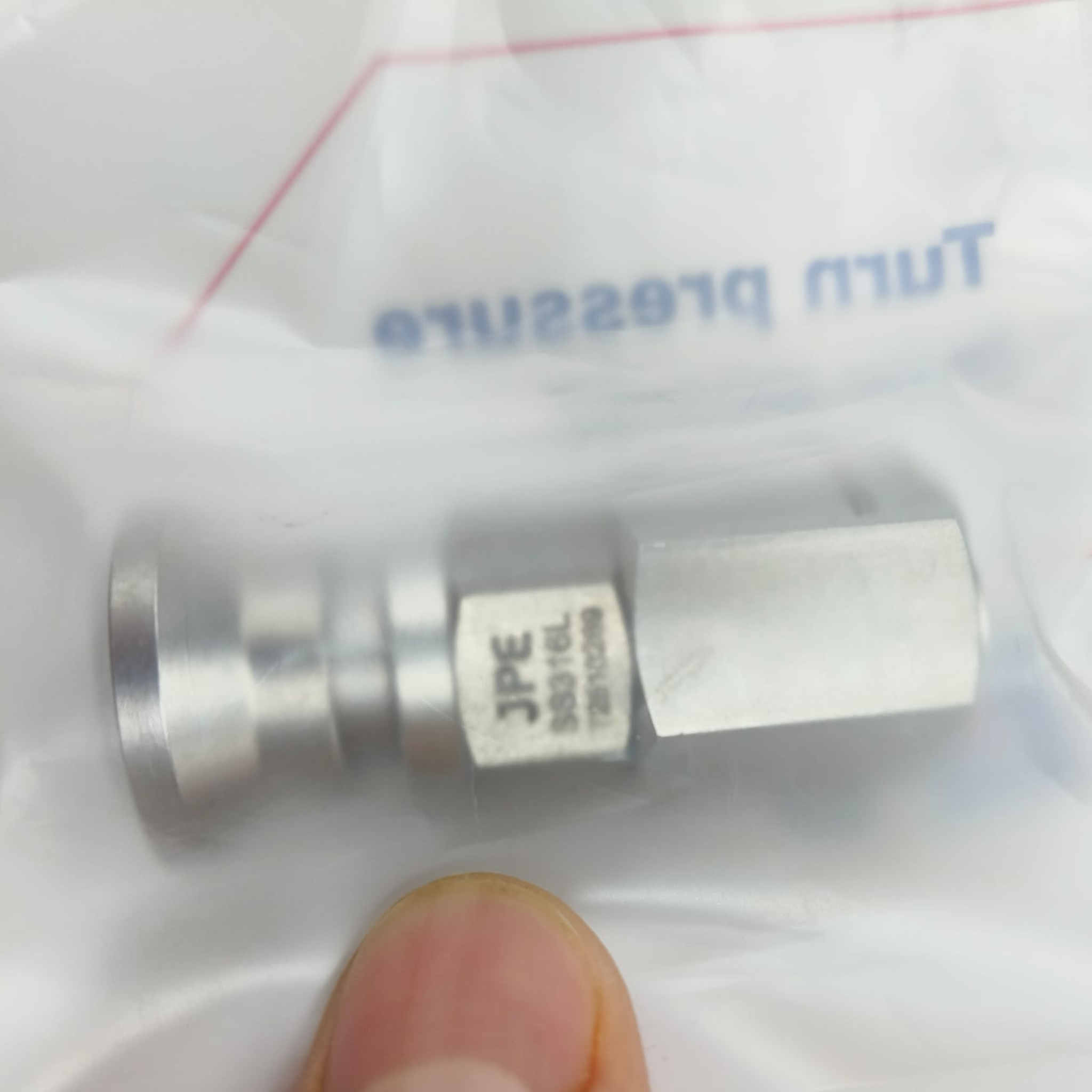

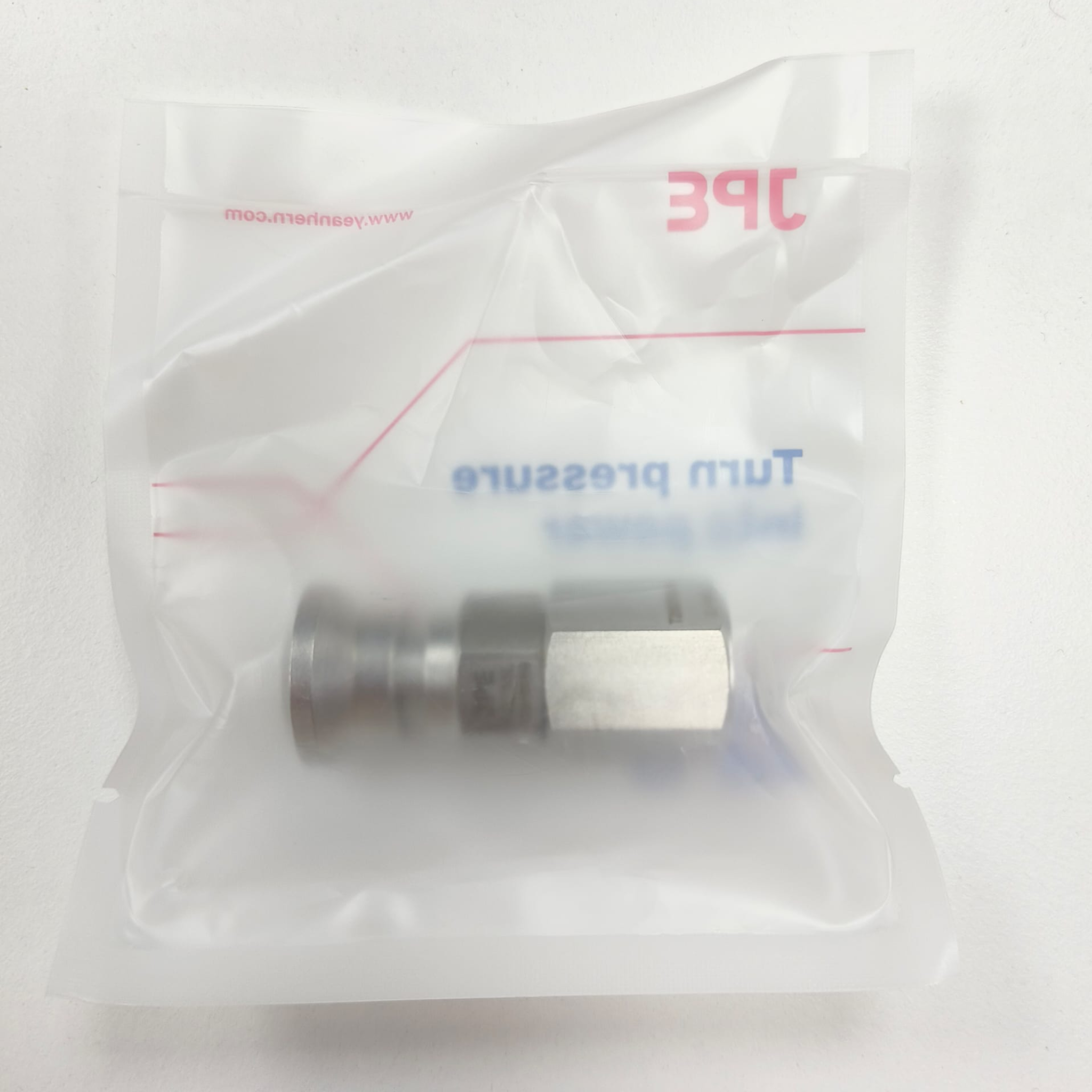

JPE QC Series Quick Coupling Socket, 1/4" Female NPT, SS316L, FKM, AS6-QCS02F-N(V)
Technical overview
This JPE QC Series quick coupling socket is designed for fast, secure connection and disconnection in process instrumentation, industrial gas, laboratory, semiconductor and general fluid service lines. The QC middle and low pressure twin-valve design seals the socket and plug separately when disconnected, helping reduce leakage during maintenance and changeover. The stainless steel 316L body provides corrosion resistance, while the 1/4" Female NPT threaded connection supports installation into compatible piping, tubing and instrument assemblies. It is suitable for oxygen, nitrogen, argon, compressed air, water and oil service within the catalogue pressure limits.
Key Features
- SS316L stainless steel body supports corrosion resistance in demanding industrial and instrumentation environments.
- 1/4" Female NPT threaded connection allows installation into compatible process, gas and fluid lines.
- FKM O-ring seal provides reliable sealing performance for common gas, air, water and oil applications.
- QC Series middle and low pressure twin-valve design seals both halves separately when disconnected.
- Socket sleeve and locking mechanism support stable plug retention during service.
- Designed to pair with a matching JPE QC Series plug of the same nominal size.
- Made in Taiwan
Applications
- Instrumentation tubing and process fluid connection points.
- Industrial gas and compressed air lines requiring quick disconnection.
- Laboratory, semiconductor, petrochemical, oil and biopharmaceutical service applications.
- Water and oil service lines within the rated pressure and material compatibility limits.
- Maintenance points where fast equipment isolation or line changeover is required.
Specifications
Connection Size1/4" Female NPT
Coupling SideSocket
Body Material316L Stainless Steel
Seal MaterialFKM
Maximum Pressure21 kgf/cm² / 300 psi
Media CompatibilityGaseous Oxygen, Nitrogen, Argon, Compressed Air, Water, Oil
