Mfg. Part No. : SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-760-0)-MMH/BAR-A16-DUS

SKU : PS250-BC-V-0-GG

Brand :
General Instruments

General Instruments Model SPGS-P vacuum gauge is a stainless steel made Bourdon tube gauge designed for reliable local vacuum indication in demanding industrial service. It is suitable for pump lines, compressor systems, suction lines and general process duties, offering clear readability and a dry case prepared for filling where vibration or dynamic pressure loads are present.

General Instruments (General Gauges) India - KOC, KNPC, Saudi Aramco, QatarEnergy, SABIC approved pressure gauges, thermometers & process instruments since 1966.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  20 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

General Instruments SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-760-0)-MMH/BAR-A16-DUS — General Instruments Vacuum Gauge SPGS-P, -760...0 mmHg, 2nd Scale bar, 2.5" Dial, 1/4" Male NPT Back Mount With Front Flange, SS Body & Parts, SPGS-P-063-S4S-S6S-S6S-S4S-T06NTM-(-760-0)-MMH/BAR-A16-DUS. Stocked by Indspare for Kuwait and GCC delivery.

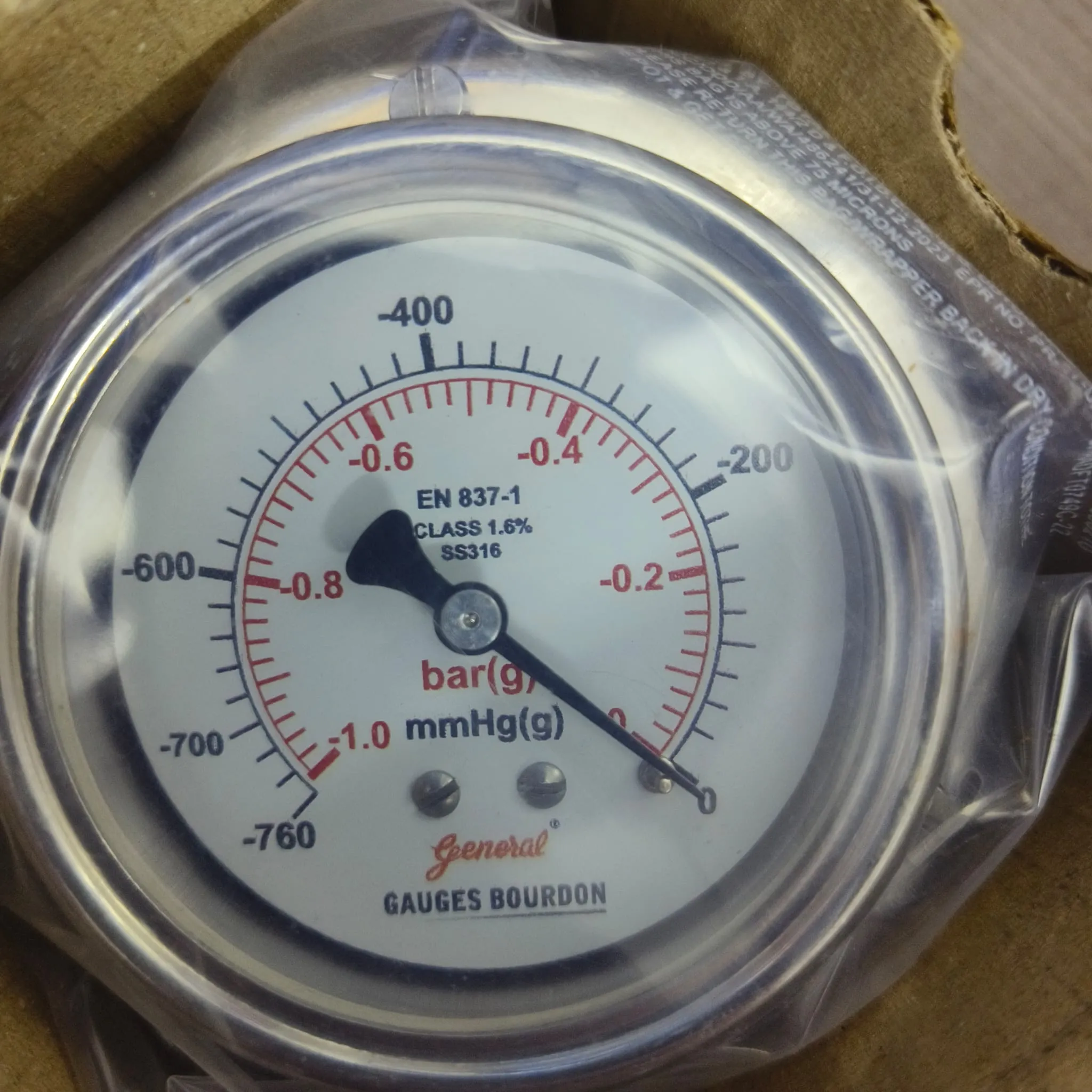

General Instruments vacuum gauge Model SPGS-P is designed for reliable panel-mounted vacuum indication in demanding industrial service. The gauge uses a 2.5" / 63 mm dial with a 1/4" Male NPT back connection and front flange for panel mounting. Stainless Steel Made, with SS316 wetted parts, glass window and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is -760...0 mmHg with secondary bar scale, accuracy class is Class 1.6, and the compact design is suitable for suction lines, vacuum pumps, compressor systems and general process duties.

Key Features

  • 2.5" / 63 mm dial for clear compact vacuum indication.
  • Primary mmHg scale with 2nd scale bar for vacuum reading.
  • 1/4" Male NPT process connection for industrial installation.
  • Back mount with front flange for panel mounting.
  • SS body and parts with SS316 wetted parts.
  • Dry case, prepared for filling for service with vibration or dynamic pressure.
  • Glass window and Class 1.6 accuracy for dependable local reading.
  • Made in India.

Applications

  • Hydraulic and pneumatic pressure monitoring.
  • Pump, compressor and utility line pressure indication.
  • Industrial machinery, skids and process panels.
  • General process service requiring compact local indication.

Downloads

General Pressure Gauges SPGS-63 mm Dial Datasheet.pdf

pdf
Download

Specifications

Model
SPGS-P
Measuring System
Bourdon Tube
Dial Size
63 mm / 2.5"
Gauge Type
Vacuum
Measuring Range
-760...0 mmHg
Secondary Scale
2nd scale bar
Process Connection
1/4" Male NPT
Mounting Position
Back mount
Mounting Flange
SS front flange
Case Filling
Dry case, prepared for filling
Wetted Parts
SS316
Case Material
SS304
Accuracy Class
Class 1.6
Window
Glass, clear
Over Range
125% FSD
Pressure Gauge Standard
EN 837-1
Ambient Temperature Range
-20...+60°C
Blow Out Disc
Provided on top of case (Neoprene)
