Mfg. Part No. : BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(-760-0)-MMH/BAR-DUS

SKU : PS400-BC-V-0-GG

Brand :
General Instruments

General Instruments Model BSPG-P vacuum gauge is a stainless steel made Bourdon tube gauge designed for reliable panel-mounted vacuum indication in demanding industrial service. It is suitable for pump lines, compressor systems, suction lines and general process duties, offering clear readability and a dry case prepared for filling where vibration or dynamic pressure loads are present.

General Instruments (General Gauges) India - KOC, KNPC, Saudi Aramco, QatarEnergy, SABIC approved pressure gauges, thermometers & process instruments since 1966.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
Out of stock.
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

General Instruments BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(-760-0)-MMH/BAR-DUS — General Instruments Vacuum Gauge BSPG-P, -760...0 mmHg, 2nd Scale bar, 4" Dial, 1/2" Male NPT Lower Back Mount With Front Flange, SS Body & Parts, BSPG-P-100-S4S-S6S-S6S-S4S-T15NTM-(-760-0)-MMH/BAR-DUS. Stocked by Indspare for Kuwait and GCC delivery.

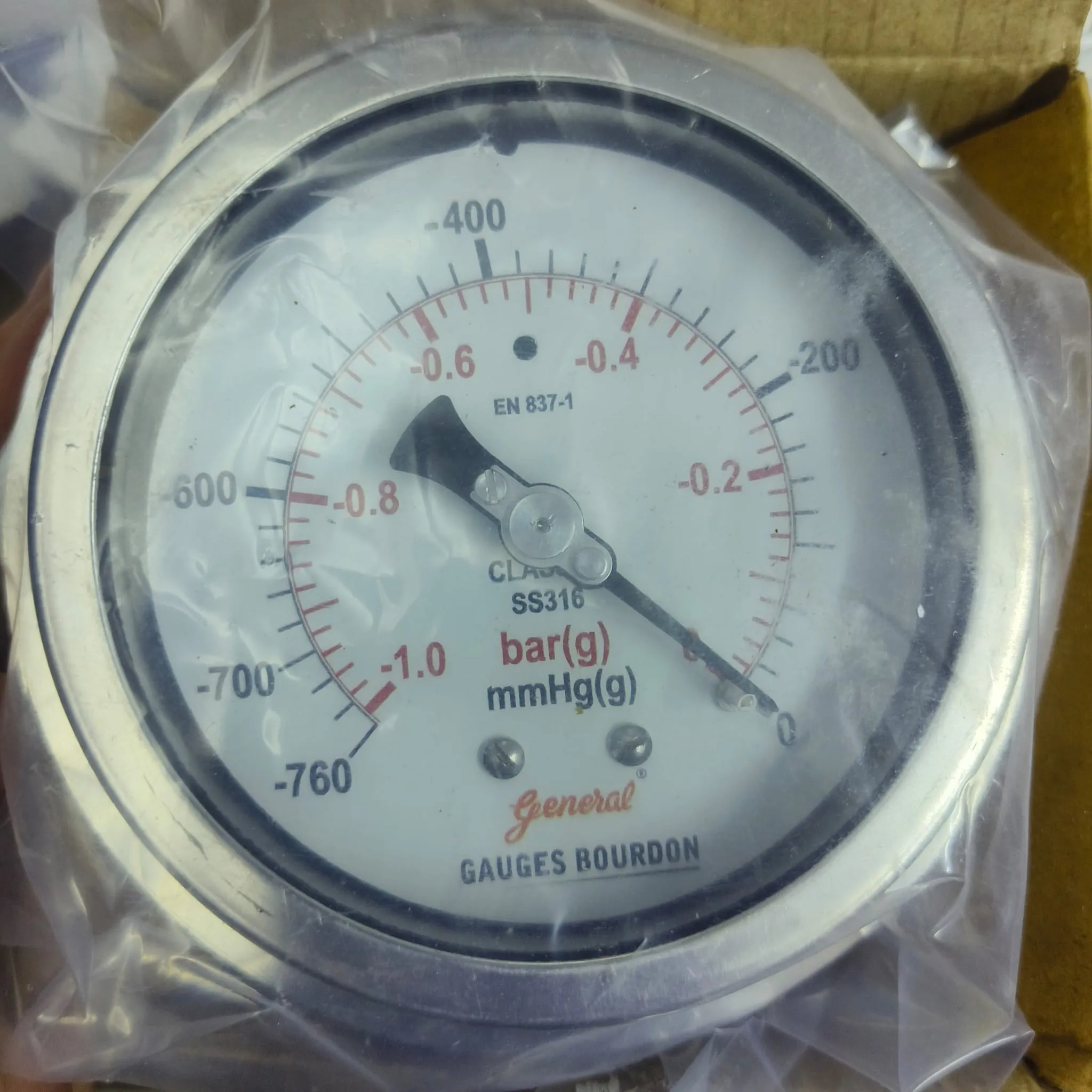

General Instruments vacuum gauge Model BSPG-P is designed for reliable panel-mounted vacuum indication in demanding industrial service. This lower back mount version uses a 4" / 100 mm dial, 1/2" Male NPT process connection and SS front flange for secure panel installation. Stainless Steel Made, with shatterproof glass window, SS316 wetted parts and a dry case prepared for filling where vibration or dynamic pressure conditions require liquid filling. Measuring range is -760...0 mmHg with 2nd scale bar, accuracy class is Class 1.0, and the process gauge design is suitable for pump skids, suction lines, compressor systems and general process duties.

Key Features

  • 4" / 100 mm dial for clear vacuum indication.
  • Primary mmHg scale with 2nd scale bar reference.
  • Lower back mount with 1/2" Male NPT process connection and SS front flange.
  • SS Body & Parts with SS304 case and SS316 wetted parts.
  • Dry case, prepared for filling where vibration damping is required.
  • Class 1.0 accuracy with EN 837-1 pressure gauge standard.
  • Made in India.

Applications

  • Vacuum indication in pump and suction line service.
  • Flush panel vacuum monitoring in machinery panels.
  • Compressor, process skid and utility equipment monitoring.
  • General industrial replacement gauge requirements.

Downloads

General Pressure Gauges BSPG-100_150 mm Dial Datasheet.pdf

pdf
Download

Specifications

Model
BSPG-P
Measuring System
Bourdon Tube
Dial Size
100 mm / 4"
Gauge Type
Vacuum
Measuring Range
-760...0 mmHg
Secondary Scale
2nd scale bar
Process Connection
1/2" Male NPT
Mounting Position
Lower back mount
Mounting Flange
SS front flange
Case Filling
Dry case, prepared for filling
Wetted Parts
SS316
Case Material
SS304
Accuracy Class
Class 1.0
Window
Shatterproof glass
Over Range
130% FSD
Pressure Gauge Standard
EN 837-1
Ambient Temperature Range
-20...+60°C
Blow Out Disc
Provided on top of case (Neoprene)
