Mfg. Part No. : BDT-V-100-S4S-S06-150-S6S-T15NTM-(0-200)-DGC-DUS

SKU : PB-TG4-BT-100M-200C-GG

Brand :
General Instruments

General Instruments bimetal dial thermometers are rugged local temperature indicators for process pipelines, tanks, equipment skids and industrial utility lines. They provide clear mechanical temperature reading for oil and gas, petrochemical, water treatment and general process applications.

General Instruments (General Gauges) India - KOC, KNPC, Saudi Aramco, QatarEnergy, SABIC approved pressure gauges, thermometers & process instruments since 1966.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  10 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

General Instruments BDT-V-100-S4S-S06-150-S6S-T15NTM-(0-200)-DGC-DUS — General Instruments BDT-V Bimetal Dial Thermometer, 0...200 °C, 4" Dial, 1/2" Male NPT, Lower Mount, 100 mm Stem, BDT-V-100-S4S-S06-150-S6S-T15NTM-(0-200)-DGC-DUS. Stocked by Indspare for Kuwait and GCC delivery.

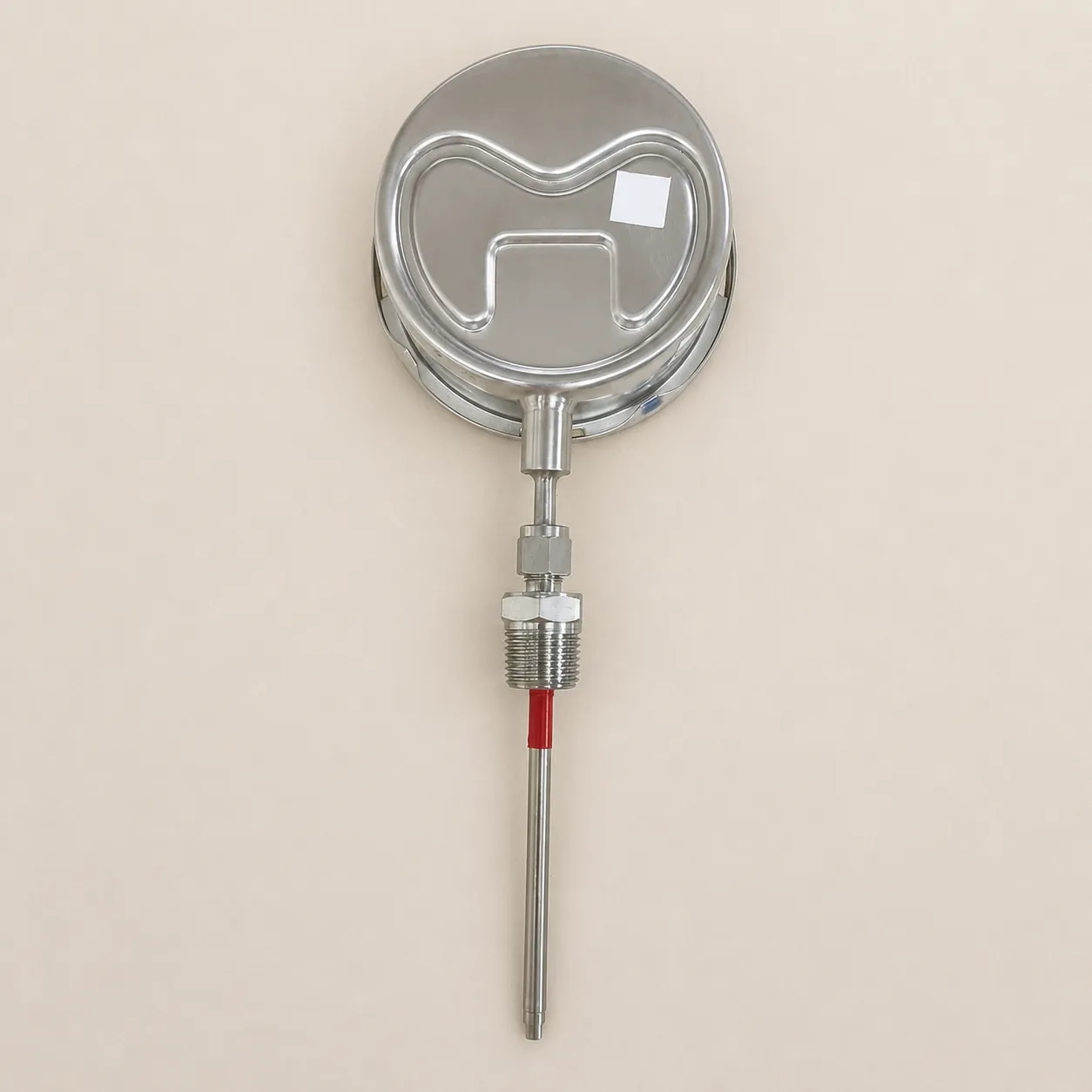

General Instruments BDT-V Bimetal Dial Thermometer provides local mechanical temperature indication with 0...200 °C primary scale and °F secondary scale on a dual scale 4" / 100 mm aluminium dial. The thermometer has an SS304 case with bayonet type bezel, shatterproof glass window, IP-68 weatherproof protection, micrometer pointer zero reset, ±1% FSD accuracy and 125% FSD over range. The 6 mm OD SS316 stem has 100 mm total length, and the 1/2" Male NPT SS316 compression fitting slides on the stem to set the insertion depth during installation. The lower mount construction positions the process connection below the dial for standard vertical local mounting on pipelines, tanks and equipment. The design is suitable for process pipelines, tanks, machinery packages and utility systems where a durable bottom-entry local temperature indicator is required.

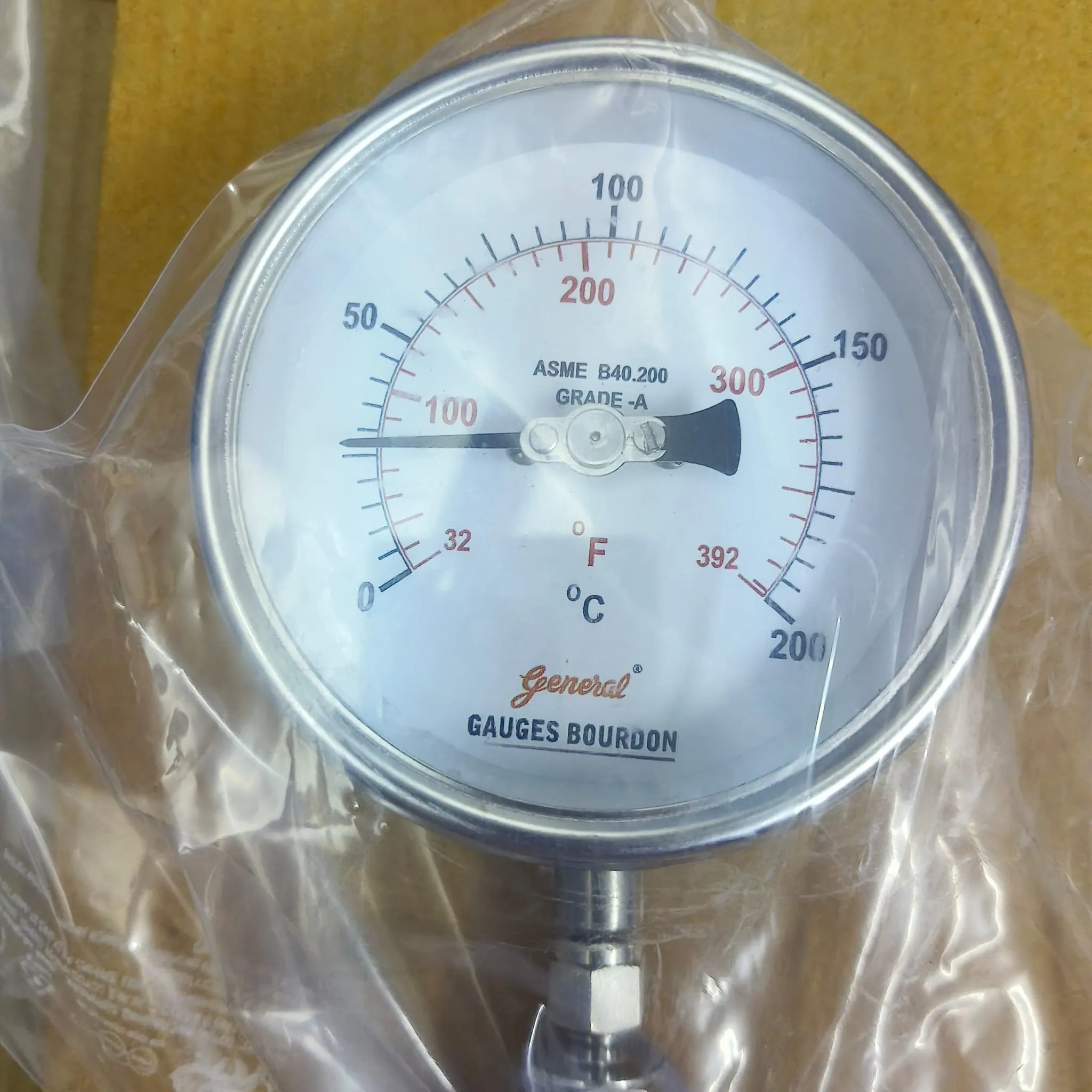

Note: The pointer reading seen in the product images is because the bimetal thermometer begins indicating temperature as soon as the stem is exposed to its surroundings. Therefore, a reading above zero is normal even for a new/unused product. This also confirms that the thermometer is functioning properly.

Key Features

  • 4" / 100 mm aluminium dial with primary range 0...200 °C and secondary °F scale.
  • Lower mount design for bottom entry local temperature indication.

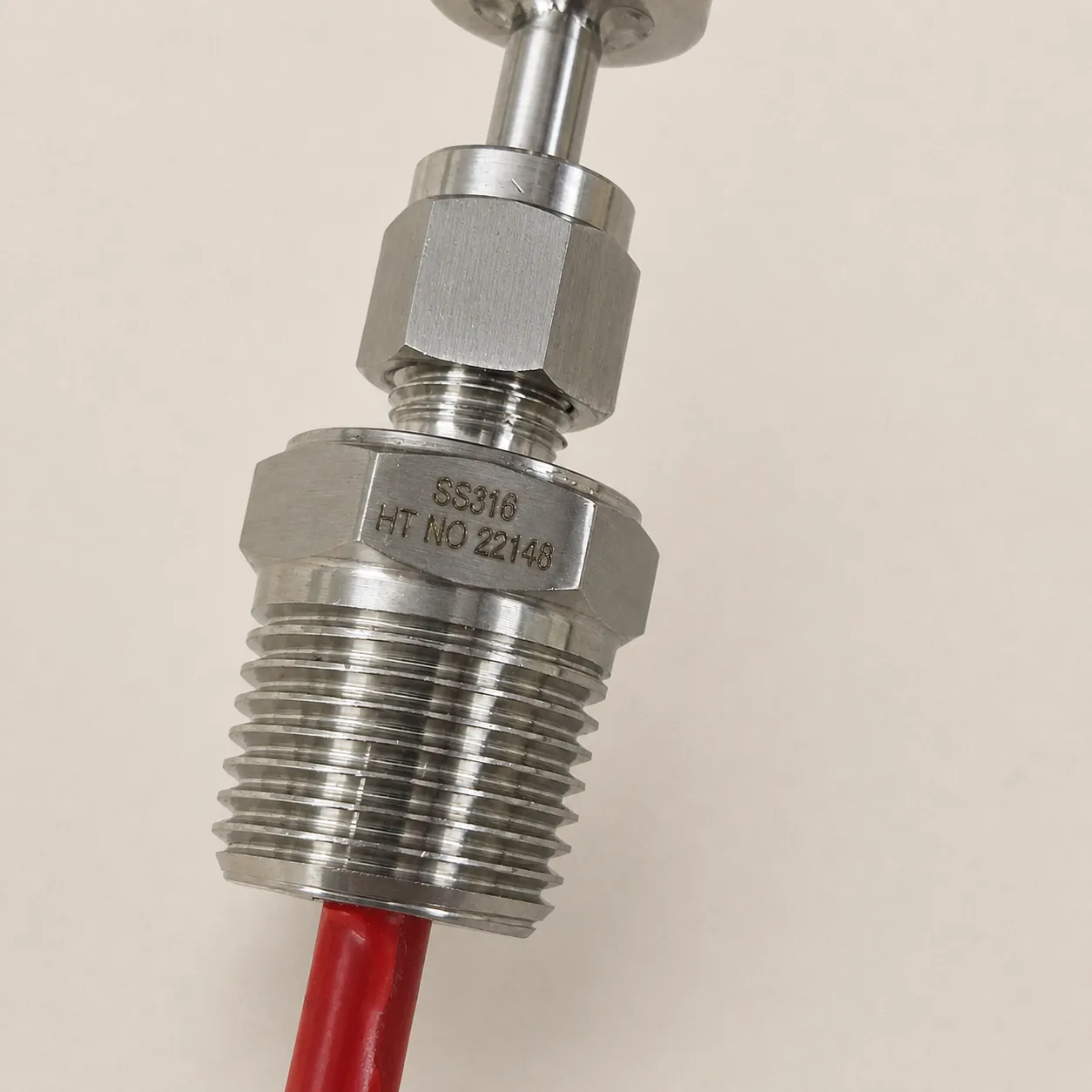

  • 1/2" Male NPT SS316 compression fitting sliding on stem with SS316 stem.
  • SS304 bayonet bezel case with shatterproof glass window and IP-68 protection.
  • Made in India.

Applications

  • Local temperature indication on process pipelines and tanks.
  • Temperature monitoring on pump skids, compressors and machinery packages.
  • Use in oil and gas, petrochemical, water treatment and utility systems.
  • Industrial service where rugged mechanical temperature indication is preferred.

Downloads

General Instruments Bimetal Dial Thermometer Datasheet.pdf

pdf
Download

Specifications

Model
BDT-V
Measuring Range
0...200 °C
Dial Size
4" (100 mm)
Secondary Scale
°F
Mounting Position
Lower mount
Process Connection
1/2" Male NPT Compression fitting, sliding on stem
Insertion Length
100 mm
Stem Diameter
6 mm OD
Case Material
SS304 case & bayonet bezel
Stem Material
SS316 stem and fitting
Window
Shatterproof glass
Accuracy Class
±1% FSD
Measuring System
Bimetal coil
Ingress Protection
IP-68
Over Range
125% FSD
Compliance Standards
ASME B40.200, EN 13190
Blow Out Disc

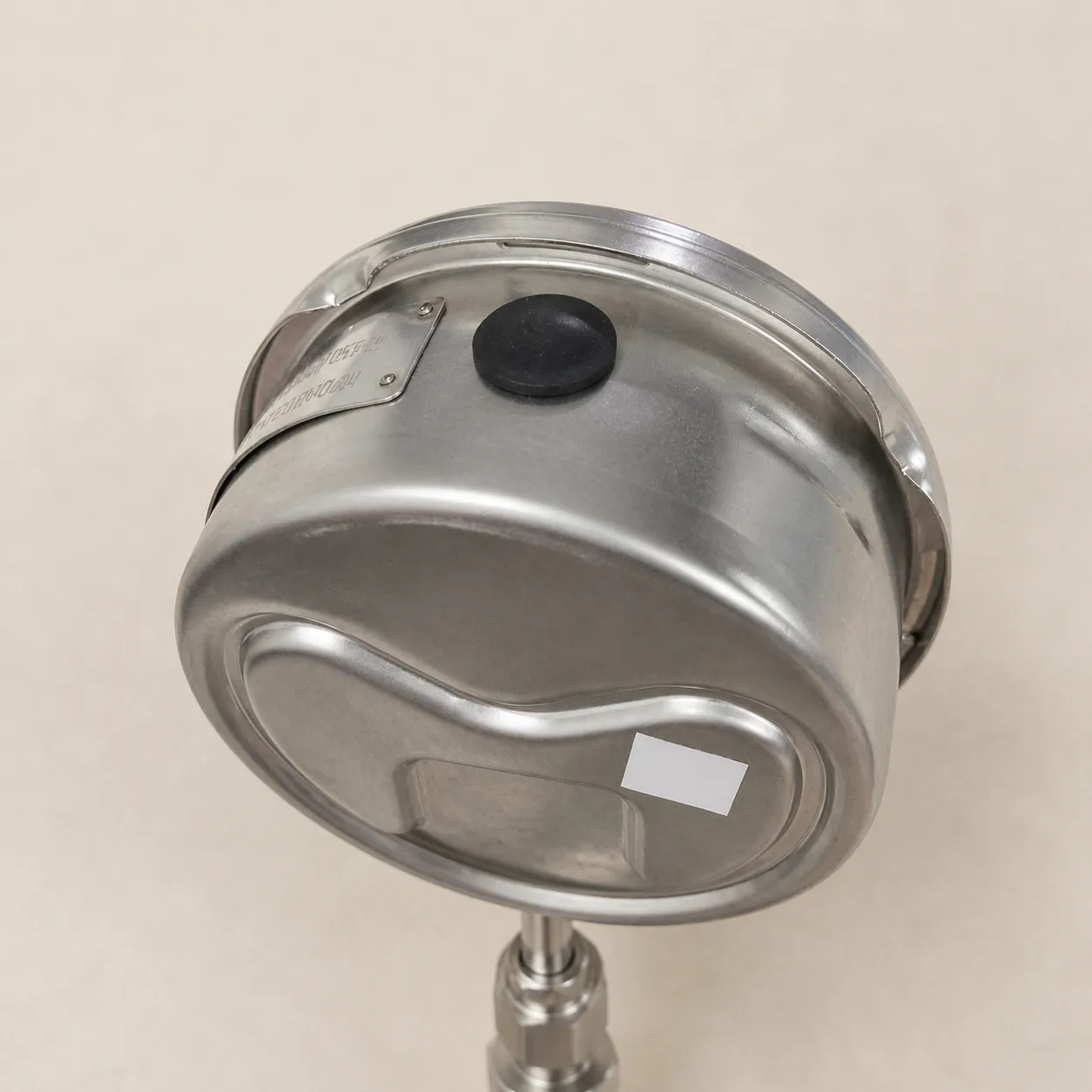

Provided on top of case (Neoprene)
