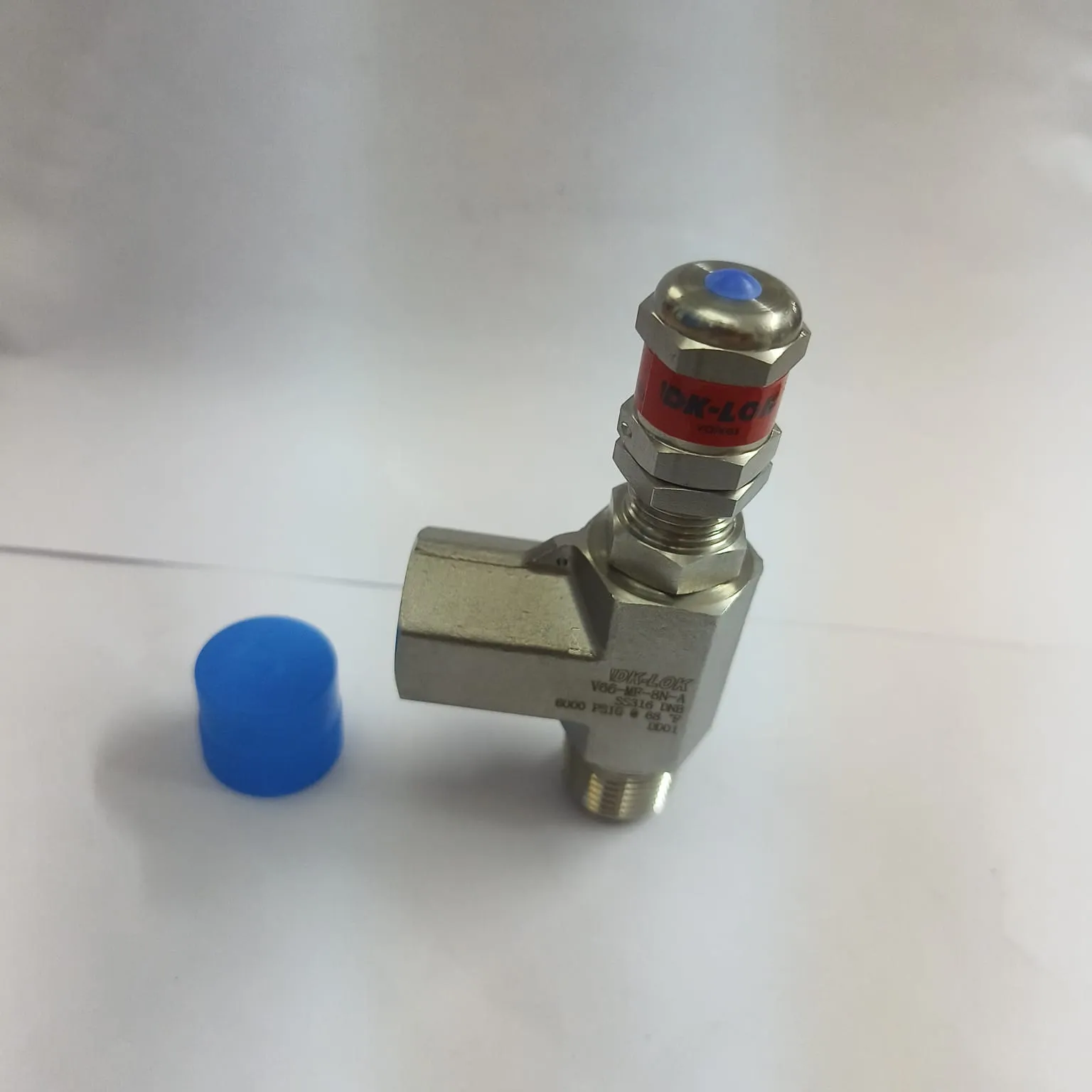

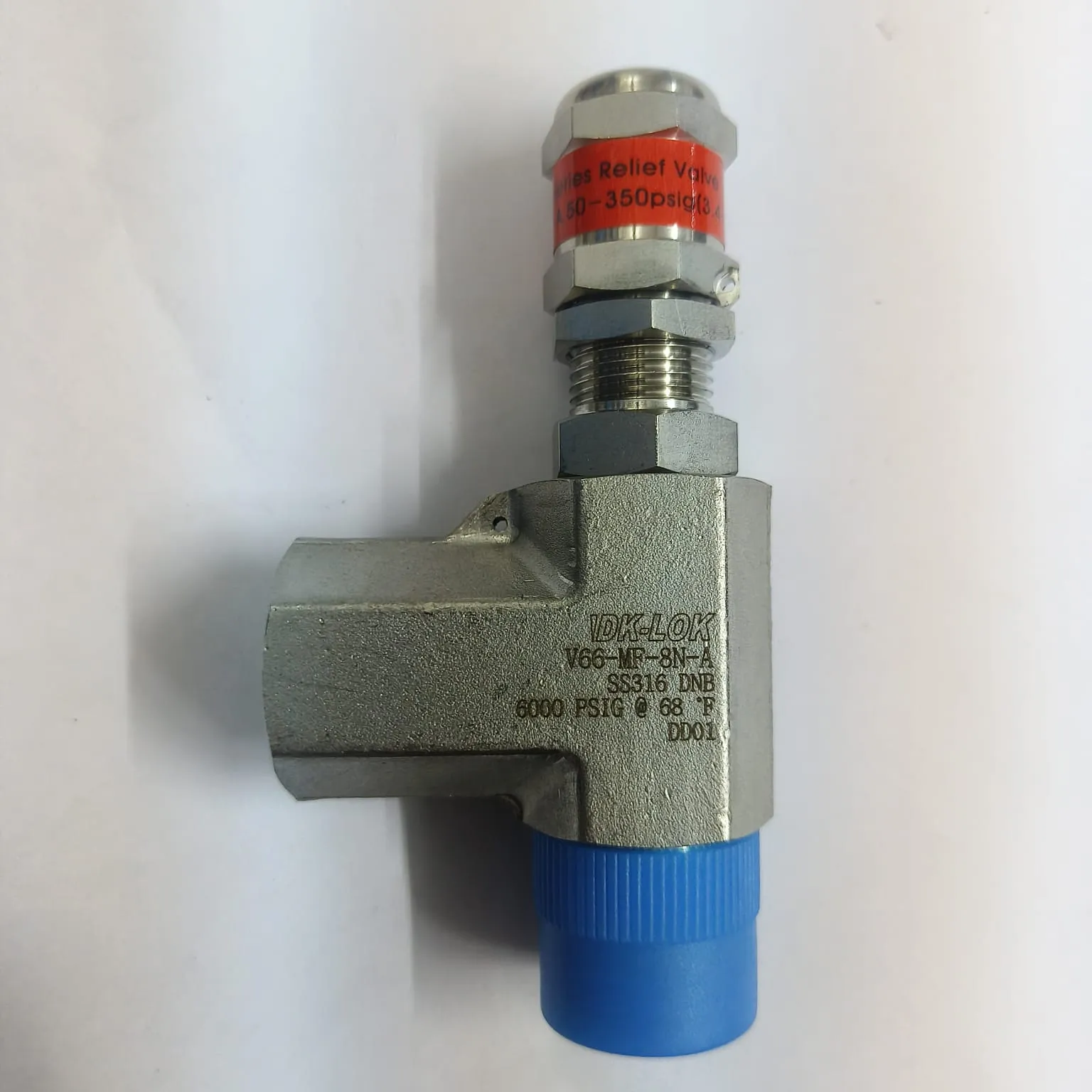

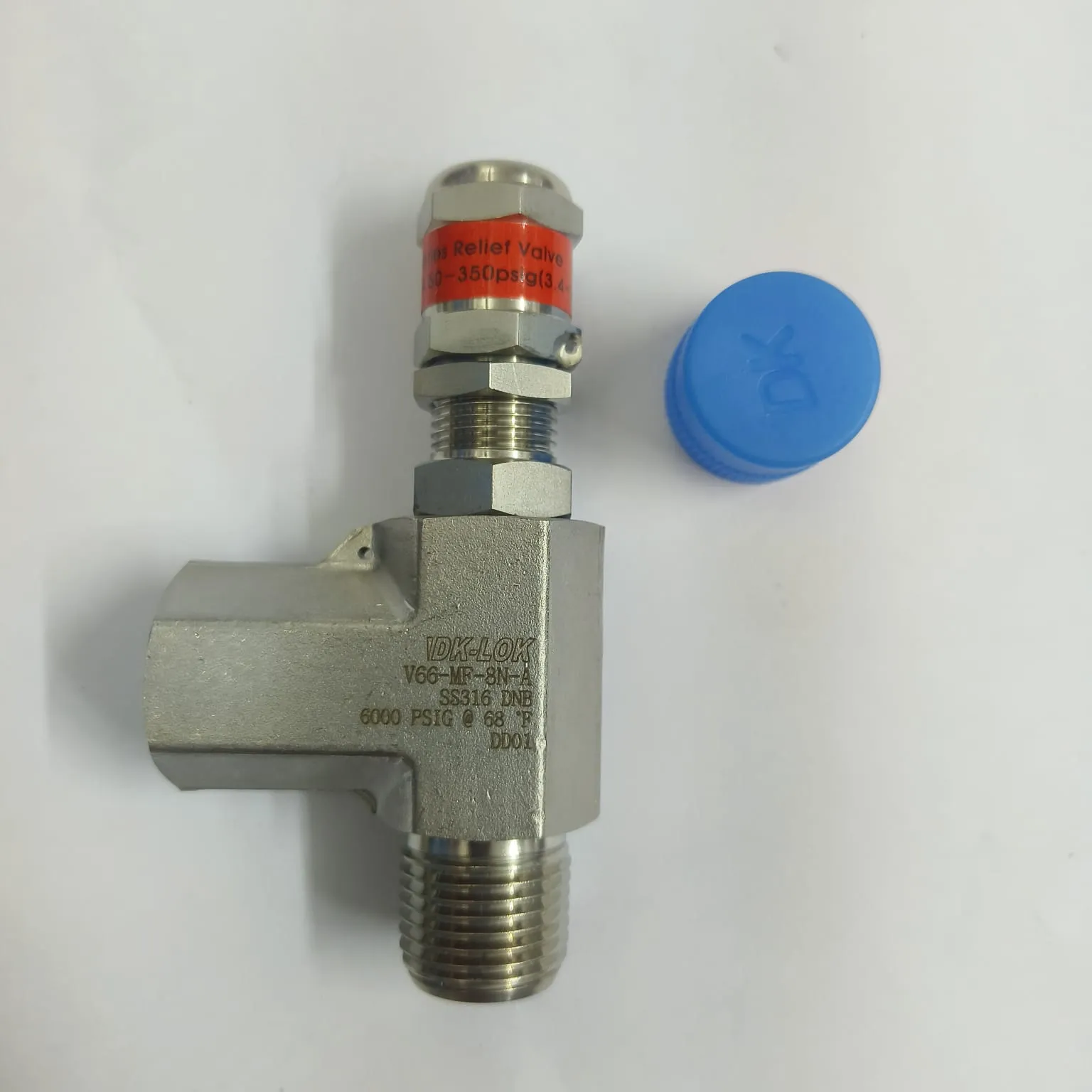

DK-LOK V66 Series Relief Valve, Cracking Pressure 50 to 350 psig, 1/2" Male x Female NPT Connections, SS316, V66-MF-8N-A
Part Number : V66-MF-8N-A
Brand :
![DK-LOK]()
DK-LOK pressure relief valves protect instruments, tubing, and system components from overpressure by opening at a preset cracking pressure and relieving excess pressure. They are used in hydraulic and pneumatic circuits, test benches, and process utility lines where dependable reseal performance and stable pressure control are required.
Serving Kuwait, Saudi Arabia and entire GCC with express delivery.
View allKWD 60.000
Description
The DK-LOK V66 relief valve is a spring-loaded SS316 safety valve designed to open at the specified cracking pressure and relieve excess pressure to protect downstream equipment. This model is supplied with 1/2" male x female npt connections and is intended for a cracking pressure setting of 50 to 350 psig. It uses spring designator RVS-A with White color code, covering a cracking pressure range of 50 to 350 psig. The valve can be fine-adjusted within the applicable spring range during installation and is factory tested for cracking and reseal performance.
Key features
- Maximum working pressure up to 6,000 psi
- Cracking pressure range 50 to 350 psi
- White color-coded spring for pressure identification (spring code RVS-A)
- Spring-loaded relief mechanism for accurate operation
- SS316 stainless steel body for corrosion resistance
- 1/2" Male x Female NPT Connections
- Compact and durable design for industrial service
Applications
- Instrument and gauge protection
- Hydraulic and pneumatic systems
- Test benches and pressure skids
- Process and utility lines
