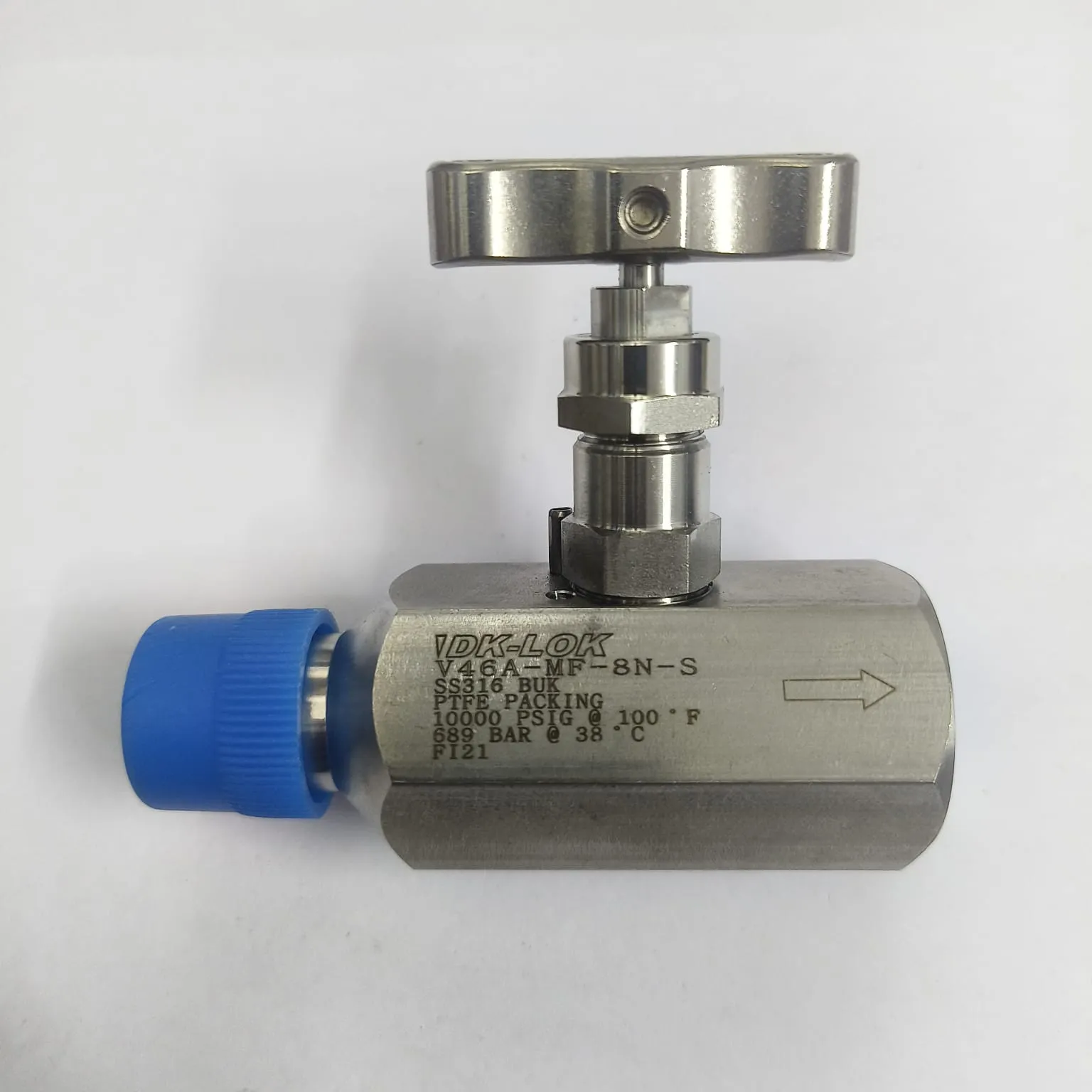

DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S - image 2

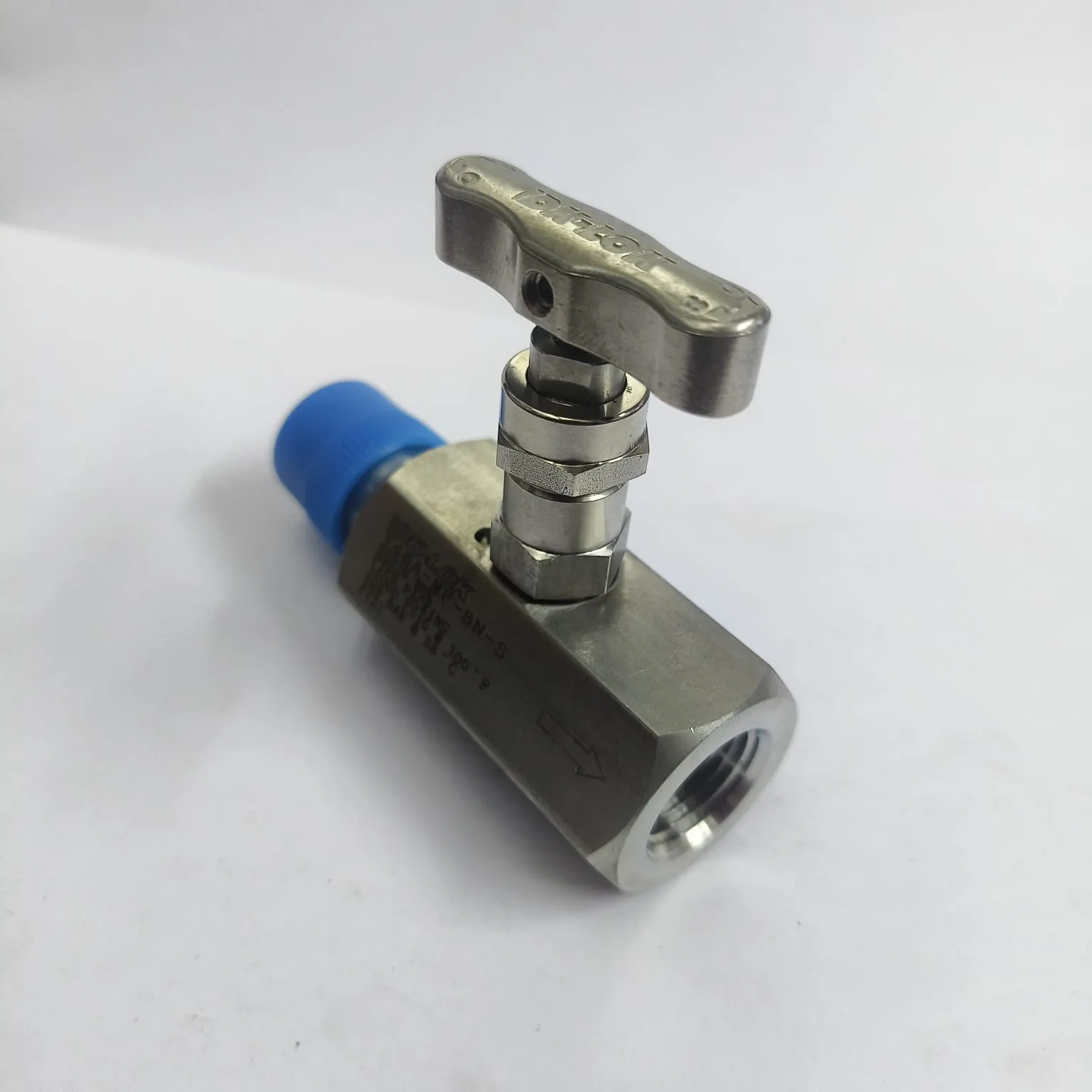

DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S - image 3

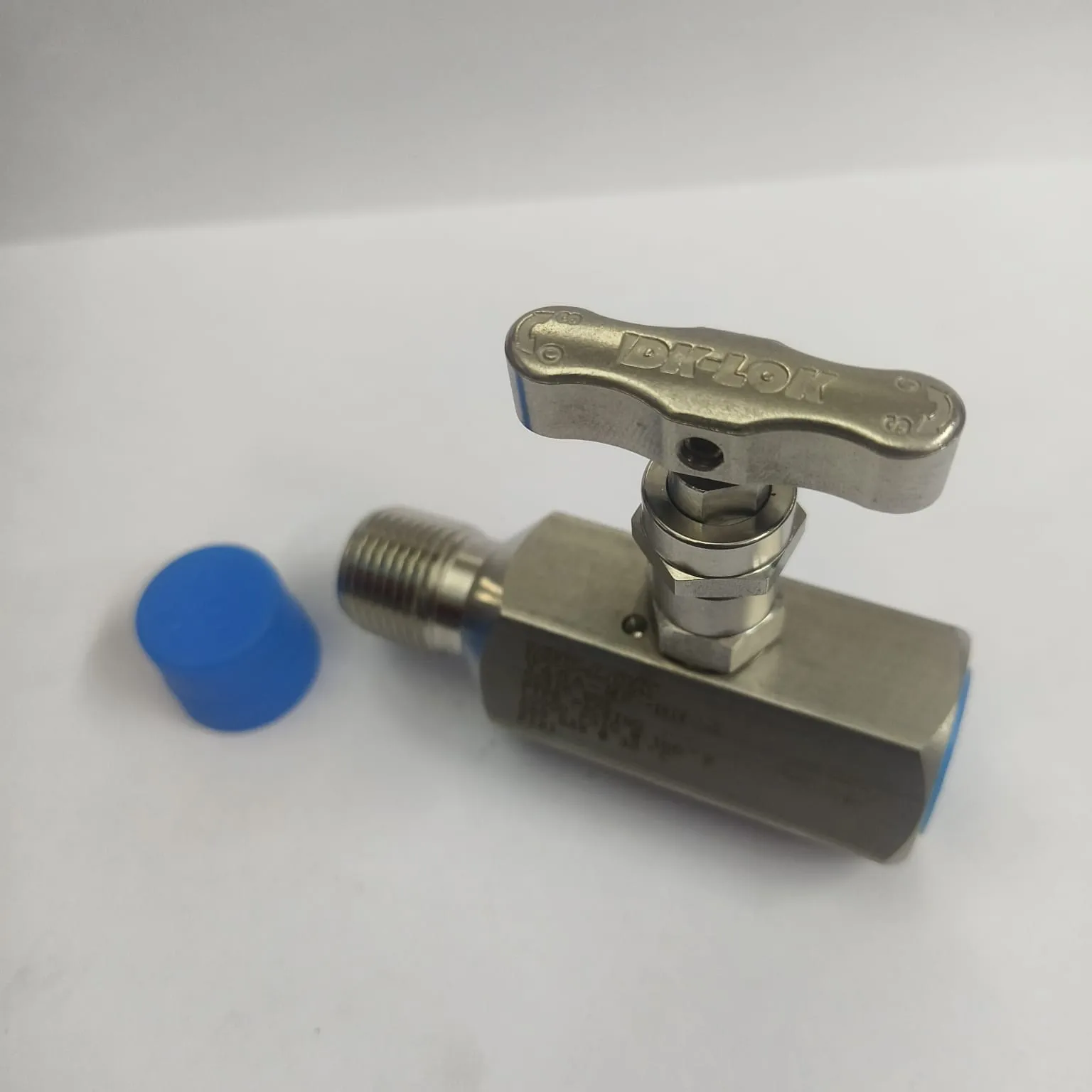

DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S - image 4
DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S video thumbnail
DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S

Mfg. Part No. : V46A-MF-8N-S

SKU : DK-NVMF10-08

Brand :
DK-LOK

DK-LOK V46A series hex body needle valves are compact, high-pressure valves for accurate flow regulation and tight shutoff in instrumentation systems. They are widely used to isolate pressure instruments, balance flow to sampling equipment, and control media in utility and process lines.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  86 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

DK-LOK V46A-MF-8N-S — DK-LOK V46A Series Needle Valve, 10000 psi, 1/2" Male x Female NPT Connections, SS316, V46A-MF-8N-S. Stocked by Indspare for Kuwait and GCC delivery.

The DK-LOK V46A series needle valve with 1/2" Male x Female NPT Connections is engineered for reliable throttling and shutoff up to 10000 psi at 100°F (38°C). The hex-body design provides strength in a compact footprint, while the non-rotating stem tip supports smooth operation and repeatable adjustment. Suitable for high-pressure instrument tubing and piping where stable flow control, leak-tight isolation, and SS316 compatibility are required.

Key Features

  • Pressure rating up to 10000 psi @ 100°F (38°C)
  • Compact hex body design for high-strength installations
  • Non-rotating stem tip supports smooth operation and long life
  • Packing below stem threads helps protect threads from process media
  • SS316 body for corrosion resistance in many services

Applications

  • Instrumentation isolation for gauges and pressure transmitters
  • Sampling panels and analyzer lines
  • Chemical injection and dosing skids
  • Hydraulic and pneumatic control circuits
  • General high-pressure process isolation and throttling

Downloads

DK-LOK V46A-MF-8N-S Datasheet.pdf

pdf
Download

DK-LOK V46A Series Needle Valves Catalog.pdf

pdf
Download

Specifications

Series
V46A Hex Body Needle Valve
Maximum Pressure
10,000 psig @ 100°F (38°C)
Temperature Range
-65 to 450°F (-54 to 232°C)
Connection Size
1/2" Male NPT x 1/2" Female NPT
Body Material
Stainless Steel 316
Packing Material
Chevron PTFE
Orifice Size
4.7 mm
Stem Tip
Non-rotating
Stem Material
SS316 (ASTM A276/A479)
Stem Disc Material
SS630 (ASTM A564)
