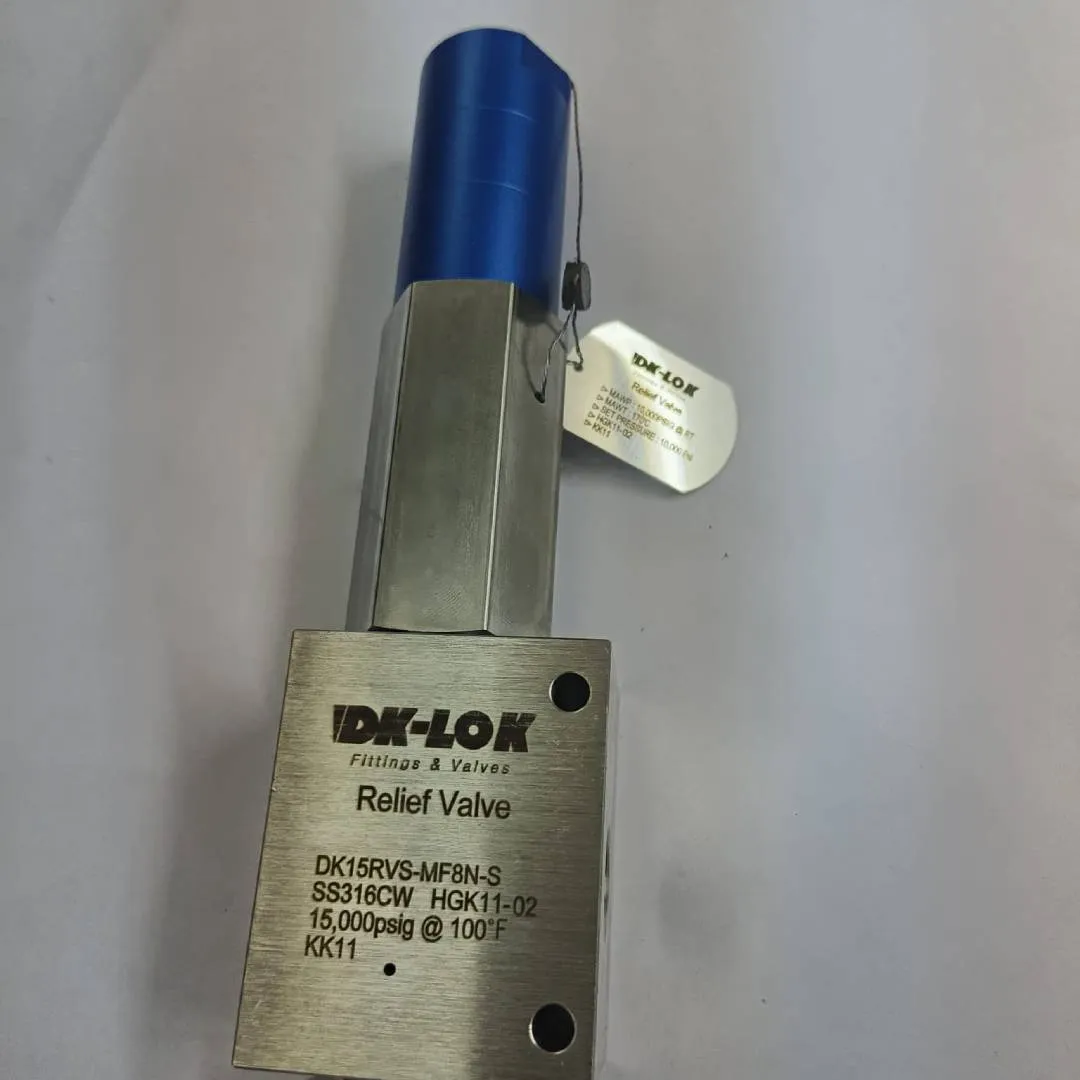

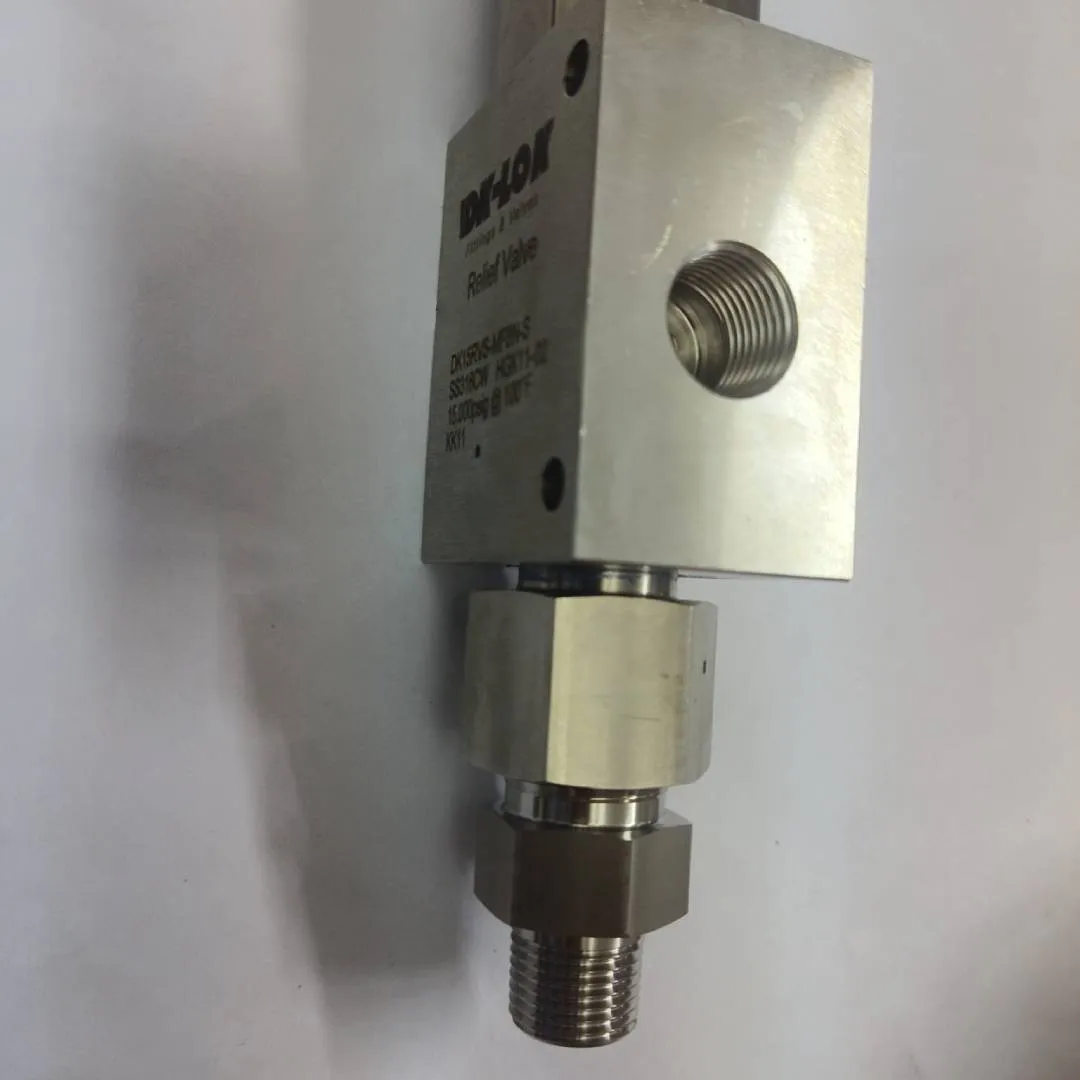

DK-LOK High-Pressure Relief Valve, Factory Set Pressure 10,000 psig, 1/2" Male x Female NPT Connections, SS316, DK15RVS-MF8N-S
All DK-LOK products
DK-LOK Safety/Pressure Relief Valves
All Safety/Pressure Relief Valves (every brand)
Technical overview
DK-LOK DK-RVS high pressure relief valve is a factory-set safety valve that discharges excess pressure when the system exceeds the set point, protecting instruments and downstream devices. This valve supplied is made in SS316 with 1/2" male x female NPT end connections (MF8N) and is factory set at 10,000 psig. It has FKM (Viton) seal & uses spring code KK11, which covers an adjustable spring range of 10,000–15,000 psig, allowing controlled setting within the spring range when required. The valve is sealed with a pressure tag after setting and is suitable for high-pressure hydraulic systems and test bench applications where stable relief and dependable reseal performance are required.
Key features

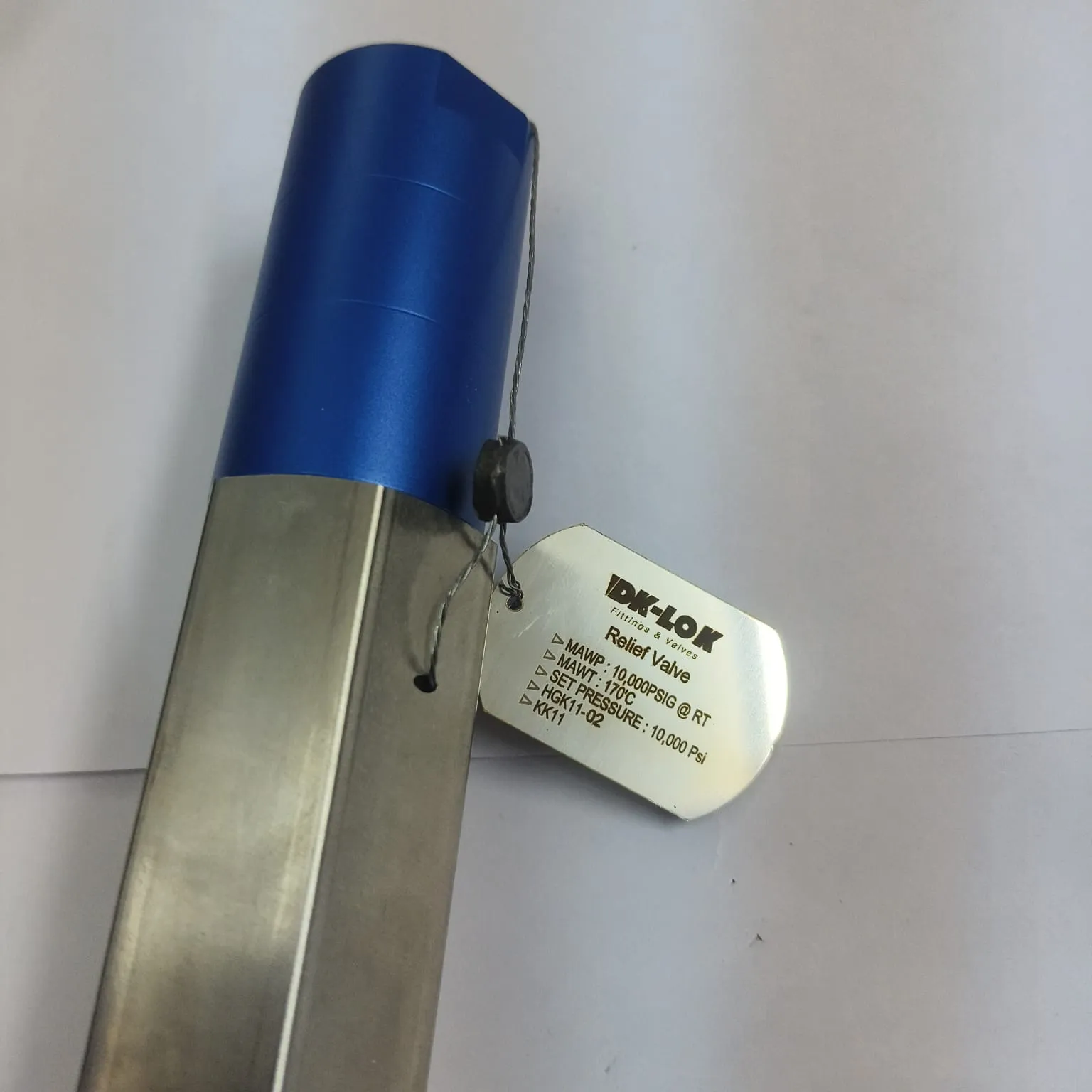

- Factory set and sealed with pressure tag
- Set cracking pressure 10,000 psig (factory set)
- Spring code KK11 with spring range 10,000–15,000 psig
- 1/2" male x female NPT end connections (MF8N)
- FKM (Viton) seal for reliable sealing
- High-pressure relief protection for instruments and downstream devices
- Durable stainless steel construction for demanding service
Applications
- High-pressure hydraulic systems
- Pressure test benches and calibration rigs
- Protection of pumps, gauges, and pressure instruments
- Process skids and high-pressure utility lines
Specifications
SeriesDK-RVS High Pressure (Factory Set)
Connection Size1/2" Male x Female NPT (MF8N)
Body Material316 stainless steel
Nominal Cracking Pressure10,000 psig
Cracking Pressure Range10,000–15,000 psig
AdjustmentAdjustable within spring range
Accuracy±8%
Inlet Port9/16" (with adapter)
Temperature RangeUp to 170°C
Seat DesignMetal-to-metal contact
Seal MaterialViton
Documentation
DK-LOK-V63-V66-Series-Relief-Valves
Download
