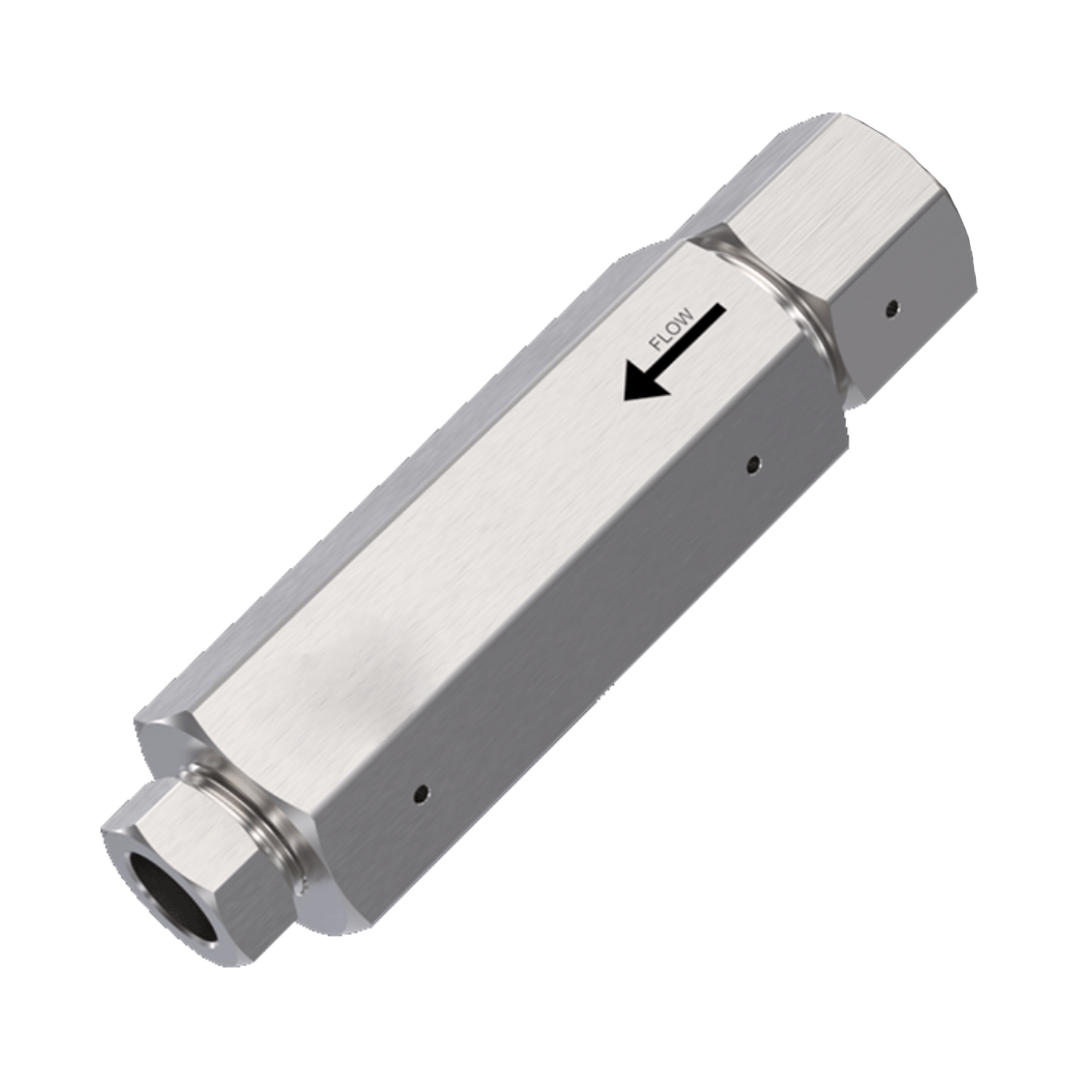

DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S

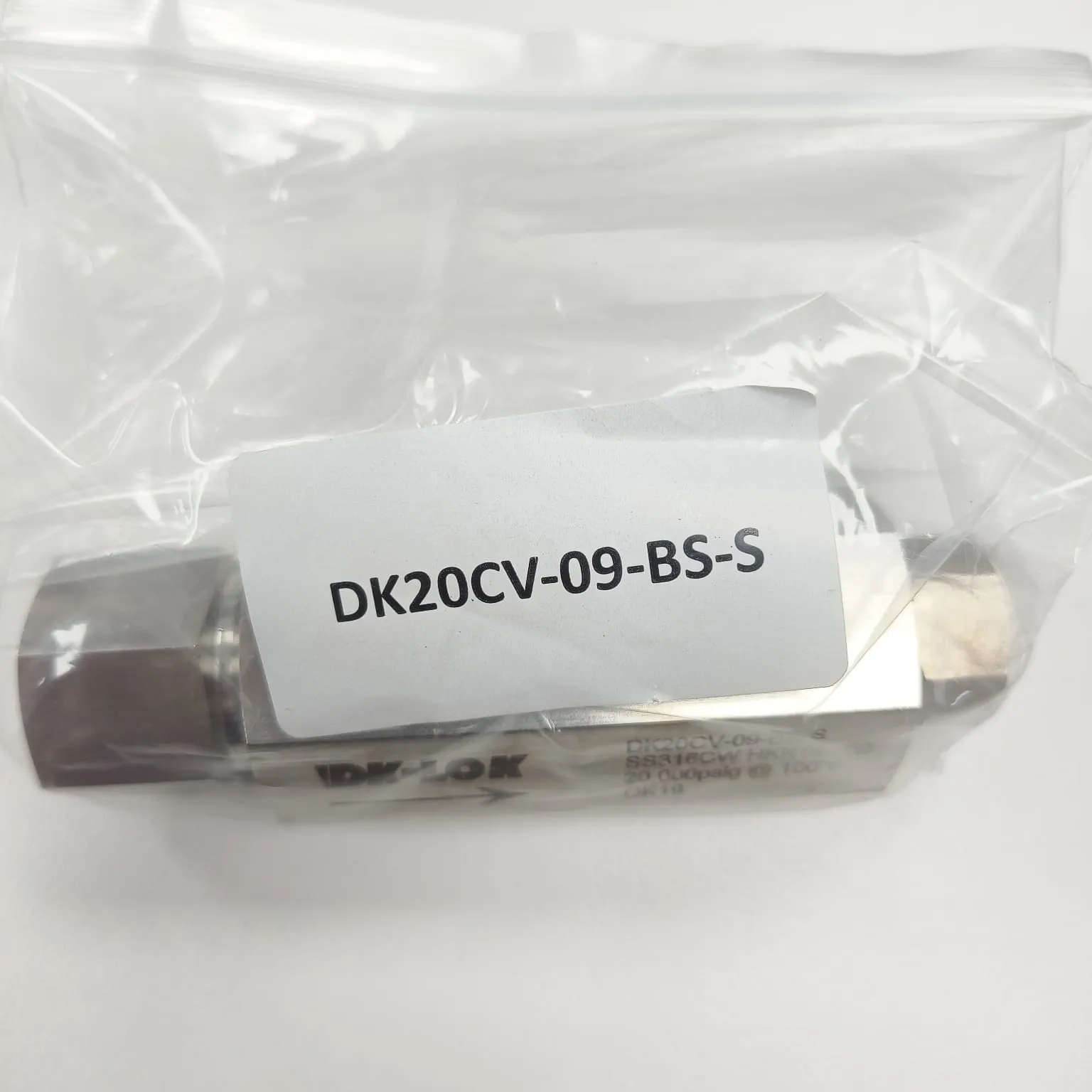

DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S - image 2

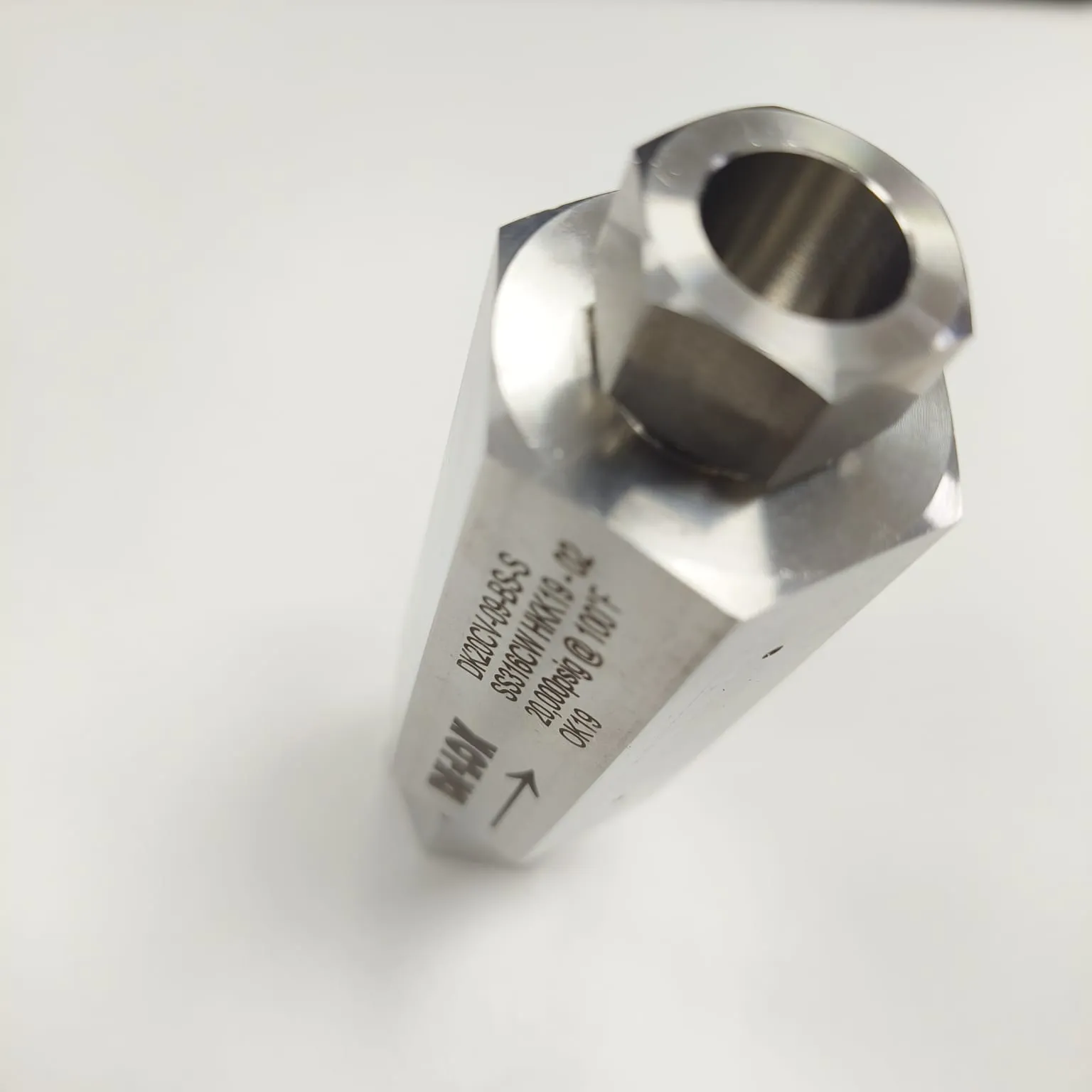

DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S - image 3

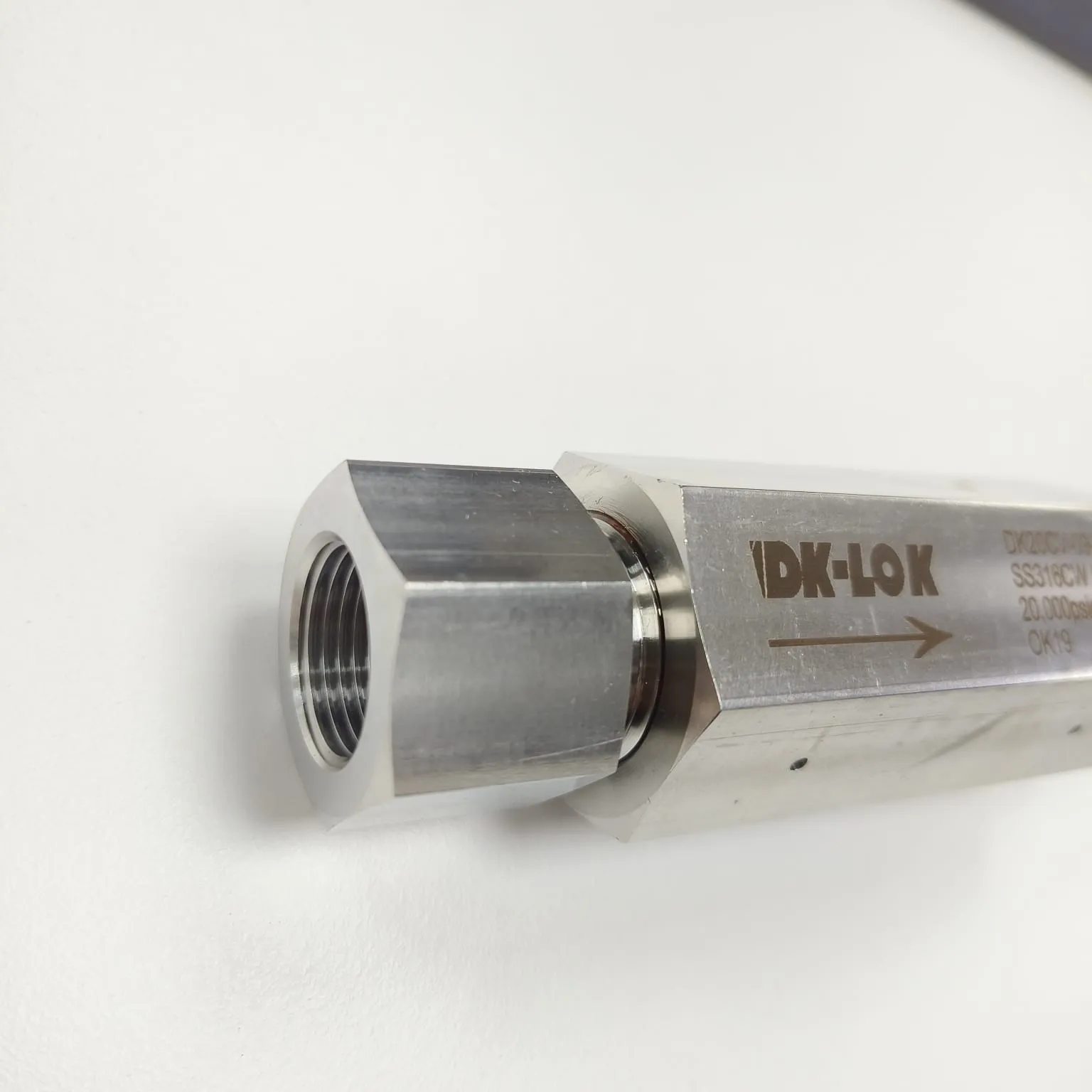

DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S - image 4

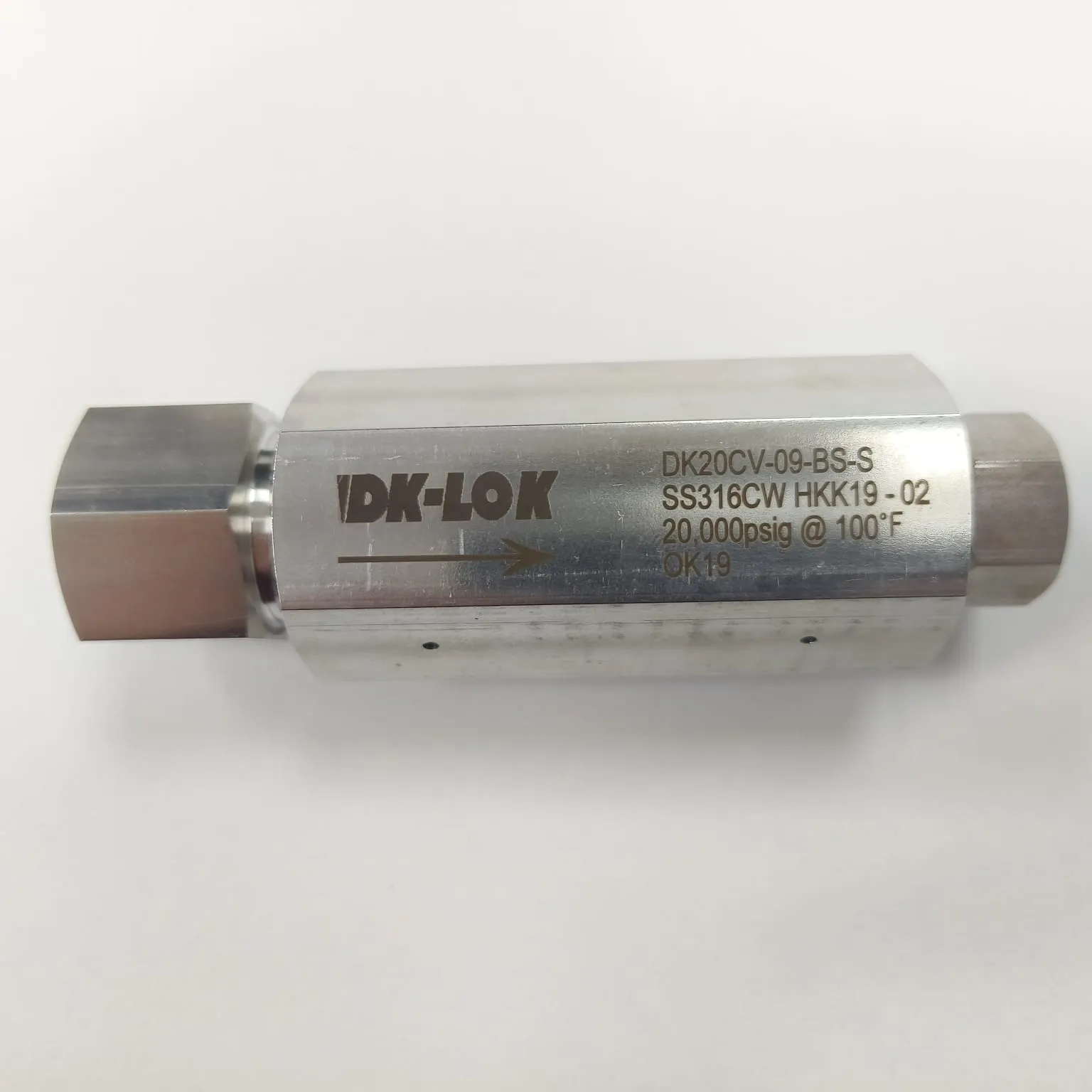

DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S - image 5
DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S video thumbnail
DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S

Mfg. Part No. : DK20CV-09-BS-S

SKU : DK-SSCV-20K-14

Brand :
DK-LOK

DK-LOK DK20CV-09-BS-S is a 20,000 psi high pressure ball type check valve for one-directional flow control in demanding fluid and gas systems. It is built for 9/16" high pressure female & tube connections and helps prevent reverse flow in test, injection, and process lines.

Serving Kuwait, Saudi Arabia and entire GCC with express delivery.

View all
Quantity
In Stock  ·  5 available
Shipping calculated at checkout. Log in for an estimate.
Description
Specifications
Downloads
Related products

Description

DK-LOK DK20CV-09-BS-S — DK-LOK High Pressure Check Valve, 20,000 psi, Ball Type, 9/16" MP Female Port x 9/16" Tube OD, SS316, DK20CV-09-BS-S. Stocked by Indspare for Kuwait and GCC delivery.

DK-LOK DK20CV-09-BS-S high pressure ball type check valve is designed for 20,000 psig service at 100°F and is configured with a 9/16 inch MP female port on one side and a 9/16 inch tube OD connection on the other side for compact, reliable installation in critical lines. The valve supports one-way flow and helps block reverse flow in high pressure gas and liquid service. Ball type construction uses a metal-to-metal tungsten carbide ball seat for repeated cycling, while the spring is stainless steel and the body is cold-worked stainless steel for strength and corrosion resistance in demanding applications.

Key Features

  • 20,000 psi class high pressure ball type check valve
  • Designed for dependable one-directional flow and reverse flow prevention
  • 9/16 inch MP female port x 9/16 inch tube OD connection
  • Cold-worked stainless steel body for strength and corrosion resistance
  • Ball type metal-to-metal seat supports repeated cycling service

Applications

  • High pressure test equipment and pressure control panels
  • Chemical injection and dosing systems
  • Hydraulic and gas service lines requiring backflow protection
  • Subsea and process systems using cone and thread connections
  • Instrumentation and utility circuits with one-way flow requirement

Downloads

DK-LOK High-Pressure Series Valves Catalog.pdf

pdf
Download

Specifications

Series
High Pressure Check Valve (DK-CV)
Valve Pattern
Ball Type Check Valve
Maximum Pressure
20,000 psig @ 100°F (38°C)
Connection Size
9/16" MP Female Port x 9/16" Tube OD
Orifice Size
5 mm
Body Material
316 stainless steel
Seat Design
Tungsten Carbide Ball Seat
Hex Size
35 mm
